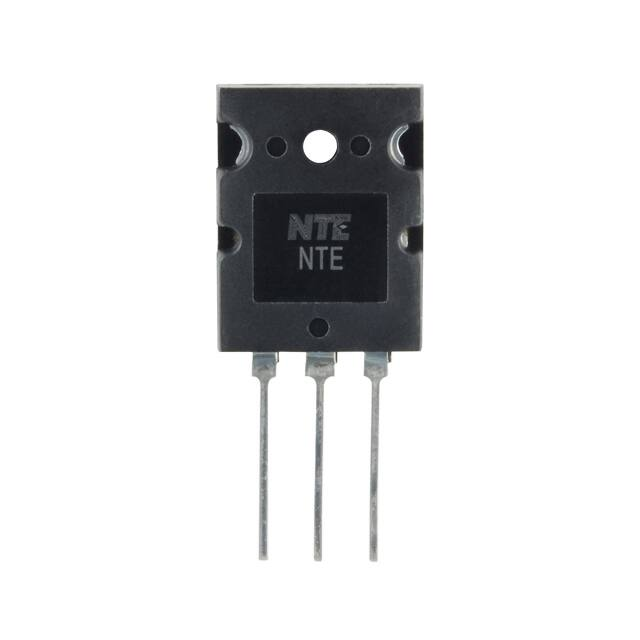

NTE2665

NTE2665 Silicon NPN Transistor Horizontal Deflection Output for High Resolution Display, Color TV Features: D High Voltage: VCBO = 1700V D Low Saturation Voltage: VCE(sat) = 3V Max D High Speed: tf = 0.1μs Typ Absolute Maximum Ratings: (TC = +25°C unless otherwise specified) Collector-Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700V Collector-Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V Emitter-Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V Collector Current, IC Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28A Pulsed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56A Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14A Collector Power Dissipation, PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220W Operating Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -55° to +150°C Note 1. Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reli‐ ability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the “Absolute Maximum Ratings”. Electrical Chracteristics: (TC = +25°C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Collector Cutoff Current ICBO VCB = 1700V, IE = 0 - - 1 mA Emitter Cutoff Current IEBO VEB = 5V, IC = 0 - - 100 μA Collector-Emitter Breakdown Voltage V(BR)CEO IC = 10mA, IB = 0 800 - - V DC Current Gain VCE = 5V, IC = 2A 22 - 48 VCE = 5V, IC = 8A 12.5 - 25.0 VCE = 5V, IC = 22A 4.5 - 7.5 hFE Collector-Emitter Saturation Voltage VCE(sat) IC = 22A, IB = 5.5A - - 3 V Base-Emitter Saturation Voltage VBE(sat) IC = 22A, IB = 5.5A - 1.0 1.5 V VCE = 10V, IC = 100mA - 2 - MHz VCB = 10V, IE = 0, f = 1MHz - 470 - pF Transition Frequency Collector Outptut Capacitance fT Cob Electrical Chracteristics (Cont'd): (TC = +25°C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit ICP = 10A, IB1 (end) = 1.4A, fH = 64kHz - 2.6 3.0 μs - 0.2 0.3 μs ICP = 8A, IB1 (end) = 1.2A, fH = 130kHz - 1.4 1.6 μs - 0.10 0.15 μs Switching Time Storage Time tstg Fall Time tf Storage Time tstg Fall Time tf .807(20.5) Max .205 (5.2) Max .236 (6.0) 1.024 (26.0) .130 (3.3) Dia .098 (2.5) .787 (20.0) .215 (5.45) .039(1.0) B C .023 (0.6) E Note: Pin2 connected to heat sink
