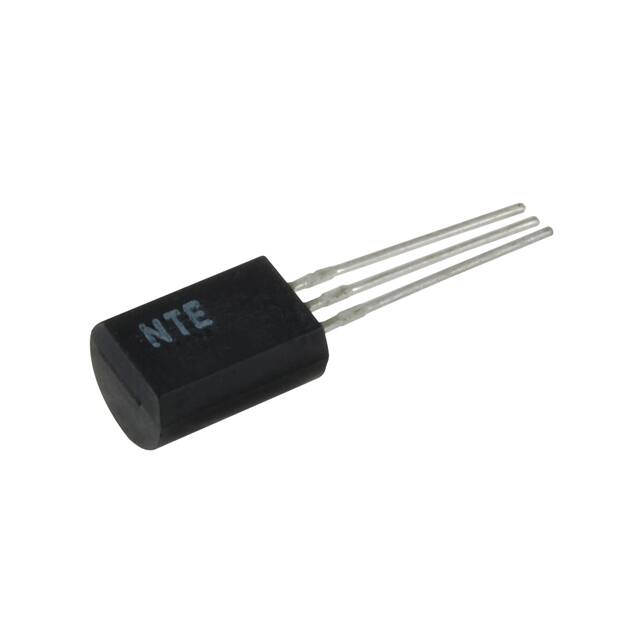

NTE31

NTE31 (NPN) & NTE32 (PNP) Silicon Complementary Transistors TV Sound Output, TV Vertical Output, AF Driver Output Features: D High Voltage: VCEO = 160V D High Continuous Collector Current Capability Applications: D Vertical Deflection Output & Sound Output Applications for Line Operated TV Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160V Collector–Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160V Emitter–Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1A Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mA Collector Power Dissipation, PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900mW Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55° to +150°C Electrical Characteristics: (TA = +25°C unless otherwise specified) Parameter Collector–Emitter Breakdown Voltage Symbol Test Conditions V(BR)CEO IC = 10mA, IB = 0 Min Typ Max Unit 160 – – V Collector Cutoff Current ICBO VCB = 150V, IE = 0 – – 1.0 µA Emitter Cutoff Current IEBO VEB = 6V, IC = 0 – – 1.0 µA DC Current Gain hFE VCE = 5V, IC = 200mA 100 – 200 VCE(sat) IC = 500mA, IB = 50mA – – 1.5 V 0.45 – 0.75 V 20 100 – MHz 15 50 – MHz – – 20 pF – – 35 pF Collector–Emitter Saturation Voltage Base–Emitter Voltage VBE Transition Frequency NTE31 fT VCE = 5V, IC = 5mA VCE = 5V, IC = 200mA NTE32 Collector Output Capacitance NTE31 NTE32 Cob VCB = 10V, IE = 0, f = 1MHz .339 (8.62) Max Seating Plane .026 (.66) Dia Max .512 (13.0) Min E C B .100 (2.54) .200 (5.08) Max .240 (6.09) Max
