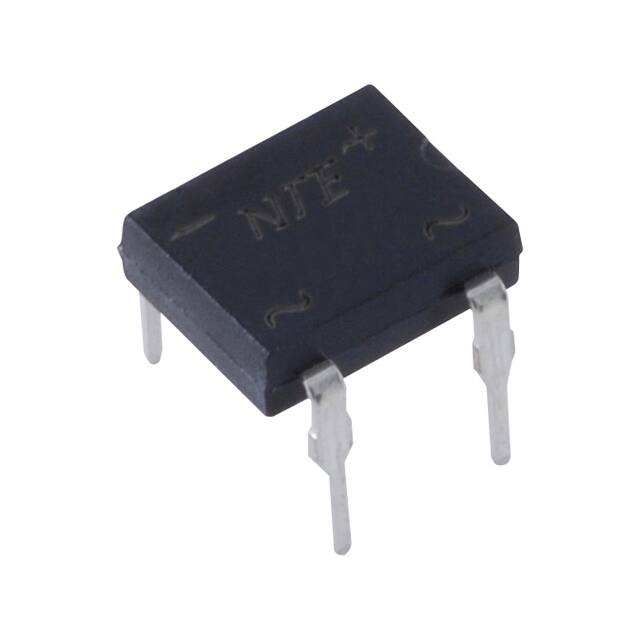

NTE5332

NTE5332 & NTE5334 Silicon Bridge Rectifier, 1A Features: D Glass Passivated Chip Junctions D Surge Overload Rating: 50A (Peak) D Ideal for Printed Circuit Board D High Temperature Soldering Guaranteed: +285°C/10 seconds at 5 lbs., (2.3kg) tension Maximum Ratings and Electrical Characteristics: (TA = +25°C unless otherwise specified, 60Hz, Resistive or Inductive Load.) Maximum Recurrent Peak Reverse Voltage, VRRM NTE5332 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE5334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V Maximum RMS, VRMS NTE5332 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 420V NTE5334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700V Maximum DC Blocking Voltage, VDC NTE5332 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE5334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V Maximum Average Forward Output Rectified Current (TA = +40°C), IO(AV) . . . . . . . . . . . . . . . . . . 1A Peak Forward Surge Current (Single Sine–Wave Superimposed on Rated Load), IFSM . . . . . . 50A Rating for Fusing (t < 8.35ms), I2t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10A2s Maximum Instantaneous Forward Voltage Drop (Per element at 1A), VF . . . . . . . . . . . . . . . . . . 1.2V Maximum Reverse Current at Rated DC Blocking Voltage Per Element, IR TA = +25°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10µA TA = +125°C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500µA Typical Junction Capacitance Per Element (Note 1), CJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25pf Typical thermal Resistance (Note 2), RΘJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +40°C/W Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +150°C Note 1. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts. Note 2. Thermal Resistance from Junction to Ambient mounted on P.C. Board with 0.5” x 0.5” (13mm x 13mm) Copper Pads. .380 (9.65) .100 (2.54) – + AC AC .260 (6.6) Max .200 (5.08) .300 (7.62) .055 (1.39) Max .205 (5.2) Seating Plane .130 (3.3) Max
