NTE5699

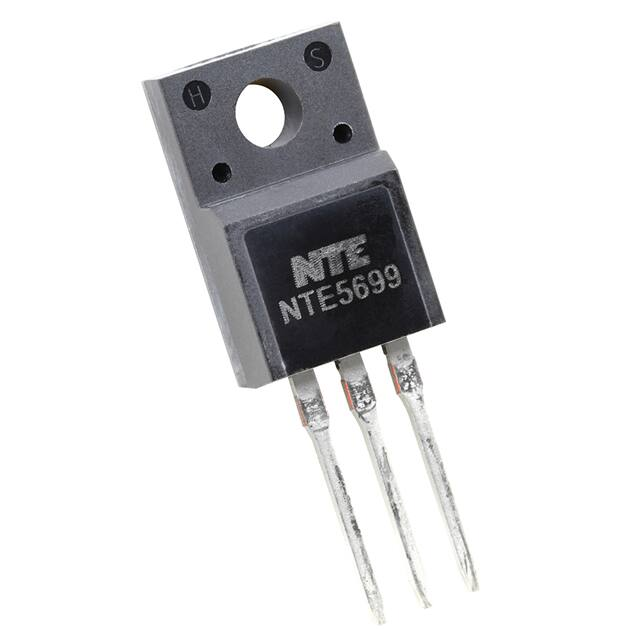

NTE5699 TRIAC − 800VRM, 25A TO220 Full Pack Features: D Off−State Voltages to 800 Volts D Gate Triggering Guaranteed in Four Modes Absolute Maximum Ratings: (TA = +25C unless otherwise specified) Repetitive Peak Off−State Voltage, VDRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V Repetitive Peak Reverse Voltage, VRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V RMS On−State Current (Full Sine Wave, TJ = +80C), IT(RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25A Non−Repetitive Peak On−State Current (tp = 8.3ms), ITSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250A Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to +125C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to +150C Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2C/W Electrical Characteristics: (TC = +25C unless otherwise specified) Parameter Min Typ Max Unit − − 0.01 mA − − 2.0 mA − − 0.01 mA − − 2.0 mA − − 50 mA II − − 50 mA III − − 50 mA IV − − 75 mA IGT = 0.1A, Gate Open − − 50 mA Repetitive Peak Reverse Current Symbol IRRM Test Conditions VR = VRRM TJ = +125°C Repetitive Peak Off−State Current IDRM VD = VRRM TJ = +125°C Gate Trigger Current IGT I Holding Current VD = 12V, RL = 30W IH Gate Trigger Voltage, All Quadrants VGT VD = 12V, RL = 30W − − 2 V On−State Voltage VTM IT = 35A, tp 2ms − − 1.85 V Rev. 12−19 MT2 MT1 Gate .177 (4.5) .394 (10.0) .108 (2.75) .169 (4.3) .335 (8.5) Isol .590 (15.0) MT1 MT2 G .150 (3.8) .532 (13.5) Min .100 (2.54) .090 (2.3)
