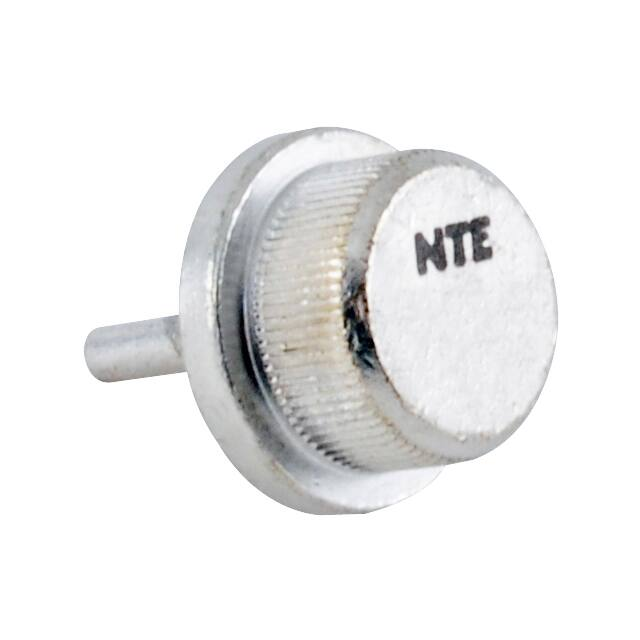

NTE5828 & NTE5829 Power Rectifier Diode, 50 Amp, Press Fit Description: The NTE5828 and NTE5829 are silicon power rectifier diodes in a press−fit type package designed for use in all medium−current applications or for higher current industrial alternators and chassis mounted power supply rectifiers. Features: D 50 Amp @ TC = +150C D 600 Amp Surge Capability D Rugged Construction D Available in Standard (NTE5828) and Reverse (NTE5829) Polarity Absolute Maximum Ratings: Peak Repetitive Reverse Voltage, VRRM NTE5828, NTE5829* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V Working Peak Reverse Voltage, VRWM NTE5828, NTE5829* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V DC Blocking Voltage, VB NTE5828, NTE5829* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V Non−Repetitive Peak Reverse Voltage, VRSM NTE5828, NTE5829* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850V RMS Reverse Voltage, VR(RMS) NTE5828, NTE5829* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 560V Average Rectified Forward Current (Single phase, resistive load, TC = +150C), IO . . . . . . . . . 50A Non−Repetitive Peak Surge Current (Surge applied at rated load conditions), IFSM . . . . . . . . . 600A Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65 to +195C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65 to +195C Maximum Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8C/W Note 1. Standard polarity is cathode to case, (*) indicated anode to case. Electrical Characteristics: Parameter Symbol Instantaneous Forward Voltage vF Reverse Current iR Test Conditions Min Typ Max Unit iF = 157A, TJ = +25C − 1.10 1.18 V iF = 50A, TJ = +25C − 0.95 1.00 V VRRM = 800V, TC = +25C − 0.05 0.2 mA VRRM = 800V, TC = +150C − 1.0 2.0 mA Rev. 7−19 .501 (12.73) Dia Min .505 (12.82) Dia Max .232 (5.9) Max .388 (9.85) Max Seating Plane .518 (13.15) Min .104 (2.63) Dia Max .629 (15.97) Dia Max
