NTE615

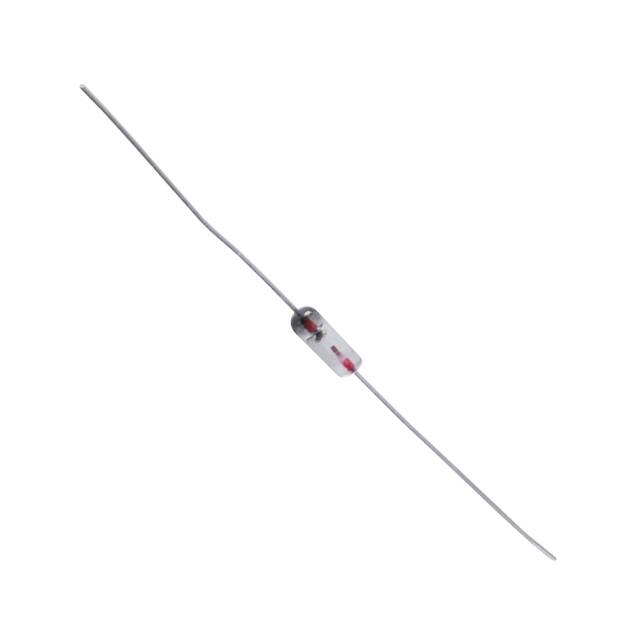

NTE615 Integrated Circuit Voltage Stabilizer for Electronic Tuner Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Zener Current, IZ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10mA Power Dissipation (TA = +75°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200mW Operating Ambient Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −20° to +75°C Storage Temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +125°C Electrical Characteristics: (IZ = 5mA, TA = +25°C unless otherwise specified) Parameter Symbol Stabilized Voltage Test Conditions VZ Stabilized Voltage Temperature Drift Dynamic Resistance ∆VZ/∆T TA = −20° to +75°C rz 1.000 (25.4) Min IAC = 0.5mA, f = 1kHz Min Typ Max Unit 30 − 35 V −1.0 0 +1.0 mV/°C − 10 25 Ω .300 (7.63) Max .107 (2.72) Dia Max .022 (.575) Dia Max Color Band Denotes Cathode
