NTE6154

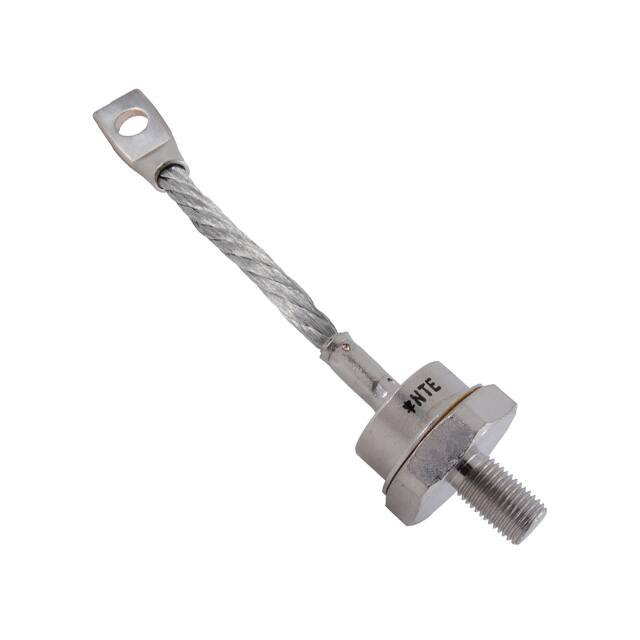

NTE6154 thru NTE6165 Silicon Industrial Rectifier 150 Amp, DO8 Description: The NTE6154 through NTE6165 power rectifiers are stud mounted DO8 type packages. Because the silicon junction is carefully fitted within a glass−to−metal hermetically sealed case, reliable operation is assured even with extreme humidity and under other severe environmental conditions. These power rectifiers are ideal for a broad range of commercial uses including power supplies, ultrasonic systems, inverters, welders, emergency generators, battery chargers, DC motors, and motor controls. Features: D Standard DO8 Type Package D Available in Standard (Cathode to Case) and Reverse (Anode to Case) Polarity D Recommended Stud Mounting Torque: 120in. lbs. Lubricated. Electrical Ratings: Peak Reverse Voltage, PRV NTE6154, NTE6155* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V NTE6158, NTE6159* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V NTE6162, NTE6163* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400V NTE6164, NTE6165* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600V Maximum Forward Current Single Phase Half Wave (TC = +125°C), IO . . . . . . . . . . . . . . . . . . . 150A Maximum Surge Current, Single Cycle, IFSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2100A Maximum Forward Voltage Drop (TC =+ 25°C, IO = 200A), VF . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1V Maximum Reverse Current (FCA @ +150°C), IR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5mA Maximum I2t for Fusing (less than 8ms) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18200A2Sec Reverse Power for Bulk Available . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0Joules Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65° to +200°C Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65° to +190°C Maximum Thermal Impedance (Junction−to−Case) . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.35°C/W Max * Indicates Anode to Case polarity Rev. 1−11 2.500 (63.5) Max .650 (16.5) Max .645 (16.4) Max 1.063 (27.0) Max 3/8−24 UNF−2A 4.625 (117.47) Seating Plane
