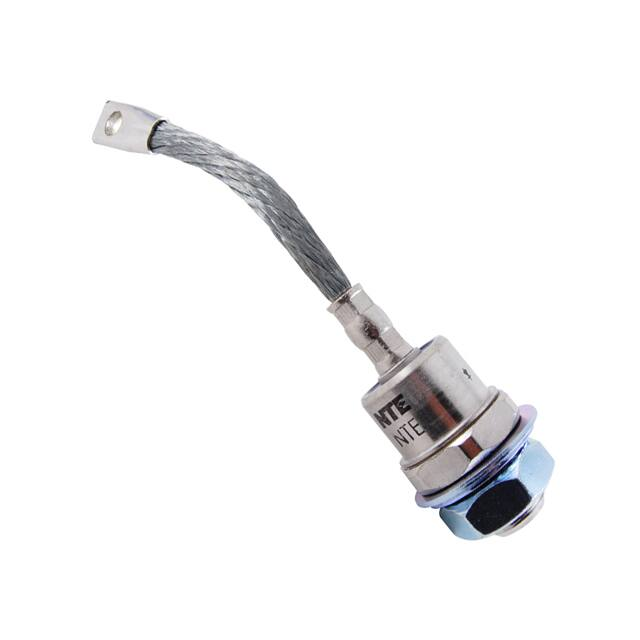

NTE6359

NTE6354 thru NTE6365 Silicon Power Rectifier Diode 300 Amp, DO−9 Features: D Alloy Diode D High Voltage Ratings up to 1600 Volts D High Surge Current Capabilities D Available in Cathode−to−Case (Standard) or Anode−to−Case (Reverse Polarity) Style Typical Applications: D AC/DC Converters D DC Power Supplies D Machine Tool Controls Ratings and Characteristics: Average Forward Current (TC = +756C Max), IF(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300A Maximum Repetitive Peak Reverse Voltage, VRRM NTE6354, NTE6355* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V NTE6356, NTE6357* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE6358, NTE6359* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000V NTE6362, NTE6363* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400V NTE6364, NTE6365* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600V Maximum Non−Repetitive Peak Reverse Voltage, VRSM NTE6354, NTE6355* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500V NTE6356, NTE6357* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 720V NTE6358, NTE6359* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1200V NTE6362, NTE6363* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1500V NTE6364, NTE6365* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700V Maximum Repetitive Peak Reverse Current (TJ = +150C), IRRM . . . . . . . . . . . . . . . . . . . . . . . 20mA Maximum Forward Surge Current, IFSM 50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4100A 60Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4250A Fusing Current, I2t 50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180KA2s 60Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165KA2s Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40 to +150C * Indicated Anode−to−Case polarity, Cathode−to−Case polarity is standard. Rev. 11−21 Electrical Specifications: Parameter Symbol Rating Unit Maximum Average Forward Current IF(AV) 180 sinusoidal condition, TC = +75C Max Test Conditions 300 A Maximum Peak One−Cycle Non−Repetitive Surge Current IFSM t = 10ms No voltage reapplied 4100 A 4250 A 100% VRRM reapplied 3800 A 3900 A 180000 A2s 165000 A2s 95000 A2s 90000 A2s 1800000 A2pt 1.80 V t = 8.3ms t = 10ms t = 8.3ms Maximum I2t I2t for Fusing t = 10ms t = 8.3ms t = 10ms t = 8.3ms No voltage reapplied Sinusoidal half wave, Initial TJ = TJ max 100% VRRM reapplied Maximum I2pt I2pt t = 0.1 to 10ms, no voltage reapplied Maximum On−State or Forward Voltage VFM Pk = 900A, TJ = +25C, tp = 10ms sine pulse Thermal−Mechanical Specifications: Parameter Symbol Maximum Operation Junction Temperature TJ Maximum Internal Thermal Resistance Junction−to−Case Mounting Torque Approximate Weight RthJC T Test Conditions Rating Unit −40 to + 150 C 0.2 K/W Non−lubricated threads 37 (327) Nm (inlb) Lubricated threads 28 (247) Nm (inlb) 10.2 (290) Oz. (g) DC operation wt 2.950 (75.0) Max .750 (19.0) Max .820 (21.0) Max 8.260 (210.0) Max 1.250 (31.75) Max 3/4−16 UNF−2A Seating Plane
