NTE639

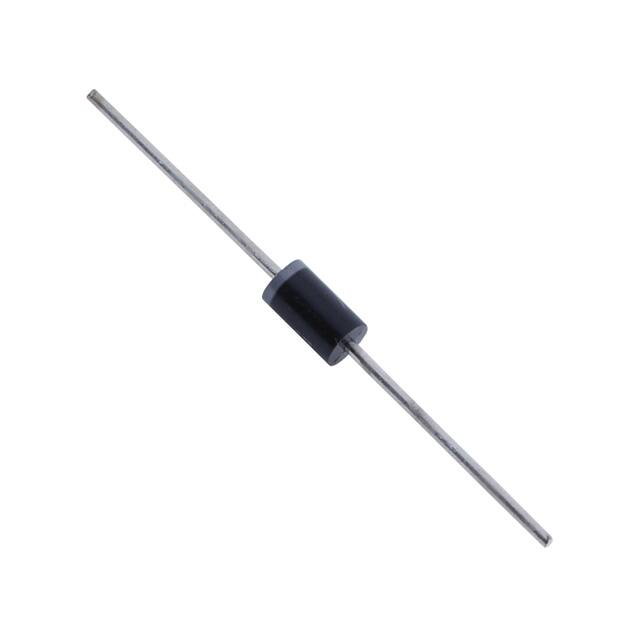

NTE639 General Purpose Silicon Rectifier High Voltage, Standard Recovery DO201AD Type Package Features: D Diffused Junction D Low Forward Voltage Drop D High Current Capability D High Reliability D High Surge Current Capability Maximum Ratings and Electrical Characteristics: (TA = +255C unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%) Maximum Peak Repetitive Reverse Voltage, VRRM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1300V Maximum Working Peak Reverse Voltage, VRWM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1300V Maximum DC Blocking Voltage, VR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1300V Maximum RMS Reverse Voltage, VR(RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 910V Maximum Average Rectified Output Current (.375” (9.5mm) Lead Length, TA = +755C), IO . . . . 3A Non−Repetitive Peak Forward Surge Current, IFSM (8.3ms Single Half Sine−Wave Superimposed on Rated Load) . . . . . . . . . . . . . . . . . . . . 200A Maximum Instantaneous Forward Voltage (IF = 3A), VFM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0V Maximum Peak Reverse Current (VR = 1300V), IRM TA = +255C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 A TA = +1005C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1005 A Typical Junction Capacitance (Note 1), Cj . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50pF Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −655 to +1255C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −655 to +1505C Typical Thermal Resistance, Junction−to−Ambient, RthJA (.375” (9.5mm) Lead Length, TA = +255C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205C/W Note 1. Measured at 1MHz and applied reverse voltage of 4V. 1.000 (25.4) Min .374 (9.5) Max .051 (1.3) Dia Max .208 (5.3) Dia Max Color Band Denotes Cathode
