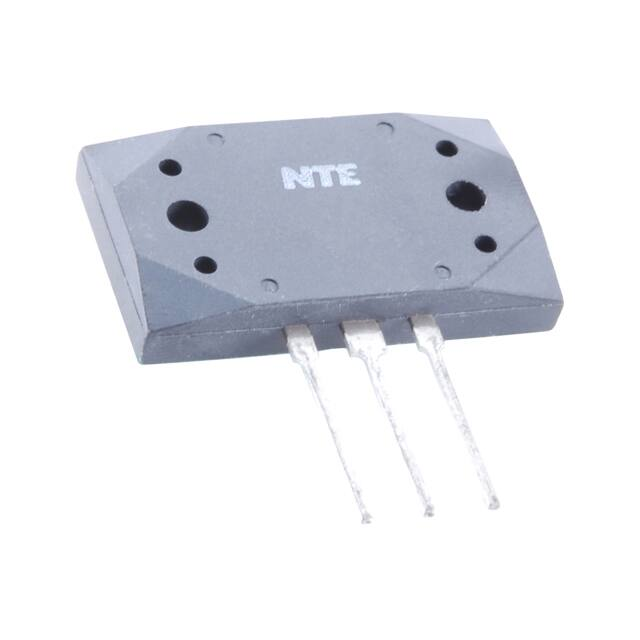

NTE93

NTE92 (NPN) & NTE93 (PNP) Silicon Complementary Transistors Hi−Fi Power Amp, Audio Output Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector−Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V Collector−Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V Emitter−Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15A Base Current, IB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5A Collector Power Dissipation (TC = +25°C), PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150W Junction Temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55° to +150°C Note 1. Matched complementary pairs are available upon request (NTE93MCP). Matched complementary pairs have their gain specification (hFE) matched to within 10% of each other. Electrical Characteristics: (TA = +25°C unless otherwise specified) Parameter Symbol Test Conditions Min Typ Max Unit Collector Cutoff Current ICBO VCB = 200V − − 0.1 mA Emitter Cutoff Current IEBO VBE = 6V − − 0.1 mA 200 − − V Collector−Emitter Breakdown Voltage DC Current Gain Collector−Emitter Saturation Voltage Transistion Frequency V(BR)CEO IC = 50mA hFE VCE = 4V, IC = 5A 30 120 − VCE(sat) IC = 10A, IB = 1A − 3 − V VCE = 12V, IE = 0.5A − 20 − MHz fT 1.430 (36.32) .961 (24.42) .133 (3.38) .843 (21.42) B C E .788 (20.02) Min .215 (5.48) .118 (3.0) .244 (6.2) Max Collector connected to Tab
