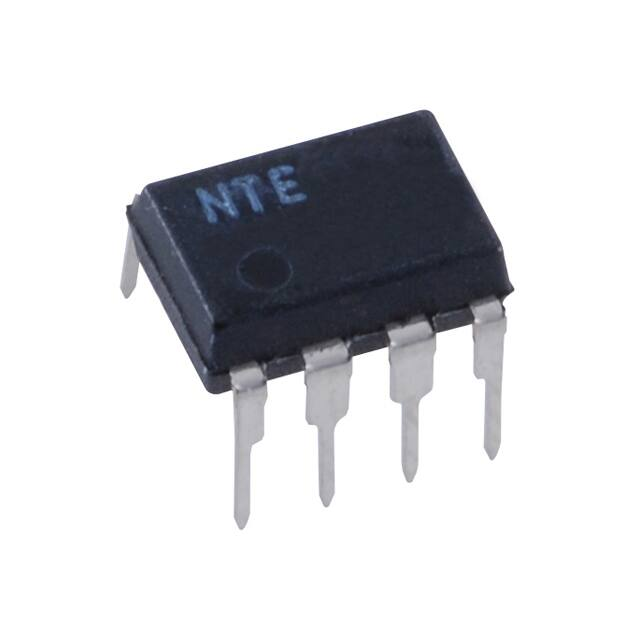

NTE996

NTE996 Linear Integrated Circuit Operational Transconductance Amplifier Description: The NTE996 is a programmable transconductance block intended to fulfill a wide variety of variable gain applications. This device has differential inputs and high impedance push–pull outputs. The NTE996 has high input impedance and its transconductance (gm) is directly proportional to the amplifier bias current (IABC). High slew rate together with programmable gain make the NTE996 an ideal choice for variable gain applications such as sample and hold, multiplexing, filtering, and multiplying, Features: D Slew Rate (Unity Gain Compensated): 50V/µs D Fully Adjustable Gain: 0 to gm • RL Limit D Extended gm Linearity: 3 Decades D Flexible Supply Voltage Range: ±2V to ±18V D Adjustable Power Consumption Absolute Maximum Ratings: DC Supply Voltage, VS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18V Power Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250mW Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5V Amplifier Bias Current, IABC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA DC Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +VS to –VS Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Indefinite Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0° to +70°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –65° to +150°C Lead Temperature (During Soldering, 10sec), TL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +260°C Electrical Characteristics: (VS = ±15V, IABC = 500µA, TA = +25°C unless otherwise specified) Test Conditions Min Typ Max Unit – 0.4 5.0 mV TA = 0° to +70°C, IABC = 5µA – 0.3 – 5µA ≤ IABC ≤ 500µA – 0.1 – mV Input Offset Current – 0.1 – µA Input Bias Current – 0.4 5.0 µA – 1.0 7.0 Parameter Input Offset Voltage Input Offset Voltage Charge TA = 0° to +70°C Forward Transconductance (gm) 6700 TA = 0° to +70°C Peak Output Current Peak Output Voltage Positive Negative 9600 13000 µmho 5400 – – – 5 – RL = 0 350 500 650 RL = 0, TA = 0° to +70°C 300 – – RL = 0, IABC = 5µA V RL = ∞, 5µA ≤ IABC ≤ 500µA +12.0 +14.2 – RL = ∞, 5µA ≤ IABC ≤ 500µA –12.0 –14.4 – Amplifier Supply Current µA – 1.1 – ∆VOFFSET/∆V+ – 20 150 ∆VOFFSET/∆V– – 20 150 Common Mode Rejection Ratio 80 110 – dB Common Mode Range ±12 ±14 – V Input Resistance 10 26 – kΩ Input Offset Voltage Sensitivity Positive Negative mA µV/V Magnitude of Leakage Current IABC = 0 – 0.2 100 nA Differential Input Current IABC = 0, Input = ±4V – 0.02 100 nA – 2.0 – MHz – 50 – V/µs Open Loop Bandwidth Slew Rate Unity Gain Compensated Pin Connection Diagram N.C. 1 8 N.C. Inverting Input 2 7 V (+) Non–Inverting Input 3 6 Output V (–) 4 5 Amplifier Bias Input 8 5 .256 (6.52) Max 1 4 .393 (10.0) Max .300 (7.62) .150 (3.81) .100 (2.54) .070 (1.77) Min .300 (7.62)
