CLF1G0035-100P;
CLF1G0035S-100P
Broadband RF power GaN HEMT
Rev. 4 — 24 February 2016
Product data sheet
1. Product profile
1.1 General description

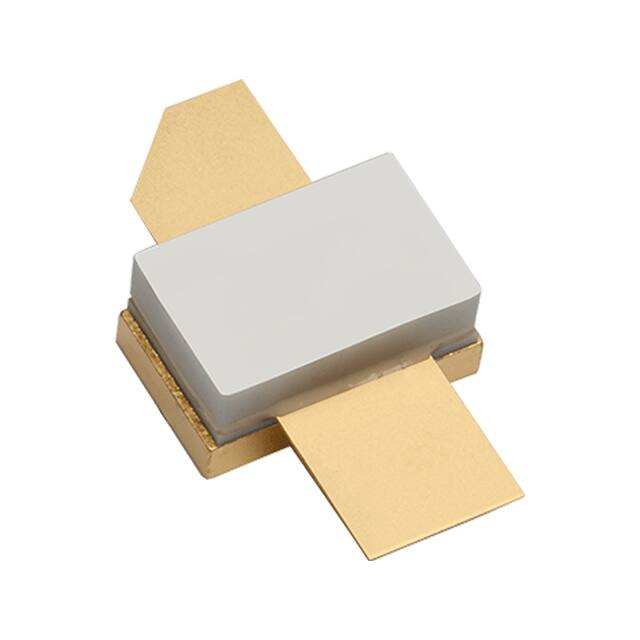

The CLF1G0035-100P and CLF1G0035S-100P are 100 W general purpose broadband
GaN HEMTs usable from DC to 3.5 GHz.
Table 1.
CW and pulsed RF application information
Typical RF performance at Tcase = 25 C; IDq = 330 mA; VDS = 50 V in a class-AB broadband demo
board.
Test signal
1-Tone CW
1-Tone pulsed [1]
[1]
f
PL
Gp
D
(MHz)
(W)
(dB)
(%)
2500
100
12.8
51
2600
100
12.7
52.4
2700
100
12.3
50
2800
100
11.7
49
2900
100
11.5
49
3000
100
10.5
47
2500
100
14.2
52
2600
100
14.4
54.4
2700
100
14.1
52.5
2800
100
13.7
51.5
2900
100
13.6
51.8
3000
100
12.7
50.1
Pulsed RF; tp = 100 s; = 10 %.
Table 2.
2-Tone CW application information
Typical 2-Tone performance at Tcase = 25 C; IDq = 330 mA; VDS = 50 V in a class-AB broadband
demo board.
Test signal
2-Tone CW
[1]
[1]
2-Tone CW; f = 100 kHz.
f
PL(PEP)
IMD3
(MHz)
(W)
(dBc)
2500
20
41.6
2600
20
43
2700
20
41.5
2800
20
41.3
2900
20
41.3
3000
20
40
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
1.2 Features and benefits
Frequency of operation is from DC to 3.5 GHz
100 W general purpose broadband RF Power GaN HEMT
Excellent ruggedness (VSWR = 10 : 1)
High voltage operation (50 V)
Thermally enhanced package
1.3 Applications
Commercial wireless infrastructure
(cellular, WiMAX)
Radar
Broadband general purpose amplifier
Public mobile radios
Industrial, scientific, medical
Jammers
EMC testing
Defense application
2. Pinning information
Table 3.
Pinning
Pin
Description
Simplified outline
Graphic symbol
CLF1G0035-100P (SOT1228A)
1
drain1
2
drain2
3
gate1
4
gate2
5
source
1
2
3
4
1
3
5
5
4
2
aaa-005775
[1]
CLF1G0035S-100P (SOT1228B)
1
drain1
2
drain2
3
gate1
4
2
3
5
4
gate2
5
[1]
1
1
2
aaa-005775
[1]
source
3
4
Connected to flange.
3. Ordering information
Table 4.
CLF1G0035-100P_1G0035S-100P
Product data sheet
Ordering information
Type number
Package
Name
Description
CLF1G0035-100P
-
flanged ceramic package; 2 mounting holes; 4 leads SOT1228A
CLF1G0035S-100P
-
earless flanged ceramic package; 4 leads
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
Version
SOT1228B
© Ampleon Netherlands B.V. 2016. All rights reserved.
2 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
4. Limiting values
Table 5.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
VDS
VGS
IGF
forward gate current
Tstg
storage temperature
Tj
junction temperature
Conditions
Min
Max
Unit
drain-source voltage
-
150
V
gate-source voltage
8
+3
V
-
36
mA
65
+150
C
-
250
C
external RG = 5
measured via IR scan
5. Thermal characteristics
Table 6.
Thermal characteristics
Symbol
Parameter
Conditions
Rth(j-c)
thermal resistance from junction to case
Tj = 200 C
[1]
[1]
Typ
Unit
1.02
K/W
Tj is measured via IR scan with case temperature of 85 C and power dissipation of 108.6 W.
6. Characteristics
Table 7.
DC characteristics
Tcase = 25 C; per section; unless otherwise specified.
Symbol Parameter
Conditions
Min
Typ
Max
Unit
V(BR)DSS drain-source breakdown voltage VGS = 7 V;
IDS = 12 mA
150
-
-
V
VGS(th)
gate-source threshold voltage
VDS = 0.1 V;
IDS = 12 mA
2.4
2
1.6
V
IDSX
drain cut-off current
VDS = 10 V; VGS = 3 V
-
8.8
-
A
gfs
forward transconductance
VDS = 10 V; VGS = 0 V
-
1.8
-
S
Table 8.
RF characteristics
Test signal: pulsed RF; f = 3000 MHz; tp = 100 s; = 10 %; RF performance at VDS = 50 V;
IDq = 330 mA; Tcase = 25 C; unless otherwise specified in a class-AB production circuit.
Symbol
Parameter
Conditions
Min
D
drain efficiency
PL = 100 W
43
49
-
%
Gp
power gain
PL = 100 W
10.3
12.5
-
dB
RLin
input return loss
PL = 100 W
-
6
-
dB
PL = 100 W
-
0.2
-
dB
Pdroop(pulse) pulse droop power
CLF1G0035-100P_1G0035S-100P
Product data sheet
Typ
Max
Unit
tr
rise time
PL = 100 W
-
5
-
ns
tf
fall time
PL = 100 W
-
5
-
ns
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
3 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
7. Application information
7.1 Demo circuit
50 mm
50 mm
R2
R1
C5
C2
C11
C4
C6
Q1
60 mm
C1
C10
C8
C7
C3
C9
C12
aaa-007980
Printed-Circuit Board (PCB) material: TMM6, r = 6.0, thickness = 0.635 mm, 28.35 grams copper
on each side.
See Table 9 for list of components.
Fig 1.
The broadband amplifier (2500 MHz to 3000 MHz) demo circuit outline
Table 9.
List of components
See Figure 1.
Component
Description
Value
C1, C10
multilayer ceramic chip capacitor 20 pF
C2, C3,C4, C7 multilayer ceramic chip capacitor 1 nF
CLF1G0035-100P_1G0035S-100P
Product data sheet
C5, C8
multilayer ceramic chip capacitor 4.7 F, 50 V
C6, C9
multilayer ceramic chip capacitor 10 F, 50 V
C11, C12
electrolytic capacitor
220 F, 50 V
Q1
transistor
-
R1
resistor
4.7
R2
resistor
0.01
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
Remarks
ATC800A
ATC700A
CLF1G0035-100P
LVK25R01, 2W, 1 % tolerance
© Ampleon Netherlands B.V. 2016. All rights reserved.
4 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
7.2 Application test results
Table 10. CW and pulsed RF application information
Typical RF performance at Tcase = 25 C; IDq = 330 mA; VDS = 50 V in a class-AB broadband demo
board.
Test signal
1-Tone CW
1-Tone pulsed
[1]
[1]
f
PL
Gp
D
(MHz)
(W)
(dB)
(%)
2500
100
12.8
51
2600
100
12.7
52.4
2700
100
12.3
50
2800
100
11.7
49
2900
100
11.5
49
3000
100
10.5
47
2500
100
14.2
52
2600
100
14.4
54.4
2700
100
14.1
52.5
2800
100
13.7
51.5
2900
100
13.6
51.8
3000
100
12.7
50.1
Pulsed RF; tp = 100 s; = 10 %.
Table 11. 2-Tone CW application information
Typical 2-Tone performance at Tcase = 25 C; IDq = 330 mA; VDS = 50 V in a class-AB broadband
demo board.
Test signal
2-Tone CW
[1]
CLF1G0035-100P_1G0035S-100P
Product data sheet
[1]
f
PL(PEP)
IMD3
(MHz)
(W)
(dBc)
2500
20
41.6
2600
20
43
2700
20
41.5
2800
20
41.3
2900
20
41.3
3000
20
40
2-Tone CW; f = 100 kHz.
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
5 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
7.3 Graphical data
The following figures are measured in a broadband amplifier demo board from 2500 MHz
to 3000 MHz.
7.3.1 1-Tone CW RF performance
aaa-005226
16
80
Gp
(dB)
aaa-005227
18
ηD
(%)
Gp
(dB)
Gp
ηD
(%)
Gp
16
12
60
50
60
ηD
14
8
40
4
20
40
(1)
(2)
(3)
12
10
30
20
ηD
8
0
2400
2500
2600
2700
2800
2900 3000
f (MHz)
0
3100
10
6
0
36
VDS = 50 V; IDq = 330 mA; PL = 100 W.
38
40
42
44
46
48
50
PL (dBm)
52
VDS = 50 V; IDq = 330 mA.
(1) f = 2500 MHz
(2) f = 2700 MHz
(3) f = 3000 MHz
Fig 2.
Power gain and drain efficiency as function of
frequency; typical values
CLF1G0035-100P_1G0035S-100P
Product data sheet
Fig 3.
Power gain and drain efficiency as a function
of output power; typical values
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
6 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
7.3.2 1-Tone pulsed RF performance
aaa-005228
18
80
Gp
(dB)
aaa-005229
18
Gp
ηD
(%)
16
14
60
Gp
(dB)
ηD
(%)
50
Gp
60
14
40
ηD
10
40
6
20
(1)
(2)
(3)
12
30
10
20
ηD
8
2
2400
2500
2600
2700
2800
0
3100
2900 3000
f (MHz)
10
6
0
36
VDS = 50 V; IDq = 330 mA; PL = 100 W.
38
40
42
44
46
48
50
PL (dBm)
52
VDS = 50 V; IDq = 330 mA.
(1) f = 2500 MHz
(2) f = 2700 MHz
(3) f = 3000 MHz
Fig 4.
Power gain and drain efficiency as function of
frequency; typical values
Fig 5.
Power gain and drain efficiency as function of
output power; typical values
7.3.3 2-Tone CW performance
aaa-005230
0
IMD3
(dBc)
-10
-20
-30
(3)
-40
(2)
-50
(1)
-60
0
25
50
75
100
125
PL(PEP) (W)
150
f = 100 kHz; VDS = 50 V; IDq = 330 mA.
(1) f = 2500 MHz
(2) f = 2700 MHz
(3) f = 3000 MHz
Fig 6.
CLF1G0035-100P_1G0035S-100P
Product data sheet
Third-order intermodulation distortion as a function of peak envelope power load
power; typical values
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
7 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
8. Test information
8.1 Ruggedness in class-AB operation
The CLF1G0035-100P and CLF1G0035S-100P are capable of withstanding a load
mismatch corresponding to VSWR = 10 : 1 through all phases under the following
conditions: VDS = 50 V; PL = 100 W (CW), f = 2500 MHz.
8.2 Load pull impedance information
Table 12. Typical impedance
Measured load-pull data half device. Typical values unless otherwise specified. IDq = 150 mA;
VDS = 50 V. ZS and ZL defined in Figure 7.
f
ZS [1]
ZL (maximum PL(M)) [2]
ZL (maximum D) [2]
(MHz)
()
()
()
500
6.4 + 4j
9.7 + 7j
10 + 5j
1000
1.9 + 2.2j
9.1 + 12.4j
10 + 6j
2000
1.9 2.9j
5 + 4.1j
6.6 + 1.4j
2500
2.1 6.3j
3.6 + 0.75j
4.5 0.4j
3000
2.5 9j
3.9 1.2j
5.8 1.8j
3500
2.9 14j
6.6 2j
5.8 3j
[1]
measured at gate1 and gate2
[2]
measured at drain1 and drain2
drain 1
gate 1
ZL
ZS
gate 2
drain 2
aaa-007981
Fig 7.
Definition of transistor impedance
ZS is the measured source pull impedance presented to the device. ZL is the measured
load pull impedance presented to the device.
CLF1G0035-100P_1G0035S-100P
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
8 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
8.3 Packaged S-parameter data
Table 13. S-parameter data half device
Small signal; typical values unless otherwise specified; VDS = 50 V; IDq = 150 mA; ZS = ZL = 50 .
f
(MHz)
S11
S21
S12
S22
Magnitude
(ratio)
Angle
(degree)
Magnitude
(ratio)
Angle
(degree)
Magnitude
(ratio)
Angle
(degree)
Magnitude
(ratio)
Angle
(degree)
500
0.82686
168.9
9.6028
67.238
0.01482
9.5809
0.48482
133.17
600
0.82717
171.62
7.7589
61.123
0.013844
12.463
0.52053
136.01
700
0.82892
173.81
6.4386
55.547
0.01282
14.415
0.55589
138.65
800
0.83183
175.69
5.4524
50.412
0.011783
15.413
0.58964
141.17
900
0.83572
177.39
4.6934
45.655
0.010764
15.358
0.62126
143.61
1000
0.84047
178.98
4.096
41.233
0.0097946
14.091
0.65063
145.96
1100
0.84604
179.5
3.618
37.11
0.008907
11.409
0.67787
148.22
1200
0.85244
178
3.2306
33.257
0.0081421
7.0907
0.70319
150.39
1300
0.8597
176.51
2.9136
29.648
0.0075495
0.99281
0.72687
152.47
1400
0.86785
175.01
2.6525
26.259
0.0071873
6.7932
0.74919
154.47
1500
0.87697
173.47
2.4362
23.07
0.0071125
15.766
0.77044
156.39
1600
0.88715
171.88
2.2569
20.062
0.0073641
25.034
0.79086
158.24
1700
0.89848
170.23
2.1083
17.22
0.007952
33.645
0.81069
160.04
1800
0.90446
168.57
1.972
14.461
0.0088014
40.908
0.8252
161.7
1900
0.90172
166.97
1.839
11.713
0.0098257
46.58
0.83233
163.2
2000
0.89927
165.33
1.7253
9.0465
0.011062
50.849
0.83898
164.63
2100
0.89713
163.64
1.6281
6.4503
0.012486
53.942
0.84528
166
2200
0.89532
161.88
1.5454
3.9129
0.014088
56.092
0.85135
167.32
2300
0.89386
160.04
1.4755
1.4231
0.015869
57.498
0.85727
168.6
2400
0.89277
158.1
1.4171
1.0309
0.01784
58.314
0.86313
169.84
2500
0.89205
156.03
1.3692
3.4611
0.020023
58.659
0.86899
171.05
2600
0.89096
153.83
1.3297
5.8933
0.022423
58.605
0.87436
172.23
2700
0.88445
151.58
1.2888
8.4222
0.024891
58.132
0.87579
173.35
2800
0.87762
149.17
1.2551
10.982
0.027588
57.364
0.87715
174.44
2900
0.87039
146.59
1.2281
13.588
0.030547
56.329
0.87847
175.5
3000
0.86268
143.8
1.2076
16.259
0.033808
55.045
0.8798
176.54
3100
0.85434
140.75
1.1934
19.013
0.037423
53.519
0.88118
177.56
3200
0.84525
137.4
1.1855
21.877
0.041451
51.748
0.88265
178.56
3300
0.83522
133.68
1.1839
24.877
0.045967
49.721
0.88425
179.53
3400
0.82403
129.52
1.1889
28.05
0.051058
47.418
0.88607
179.52
3500
0.80856
125.24
1.1872
31.326
0.056194
44.92
0.88556
178.56
3600
0.79077
120.6
1.1867
34.765
0.061705
42.174
0.88468
177.6
3700
0.77106
115.45
1.1896
38.412
0.067742
39.146
0.88406
176.66
3800
0.74926
109.7
1.1956
42.297
0.074348
35.812
0.88382
175.74
3900
0.72527
103.23
1.2044
46.449
0.081559
32.146
0.88412
174.82
4000
0.69912
95.917
1.2152
50.902
0.089394
28.121
0.88516
173.9
4100
0.67108
87.595
1.2274
55.686
0.097849
23.71
0.88717
172.98
CLF1G0035-100P_1G0035S-100P
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
9 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
Table 13. S-parameter data half device …continued
Small signal; typical values unless otherwise specified; VDS = 50 V; IDq = 150 mA; ZS = ZL = 50 .
f
(MHz)
S11
Magnitude
(ratio)
Angle
(degree)
Magnitude
(ratio)
Angle
(degree)
Magnitude
(ratio)
Angle
(degree)
Magnitude
(ratio)
Angle
(degree)
4200
0.64183
78.092
1.24
60.826
0.10688
18.891
0.89042
172.03
4300
0.6126
67.228
1.2515
66.34
0.11639
13.65
0.89516
171.03
4400
0.58534
54.856
1.2604
72.231
0.12622
7.9864
0.90159
169.95
4500
0.5628
40.93
1.2649
78.48
0.13615
1.9193
0.90984
168.75
4600
0.54816
25.608
1.2633
85.047
0.14588
4.5074
0.91983
167.38
4700
0.54433
9.3292
1.2542
91.862
0.15511
11.224
0.9313
165.79
4800
0.55279
7.214
1.2369
98.835
0.16356
18.138
0.94381
163.95
4900
0.57293
23.266
1.2115
105.86
0.17103
25.144
0.95677
161.82
5000
0.60219
38.234
1.1791
112.84
0.17745
32.138
0.96962
159.39
5100
0.63534
51.341
1.1406
119.47
0.18272
38.825
0.9807
156.67
5200
0.66527
61.779
1.0972
125.31
0.18683
44.756
0.98704
153.74
5300
0.69493
71.079
1.0544
130.96
0.1906
50.53
0.99214
150.52
5400
0.72195
78.947
1.0134
136.23
0.19423
55.963
0.99508
147.04
5500
0.74577
85.567
0.97537
141.15
0.19795
61.088
0.99579
143.28
5600
0.76759
91.49
0.94075
146
0.20193
66.161
0.99532
139.15
5700
0.78744
96.798
0.90986
150.8
0.20632
71.236
0.99371
134.58
5800
0.80548
101.57
0.88283
155.64
0.21125
76.374
0.99093
129.47
5900
0.82197
105.86
0.85961
160.58
0.21682
81.647
0.98694
123.72
6000
0.83722
109.72
0.84
165.71
0.22309
87.14
0.98164
117.18
CLF1G0035-100P_1G0035S-100P
Product data sheet
S21
S12
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
S22
© Ampleon Netherlands B.V. 2016. All rights reserved.
10 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
9. Package outline
Flanged LDMOST ceramic package; 2 mounting holes; 4 leads
SOT1228A
D
A
F
D1
w1
U1
B
q
C
w2
H1
1
B
c
C
2
w3
H
A
A
B
E1
p
U2
E
5
A
w1
3
A
B
4
w1
b
w4
e
0
w4
Q
5
A
B
0.380
10 mm
0.015
scale
Dimensions
Unit(1)
mm
max
nom
min
A
b
c
5.2
5.59
0.15
D
D1
E
e
16.66 16.69
E1
F
5.92 5.97 1.65
H
H1
18.29 12.19
p
Q(2)
3.43
2.21
max 0.205
inches nom
min 0.177
5.33
0.08
16.36 16.33
0.220
0.006
0.656 0.657
5.77 5.72 1.40
17.27 11.94
3.18
0.003
1.145 0.235
0.01 0.02 0.005
1.135 0.225
Note
1. Millimeter dimensions are derived from the original inch dimensions.
2. Dimension is measured 0.030 inch (0.76 mm) from body.
Outline
version
References
IEC
JEDEC
JEITA
sot1228a_po
European
projection
Issue date
12-06-11
13-05-16
SOT1228A
Fig 8.
w3
0.25 0.51 0.125
0.900
0.227 0.225 0.055 0.680 0.470 0.125 0.077
w2
28.83 5.72
0.233 0.235 0.065 0.720 0.480 0.135 0.087
0.644 0.643
w1
29.08 5.97
1.96
0.26
0.210
U2
22.86
6.60
4.5
U1
q
Package outline SOT1228A
CLF1G0035-100P_1G0035S-100P
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
11 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
Earless flanged LDMOST ceramic package; 4 leads
SOT1228B
D
A
F
5
D1
w1
U1
A
B
B
H1
w2
1
c
B
2
w3
A
B
E1
H
U2
E
A
3
4
w1
b
Q
e
w4
0
5
A
B
10 mm
scale
Dimensions
Unit(1)
mm
max
nom
min
A
b
c
5.2
5.59
0.15
D
D1
E
e
16.66 16.69
E1
F
H
H1
Q(2)
U1
w1
U2
5.92 5.97 1.65
18.29 12.19
2.21 17.40 5.97
5.77 5.72 1.40
17.27 11.94
1.96 17.15 5.72
max 0.205
inches nom
min 0.177
5.33
0.08
16.36 16.33
0.220
0.006
0.656 0.657
0.233 0.235 0.065 0.720 0.480
0.087 0.685 0.235
0.227 0.225 0.055 0.680 0.470
0.077 0.675 0.225
0.003
0.644 0.643
Note
1. Millimeter dimensions are derived from the original inch dimensions.
2. Dimension is measured 0.030 inch (0.76 mm) from body.
Outline
version
References
IEC
JEDEC
JEITA
sot1228b_po
European
projection
Issue date
13-05-15
13-05-23
SOT1228B
Fig 9.
w4
0.01 0.02 0.005 0.01
0.26
0.210
w3
0.25 0.51 0.125 0.38
6.60
4.5
w2
Package outline SOT1228B
CLF1G0035-100P_1G0035S-100P
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
12 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
10. Handling information
10.1 ESD Sensitivity
Table 14.
ESD sensitivity
ESD model
Class
Human Body Model (HBM); According JEDEC standard JESD22-A114F
1B [1]
[1]
Classification 1B is granted to any part that passes after exposure to an ESD pulse of 500 V, but fails after
exposure to an ESD pulse of 1000 V.
11. Abbreviations
Table 15.
Abbreviations
Acronym
Description
CW
Continuous Wave
EMC
ElectroMagnetic Compatibility
ESD
ElectroStatic Discharge
GaN
Gallium Nitride
HEMT
High Electron Mobility Transistor
VSWR
Voltage Standing-Wave Ratio
WiMAX
Worldwide Interoperability for Microwave Access
12. Revision history
Table 16.
Revision history
Document ID
Release date
Data sheet status
Change notice
Supersedes
CLF1G0035-100P_1G0035S-100P v.4
20160224
Product data sheet
-
CLF1G0035-100P_
1G0035S-100P#3
Modifications:
•
Table 8 on page 3: table updated
CLF1G0035-100P_1G0035S-100P#3
20150901
Objective data sheet
-
CLF1G0035-100P_
1G0035S-100P v.1
CLF1G0035-100P_1G0035S-100P v.2
20130620
Objective data sheet
-
CLF1G0035-100P_
1G0035S-100P v.1
CLF1G0035-100P_1G0035S-100P v.1
20121210
Objective data sheet
-
-
CLF1G0035-100P_1G0035S-100P
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
13 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
13. Legal information
13.1 Data sheet status
Document status[1][2]
Product status[3]
Definition
Objective [short] data sheet
Development
This document contains data from the objective specification for product development.
Preliminary [short] data sheet
Qualification
This document contains data from the preliminary specification.
Product [short] data sheet
Production
This document contains the product specification.
[1]
Please consult the most recently issued document before initiating or completing a design.
[2]
The term ‘short data sheet’ is explained in section “Definitions”.
[3]
The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status
information is available on the Internet at URL http://www.ampleon.com.
13.2 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. Ampleon does not give any representations or
warranties as to the accuracy or completeness of information included herein
and shall have no liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is intended
for quick reference only and should not be relied upon to contain detailed and
full information. For detailed and full information see the relevant full data
sheet, which is available on request via the local Ampleon sales office. In
case of any inconsistency or conflict with the short data sheet, the full data
sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
Ampleon and its customer, unless Ampleon and customer have explicitly
agreed otherwise in writing. In no event however, shall an agreement be valid
in which the Ampleon product is deemed to offer functions and qualities
beyond those described in the Product data sheet.
13.3 Disclaimers
Limited warranty and liability — Information in this document is believed to
be accurate and reliable. However, Ampleon does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information. Ampleon takes no responsibility for
the content in this document if provided by an information source outside of
Ampleon.
In no event shall Ampleon be liable for any indirect, incidental, punitive,
special or consequential damages (including - without limitation - lost profits,
lost savings, business interruption, costs related to the removal or
replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Notwithstanding any damages that customer might incur for any reason
whatsoever, Ampleon’s aggregate and cumulative liability towards customer
for the products described herein shall be limited in accordance with the
Terms and conditions of commercial sale of Ampleon.
Right to make changes — Ampleon reserves the right to make changes to
information published in this document, including without limitation
specifications and product descriptions, at any time and without notice. This
document supersedes and replaces all information supplied prior to the
publication hereof.
Suitability for use — Ampleon products are not designed, authorized or
warranted to be suitable for use in life support, life-critical or safety-critical
systems or equipment, nor in applications where failure or malfunction of an
CLF1G0035-100P_1G0035S-100P
Product data sheet
Ampleon product can reasonably be expected to result in personal injury,
death or severe property or environmental damage. Ampleon and its
suppliers accept no liability for inclusion and/or use of Ampleon products in
such equipment or applications and therefore such inclusion and/or use is at
the customer’s own risk.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. Ampleon makes no representation
or warranty that such applications will be suitable for the specified use without
further testing or modification.
Customers are responsible for the design and operation of their applications
and products using Ampleon products, and Ampleon accepts no liability for
any assistance with applications or customer product design. It is customer’s
sole responsibility to determine whether the Ampleon product is suitable and
fit for the customer’s applications and products planned, as well as for the
planned application and use of customer’s third party customer(s). Customers
should provide appropriate design and operating safeguards to minimize the
risks associated with their applications and products.
Ampleon does not accept any liability related to any default, damage, costs or
problem which is based on any weakness or default in the customer’s
applications or products, or the application or use by customer’s third party
customer(s). Customer is responsible for doing all necessary testing for the
customer’s applications and products using Ampleon products in order to
avoid a default of the applications and the products or of the application or
use by customer’s third party customer(s). Ampleon does not accept any
liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those given in
the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — Ampleon products are sold
subject to the general terms and conditions of commercial sale, as published
at http://www.ampleon.com/terms, unless otherwise agreed in a valid written
individual agreement. In case an individual agreement is concluded only the
terms and conditions of the respective agreement shall apply. Ampleon
hereby expressly objects to applying the customer’s general terms and
conditions with regard to the purchase of Ampleon products by customer.
No offer to sell or license — Nothing in this document may be interpreted or
construed as an offer to sell products that is open for acceptance or the grant,
conveyance or implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
14 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
Non-automotive qualified products — Unless this data sheet expressly
states that this specific Ampleon product is automotive qualified, the product
is not suitable for automotive use. It is neither qualified nor tested in
accordance with automotive testing or application requirements. Ampleon
accepts no liability for inclusion and/or use of non-automotive qualified
products in automotive equipment or applications.
In the event that customer uses the product for design-in and use in
automotive applications to automotive specifications and standards, customer
(a) shall use the product without Ampleon’ warranty of the product for such
automotive applications, use and specifications, and (b) whenever customer
uses the product for automotive applications beyond Ampleon’ specifications
such use shall be solely at customer’s own risk, and (c) customer fully
indemnifies Ampleon for any liability, damages or failed product claims
resulting from customer design and use of the product for automotive
applications beyond Ampleon’ standard warranty and Ampleon’ product
specifications.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
13.4 Trademarks
Notice: All referenced brands, product names, service names and trademarks
are the property of their respective owners.
Any reference or use of any ‘NXP’ trademark in this document or in or on the
surface of Ampleon products does not result in any claim, liability or
entitlement vis-à-vis the owner of this trademark. Ampleon is no longer part of
the NXP group of companies and any reference to or use of the ‘NXP’
trademarks will be replaced by reference to or use of Ampleon’s own
trademarks.
14. Contact information
For more information, please visit: http://www.ampleon.com
For sales office addresses, please visit: http://www.ampleon.com/sales
CLF1G0035-100P_1G0035S-100P
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 4 — 24 February 2016
© Ampleon Netherlands B.V. 2016. All rights reserved.
15 of 16
CLF1G0035(S)-100P
Broadband RF power GaN HEMT
15. Contents
1
1.1
1.2
1.3
2
3
4
5
6
7
7.1
7.2
7.3
7.3.1
7.3.2
7.3.3
8
8.1
8.2
8.3
9
10
10.1
11
12
13
13.1
13.2
13.3
13.4
14
15
Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General description . . . . . . . . . . . . . . . . . . . . . 1
Features and benefits . . . . . . . . . . . . . . . . . . . . 2
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Pinning information . . . . . . . . . . . . . . . . . . . . . . 2
Ordering information . . . . . . . . . . . . . . . . . . . . . 2
Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3
Thermal characteristics . . . . . . . . . . . . . . . . . . 3
Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Application information. . . . . . . . . . . . . . . . . . . 4
Demo circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Application test results . . . . . . . . . . . . . . . . . . . 5
Graphical data . . . . . . . . . . . . . . . . . . . . . . . . . 6
1-Tone CW RF performance. . . . . . . . . . . . . . . 6
1-Tone pulsed RF performance . . . . . . . . . . . . 7
2-Tone CW performance . . . . . . . . . . . . . . . . . 7
Test information . . . . . . . . . . . . . . . . . . . . . . . . . 8
Ruggedness in class-AB operation . . . . . . . . . 8
Load pull impedance information . . . . . . . . . . . 8
Packaged S-parameter data. . . . . . . . . . . . . . . 9
Package outline . . . . . . . . . . . . . . . . . . . . . . . . 11
Handling information. . . . . . . . . . . . . . . . . . . . 13
ESD Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . 13
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Revision history . . . . . . . . . . . . . . . . . . . . . . . . 13
Legal information. . . . . . . . . . . . . . . . . . . . . . . 14
Data sheet status . . . . . . . . . . . . . . . . . . . . . . 14
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contact information. . . . . . . . . . . . . . . . . . . . . 15
Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in section ‘Legal information’.
© Ampleon Netherlands B.V. 2016.
All rights reserved.
For more information, please visit: http://www.ampleon.com
For sales office addresses, please visit: http://www.ampleon.com/sales
Date of release: 24 February 2016
Document identifier: CLF1G0035-100P_1G0035S-100P
工商网监
湘ICP备2023018690号
