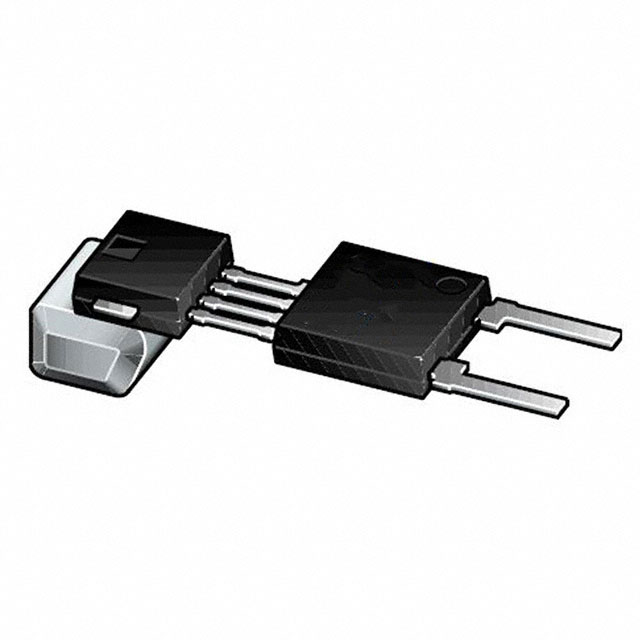

KMI23/2; KMI23/4 High performance rotational speed sensor 62 7 ( Rev. 1 — 28 April 2016 Product data sheet 1. Product profile 1.1 General description Based on the Anisotropic MagnetoResistive (AMR) effect, the KMI23/2 and the KMI23/4 detect the rotational speed of target wheels. The KMI23/2 is used with active target wheels (multipole encoders) and the KMI23/4 is used with passive target wheels (ferromagnetic gear wheels). This design delivers secure speed information over a wide range of speed, air gap and temperature. It delivers the speed information via a current protocol at the supply pins. CAUTION Do not press two or more products together against their magnetic forces and do not let them collide with each other. 1.2 Features and benefits          System in package Two wire current interface Square wave output signal (standard protocol) Large range of air gap Large range of operating terminal voltage Wide temperature range High ElectroStatic Discharge (ESD) protection Very low jitter Automotive qualified in accordance with AEC-Q100 Rev-G (grade 0) KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor 1.3 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit - 16 V VCC supply voltage normal operation mode; Tamb  170 C; referred to pin GND 6.8 Tamb ambient temperature normal operation mode 40 - +150 C ICCL LOW-level supply current 5.88 7.0 8.4 mA ICCH HIGH-level supply current 11.7 14.0 16.8 mA fH magnetic field strength frequency 0 - 2.5 kHz HM peak magnetic field strength KMI23/2 150 - - A/m KMI23/4 190 - - A/m after power-on; speed pulses latest after Ncy(H) magnetic cycles; see characteristics in Table 6 2. Pinning information Table 2. Pin Pinning Symbol Description Simplified outline KMI23/2 1 VCC supply pin 2 GND ground pin KMI23/4     3. Ordering information Table 3. Ordering information Type number Package Name Description Version KMI23/2 SIP2 plastic single-ended multi-chip package; magnetized ferrite magnet (3.8  2  0.8 mm); 4 interconnections; 2 in-line leads SOT453A KMI23/4 SIP2 plastic single-ended multi-chip package; magnetized ferrite magnet (4.25  5.2  3 mm); 4 interconnections; 2 in-line leads SOT453E KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 2 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor 4. Functional diagram 9FF 5(6(7 ,/ /',& 95(* 67$5783 %$1'*$3 DQDORJ VXSSO\ GLJLWDO VXSSO\ DGMXVWDEOH DPSOLILHU VPDUW FRPSDUDWRU 6(1625  2))6(7 &$1&(/$7,21 '$& ,+ '$& $'& ',*,7$/&21752/81,7 '$& 3',& 21&+,3 26&,//$725 *1'  DDD Fig 1. Functional diagram 5. Functional description The KMI23/2 and the KMI23/4 are high performance AMR speed sensors, which are dedicated to ABS applications. The difference between both product versions is the stimulating element in the application, which is a magnetized multipole encoder (KMI23/2) or a ferromagnetic gear wheel (KMI23/4). 5.1 System architecture The functional principles of KMI23/2 and KMI23/4 are shown in Figure 2 and Figure 3, respectively. For the KMI23/2, the magnetic poles lead to different magnetic stimuli at the AMR bridge. For the KMI23/4, flux bending at the gear wheel teeth generates different magnetic stimuli at the AMR bridge. In both cases, the electrical output voltage of the AMR bridge depends on the position of the sensor relative to the encoder. As a consequence, a rotating encoder generates a periodic output signal at the AMR bridge. The KMI23/2 and the KMI23/4 are sensitive to movement in the y direction in front of the sensor only. For definition of the coordinate axes, see Figure 4. KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 3 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor PRYLQJGLUHFWLRQRIWKHVHQVRU \ ELDVPDJQHW VHQVRU ] PDJQHWL]HG WDUJHW 1 6 6 1 1 6 6 1 1 6 DDD Fig 2. Functional principle of KMI23/2 JHDUZKHHO GLUHFWLRQ RI PRWLRQ PDJQHWLF ILHOGOLQHV PDJQHW ] \ VHQVRU D E F G PUD Fig 3. Functional principle of KMI23/4 WRSYLHZ WRSYLHZ   [ \  [  [ \ ] a. KMI23/2 [ ] DDD DDD Fig 4. VLGHYLHZ VLGHYLHZ b. KMI23/4 Definition of coordinate system The KMI23/2 and the KMI23/4 each comprise an AMR sensor chip, a Position Detector IC (PDIC) and a Line Driver IC (LDIC). The PDIC comprises the signal conditioning circuits, whereas the LDIC comprises the external interface and the supply for PDIC and AMR bridge (see Figure 1). The AMR sensor chip carries four MR elements arranged as a Wheatstone bridge. The AMR bridge converts the magnetic field, generated by the encoder rotation, into an electrical output signal. This signal is nearly sinusoidally with time. KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 4 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor The LDIC chip is fabricated using a robust high-voltage process. This measure shields the other two dies from the harsh electrical environment on the supply line VCC. The constant current source IL provides the LOW-level output signal of typically 7 mA and delivers the supply current for the whole sensor system. Thus from IL the supply voltages for the PDIC, the AMR bridge and the current source block IH are derived. The switchable current source IH also delivers typically 7 mA. Hence, if IH is active, the total supply current is at its HIGH level of typically 14 mA. With this current interface, safe sensor signal transport to the Electronic Control Unit (ECU) using only a two-wire cable is provided. Within the PDIC, the differential output voltage of the AMR sensor bridge leads as speed signal into an analog signal chain. It comprises an amplifier with adjustable gain, followed by an offset cancelation stage and finally, a smart comparator having adjustable hysteresis levels. The latter converts the sinusoidal sensor signal into a rectangular output signal, which controls the switchable current source IH. Hence, the supply current switches between its LOW and HIGH values of typically 7 mA and 14 mA at the magnetic field strength frequency. Thus, the supply current as an output signal allows measuring the rotational speed of the encoder wheel. A peak detector within the digital control unit on the PDIC measures the amplitude and the offset of the sensor signal. The peak detector has a resolution of 8 bit. This feature allows the digital control unit on one hand, to eliminate the signal offset. This function is realized with a dedicated Digital-to-Analog Converter (DAC). The DAC has a resolution of 12 bits. On the other hand, it allows the digital control unit to optimize amplifier gain and comparator hysteresis settings according to the actual signal amplitude. Due to these measures, the sensor system can handle a wide amplitude range. This amplitude range in turn allows the KMI25/2 and KMI25/4 to handle a wide range of air gaps between sensor and encoder. The hysteresis of the smart comparator prevents erroneous multiple switching due to mechanical vibrations of the encoder wheel. A further important feature of the smart comparator is, that it switches its output level always at the zero-crossing of its input signal. Thus, the phase of its rectangular output signal is independent of its hysteresis setting and independent of the gain setting at the amplifier. For this reason, adjustments of gain and hysteresis in the signal chain avoid the introduction of jitter into the sensor output signal. The whole signal chain works even under DC conditions, therefore having true zero Hertz capability. 5.2 Speed signal conditioning algorithm The digital control unit (see Figure 1) controls the speed signal conditioning algorithm. The general purpose is, to control the analog blocks in the signal channel to optimize signal conditions at the analog comparator input. Therefore, the algorithm characterizes the sensor input signal, as observed within the digital domain. As a result, the algorithm adjusts the amplifier gain, cancels the signal offset and sets the comparator hysteresis. To fulfill this task, the digital control unit provides switching between different operating modes. Depending on frequency and amplitude of the input signal, one of the following modes is selected: • • • • KMI23_2_4 Product data sheet Start-up mode Adaptation mode Normal mode Low-speed mode All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 5 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor Figure 5 depicts a flow chart summarizing the most important features of each mode and the conditions for switching between modes. For each transition, all of the listed conditions must be satisfied (logical AND), unless the notation ‘or’ is used. The latter indicates a logical OR connection. In this case, the transition is performed if any of the listed conditions is satisfied. UHVHW VWDUWXS PRGH ā6HDUFKIRUVLJQDOSHDNVDIWHUSRZHURQ VHDUFKIRUVLJQDOSHDNVRWKHUZLVH ā6LQJOHRIIVHWDGMXVWPHQWRQO\IRUODUJHRIIVHW DQGVPDOODPSOLWXGH ā)L[HGJDLQWHPSHUDWXUHGHSHQGHQWK\VWHUHVLV ā)UHTXHQF\+] ā1RUPDOPRGHQRWHQWHUHGSUHYLRXVO\ IUHTXHQF\!+]LHSHDNV IRXQGLQOHVVWKDQVV ā&RPSHQVDWHRIIVHWWRPD[LPXP “/6% ā$PSOLWXGHGHSHQGHQWJDLQ DGMXVWPHQW DGDSWDWLRQ PRGH ā)UHTXHQF\!+] ā$PSOLWXGH•RISUHYLRXV YDOXHLQQRUPDOPRGH ā*DLQDGMXVWPHQWFRPSOHWHG ā2IIVHWUHGXFHGWR”/6% ā)UHTXHQF\!+] ā)UHTXHQF\+] ā1RUPDOPRGHHQWHUHG SUHYLRXVO\ 2IIVHW!RIDPSOLWXGHRU QR]HURFURVVLQJGHWHFWHGGXULQJ SUHYLRXVVLJQDOSHULRG QRUPDO PRGH ā$PSOLWXGHGHSHQGHQWJDLQDGMXVWPHQW ā$PSOLWXGHGHSHQGHQWK\VWHUHVLVDGMXVWPHQW ā6ORZRIIVHWFRUUHFWLRQ ORZVSHHG PRGH IUHTXHQF\+] ā6HDUFKIRUVLJQDOSHDNV ā*DLQDQGRIIVHWYDOXHVNHSWIURPSUHYLRXVPRGH ā+\VWHUHVLVUHGXFHGWRRISUHYLRXVYDOXH LQQRUPDOPRGH DDD Fig 5. Flow chart The following sections describe the implemented measurement functions for offset, amplitude and frequency as well as each operation mode. 5.2.1 Peak detector The peak detector is part of the digital control unit. It samples the AMR input signal with a resolution of 8 bits and detects the positive and negative peak values. From these values, it calculates the signal offset and the signal amplitude. The offset is calculated as half of KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 6 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor the sum of opposite signal peaks. The amplitude is calculated as difference of opposite signal peaks. Principally, a peak is detected, where the difference between succeeding signal samples switches its sign. In order to cope with superimposed noise and spurious spikes, the peak detector uses dedicated filter algorithms. 5.2.2 Frequency measurement As pointed out above, the peak detector calculates the signal offset. This offset level is the ‘zero level’ of the sensor signal. Whenever the sensor signal crosses this ‘zero level’, the comparator switches its state. If a zero-crossing with a falling edge is detected first, then frequency measurements are always made between falling edges. If a zero-crossing with a rising edge is detected first, then frequency measurements are always made between rising edges. Thus always a complete signal period is used and the result is independent of any duty cycle shifts. The frequencies occurring in start-up mode and low-speed mode are very low. Thus, an indirect frequency measurement is done here by counting the number of signal peaks within 2 seconds. 5.2.3 Start-up mode Usually the system enters this mode after power-on reset. At power-on, nothing is known about the input signal properties. The function of the speed control algorithm in start-up mode is to characterize the input signal and produce estimates of its amplitude, offset and frequency. Therefore, once the sensor element has been supplied with voltage, all circuit parts are set into defined initial conditions. These conditions comprise fixed amplifier gain and fixed (but temperature-dependent) comparator hysteresis. Furthermore, there is still no offset cancelation. This procedure may take up to 1 ms. These initial conditions are used to process the sensor bridge signal in the first instant. Thereafter the system is ready to react on the input voltage. If the first speed signal samples are near the positive or negative signal range limit, a large offset is assumed. In this case, an initial offset correction with a predefined level is executed. This function is applied to speed up the signal recognition in case of small signals superimposed on a large offset. Generally, the ‘start-up’ performance strongly depends on the signal amplitude and its offset. Because of the possibility of missing the second zero-crossing, the first zero-crossing of the input signal is not used. So under normal conditions (offset is relatively small w.r.t. amplitude), the sensor issues the first speed pulse at its output with the second zero-crossing of the analog input signal. As there is no offset regulation during start-up mode, the speed pulses issued during this mode may be shifted in time w.r.t. the zero-crossings of the sensor signal. As a consequence, the duty cycle of the output signal may not yet fulfill the specification, if an external magnetic offset is present. For small amplitudes and large offsets, no zero-crossings may be detected during start-up mode until offset compensation is performed in adaptation mode. If the peak detector has found 8 signal peaks within 4 seconds, start-up mode is left and adaptation mode is entered. However, if start-up mode has been entered coming from adaptation mode, then 4 signal peaks within 2 seconds cause reentering adaptation mode. KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 7 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor 5.2.4 Adaptation mode The main purpose of adaptation mode is to optimize the signal conditions by adjusting gain and offset, based on the estimates made in start-up mode. After standstill or in a sudden change of signal offset, adaptation mode is entered as well. In adaptation mode, offset compensation and gain setting are applied once per signal cycle. Offset compensation first takes place in correcting 7⁄8 of the calculated offset per step. It continues until the residual offset is below a threshold of 2 Least Significant Bit (LSB). An exception occurs, if the remaining offset is larger than five times the signal amplitude. In this case, the correction of that step is limited to the remaining offset level. In order to avoid the generation of erroneous additional zero-crossings, the activity of the offset compensation depends on the previous signal slope. Therefore, a positive offset is only corrected after a falling slope and a negative offset is only corrected after a rising slope. If necessary, the amplifier gain is doubled or halfed, until the digital signal amplitude is between 25 % and 75 % of its range. The temperature-dependent hysteresis level at the comparator input is kept at the same percentage level w.r.t. to the signal range as in the previous mode. The number of steps required for the adaptation process depends on the relation between offset and signal amplitude. Small amplitudes coming with a large offset require a maximum number of steps. In such cases, the first zero-crossing may not be detected in start-up mode, but in adaptation mode. As in start-up mode the second zero-crossing could be missed under certain conditions also in adaptation mode. Therefore, in order to ensure an uninterrupted pulse train, also in adaptation mode the first detected zero-crossing is not used. Hence under normal conditions, the first output signal is issued at the second detected zero-crossing. The goal of the adaptations is a signal amplitude of 25 % to 75 % and an offset of maximal 2 LSB. If the frequency is greater than 1 Hz, the system then switches from adaptation mode to normal mode. If the frequency falls below 1 Hz, the previous mode is entered again (start-up mode or low-speed mode). 5.2.5 Normal mode Normal mode is entered when the necessary adjustments to the gain and offset have been completed in adaptation mode. The goal of the normal mode is, to keep duty cycle and jitter of the output signal within specification. During normal mode, amplifier gain is still adapted proportional to signal amplitude as in adaptation mode. Thus, the input signal amplitude is between 25 % and 75 % of the signal range. The hysteresis control, which in start-up mode and adaptation mode is carried out depending on temperature, is now carried out depending on signal amplitude. Applied hysteresis levels are at 23 % to 52 % of the amplitude. Due to this measure, the hysteresis levels are high enough to provide a high level of immunity to noise and signal disturbances. On the other hand, the hysteresis is small enough to maintain continued comparator switching, even when offset jumps occur. For very small amplitudes, the hysteresis is not set below a fixed minimum level and the ratio hysteresis/amplitude can become greater than 52 %. KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 8 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor In adaptation mode, the offset has been reduced down to maximum 2 LSB using few coarse compensation steps. In normal mode however, the goal is to reach and maintain zero offset by using a slow offset correction. For this purpose, the offset compensation level is changed at a limited rate versus time, as long as a residual offset is detected. Due to this slow offset correction, duty cycle deviations and jitter of succeeding output pulses are minimized. If however offset changes at a faster rate than the slow correction can compensate, an increasing residual offset occurs. The residual offset causes a shift of the duty cycle o at the output signal. In order to prevent o from leaving the specified window (see characteristics in Table 6) or even loss of signal, the system switches back to adaptation mode. If the residual offset has become greater than 50 % of the amplitude, the system switches to adaptation mode. In adaptation mode, the remaining offset is minimized again, as described in Section 5.2.4. If the signal frequency drops below 1 Hz, the system also leaves normal mode and enters low-speed mode. 5.2.6 Low-speed mode If during adaptation mode or normal mode, the frequency drops below 1 Hz low-speed mode is entered. If the vehicle is stationary, no signal peaks can be detected in order to calculate amplitude and offset. Thus, the algorithms for offset compensation and adaptation of gain and hysteresis cannot be applied. Therefore, low-speed mode acts as a standby mode. In this mode, some of the normal functions of the algorithms are suspended until the frequency returns above 1 Hz. The previously calculated offset and gain setting are maintained, until the system returns to adaptation mode. The hysteresis thresholds of the comparator are lowered to 55 % of their previous value (if not the lowest hysteresis was already present). This measure allows an amplitude reduction up to 44 % without loss of comparator switching. A special case is ‘signal clipping’ during low-speed mode. Signal clipping means, that the sensor signal reaches the positive or negative edge of the signal range. In this case, slow offset compensation, similar to normal mode is applied. The goal of this measure is to prevent, that the offset drift moves the full signal outside of the signal range. The system leaves low-speed mode and enters adaptation mode as soon as the peak detector has found four signal peaks within two seconds. As an additional condition, the signal amplitude must be greater than 37.5 % of the value measured when entering low-speed mode. 5.3 Output signal 5.3.1 Physical representation of output signal The output signal is shown in Figure 6. Whenever there is a zero-crossing of the magnetic input field (falling or rising) the output current changes from 7 mA to 14 mA or vice versa. Between the detected zero-crossing and the respective edge of the output current, there is a delay time of td (see characteristics in Table 6). KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 9 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor ]HURFURVVLQJRI PDJQHWLFILHOG W W P$ P$ WG WG WG DDD t output duty cycle:  o = -----  100 % t0 Fig 6. Timing of output signal to input signal and definition of duty cycle o 6. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referred to pin GND. Symbol Parameter VCC Conditions supply voltage Min Max Unit 40 C < Tamb < +60 C; t < 2 minutes - 24 V 40 C < Tamb < +60 C - 18 V 40 C < Tamb < +150 C - 16 V 150 C < Tamb < 175 C; 10  10 minutes during total life time; none destructive but no functionality granted - 16 V normal operation mode VCC and GND incidentally swapped Tamb KMI23_2_4 Product data sheet 16.5 - V 40 +150 C for 10  10 minutes during total life time; VCC < 16 V 40 +175 C ambient temperature Tstg storage temperature no voltage applied 50 +150 C Tsld soldering temperature for maximum 5 s - 260 C Hext external magnetic field strength - 30 kA/m All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 10 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor 7. Recommended operating conditions Table 5. Operating conditions Voltages are referred to pin GND. Symbol Parameter Conditions Min Max Unit VCC supply voltage normal operation mode; Tamb  175 C 6.8 16 V - 50  normal operation mode 40 +150 C 0 2.5 kHz KMI23/2 150 - A/m KMI23/4 190 - A/m KMI23/2 - 528 A/m KMI23/4 - 911 A/m non-recurring changes 40 +100 % periodic changes 10 +10 % RL load resistance Tamb ambient temperature fH magnetic field strength frequency HM peak magnetic field strength Hoffset(ext) HM after power-on; speed pulses latest after Ncy(H) magnetic cycles; see characteristics in Table 6 external magnetic field strength offset (absolute value) peak magnetic field strength variation to allow correct start-up after power-on allowable sudden change of magnetic signal peak level without loss of speed pulses 8. Characteristics Table 6. Characteristics Characteristics are valid for the operating conditions specified in Section 7; voltages are referred to pin GND; unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit 6.3 6.8 V Supply voltage and current switch-on supply voltage [1] 5.8 td(on) turn-on delay time [2] - - 1 ms VCC(swoff) switch-off supply voltage [1] 4.0 4.5 5.0 V VCC(hys) supply voltage hysteresis switch-on/switch-off 1.6 1.8 2.8 V ICC(swoff) switch-off supply current VCC < 4 V 1.0 3.0 3.8 mA VCC(swon) ICCL LOW-level supply current 5.88 7.0 8.4 mA ICCH HIGH-level supply current 11.7 14.0 16.8 mA ICCH/ICCL HIGH-level supply current to LOW-level supply current ratio 1.8 2.0 - - dICC/dt rate of change of supply current 6 - 28 mA/s KMI23_2_4 Product data sheet ICCL to ICCH and ICCL to ICCM (10 % to 90 % and 90 % to 10 %) All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 11 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor Table 6. Characteristics …continued Characteristics are valid for the operating conditions specified in Section 7; voltages are referred to pin GND; unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit Timing parameters td delay time delay between magnetic zero-crossing and output switching; see Figure 6 70 - 121 s (T) period jitter one-sigma value; required peak level of magnetic signal: HM = 280 A/m (KMI23/2) HM = 398 A/m (KMI23/4) 0.1 - +0.1 % one-sigma value; required peak level of magnetic signal: HM = 55 A/m (KMI23/2) HM = 78 A/m (KMI23/4) 0.5 - +0.5 % o output duty cycle required peak level of magnetic signal: HM = 55 A/m (KMI23/2) HM = 78 A/m (KMI23/4) [3] 30 - 70 % required peak level of magnetic signal: HM = 75 A/m (KMI23/2) HM = 107 A/m (KMI23/4) [3] 40 - 60 % Start-up performance after power-on, if magnetic field amplitude > minimum value of HM and fH > 1 Hz Ncy(H) number of magnetic field cycles no external magnetic offset; duty cycle within specification - - 15 - maximum allowed external magnetic offset; duty cycle within specification - - 23 - [1] Once VCC has exceeded VCC(swon), the sensor switches on and current levels and current ratios are maintained until VCC falls below VCC(swoff). [2] After supplying more than VCC(swon) to the device, it needs a turn-on delay time of td(on) to reach stable operation. A stable supply current indicates stable operation. [3] During normal mode; for definition of duty cycle see Figure 6. KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 12 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor 9. Electromagnetic compatibility The following tests by an independent and certified test laboratory have verified EMC: 9.1 Emission • CISPR 25 (2008, third edition), Chapter 6.2: conducted emission, voltage method • CISPR 25 (2002, second edition), Chapter 6.4: radiated emission, Absorber-Lined Shielded Enclosure (ALSE) method 9.2 Immunity to electrical transients Tests were carried out with external protection circuit. • ISO 7637-3: electrical transient transmission by capacitive coupling 9.3 Immunity to radiated disturbances • ISO 11452-2: antenna in ALSE, including radar pulses • ISO 11452-4: Bulk Current Injection (BCI) – Substitution method • ISO 11452-5: strip line 10. ElectroStatic Discharge (ESD) The following tests have verified ESD: 10.1 Human body model (AEC-Q100-002) 8 kV at external pins (VCC and GND) 500 V at internal AMR bridge pins 10.2 Machine model (AEC-Q100-003) 400 V at external pins (VCC and GND) 100 V at internal AMR bridge pins 10.3 Charged-device model (AEC-Q100-011) 1 kV at external pins (VCC and GND) 500 V at internal AMR bridge pins KMI23_2_4 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 1 — 28 April 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 13 of 20 KMI23/2; KMI23/4 NXP Semiconductors High performance rotational speed sensor 11. Application information 9&& 6(1625 VXSSO\ *1' ,&& 5/ RXWSXW VLJQDO DDD Fig 7. Test and application circuit 12. Test information 12.1 Quality information This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q100 Rev-G (grade 0) - Failure mechanism based stress test qualification for integrated circuits, and is suitable for use in automotive applications. 13. Marking QQQQQ QQQQQ EDWFK QXPEHU EDWFK QXPEHU .0,  .0,  ;
