Freescale Semiconductor
Product Brief
Document Number: K70PB
Rev. 8, 6/2011
K70 Family Product Brief
Supports all K70 devices
Contents
1 Kinetis Portfolio
Kinetis is the most scalable portfolio of low power, mixedsignal ARM®Cortex™-M4 MCUs in the industry. Phase 1 of
the portfolio consists of five MCU families with over 200 pin-,
peripheral- and software-compatible devices. Each family
offers excellent performance, memory and feature scalability
with common peripherals, memory maps, and packages
providing easy migration both within and between families.
Kinetis MCUs are built from Freescale’s innovative 90nm
Thin Film Storage (TFS) flash technology with unique
FlexMemory. Kinetis MCU families combine the latest lowpower innovations and high performance, high precision
mixed-signal capability with a broad range of connectivity,
human-machine interface, and safety & security peripherals.
Kinetis MCUs are supported by a market-leading enablement
bundle from Freescale and numerous ARM 3rd party
ecosystem partners.
© 2010–2011 Freescale Semiconductor, Inc.
1
Kinetis Portfolio................................................................1
2
K70 Family Introduction...................................................3
3
K70 Block Diagram..........................................................3
4
Features.............................................................................5
5
Power modes...................................................................29
6
Developer Environment..................................................30
7
Revision History.............................................................36
Kinetis Portfolio
Family
Program
Flash
Packages
K70 Family 512KB-1MB
196-256pin
K60 Family 256KB-1MB
100-256pin
K50 Family 128-512KB
64-144pin
K40 Family
64-512KB
64-144pin
K30 Family
64-512KB
64-144pin
K20 Family
32KB-1MB
32-144pin
K10 Family
32KB-1MB
32-144pin
Low power
Mixed signal
Encryption and Tamper Detect
Key Features
USB
Segment LCD
Operational &
transimpedance
amplifiers
DDR
Ethernet
Graphic LCD
Figure 1. Kinetis MCU portfolio
All Kinetis families include a powerful array of analog, communication and timing and control peripherals with the level of
feature integration increasing with flash memory size and the number of inputs/outputs. Features common to all Kinetis
families include:
• Core:
• ARM Cortex-M4 Core delivering 1.25 DMIPS/MHz with DSP instructions (floating-point unit available on
certain Kinetis families)
• Up to 32-channel DMA for peripheral and memory servicing with minimal CPU intervention
• Broad range of performance levels rated at maximum CPU frequencies of 50 MHz, 72 MHz, 100 MHz, 120
MHz, and 150 MHz
• Ultra-low power:
• 10 low power operating modes for optimizing peripheral activity and wake-up times for extended battery life.
• Low–leakage wake-up unit, low power timer, and low power RTC for additional low power flexibility
• Industry-leading fast wake-up times
• Memory:
• Scalable memory footprints from 32 KB flash / 8 KB RAM to 1 MB flash / 128 KB RAM. Independent flash
banks enable concurrent code execution and firmware updates
• Optional 16 KB cache memory for optimizing bus bandwidth and flash execution performance. Offered on K10,
K20, and K60 family devices with CPU performance of up to 150 MHz.
• FlexMemory with up to 512 KB FlexNVM and up to 16 KB FlexRAM. FlexNVM can be partitioned to support
additional program flash memory (ex. bootloader), data flash (ex. storage for large tables), or EEPROM backup.
FlexRAM supports EEPROM byte-write/byte-erase operations and dictates the maximum EEPROM size.
• EEPROM endurance capable of exceeding 10 million cycles
• EEPROM erase/write times an order of magnitude faster than traditional EEPROM
K70 Family Product Brief, Rev. 8, 6/2011
2
Freescale Semiconductor, Inc.
K70 Family Introduction
• Multi-function external bus interface capable of interfacing to external memories, gate-array logic, or an LCD
• DDR memory controller
• NAND flash controller
• Mixed-signal analog:
• Fast, high precision 16-bit ADCs, 12-bit DACs, programmable gain amplifiers, high speed comparators and an
internal voltage reference. Powerful signal conditioning, conversion and analysis capability with reduced system
cost
• Human Machine Interface (HMI):
• Capacitive Touch Sensing Interface with full low-power support and minimal current adder when enabled
• Graphic LCD controller
• Connectivity and Communications:
• UARTs with ISO7816 and IrDA support, I2S, CAN, I2C and DSPI
• USB OTG controller
• Reliability, Safety and Security:
• Hardware cyclic redundancy check engine for validating memory contents/communication data and increased
system reliability
• Independent-clocked COP for protection against code runaway in fail-safe applications
• External watchdog monitor
• Secure storage and tamper detect
• Timing and Control:
• Powerful FlexTimers which support general purpose, PWM, and motor control functions
• Carrier Modulator Transmitter for IR waveform generation
• Programmable Interrupt Timer for RTOS task scheduler time base or trigger source for ADC conversion and
programmable delay block
• System:
• 5 V tolerant GPIO with pin interrupt functionality
• Wide operating voltage range from 1.71 V to 3.6 V with flash programmable down to 1.71 V with fully
functional flash and analog peripherals
• Ambient operating temperature ranges from -40 °C to 105 °C
2 K70 Family Introduction
The K70 MCU family includes an integrated graphic LCD controller, IEEE® 1588 Ethernet MAC, full- and high-speed USB
2.0 On-The-Go with device charger detect capability, hardware encryption and tamper detection capabilities. The K70 is

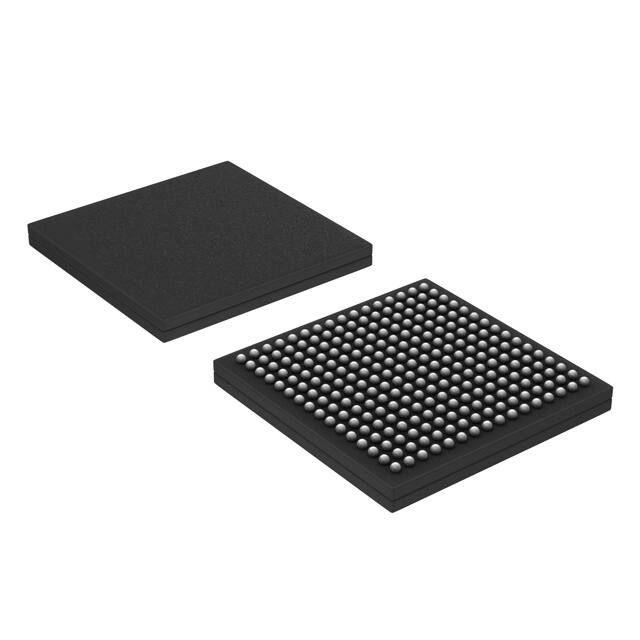

available with 512 KB or 1 MB of flash memory in 196- and 256-pin MAPBGA packages. Each MCU includes a rich suite
of analog, communication, timing and control peripherals. All K70 family devices include a single precision floating point
unit and NAND flash controller. 256-pin versions include an on-chip DRAM controller for system expansion.
3 K70 Block Diagram
The below figure shows a superset block diagram of the K70 device. Other devices within the family have a subset of the
features.
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
3
K70 Block Diagram
Kinetis K70 Family
ARM ® Cortex™-M4
Core
System
Memories and Memory Interfaces
Clocks
Internal
and external
watchdogs
Program
flash
RAM
Phaselocked loop
Debug
interfaces
DSP
Memory
protection
FlexMemory
Cache
Frequencylocked loop
Interrupt
controller
Floatingpoint unit
DMA
Serial
programming
interface
External
bus
Low/high
frequency
oscillators
Low-leakage
wakeup
NAND flash
controller
DDR
controller
Internal
reference
clocks
Communication Interfaces
Human-Machine
Interface (HMI)
Security
Analog
Timers
CRC
16-bit ADC
x4
Timers
x4 (20ch)
I C
x3
I S
x2
GPIO
Random
number
generator
PGA
x4
Carrier
modulator
transmitter
UART
x6
Secure
Digital
Xtrinsic
touch-sensing
interface
Hardware
encryption
Analog
comparator
x3
delay block
SPI
x3
USB OTG
LS/FS/HS
Graphics
LCD
Tamper
detect
6-bit DAC
x3
Periodic
interrupt
timers
CAN
x2
USB LS/FS
transceiver
12-bit DAC
x2
Low power
timer
IEEE 1588
Ethernet
USB charger
detect
Voltage
reference
Independent
real-time
clock
and Integrity
Programmable
2
2
USB voltage
regulator
IEEE 1588
Timers
LEGEND
Migration difference from K60 family
Figure 2. K70 Block Diagram
K70 Family Product Brief, Rev. 8, 6/2011
4
Freescale Semiconductor, Inc.
Features
4 Features
4.1 Common features among the K70 family
All devices within the K70 family features the following at a minimum:
Table 1. Common features among all K70 devices
Operating characteristics
•
•
•
•
Voltage range 1.71V - 3.6V
Flash memory programming down to 1.71V
Temperature range (TA) -40 to 105°C
Flexible modes of operation
Core features
•
•
•
•
•
•
Next generation 32-bit ARM Cortex-M4 core
Supports DSP instructions
Single-precision floating point unit (FPU)
Nested vectored interrupt controller (NVIC)
Asynchronous wake-up interrupt controller (AWIC)
Debug & trace capability
• 2-pin serial wire debug (SWD)
• IEEE 1149.1 Joint Test Action Group (JTAG)
• IEEE 1149.7 compact JTAG (cJTAG)
• Trace port interface unit (TPIU)
• Flash patch and breakpoint (FPB)
• Data watchpoint and trace (DWT)
• Instrumentation trace macrocell (ITM)
System and power management
• Software and hardware watchdog with external monitor
pin
• DMA controller
• Low-leakage wake-up unit (LLWU)
• Power management controller with 10 different power
modes
• Non-maskable interrupt (NMI)
• 128-bit unique identification (ID) number per chip
Clocks
• Multi-purpose clock generator
• PLL and FLL operation
• Internal reference clocks
•
•
•
•
3MHz to 32MHz crystal oscillator
32kHz to 40kHz crystal oscillator
Internal 1kHz low power oscillator
DC to 50MHz external square wave input clock
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
5
Features
Table 1. Common features among all K70 devices (continued)
Memories and Memory Interfaces
• FlexMemory consisting of FlexNVM (non-volatile flash
memory that can execute program code, store data, or
backup EEPROM data) or FlexRAM (RAM memory
that can be used as traditional RAM or as highendurance EEPROM storage, and also accelerates
flash programming)
• Flash security and protection features
• Serial flash programming interface (EzPort)
• 8KB instruction cache and 8KB data cache
• DDR controller
• NAND flash controller
Security and integrity
• Cyclic redundancy check (CRC)
• Tamper detect
• Hardware encryption
Analog
•
•
•
•
Timers
• 1x8ch motor control/general purpose/PWM flexible
timer (FTM)
• 2x2ch quadrature decoder/general purpose/PWM
flexible timer (FTM)
• Carrier modulator timer (CMT)
• Programmable delay block (PDB)
• 1x4ch programmable interrupt timer (PIT)
• Low-power timer (LPT)
Communications
• Ethernet with IEEE 1588 support
• USB High Speed/Full Speed/Low Speed OTG/Host/
Device
• CAN
• SPI
• I2C with SMBUS support
• UART (w/ ISO7816, IrDA and hardware flow control)
Human-machine interface
• GPIO with pin interrupt support, DMA request
capability, digital glitch filter, and other pin control
options
• 5V tolerant inputs
• Capacitive touch sensing inputs
• Graphic LCD controller supporting up to 800 x 600
resolution
16-bit SAR ADC
Programmable voltage reference (VREF)
12-bit DAC
High-speed Analog comparator (CMP) with 6-bit DAC
4.1.1 Memory and package options
The following table summarizes the memory and package options for the K70 family. All devices which share a common
package are pin-for-pin compatible.
K70 Family Product Brief, Rev. 8, 6/2011
6
Freescale Semiconductor, Inc.
Features
Table 2. K70 family summary
SRAM
(KB)
EEPROM/ FlexRAM
(KB)
196BGA (15x15)
2566BGA (17x17)
120
1024
—
128
—
+
+
150
1024
—
128
—
+
+
120
512
512
128
16
+
+
150
512
512
128
16
+
+
K70X
FlexNVM (KB)
K70N
Flash
(KB)
Performance (MHz)
Package
Sub-Family
Memory
4.2 FlexMemory
Freescale’s new FlexMemory technology provides an extremely versatile and powerful solution for designers seeking onchip EEPROM and/or additional program or data flash memory. As easy and as fast as SRAM, it requires no user or system
intervention to complete programming and erase functions when used as high endurance byte-write/byte-erase EEPROM.
EEPROM array size can also be configured for improved endurance to suit application requirements. FlexMemory can also
provide additional flash memory (FlexNVM) for data or program storage in parallel with the main program flash.
The key features of FlexMemory include:
• Configurability for designer:
• EEPROM array size and number of write/erase cycles
• Program or data flash size
•
•
•
•
EEPROM endurance of 10M write/erase cycles possible over full voltage and temperature range
Seamless EEPROM read/write operations: simply write or read a memory address
High-speed byte, 16-bit, and 32-bit write/erase operations to EEPROM
Eliminates the costs associated with external EEPROM ICs, and the software headaches and resource (CPU/flash/
RAM) impact of EEPROM emulation schemes
• Storage for large data tables or bootloader
• Read-while-write operation with main program flash memory
• Minimum write voltage 1.71V
4.2.1 Programmable Trade-Off
FlexMemory lets you fully configure the way FlexNVM and FlexRAM blocks are used to provide the best balance of
memory resources for their application.
The user can configure several parameters, including EEPROM size, endurance, write size, and the size of additional
program/data flash.
In addition to this flexibility, FlexMemory provides superior EEPROM performance, endurance, and low-voltage operation
when compared to traditional EEPROM solutions.
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
7
Features
• Enhanced EEPROM — Combines FlexRAM and FlexNVM to create byte-write/erase, high-speed, and high-endurance
EEPROM
• FlexNVM — Can be used as:
• part of the EEPROM configuration,
• additional program or data flash, or
• a combination of the above. For example, a portion can be used as flash while the rest is used for enhanced
EEPROM backup.
• FlexRAM — Can be used as part of the EEPROM configuration or as additional system RAM
4.2.2 Use Case Example
The MCU has 128 KB program flash, 32 KB SRAM, and FlexMemory has 128 KB FlexNVM and 4 KB FlexRAM
(maximum EEPROM size). The application requires 8 KB additional program flash for a bootloader and 256 bytes of highendurance EEPROM. The user allocates 8 KB of FlexNVM for the additional program flash and the remaining 120 KB for
EEPROM backup.
The user defines 256 bytes of EEPROM size from the FlexRAM. In this example, the EEPROM endurance results in a
minimum of 2.32M write/erase cycles.
4.3 Part Numbers and Packaging
Q K## A M FFF T
PP CC (N)
Tape and Reel (T&R)
Qualification status
Family
Speed (MHz)
Key attribute
Package identifier
Memory
Temperature range (°C)
Flash size
Figure 3. Part numbers diagrams
Field
Description
Values
Q
Qualification status
• M = Fully qualified, general market flow
• P = Prequalification
K##
Kinetis family
• K70
A
Key attribute
• D = Cortex-M4 w/ DSP
• F = Cortex-M4 w/ FPU
M
Flash memory type
• N = Program flash only
• X = Program flash and FlexMemory
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
8
Freescale Semiconductor, Inc.
Features
Field
Description
Values
FFF
Program flash memory size
•
•
•
•
•
•
32 = 32 KB
64 = 64 KB
128 = 128 KB
256 = 256 KB
512 = 512 KB
1M0 = 1 MB
T
Temperature range (°C)
• V = –40 to 105
• C = –40 to 85
PP
Package identifier
•
•
•
•
•
•
•
•
•
•
•
•
•
FM = 32 QFN (5 mm x 5 mm)
FT = 48 QFN (7 mm x 7 mm)
LF = 48 LQFP (7 mm x 7 mm)
EX = 64 QFN (9 mm x 9 mm)
LH = 64 LQFP (10 mm x 10 mm)
LK = 80 LQFP (12 mm x 12 mm)
MB = 81 MAPBGA (8 mm x 8 mm)
LL = 100 LQFP (14 mm x 14 mm)
MC = 121 MAPBGA (8 mm x 8 mm)
LQ = 144 LQFP (20 mm x 20 mm)
MD = 144 MAPBGA (13 mm x 13 mm)
MF = 196 MAPBGA (15 mm x 15 mm)
MJ = 256 MAPBGA (17 mm x 17 mm)
CC
Maximum CPU frequency (MHz)
•
•
•
•
•
5 = 50 MHz
7 = 72 MHz
10 = 100 MHz
12 = 120 MHz
15 = 150 MHz
N
Packaging type
• R = Tape and reel
• (Blank) = Trays
4.4 K70 family features
The following sections list the differences among the various devices available within the K70 family. The sections are split
by levels of performance.
The features listed below each part number specify the maximum configuration available on that device. The signal
multiplexing configuration determines which modules can be used simultaneously.
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
9
Features
4.4.1 K70 family features (120MHz Performance)
MK70FX512VMJ12(R)
MK70FN1M0VMJ12(R)
CPU Frequency
120 MHz
120 MHz
120 MHz
120 MHz
Pin Count
196
196
256
256
Package
MAPBGA
MAPBGA
MAPBGA
MAPBGA
MK70FX512VMF12(R)
MK70FN1M0VMF12(R)
Table 3. K70 120MHz Performance Table
MC Partnumber
General
Memories and Memory Interfaces
Total Flash Memory
1MB
1MB
1MB
1MB
Flash
512KB
1MB
512KB
1MB
FlexNVM
512KB
-
512KB
-
EEPROM/FlexRAM
16KB
-
16KB
-
SRAM
128KB
128KB
128KB
128KB
Serial Programming Interface
YES
YES
YES
YES
External Bus Interface (FlexBus), Addr/Data/CS
32/32/6
32/32/6
32/32/6
32/32/6
Non-Muxed External Bus Interface (Flexbus), Addr/
Data/CS
30/16/6, 30/8/6 30/16/6, 30/8/6 30/16/6, 30/8/6 30/16/6, 30/8/6
DDR Controller
-
-
YES
YES
NAND Flash Controller
YES
YES
YES
YES
Cache
16KB
16KB
16KB
16KB
Core Modules
DSP
YES
YES
YES
YES
SPFPU
YES
YES
YES
YES
Debug
JTAG, cJTAG,
SWD
JTAG, cJTAG,
SWD
JTAG, cJTAG,
SWD
JTAG, cJTAG,
SWD
Trace
TPIU, FPB,
DWT, ITM,
ETM, ETB
TPIU, FPB,
DWT, ITM,
ETM, ETB
TPIU, FPB,
DWT, ITM,
ETM, ETB
TPIU, FPB,
DWT, ITM,
ETM, ETB
NMI
YES
YES
YES
YES
System Modules
Software Watchdog
YES
YES
YES
YES
Hardware Watchdog
YES
YES
YES
YES
PMC
YES
YES
YES
YES
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
10
Freescale Semiconductor, Inc.
Features
MC Partnumber
MK70FX512VMF12(R)
MK70FN1M0VMF12(R)
MK70FX512VMJ12(R)
MK70FN1M0VMJ12(R)
Table 3. K70 120MHz Performance Table (continued)
MPU
YES
YES
YES
YES
DMA
32ch
32ch
32ch
32ch
Clock Modules
MCG
YES
YES
YES
YES
OSC (32-40kHz/3-32MHz)
32-40kHz/
8-32MHz
32-40kHz/
8-32MHz
32-40kHz/
8-32MHz
32-40kHz/
8-32MHz
RTC (32KHz Osc, Vbat)
YES
YES
YES
YES
Security and Integrity
Hardware Encryption
YES
YES
YES
YES
Tamper Detect
YES
YES
YES
YES
CRC
YES
YES
YES
YES
Analog
ADC0 (SE:single-ended, DP:differential pair)
19ch SE + 3ch
DP
19ch SE + 3ch
DP
19ch SE + 3ch
DP
19ch SE + 3ch
DP
ADC1
18ch SE + 3ch
DP
18ch SE + 3ch
DP
18ch SE + 3ch
DP
18ch SE + 3ch
DP
ADC2
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
ADC3
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
ADC DP
4ch
4ch
4ch
4ch
ADC SE
67ch
67ch
67ch
67ch
PGA
4
4
4
4
12-bit DAC
2
2
2
2
Analog Comparator
4
4
4
4
Analog Comparator Inputs
5/2/2/5
5/2/2/5
5/2/2/5
5/2/2/5
OPAMP
-
-
-
-
TRIAMP
-
-
-
-
Vref
YES
YES
YES
YES
2x8ch
2x8ch
2x8ch
Timers
Motor Control/General purpose/PWM
2x8ch
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
11
Features
MC Partnumber
MK70FX512VMF12(R)
MK70FN1M0VMF12(R)
MK70FX512VMJ12(R)
MK70FN1M0VMJ12(R)
Table 3. K70 120MHz Performance Table (continued)
Quad decoder/General purpose/PWM
2x2ch
2x2ch
2x2ch
2x2ch
FTM External CLK
2
2
2
2
Low Power Timer
1
1
1
1
PIT
1x4ch
1x4ch
1x4ch
1x4ch
PDB
1
1
1
1
CMT(Carrier Module Transmitter)
YES
YES
YES
YES
Communication Interfaces
SDHC
8-bit, CLKIN
8-bit, CLKIN
8-bit, CLKIN
8-bit, CLKIN
High Baudrate UART w/ ISO7816
2
2
2
2
High Baudrate UART
0
0
0
0
UART
4
4
4
4
SPI chip selects per module
6/4/2
6/4/2
6/4/2
6/4/2
I2C
2
2
2
2
I2S
2
2
2
2
CAN
2
2
2
2
USB OTG LS/FS w/ on-chip xcvr
1
1
1
1
USB OTG HS
1
1
1
1
USB DCD
YES
YES
YES
YES
USB 120mAReg
YES
YES
YES
YES
Ethernet w /1588
MII / RMII
MII / RMII
MII / RMII
MII / RMII
IEEE1588 Timer
1x4ch, CLKIN
1x4ch, CLKIN
1x4ch, CLKIN
1x4ch, CLKIN
Human-Machine Interface
Segment LCD
-
-
-
-
Graphic LCD
800x600
800x600
800x600
800x600
TSI(Capacitive Touch)
16 input
16 input
16 input
16 input
GPIO (w interrupt)
128
128
128
128
Operating Characteristics
5V Tolerant
YES
YES
YES
YES
Voltage Range
1.71-3.6V
1.71-3.6V
1.71-3.6V
1.71-3.6V
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
12
Freescale Semiconductor, Inc.
Features
MC Partnumber
MK70FX512VMF12(R)
MK70FN1M0VMF12(R)
MK70FX512VMJ12(R)
MK70FN1M0VMJ12(R)
Table 3. K70 120MHz Performance Table (continued)
Flash Write V
1.71V
1.71V
1.71V
1.71V
Temp Range
-40 to 105C
-40 to 105C
-40 to 105C
-40 to 105C
4.4.2 K70 family features (150MHz Performance)
MK70FX512VMJ15(R)
MK70FN1M0VMJ15(R)
CPU Frequency
150 MHz
150 MHz
150 MHz
150 MHz
Pin Count
196
196
256
256
Package
MAPBGA
MAPBGA
MAPBGA
MAPBGA
MK70FX512VMF15(R)
MK70FN1M0VMF15(R)
Table 4. K70 150MHz Performance Table
MC Partnumber
General
Memories and Memory Interfaces
Total Flash Memory
1MB
1MB
1MB
1MB
Flash
512KB
1MB
512KB
1MB
FlexNVM
512KB
-
512KB
-
EEPROM/FlexRAM
16KB
-
16KB
-
SRAM
128KB
128KB
128KB
128KB
Serial Programming Interface
YES
YES
YES
YES
External Bus Interface (FlexBus), Addr/Data/CS
32/32/6
32/32/6
32/32/6
32/32/6
Non-Muxed External Bus Interface (Flexbus), Addr/
Data/CS
30/16/6, 30/8/6 30/16/6, 30/8/6 30/16/6, 30/8/6 30/16/6, 30/8/6
DDR Controller
-
-
YES
YES
NAND Flash Controller
YES
YES
YES
YES
Cache
16KB
16KB
16KB
16KB
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
13
Features
MK70FX512VMJ15(R)
MK70FN1M0VMJ15(R)
DSP
YES
YES
YES
YES
SPFPU
YES
YES
YES
YES
Debug
JTAG, cJTAG,
SWD
JTAG, cJTAG,
SWD
JTAG, cJTAG,
SWD
JTAG, cJTAG,
SWD
Trace
TPIU, FPB,
DWT, ITM,
ETM, ETB
TPIU, FPB,
DWT, ITM,
ETM, ETB
TPIU, FPB,
DWT, ITM,
ETM, ETB
TPIU, FPB,
DWT, ITM,
ETM, ETB
NMI
YES
YES
YES
YES
MK70FX512VMF15(R)
MK70FN1M0VMF15(R)
Table 4. K70 150MHz Performance Table (continued)
MC Partnumber
Core Modules
System Modules
Software Watchdog
YES
YES
YES
YES
Hardware Watchdog
YES
YES
YES
YES
PMC
YES
YES
YES
YES
MPU
YES
YES
YES
YES
DMA
32ch
32ch
32ch
32ch
Clock Modules
MCG
YES
YES
YES
YES
OSC (32-40kHz/3-32MHz)
32-40kHz/
8-32MHz
32-40kHz/
8-32MHz
32-40kHz/
8-32MHz
32-40kHz/
8-32MHz
RTC (32KHz Osc, Vbat)
YES
YES
YES
YES
Security and Integrity
Hardware Encryption
YES
YES
YES
YES
Tamper Detect
YES
YES
YES
YES
CRC
YES
YES
YES
YES
Analog
ADC0 (SE:single-ended, DP:differential pair)
19ch SE + 3ch
DP
19ch SE + 3ch
DP
19ch SE + 3ch
DP
19ch SE + 3ch
DP
ADC1
18ch SE + 3ch
DP
18ch SE + 3ch
DP
18ch SE + 3ch
DP
18ch SE + 3ch
DP
ADC2
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
14
Freescale Semiconductor, Inc.
Features
MK70FX512VMF15(R)
MK70FN1M0VMF15(R)
MK70FX512VMJ15(R)
MK70FN1M0VMJ15(R)
Table 4. K70 150MHz Performance Table (continued)
ADC3
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
15ch SE + 2ch
DP
ADC DP
4ch
4ch
4ch
4ch
ADC SE
67ch
67ch
67ch
67ch
PGA
4
4
4
4
12-bit DAC
2
2
2
2
Analog Comparator
4
4
4
4
Analog Comparator Inputs
5/2/2/5
5/2/2/5
5/2/2/5
5/2/2/5
OPAMP
-
-
-
-
TRIAMP
-
-
-
-
Vref
YES
YES
YES
YES
MC Partnumber
Timers
Motor Control/General purpose/PWM
2x8ch
2x8ch
2x8ch
2x8ch
Quad decoder/General purpose/PWM
2x2ch
2x2ch
2x2ch
2x2ch
FTM External CLK
2
2
2
2
Low Power Timer
1
1
1
1
PIT
1x4ch
1x4ch
1x4ch
1x4ch
PDB
1
1
1
1
CMT(Carrier Module Transmitter)
YES
YES
YES
YES
Communication Interfaces
SDHC
8-bit, CLKIN
8-bit, CLKIN
8-bit, CLKIN
8-bit, CLKIN
High Baudrate UART w/ ISO7816
2
2
2
2
High Baudrate UART
0
0
0
0
UART
4
4
4
4
SPI chip selects per module
6/4/2
6/4/2
6/4/2
6/4/2
I2C
2
2
2
2
I2S
2
2
2
2
CAN
2
2
2
2
USB OTG LS/FS w/ on-chip xcvr
1
1
1
1
USB OTG HS
1
1
1
1
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
15
Core modules
MC Partnumber
MK70FX512VMF15(R)
MK70FN1M0VMF15(R)
MK70FX512VMJ15(R)
MK70FN1M0VMJ15(R)
Table 4. K70 150MHz Performance Table (continued)
USB DCD
YES
YES
YES
YES
USB 120mAReg
YES
YES
YES
YES
Ethernet w /1588
MII / RMII
MII / RMII
MII / RMII
MII / RMII
IEEE1588 Timer
1x4ch, CLKIN
1x4ch, CLKIN
1x4ch, CLKIN
1x4ch, CLKIN
Human-Machine Interface
Segment LCD
-
-
-
-
Graphic LCD
800x600
800x600
800x600
800x600
TSI(Capacitive Touch)
16 input
16 input
16 input
16 input
GPIO (w interrupt)
128
128
128
128
Operating Characteristics
5V Tolerant
YES
YES
YES
YES
Voltage Range
1.71-3.6V
1.71-3.6V
1.71-3.6V
1.71-3.6V
Flash Write V
1.71V
1.71V
1.71V
1.71V
Temp Range
-40 to 105C
-40 to 105C
-40 to 105C
-40 to 105C
4.5 Module-by-module feature list
The following sections describe the high-level module features for the family's superset device. See the previous section for
differences among the subset devices.
4.5.1 Core modules
4.5.1.1
•
•
•
•
•
•
•
•
•
ARM Cortex-M4 Core
Supports up to 150 MHz frequency with 1.25DMIPS/MHz
ARM Core based on the ARMv7 Architecture & Thumb®-2 ISA
Microcontroller cores focused on very cost sensitive, deterministic, interrupt driven environments
Harvard bus architecture
3-stage pipeline with branch speculation
Integrated bus matrix
Integrated Digital Signal Processor (DSP)
Configurable nested vectored interrupt controller (NVIC)
Advanced configurable debug and trace components
K70 Family Product Brief, Rev. 8, 6/2011
16
Freescale Semiconductor, Inc.
System modules
• Embedded Trace Macrocell (ETM)
• Optional single precision floating point unit (SPFPU)
4.5.1.2
•
•
•
•
•
•
Nested Vectored Interrupt Controller (NVIC)
Close coupling with Cortex-M4 core's Harvard architecture enables low latency interrupt handling
Up to 120 interrupt sources
Includes a single non-maskable interrupt
16 levels of priority, with each interrupt source dynamically configurable
Supports nesting of interrupts when higher priority interrupts are activated
Relocatable vector table
4.5.1.3
Wake-up Interrupt Controller (WIC)
• Supports interrupt handling when system clocking is disabled in low power modes
• Takes over and emulates the NVIC behavior when correctly primed by the NVIC on entry to very-deep-sleep
• A rudimentary interrupt masking system with no prioritization logic signals for wake-up as soon as a non-masked
interrupt is detected
• Contains no programmer’s model visible state and is therefore invisible to end users of the device other than through
the benefits of reduced power consumption while sleeping
4.5.1.4
Debug Controller
• Serial Wire JTAG Debug Port (SWJ-DP) combines
• external interface that provides a standard JTAG or cJTAG interface for debug access
• external interface that provides a serial-wire bidirectional debug interface
• Debug Watchpoint and Trace (DWT) with the following functionality:
• four comparators configurable as a hardware watchpoint, an ETM trigger, a PC sampler event trigger, or a data
address sampler event trigger
• several counters or a data match event trigger for performance profiling
• configurable to emit PC samples at defined intervals or to emit interrupt event information
• Instrumentation Trace Macrocell (ITM) with the following functionality:
• Software trace - writes directly to ITM stimulus registers can cause packets to be emitted
• Hardware trace - packets generated by DWT are emitted by ITM
• Time stamping - emitted relative to packets
• Embedded Trace Macrocell (ETM) supports instruction trace
• CoreSight™ Embedded Trace Buffer (ETB) is a memory-mapped buffer to store trace data. Allows reconstruction of
program flow with standard JTAG tools.
• Test Port Interface Unit (TPIU) acts as a bridge between ITM or ETM and an off-chip Trace Port Analyzer
• Flash Patch and Breakpoints (FPB) implements hardware breakpoints and patches code and data from code space to
system space
4.5.2 System modules
4.5.2.1
Power Management Control Unit (PMC)
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
17
System modules
•
•
•
•
•
•
•
•
•
•
•
Separate digital (regulated) and analog (referenced to digital) supply outputs
Programmable power saving modes
No output supply decoupling capacitors required
Available wake-up from power saving modes via RTC and external inputs
Integrated Power-on Reset (POR)
Integrated Low Voltage Detect (LVD) with reset (brownout) capability
Selectable LVD trip points
Programmable Low Voltage Warning (LVW) interrupt capability
Buffered bandgap reference voltage output
Factory programmed trim for bandgap and LVD
1 kHz Low Power Oscillator (LPO)
4.5.2.2
DMA Channel Multiplexer (DMA MUX)
• 16 independently selectable DMA channel routers
• 4 periodic trigger sources available
• Each channel router can be assigned to 1 of 64 possible peripheral DMA sources
4.5.2.3
•
•
•
•
•
Up to 32 fully programmable channels with 32-byte transfer control descriptors
Data movement via dual-address transfers for 8-, 16-, 32- and 128-bit data values
Programmable source, destination addresses, transfer size, support for enhanced address modes
Support for major and minor nested counters with one request and one interrupt per channel
Support for channel-to-channel linking and scatter/gather for continuous transfers with fixed priority and round-robin
channel arbitration
4.5.2.4
•
•
•
•
•
•
•
•
DMA Controller
Watchdog Timer (WDOG)
Independent, configurable clock source input
Write-once control bits with unlock sequence
Programmable timeout period
Ability to test watchdog timer and reset
Windowed refresh option
Robust refresh mechanism
Cumulative count of watchdog resets between power-on resets
Configurable interrupt on timeout
4.5.2.5
External Watchdog Monitor (EWM)
• Independent 1 kHz LPO clock source
• Output signal to gate an external circuit which is controlled by CPU service or external input
4.5.2.6
System Clocks
• Frequency-locked loop (FLL)
• Digitally-controlled oscillator (DCO)
• DCO frequency range is programmable
• Option to program DCO frequency for a 32,768 Hz external reference clock source
K70 Family Product Brief, Rev. 8, 6/2011
18
Freescale Semiconductor, Inc.
Memories and Memory Interfaces
• Internal or external reference clock can be used to control the FLL
• 0.2% resolution using 32 kHz internal reference clock
• 2% deviation over voltage and temperature using internal 32 kHz internal reference clock, 1% deviation with
limited temperature range (0°C to 70°C)
• Phase-locked loop (PLL)
• Voltage-controlled oscillator (VCO)
• External reference clock is used to control the PLL
• Modulo VCO frequency divider Phase/Frequency detector
• Integrated loop filter
• Internal reference clock generator
• Slow clock with nine trim bits for accuracy
• Fast clock with four trim bits
• Can be used to control the FLL
• Either the slow or the fast clock can be selected as the clock source for the MCU
• Can be used as a clock source for other on-chip peripherals
• External clock from the Crystal Oscillator (XOSC)
• Can be used to control the FLL and/or the PLL
• Can be selected as the clock source for the MCU
•
•
•
•
External clock monitor with reset request capability
Lock detector with interrupt request capability for use with the PLL
Auto Trim Machine (ATM) for trimming both the slow and fast internal reference clocks
Multiple clock source options available for most peripherals
4.5.3 Memories and Memory Interfaces
4.5.3.1
On-Chip Memory
• 120MHz performance devices
• Up to 1024KB program flash memory
• Flexmemory block contains up to 512KB FlexNVM and 16KB FlexRAM with up to 16KB EEPROM capability
• Up to 128KB SRAM
• 16KB cache
• 150MHz performance devices
• Up to 1024KB program flash memory
• Flexmemory block contains up to 512KB FlexNVM and 16KB FlexRAM with up to 16KB EEPROM capability
• Up to 128KB SRAM
• 16KB cache
• Security circuitry to prevent unauthorized access to RAM and flash contents
4.5.3.2
External Bus Interface (FlexBus)
• Six independent, user-programmable chip-select signals that can interface with external SRAM, PROM, EPROM,
EEPROM, flash, and other peripherals
• Supports up to 2 GB addressable space
• 8-, 16- and 32-bit port sizes with configuration for multiplexed or non-multiplexed address and data buses
• Byte-, word-, longword-, and 16-byte line-sized transfers
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
19
Security and Integrity
• Programmable address-setup time with respect to the assertion of chip select
• Programmable address-hold time with respect to the negation of chip select and transfer direction
4.5.3.3
Serial Programming Interface (EzPort)
• Same serial interface as, and subset of, the command set used by industry-standard SPI flash memories
• Ability to read, erase, and program flash memory
• Reset command to boot the system after flash programming
4.5.3.4
•
•
•
•
•
•
•
Supports glueless interface to LPDDR, DDR and DDR2 DRAM devices
Support for 16-bit fixed memory port width
16-byte critical word first burst transfer
Up to 16 lines of row address, up to 16 column address lines, 2 bits of bank address, and up to two chip selects
Supports up to 256 MByte of memory; minimum memory configuration of 8
Supports page mode to maximize the data rate
Supports sleep mode and self-refresh mode
4.5.3.5
•
•
•
•
•
•
•
•
DDR Controller
NAND Flash Controller
8- and 16-bit NAND flash interface
9 KB RAM buffer
Supports all NAND flash products regardless of density/organization
Supports flash device commands
Integrated DMA engine
Two configurable DMA channels
Optional ECC mode supports 4/6/8/12/16/24/32-bit error correction
Boot from page size ≥ 2KB flash (x8) without extra control
4.5.4 Security and Integrity
4.5.4.1
•
•
•
•
•
•
•
Cyclic Redundancy Check (CRC)
Hardware CRC generator circuit using 16/32-bit shift register
User Configurable 16/32 bit CRC
Programmable Generator Polynomial
Error detection for all single, double, odd, and most multi-bit errors
Programmable initial seed value
High-speed CRC calculation
Optional feature to transpose input data and CRC result via transpose register, required on applications where bytes are
in lsb format
4.5.4.2
Hardware Cryptographic Acceleration Unit (CAU)
• Supports DES, 3DES, AES, MD5, SHA-1, and SHA-256 algorithms
• Simple C calls to optimized security functions provided by Freescale
K70 Family Product Brief, Rev. 8, 6/2011
20
Freescale Semiconductor, Inc.
Analog
4.5.4.3
Random Number Generator (RNG)
• Supports the key generation algorithm defined in the Digital Signature Standard
• http://www.itl.nist.gov/fipspubs/fip186.htm
• Integrated entropy sources capable of providing the PRNG with entropy for its seed
4.5.4.4
•
•
•
•
•
•
•
•
•
•
•
Tamper Detect
Analog tamper detects (voltage, temperature, and clock)
External tamper detects
Active wire-mesh tamper detect
Internal tamper detects (flash security and secure SRAM)
Register locks, tamper enables and analog trim configuration bits
Secure RTC with added support for automatic compensation
32-bit monotonic counter
256-bit secure storage (asynchronously erased on tamper detect)
32- to 256-bit general-purpose storage (not erased)
Single backup supply
Voltage monitor
• Active-low enable (minimum leakage power when disabled)
• Active-low output which asserts when voltage is lower than 1.5V to 1.62V or higher than 3.6V to 4V
• Temperature monitor
• Active-low enable (minimum leakage power when disabled)
• Active-low output which asserts when temperature is lower than -50C to -100C or higher than 125C to 175C
• Clock monitor
• Active-low enable (minimum leakage power when disabled)
• Active-low output which asserts when clock < ~16 kHz or > ~1 MHz
4.5.5 Analog
4.5.5.1
16-bit Analog-to-Digital Converter (ADC)
• Linear successive approximation algorithm with up to 16-bit resolution
• Output modes:
• Differential 16-bit, 13-bit, 11-bit, and 9-bit modes, in two’s complement 16-bit sign-extended format
• Single-ended 16-bit, 12-bit, 10-bit, and 8-bit modes, in right-justified unsigned format
•
•
•
•
•
•
•
•
•
•
Single or continuous conversion
Configurable sample time and conversion speed/power
Conversion complete and hardware average complete flag and interrupt
Input clock selectable from up to four sources
Operation in low power modes for lower noise operation
Asynchronous clock source for lower noise operation with option to output the clock
Selectable asynchronous hardware conversion trigger with hardware channel select
Automatic compare with interrupt for various programmable values
Temperature sensor
Hardware average function
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
21
Timers
• Selectable voltage reference
• Self-calibration mode
4.5.5.2
•
•
•
•
High-Speed Analog Comparator (CMP)
6-bit DAC programmable reference generator output
Up to eight selectable comparator inputs; each input can be compared with any input by any polarity sequence
Selectable interrupt on rising edge, falling edge, or either rising or falling edges of comparator output
Comparator output supports:
• Sampled
• Windowed (ideal for certain PWM zero-crossing-detection applications
• Digitally filtered using external sample signal or scaled peripheral clock
• Two performance modes:
• Shorter propagation delay at the expense of higher power
• Low power, with longer propagation delay
• Operational in all MCU power modes
4.5.5.3
12-Bit Digital-to-Analog Converter (DAC)
• 12-bit resolution
• Guaranteed 6-sigma monotocity over input word
• High- and low-speed conversions
• 1 μs conversion rate for high speed, 2 μs for low speed
•
•
•
•
•
Power-down mode
Choice of asynchronous or synchronous updates
Automatic mode allows the DAC to generate its own output waveforms including square, triangle, and sawtooth
Automatic mode allows programmable period, update rate, and range
DMA support with configurable watermark level
4.5.5.4
Voltage Reference (VREF)
• Programmable trim register with 0.5mV steps, automatically loaded with room temp value upon reset
• Programmable mode selection:
• Off
• Bandgap out (or stabilization delay)
• Low-power buffer mode
• Tight-regulation buffer mode
• 1.2V output at room temperature
• Dedicated output pin
4.5.6 Timers
4.5.6.1
Programmable Delay Block (PDB)
• Up to 15 trigger input sources and software trigger source
• Up to eight configurable PDB channels for ADC hardware trigger
K70 Family Product Brief, Rev. 8, 6/2011
22
Freescale Semiconductor, Inc.
Timers
• One PDB channel is associated with one ADC.
• One trigger output for ADC hardware trigger and up to eight pre-trigger outputs for ADC trigger select per PDB
channel
• Trigger outputs can be enabled or disabled independently.
• One 16-bit delay register per pre-trigger output
• Optional bypass of the delay registers of the pre-trigger outputs
• Operation in One-Shot or Continuous modes
• Optional back-to-back mode operation, which enables the ADC conversions complete to trigger the next PDB
channel
• One programmable delay interrupt
• One sequence error interrupt
• One channel flag and one sequence error flag per pre-trigger
• DMA support
• Up to eight DAC interval triggers
• One interval trigger output per DAC
• One 16-bit delay interval register per DAC trigger output
• Optional bypass the delay interval trigger registers
• Optional external triggers
• Up to eight pulse outputs (pulse-out's)
• Pulse-out's can be enabled or disabled independently.
• Programmable pulse width
4.5.6.2
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Selectale FTM source clock
Programmable prescaler
16-bit counter supporting free-running or initial/final value, and countin is up or up-down
Input capture, output compare, and edge-aligned and center-aligned PWM modes
Input capture and output compare modes
Operation of FTM channels as pairs with equal outputs, pairs with complimentary outputs, or independent channels
with independent outputs
Deadtime insertion is available for each complementary pair
Generation of hardware triggers
Software control of PWM outputs
Up to 4 fault inputs for global fault control
Configurable channel polarity
Programmable interrupt on input capture, reference compare, overflowed counter, or detected fault condition
Quadrature decoder with input filters, relative position counting, and interrupt on position count or capture of position
count on external event
DMA support for FTM events
Global time base mode shares single time base across multiple FTM instances
4.5.6.3
•
•
•
•
•
FlexTimers (FTM)
Programmable Interrupt Timers (PITs)
Up to 4 general purpose interrupt timers
Up to 4 interrupt timers for triggering ADC conversions
32-bit counter resolution
Clocked by system clock frequency
DMA support
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
23
Communication interfaces
4.5.6.4
Low Power Timer
• Operation as timer or pulse counter
• Selectable clock for prescaler/glitch filter
• 1 kHz internal LPO
• External low power crystal oscillator
• Internal reference clock (not available in low leakage power modes)
• Secondary external reference clock (for example, 32 kHz crystal)
• Configurable glitch filter or prescaler
• Interrupt generated on timer compare
• Hardware trigger generated on timer compare
4.5.6.5
Carrier Modulator Timer (CMT)
• Four modes of operation
• Time with independent control of high and low times
• Baseband
• Frequency shift key (FSK)
• Direct software control of CMT_IRO signal
•
•
•
•
Extended space operation in time, baseband, and FSK modes
Selectable input clock divider
Interrupt on end of cycle
Ability to disable CMT_IRO signal and use as timer interrupt
4.5.6.6
Real-Time Clock (RTC)
• Independent power supply, POR and 32 kHz crystal oscillator
• 32-bit seconds counter with 32-bit alarm
• Can be invalidated on detection of tamper detect
• 16-bit prescaler with compensation
• Register write protection
• Hard Lock requires VBAT POR to enable write access
• Soft lock requires system reset to enable write/read access
4.5.7 Communication interfaces
4.5.7.1
10/100Mbps Ethernet MAC
• Ethernet controller with 10/100 BaseT/TX capability; half duplex or full duplex
• Hardware support for IEEE Standard for a Precision Clock Synchronization Protocol for Networked
Measurement and Control Systems, IEEE 1588
• Media independent interface (MII) and reduced media independent interface (RMII) support
• Built-in unified DMA
• On-chip transmit and receive FIFOs
K70 Family Product Brief, Rev. 8, 6/2011
24
Freescale Semiconductor, Inc.
Communication interfaces
• Supports legacy buffer descriptor programming models and functionality
• Enchanced buffer descriptor programming model for new Ethernet functionality
• Supports wake-up from low power mode through magic packets
• Multiple clock source options for time-stamping clock
4.5.7.2
USB On-The-Go Module (FS/LS)
• Complies with USB specification rev 2.0
• USB host mode
• Supports enhanced-host-controller interface (EHCI)
• Allows direct connection of FS/LS devices without an OHCI/UHCI companion controller
• Supported by Linux and other commercially available operating systems
• USB device mode
• Full-speed operation via the on-chip transceiver
• Supports one upstream facing port
• Supports four programmable, bidirectional USB endpoints, including endpoint 0
• Suspend mode/low power
• As host, firmware can suspend individual devices or the entire USB and disable chip clocks for low-power
operation
• Device supports low-power suspend
• Remote wake-up supported for host and device
• Integrated with the processor’s low power modes
• Includes an on-chip full-speed (12 Mbps) and low-speed (1.5 Mbps) transceiver
4.5.7.3
USB Device Charger Detect (USBDCD)
• Compatible with systems powered from:
• Rechargable battery
• Non-rechargable battery
• External 3.3v LDO regulator powered from USB or
• Directly from USB using internal regulator
• Programmable event timers for flexibility and better compatibility with future udpates to the standards
• Compliant with the latest industry standard specification, USB Battery Charging Specification, Revision 1.1
4.5.7.4
•
•
•
•
•
USB Voltage Regulator
5V regulator input typically provided by USB VBUS power
3.3V regulated output powers on-chip USB transceiver
Output pin from regulator can be used to power external board components and source up to 120mA
Eliminates cost of external LDO
3.3V regulated output can power MCU main power supply
4.5.7.5
USB On-The-Go Module (HS/FS/LS)
• Complies with USB specification rev 2.0
• USB host mode
• Supports enhanced-host-controller interface (EHCI)
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
25
Communication interfaces
• HS/FS/LS operation via an external ULPI transceiver
• Supported by Linux and other commercially available operating systems
• USB device mode
• HS/FS operation via an external ULPI transceiver
• Supports one upstream facing port
• Supports four programmable, bidirectional USB endpoints, including endpoint 0
• Suspend mode/low power
• As host, firmware can suspend individual devices or the entire USB and disable chip clocks for low-power
operation
• Device supports low-power suspend
• Remote wake-up supported for host and device
• Integrated with the processor’s low power modes
• Support for off-chip HS/FS/LS transceiver
• External ULPI transceiver supports high speed (480 Mbps), full speed, and low speed operation in host mode,
and high-speed and full-speed operation in device mode
• Interface uses 8-bit single-data-rate ULPI data bus
• ULPI PHY supplies a 60 MHz USB reference clock input to the processor
4.5.7.6
CAN Module
• Supports the full implementation of the CAN Specification Version 2.0, Part B
• Standard data and remote frames (up to 109 bits long)
• Extended data and remote frames (up to 127 bits long)
• 0–8 bytes data length
• Programmable bit rate up to 1 Mbit/sec
• Content-related addressing
• Flexible message buffers (MBs), totalling up to 16 message buffers of 0–8 bytes data length each, configurable as Rx
or Tx, all supporting standard and extended messages
• Listen-only mode capability
• Individual mask registers for each message buffer
• Programmable transmit-first scheme: lowest ID or lowest buffer number
• Timestamp based on 16-bit free-running timer
• Global network time, synchronized by a specific message
4.5.7.7
•
•
•
•
•
•
•
•
•
•
•
•
•
Serial Peripheral Interface (SPI)
Master and slave mode
Full-duplex, three-wire synchronous transfers
Programmable transmit bit rate
Double-buffered transmit and receive data registers
Serial clock phase and polarity options
Slave select output
Mode fault error flag with CPU interrupt capability
Control of SPI operation during wait mode
Selectable MSB-first or LSB-first shifting
Programmable 8-bit or 16-bit data transmission length
Receive data buffer hardware match feature
64-bit FIFO mode for high speed transfers of large amounts of data
Support for both transmit and receive by DMA
K70 Family Product Brief, Rev. 8, 6/2011
26
Freescale Semiconductor, Inc.
Communication interfaces
4.5.7.8
•
•
•
•
•
•
•
•
•
•
Inter-Integrated Circuit (I2C)
Compatible with I2C bus standard and SMBus Specification Version 2 features
Up to 100 kbps with maximum bus loading
Multi-master operation
Software programmable for one of 64 different serial clock frequencies
Programmable slave address and glitch input filter
Interrupt or DMA driven byte-by-byte data transfer
Arbitration lost interrupt with automatic mode switching from master to slave
Calling address identification interrupt
Bus busy detection broadcast and 10-bit address extension
Address matching causes wake-up when processor is in low power mode
4.5.7.9
UART
•
•
•
•
•
•
•
•
•
•
•
•
•
Support for ISO 7816 protocol for interfacing with smartcards
Full-duplex operation
Standard mark/space non-return-to-zero (NRZ) format
13-bit baud rate selection with fractional divide of 32
Programmable 8-bit or 9-bit data format
Separately enabled transmitter and receiver
Programmable transmitter output polarity
Programmable receive input polarity
13-bit break character option
11-bit break character detection option
Parameterizable buffer support for one dataword for each transmit and receive
Independent FIFO structure for transmit and receive
Two receiver wakeup methods:
• Idle line wakeup
• Address mark wakeup
•
•
•
•
•
Address match feature in receiver to reduce address mark wakeup ISR overhead
Interrupt or DMA driven operation
Receiver framing error detection
Hardware parity generation and checking
1/16 bit-time noise detection
4.5.7.10
Secure Digital Host Controller (SDHC)
• Compatible with the following specifications:
• SD Host Controller Standard Specification, Version 2.0 (http://www.sdcard.org ) with test event register and
advanced DMA support
• MultiMediaCard System Specification, Version 4.2 (http://www.mmca.org )
• SD Memory Card Specification, Version 2.0 (http://www.sdcard.org ), supporting high capacity SD memory
cards
• SDIO Card Specification, Version 2.0 (http://www.sdcard.org )
• CE-ATA Card Specification, Version 1.0 (http://www.sdcard.org )
• Designed to work with CE-ATA, SD Memory, miniSD Memory, SDIO, miniSDIO, SD Combo, MMC, MMCplus, and
RS-MMC cards
• SD bus clock frequency up to 50 MHz
• Supports 1-/4-bit SD and SDIO modes, 1-/4-/8-bit MMC modes, 1-/4-/8-bit CE-ATA devices
• Up to 200 Mbps data transfer for SD/SDIO cards using four parallel data lines
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
27
Human-machine interface
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Up to 416 Mbps data transfer for MMC using 8 parallel data lines
Single- and multi-block read and write
1-4096 byte block size
Write-protection switch for write operations
Synchronous and asynchronous abort
Pause during the data transfer at a block gap
SDIO read wait and suspend/resume operations
Auto CMD12 for multi-block transfer
Host can initiate non-data transfer commands while the data transfer is in progress
Allows cards to interrupt the host in 1- and 4-bit SDIO modes
Supports interrupt period, defined in the SDIO standard
Fully configurable 128 x 32-bit FIFO for read/write data
Internal DMA capabilities
Supports voltage selection by configuring vendor specific register bit
Supports advanced DMA to perform linked memory access
4.5.7.11
Synchronous Serial Interface (I2S)
• Independent (asynchronous) or shared (synchronous) transmit and receive sections with separate or shared internal/
external clocks and frame syncs, operating in master or slave mode intended for audio support
• Master or slave mode operation
• Normal mode operation using frame sync
• Network mode operation allowing multiple devices to share the port with up to 32 time slots
• Programmable data interface modes, such as I2S, LSB aligned, and MSB aligned
• Programmable word length (8, 10, 12, 16, 18, 20, 22 or 24 bits)
• AC97 support
4.5.8 Human-machine interface
4.5.8.1
General Purpose Input/Output (GPIO)
4.5.8.2
Touch Sensor Input (TSI)
•
•
•
•
•
•
•
•
•
•
Progammable glitch filter and interrupt with selectable polarity on all input pins
Hysteresis and configurable pull up/down device on all input pins
Configurable slew rate and drive strength on all output pins
Independent pin value register to read logic level on digital pin
Optional devices with 5V tolerance
16 channel inputs, supporting up to 16 individual touch buttons
4 touch buttons can be combined for a slider
Configurable button- and slider-sensitive interrupts
Operation in low-power modes allows wakeup from lowest power mode via a single touch
Option to use internal reference clock
4.5.8.3
Touchscreen Controller
• Supports 4/5/7 and 8-wire touchscreen configurations
• Pen-down detection circuitry to generate pen interrupt request
K70 Family Product Brief, Rev. 8, 6/2011
28
Freescale Semiconductor, Inc.
Power modes
• Interfaces to on-chip 16-bit SAR ADC
• Provides data-ready and FIFO-full interrupts
4.5.8.4
•
•
•
•
•
•
Graphic LCD controller
Support for single (non-split) screen monochrome/color LCD panels and self-refresh type LCD panels
Up to 16 simultaneous gray-scale levels from a palette of 16 for monochrome display
Maximum supported panel size of 800 x 600 pixels
Direct interface to Sharp 240 × 320 HR-TFT panels
Up to 4 (mapped to RGB444) / 8 (mapped to RGB444) / 12 (RGB444) bits per pixel (bpp) for passive color panel
4 (mapped to RGB666) / 8 (mapped to RGB666) / 12 (RGB444) / 16 (RGB565) / 18 (RGB666) bpp/ 24 (RGB888) bpp
for TFT
5 Power modes
The power management controller (PMC) provides the user with multiple power options. All together 10 different modes of
operation are supported to allow the user to optimize power consumption for the level of functionality needed.
Depending on the stop requirements of the user application, a variety of stop modes are available that provide state retention,
partial power down or full power down of certain logic and/or memory. I/O states are held in all modes of operation. The
following table compares the various power modes available.
For each run mode there is a corresponding wait and stop mode. Wait modes are similar to ARM sleep modes. Stop modes
(VLPS, STOP) are similar to ARM sleep deep mode. The very low power run (VLPR) operating mode can drastically reduce
runtime power when the maximum bus frequency is not required to handle the application needs.
The three primary modes of operation are run, wait and stop. The WFI instruction invokes both wait and stop modes for the
chip. The primary modes are augmented in a number of ways to provide lower power based on application needs.
Table 5. Chip power modes
Chip mode
Description
Normal run
Allows maximum performance of chip. Default mode out of reset; onchip voltage regulator is on.
Normal Wait via WFI
Allows peripherals to function while the core is in sleep mode,
reducing power. NVIC remains sensitive to interrupts; peripherals
continue to be clocked.
Normal Stop via WFI
Places chip in static state. Lowest power mode that retains all
registers while maintaining LVD protection. NVIC is disabled; AWIC is
used to wake up from interrupt; peripheral clocks are stopped.
Core mode
Normal
recovery
method
Run
-
Sleep
Interrupt
Sleep Deep
Interrupt
VLPR (Very
Low Power
Run)
On-chip voltage regulator is in a low power mode that supplies only
enough power to run the chip at a reduced frequency. Reduced
frequency Flash access mode (1 MHz); LVD off; internal oscillator
provides a low power 4 MHz source for the core, the bus and the
peripheral clocks.
Run
Interrupt
VLPW (Very
Low Power
Wait) -via WFI
Same as VLPR but with the core in sleep mode to further reduce
power; NVIC remains sensitive to interrupts (FCLK = ON). On-chip
voltage regulator is in a low power mode that supplies only enough
power to run the chip at a reduced frequency.
Sleep
Interrupt
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
29
Developer Environment
Table 5. Chip power modes (continued)
Chip mode
Description
Core mode
Normal
recovery
method
VLPS (Very
Low Power
Stop)-via WFI
Places chip in static state with LVD operation off. Lowest power mode
with ADC and pin interrupts functional. Peripheral clocks are stopped,
but LPTimer, RTC, CMP, TSI, DAC can be used. NVIC is disabled
(FCLK = OFF); AWIC is used to wake up from interrupt. On-chip
voltage regulator is in a low power mode that supplies only enough
power to run the chip at a reduced frequency. All SRAM is operating
(content retained and I/O states held).
Sleep Deep
Interrupt
LLS (Low
Leakage Stop)
State retention power mode. Most peripherals are in state retention
mode (with clocks stopped), but LLWU, LPTimer, RTC, CMP, TSI,
DAC can be used. NVIC is disabled; LLWU is used to wake up.
Sleep Deep
Wakeup
Interrupt1
Sleep Deep
Wakeup Reset2
Sleep Deep
Wakeup Reset2
Sleep Deep
Wakeup Reset2
Off
Power-up
Sequence
NOTE: The LLWU interrupt must not be masked by the interrupt
controller to avoid a scenario where the system does not fully
exit stop mode on an LLS recovery.
All SRAM is operating (content retained and I/O states held).
VLLS3 (Very
Low Leakage
Stop3)
Most peripherals are disabled (with clocks stopped), but LLWU,
LPTimer, RTC, CMP, TSI, DAC can be used. NVIC is disabled; LLWU
is used to wake up.
SRAM_U and SRAM_L remain powered on (content retained and I/O
states held).
VLLS2 (Very
Low Leakage
Stop2)
Most peripherals are disabled (with clocks stopped), but LLWU,
LPTimer, RTC, CMP, TSI, DAC can be used. NVIC is disabled; LLWU
is used to wake up.
SRAM_L is powered off. A portion of SRAM_U remains powered on
(content retained and I/O states held).
VLLS1 (Very
Low Leakage
Stop1)
Most peripherals are disabled (with clocks stopped), but LLWU,
LPTimer, RTC, CMP, TSI, DAC can be used. NVIC is disabled; LLWU
is used to wake up.
All of SRAM_U and SRAM_L are powered off. The 32-byte system
register file and the 32-byte VBAT register file remain powered for
customer-critical data.
BAT (backup
battery only)
The chip is powered down except for the VBAT supply. The RTC and
the 32-byte VBAT register file for customer-critical data remain
powered.
1. Resumes normal run mode operation by executing the LLWU interrupt service routine.
2. Follows the reset flow with the LLWU interrupt flag set for the NVIC.
6 Developer Environment
Freescale's products are supported by a widespread, established network of tools and third party developers and software
vendors. The Kinetis families take advantage of these and similar development resources.
K70 Family Product Brief, Rev. 8, 6/2011
30
Freescale Semiconductor, Inc.
Developer Environment
6.1 Freescale's Tower System Support
Freescale's Tower System is a modular development platform for 8-bit, 16-bit, and 32-bit microcontrollers that enables
advanced development through rapid prototyping. Featuring multiple development boards or modules, the Tower System
provides designers with building blocks for entry-level to advanced microcontroller development.
The Freescale Tower System
Primary Elevator
MCU/ MPU Module
• Common serial
and expansion
bus signals
• Tower controller board
• Works stand-alone or
in Tower System
• Two 2x80 connectors
on backside for easy
signal access and
side-mounting board
(i.e. LCD module)
• Features new on-board
debug interface for
easy programming
and debugging via
mini-B USB cable
• Power regulation
circuitry
Secondary Elevator
• Standardized signal
assignments
• Additional serial and
expansion buses and
peripheral interfaces
Board Connectors
• Four card-edge
connectors
• Uses PCI Express®
connectors
(x16, 90 mm/3.5”
long, 164 pins)
Peripheral Module
Size
• (i.e. serial, prototype, etc.)
• Tower is approx. 3.5” H x 3.5” W x 3.5” D
when fully assembled
Figure 4. Freescale's Tower System
The following Tower modules are available for the Kinetis families. For more information on the Tower System see http://
www.freescale.com/tower.
Table 6. Tower Modules for Kinetis MCU Families
Microcontroller Modules
Kinetis K40 Family MCU Module
Features
K40 family 512 KB flash MCU in 144 MAPBGA package
On-board JTAG debug interface
Access to all features including Segment LCD and USB
Kinetis K60 Family MCU Module
K60 family 512 KB flash MCU in 144 MAPBGA package
On-board JTAG debug interface
Access to all features including Ethernet and USB
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
31
Developer Environment
Table 6. Tower Modules for Kinetis MCU Families (continued)
Microcontroller Modules
Features
Kinetis K53 Family MCU Module
K53 family 512 KB flash MCU in 144 MAPBGA package
On-board JTAG debug interface
Access to all features including Ethernet, USB, Segment LCD (TWRPI),
and medical expansion connector
6.2 CodeWarrior Development Studio
Freescale's CodeWarrior Development Studio for Microcontrollers v10.x integrates the development tools for the RS08,
HCS08, ARM, and ColdFire architectures into a single product based on the Eclipse open development platform. Eclipse
offers an excellent framework for building software development environments and is becoming a standard framework used
by many embedded software vendors.
• Eclipse IDE 3.4
• Build system with optimizing C/C++ compilers for RS08, HCS08, ARM, and ColdFire processors
• Extensions to Eclipse C/C++ Development Tools (CDT) to provide sophisticated features to troubleshoot and repair
embedded applications
Table 7. CodeWarrior 10.x Differentiating Features
Differentiating
features
MCU Change
Wizard
Customer
benefits
Ability to
easily
retarget
project to a
new
processor
Details
Simply select a new device (from the same or a different architecture) and select the
default connection, and the CodeWarrior tool suite automatically reconfigures the project
for the new device with the correct build tools and support files.
•
•
•
•
•
•
•
Compiler
Assembler
Linker
Header files
Vector tables
Libraries
Linker configuration files
Freescale
Problems in Combines easy-to-use component-based application creation with an expert knowledge
Processor Expert hardware
system.
layer can be
• CPU, on-chip peripherals, external peripherals, and software functionality are
resolved
encapsulated into embedded components
during initial
• Each component’s functionality can be tailored to fit application requirements by
design phase
modifying the component’s properties, methods and events
• When the project is built, Processor Expert automatically generates highly optimized
embedded C code and places the source files into the project
• Graphical user interface: Allows an application to be specified by the functionality
needed
• Automatic code generator: Creates tested, optimized C code tuned to application
needs and the selected Freescale device
• Built-in knowledgebase: Immediately flags resource conflicts and incorrect settings,
so errors are caught early in design cycle
• Component wizard: Allows user-specific, hardware-independent embedded
components to be created
Table continues on the next page...
K70 Family Product Brief, Rev. 8, 6/2011
32
Freescale Semiconductor, Inc.
Developer Environment
Table 7. CodeWarrior 10.x Differentiating Features (continued)
Differentiating
features
Customer
benefits
Trace and profile Sophisticate
support for ond emulatorchip trace buffers like debug
capability
without
additional
hardware
Details
The CodeWarrior profiling and analysis tools provide visibility into an application as it runs
on the processor to identify operational problems.
•
•
•
•
Supports architectures with on-chip trace buffers (HCS08, V1 ColdFire, ARM)
Allows tracepoints to be set to enable and disable trace output
Can step through trace data and the corresponding source code simultaneously
Allows trace data to be exported into a Microsoft® Excel® file
For more information see the CodeWarrior web site at http://www.freescale.com/codewarrior.
6.3 Freescale's MQX™ Software Solutions
The increasing complexity of industrial applications and expanding functionality of semiconductors are driving embedded
developers toward solutions that combine proven hardware and software platforms. These solutions help accelerate time to
market and improve application development success.
Freescale Semiconductor offers the MQX real-time operating system (RTOS), with TCP/IP and USB software stacks and
peripheral drivers, to customers of ARM, ColdFire and ColdFire+ MCUs at no additional charge. The combination of
Freescale's MQX software solutions and Freescale's silicon portfolio creates a comprehensive source for hardware, software,
tools, and services.
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
33
Developer Environment
Freescale Comprehensive Solution
CodeWarrior™
Development
Environment
(MQX OS
Aware)
CodeWarrior
Processor
Expert™
MQX Design
and
Development
Tools
Demo Code
Customized
Applications
Application Tasks and
Industry-Specific Libraries
MQX RTOS
Optional
Services
Ethernet
(RTCS)
USB
File System
CAN
Core Services MQX RTOS
Third Party:
IAR
(MQX OS
Aware)
Open Source
BDM and
Third Party:
Emulator/Probe
Applications
BSP/PSP
BDM/JTAG
Microcontroller
Discrete
Driver,
Third
Party
and
Freescale
Application
Enablement
Layer
HAL
Hardware
On Device
PC Hosted
Figure 5. MQX Comprehensive Solution
Key benefits of Freescale's MQX RTOS include:
• Small memory footprint: The RTOS was designed for speed and size efficiency in embedded systems. It delivers true
real-time performance, with context switching and low-level interrupt routines hand-optimized in assembly.
• Component-based architecture: Provides a fully-functional RTOS core with additional, optional services. Freescale's
MQX RTOS includes 25 components (8 core components and 17 optional). Components are linked in only if needed,
preventing unused functions from bloating the memory footprint.
• Full and lightweight components: Key components are included in both full and lightweight versions for further control
of size, RAM/ROM utilization, and performance options.
• Real-time, priority-based, preemptive multithreading: Allows high-priority threads to meet their deadlines consistently,
no matter how many other threads are competing for CPU time.
• Scheduling: Enables faster development time by offloading from developers the task of creating or maintaining an
efficient scheduling system and interrupt handling.
• Code reuse: Provides a framework with a simple, intuitive API to build and organize the features across Freescale’s
broad portfolio of embedded processors.
K70 Family Product Brief, Rev. 8, 6/2011
34
Freescale Semiconductor, Inc.
Developer Environment
• Fast boot sequence: Ensures the application is running quickly after the hardware has been reset.
• Simple Message Passing: Messages can be passed either from a system pool or a private pool, sent with either urgent
status or a user-defined priority, and broadcast or task specific. For maximum flexibility, a receiving task can operate
on either the same CPU as the sending task or on a different CPU within the same system.
For more information see the MQX web site at http://www.freescale.com/mqx.
MQX RTOS—Customizable Component Set
Queues
Name
Services
Interrupts
Messages
Partitions
Task
Management
Watchdogs
Utilities
Task Errors
Lightweight
Semaphores
Events
Initialization
Core
Core Memory
Services
Semaphores
Mutexes
Automatic Task
Creation
Timers
RR and FIFO
IPCs
Scheduling
Formatted
Exception
I/O
Handling
I/O
Kernel
Subsystems
Log
Logs
Task Queue
Scheduling
As-Needed
Figure 6. MQX Customizable Component Set
6.4 Additional Software Stacks Provided
•
•
•
•
•
•
•
•
Math, DSP and Encryption Libraries
Motor Control Libraries
Touch Sensing Software Suite
Complimentary Bootloaders (USB, Ethernet, RF, serial)
Complimentary Freescale Embedded GUI
Complimentary Freescale MQX™ RTOS , USB, TCP/IP stack and MFS filesystem
Low Cost Nano™ SSL/Nano™ SSH for Freescale MQX™ RTOS
Plus full ARM® ecosystem
K70 Family Product Brief, Rev. 8, 6/2011
Freescale Semiconductor, Inc.
35
Revision History
7 Revision History
The following table provides a revision history for this document.
Table 8. Revision History
Rev. No.
Date
8
6/2011
Substantial Changes
Initial public revision
K70 Family Product Brief, Rev. 8, 6/2011
36
Freescale Semiconductor, Inc.
How to Reach Us:
Home Page:
www.freescale.com
Web Support:
http://www.freescale.com/support
USA/Europe or Locations Not Listed:
Freescale Semiconductor
Technical Information Center, EL516
2100 East Elliot Road
Tempe, Arizona 85284
+1-800-521-6274 or +1-480-768-2130
www.freescale.com/support
Europe, Middle East, and Africa:
Freescale Halbleiter Deutschland GmbH
Technical Information Center
Schatzbogen 7
81829 Muenchen, Germany
+44 1296 380 456 (English)
+46 8 52200080 (English)
+49 89 92103 559 (German)
+33 1 69 35 48 48 (French)
www.freescale.com/support
Japan:
Freescale Semiconductor Japan Ltd.
Headquarters
ARCO Tower 15F
1-8-1, Shimo-Meguro, Meguro-ku,
Tokyo 153-0064
Japan
0120 191014 or +81 3 5437 9125
support.japan@freescale.com
Asia/Pacific:
Freescale Semiconductor China Ltd.
Exchange Building 23F
No. 118 Jianguo Road
Chaoyang District
Beijing 100022
China
+86 10 5879 8000
support.asia@freescale.com
For Literature Requests Only:
Freescale Semiconductor Literature Distribution Center
1-800-441-2447 or +1-303-675-2140
Fax: +1-303-675-2150
LDCForFreescaleSemiconductor@hibbertgroup.com
Document Number: K70PB
Rev. 8, 6/2011
Information in this document is provided solely to enable system and software
implementers to use Freescale Semiconductors products. There are no express or implied
copyright licenses granted hereunder to design or fabricate any integrated circuits or
integrated circuits based on the information in this document.
Freescale Semiconductor reserves the right to make changes without further notice to any
products herein. Freescale Semiconductor makes no warranty, representation, or
guarantee regarding the suitability of its products for any particular purpose, nor does
Freescale Semiconductor assume any liability arising out of the application or use of any
product or circuit, and specifically disclaims any liability, including without limitation
consequential or incidental damages. "Typical" parameters that may be provided in
Freescale Semiconductor data sheets and/or specifications can and do vary in different
applications and actual performance may vary over time. All operating parameters,
including "Typicals", must be validated for each customer application by customer's
technical experts. Freescale Semiconductor does not convey any license under its patent
rights nor the rights of others. Freescale Semiconductor products are not designed,
intended, or authorized for use as components in systems intended for surgical implant
into the body, or other applications intended to support or sustain life, or for any other
application in which failure of the Freescale Semiconductor product could create a
situation where personal injury or death may occur. Should Buyer purchase or use
Freescale Semiconductor products for any such unintended or unauthorized application,
Buyer shall indemnify Freescale Semiconductor and its officers, employees, subsidiaries,
affiliates, and distributors harmless against all claims, costs, damages, and expenses, and
reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury
or death associated with such unintended or unauthorized use, even if such claims alleges
that Freescale Semiconductor was negligent regarding the design or manufacture of
the part.
RoHS-compliant and/or Pb-free versions of Freescale products have the functionality and
electrical characteristics as their non-RoHS-complaint and/or non-Pb-free counterparts.
For further information, see http://www.freescale.com or contact your Freescale
sales representative.
For information on Freescale's Environmental Products program, go to
http://www.freescale.com/epp.
Freescale™ and the Freescale logo are trademarks of Freescale Semiconductor, Inc.
All other product or service names are the property of their respective owners.
© 2010–2011 Freescale Semiconductor, Inc.
