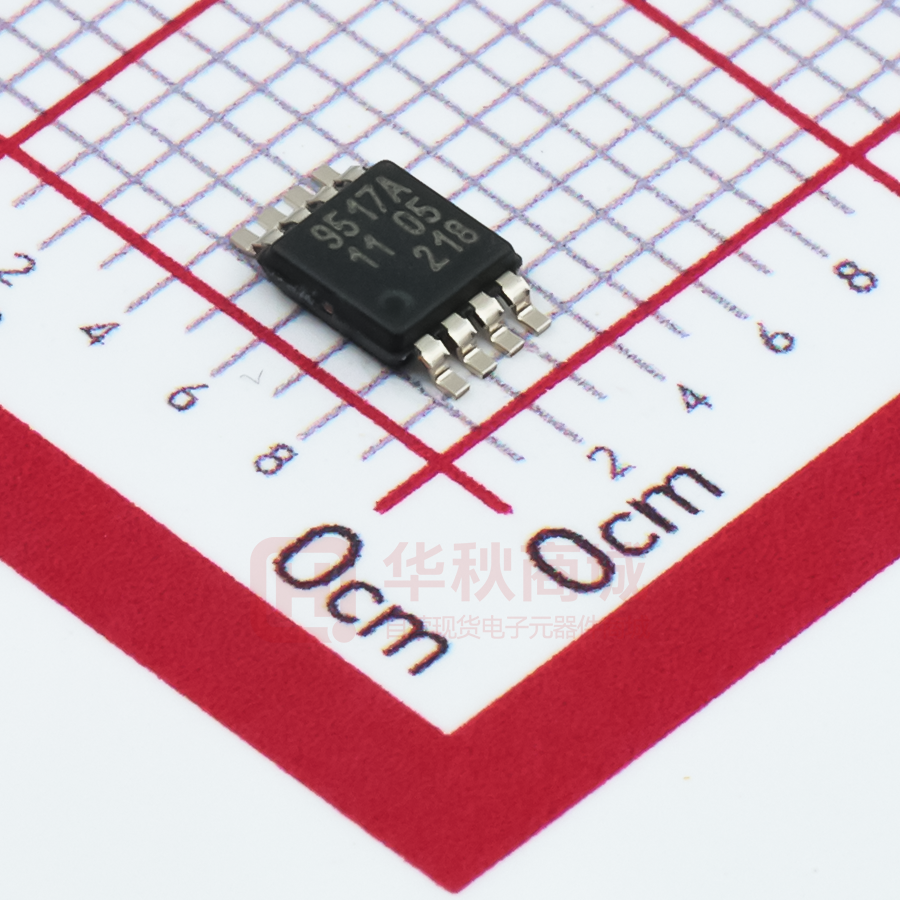

PCA9517ADP,118

PCA9517A Level translating I2C-bus repeater Rev. 4.1 — 24 May 2016 Product data sheet 1. General description The PCA9517A is a CMOS integrated circuit that provides level shifting between low voltage (down to 0.9 V) and higher voltage (2.7 V to 5.5 V) I2C-bus or SMBus applications. While retaining all the operating modes and features of the I2C-bus system during the level shifts, it also permits extension of the I2C-bus by providing bidirectional buffering for both the data (SDA) and the clock (SCL) lines, thus enabling two buses of 400 pF. Using the PCA9517A enables the system designer to isolate two halves of a bus for both voltage and capacitance. The SDA and SCL pins are overvoltage tolerant and are high-impedance when the PCA9517A is unpowered. The 2.7 V to 5.5 V bus port B drivers behave much like the drivers on the PCA9515A device, while the adjustable voltage bus port A drivers drive more current and eliminate the static offset voltage. This results in a LOW on the port B translating into a nearly 0 V LOW on the port A which accommodates smaller voltage swings of lower voltage logic. The static offset design of the port B PCA9517A I/O drivers prevent them from being connected to another device that has rise time accelerator including the PCA9510, PCA9511, PCA9512, PCA9513, PCA9514, PCA9515A, PCA9516A, PCA9517A (port B), or PCA9518. Port A of two or more PCA9517As can be connected together, however, to allow a star topography with port A on the common bus, and port A can be connected directly to any other buffer with static or dynamic offset voltage. Multiple PCA9517As can be connected in series, port A to port B, with no build-up in offset voltage with only time of flight delays to consider. The PCA9517A drivers are not enabled unless VCC(A) is above 0.8 V and VCC(B) is above 2.5 V. The EN pin can also be used to turn the drivers on and off under system control. Caution should be observed to only change the state of the enable pin when the bus is idle. The output pull-down on the port B internal buffer LOW is set for approximately 0.5 V, while the input threshold of the internal buffer is set about 70 mV lower (0.43 V). When the port B I/O is driven LOW internally, the LOW is not recognized as a LOW by the input. This prevents a lock-up condition from occurring. The output pull-down on port A drives a hard LOW and the input level is set at 0.3VCC(A) to accommodate the need for a lower LOW level in systems where the low voltage side supply voltage is as low as 0.9 V. Table 1. PCA9517 and PCA9517A comparison Parameter PCA9517[1] PCA9517A[2] electrostatic discharge, HBM > 2 kV > 5.5 kV [1] PCA9517 will be discontinued in several years, so move to the PCA9517A for all new designs and system updates. [2] The PCA9517A is an improved hot swap and ESD version of the PCA9517, but otherwise operates identically and should be used for all new designs and system updates. PCA9517A NXP Semiconductors Level translating I2C-bus repeater 2. Features and benefits  2 channel, bidirectional buffer isolates capacitance and allows 400 pF on either side of the device  Voltage level translation from 0.9 V to 5.5 V and from 2.7 V to 5.5 V  Footprint and functional replacement for PCA9515/15A  I2C-bus and SMBus compatible  Active HIGH repeater enable input  Open-drain input/outputs  Lock-up free operation  Supports arbitration and clock stretching across the repeater  Accommodates Standard-mode and Fast-mode I2C-bus devices and multiple masters  Powered-off high-impedance I2C-bus pins  Port A operating supply voltage range of 0.9 V to 5.5 V  Port B operating supply voltage range of 2.7 V to 5.5 V  5 V tolerant I2C-bus and enable pins  0 Hz to 400 kHz clock frequency (the maximum system operating frequency may be less than 400 kHz because of the delays added by the repeater)  ESD protection exceeds 5500 V HBM per JESD22-A114 and 1000 V CDM per JESD22-C101  Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA  Packages offered: SO8, TSSOP8 and HWSON8 3. Ordering information Table 2. Ordering information Tamb = 40 C to +85 C. Type number Topside mark Package Name Description Version PA9517A SO8 plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 PCA9517ADP 9517A TSSOP8[1] plastic thin shrink small outline package; 8 leads; body width 3 mm SOT505-1 PCA9517ADP/DG 9517A TSSOP8[1][2] plastic thin shrink small outline package; 8 leads; body width 3 mm SOT505-1 PCA9517ATP 17A HWSON8 SOT1069-2 PCA9517AD plastic thermal enhanced very very thin small outline package; no leads; 8 terminals; body 2  3  0.8 mm [1] Also known as MSOP8. [2] PCA9517ADP/DG is functionally the same (electrically and mechanically) as the PCA9517ADP, but was initially produced (e.g., “born”) with Dark Green (lead-free and halogen/antimony-free) package material and is a temporary unique orderable part number for customers who desire to order and only receive Dark Green package material. The standard part PCA9517ADP will transition to Dark Green package material in 2Q’12 and then the PCA9517ADP and PCA9517ADP/DG devices will be identical. The PCA9517ADP/DG part number will be EOL after several years as customers who used this temporary part number update their BOM to the normal part number. PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 2 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 4. Functional diagram VCC(A) VCC(B) PCA9517A SDAA SDAB SCLA SCLB VCC(B) pull-up resistor EN 002aad465 GND Fig 1. Functional diagram of PCA9517A 5. Pinning information 5.1 Pinning PCA9517ADP PCA9517ADP/DG VCC(A) 1 8 VCC(B) SCLA 2 7 SCLB SDAA 3 6 SDAB VCC(A) 1 8 VCC(B) SCLA 2 7 SCLB SDAA 3 6 SDAB GND 4 5 EN PCA9517AD GND 5 4 EN 002aad467 002aad466 Fig 2. Pin configuration for SO8 Fig 3. Pin configuration for TSSOP8 (MSOP8) PCA9517ATP terminal 1 index area SDAA 1 8 SCLA GND 2 7 VCC(A) EN 3 6 VCC(B) SDAB 4 5 SCLB 002aag100 Transparent top view Fig 4. PCA9517A Product data sheet Pin configuration for HWSON8 All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 3 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 5.2 Pin description Table 3. Symbol Pin description Pin SO8, TSSOP8 Description HWSON8 VCC(A) 1 7 port A supply voltage (0.9 V to 5.5 V) SCLA 2 8 serial clock port A bus SDAA 3 1 serial data port A bus GND 4 2[1] supply ground (0 V) EN 5 3 active HIGH repeater enable input SDAB 6 4 serial data port B bus SCLB 7 5 serial clock port B bus VCC(B) 8 6 port B supply voltage (2.7 V to 5.5 V) [1] HWSON8 package die supply ground is connected to both GND pin and exposed center pad. GND pin must be connected to supply ground for proper device operation. For enhanced thermal, electrical, and board level performance, the exposed pad needs to be soldered to the board using a corresponding thermal pad on the board and for proper head conduction through the board, thermal vias need to be incorporated in the printed-circuit board in the thermal pad region. 6. Functional description Refer to Figure 1 “Functional diagram of PCA9517A”. The PCA9517A enables I2C-bus or SMBus translation down to VCC(A) as low as 0.9 V without degradation of system performance. The PCA9517A contains two bidirectional open-drain buffers specifically designed to support up-translation/down-translation between the low voltage (as low as 0.9 V) and a 3.3 V or 5 V I2C-bus or SMBus. All inputs and I/Os are overvoltage tolerant to 5.5 V even when the device is unpowered (VCC(B) and/or VCC(A) = 0 V). The PCA9517A includes a power-up circuit that keeps the output drivers turned off until VCC(B) is above 2.5 V and the VCC(A) is above 0.8 V. VCC(B) and VCC(A) can be applied in any sequence at power-up. After power-up and with the enable (EN) HIGH, a LOW level on port A (below 0.3VCC(A)) turns the corresponding port B driver (either SDA or SCL) on and drives port B down to about 0.5 V. When port A rises above 0.3VCC(A), the port B pull-down driver is turned off and the external pull-up resistor pulls the pin HIGH. When port B falls first and goes below 0.4 V the port A driver is turned on and port A pulls down to 0 V. The port A pull-down is not enabled unless the port B voltage goes below 0.4 V. If the port B low voltage goes below 0.4 V, the port B pull-down driver is enabled and port B will only be able to rise to 0.5 V until port A rises above 0.3VCC(A), then port B will continue to rise being pulled up by the external pull-up resistor. The VCC(A) is only used to provide the 0.3VCC(A) reference to the port A input comparators and for the power good detect circuit. The PCA9517A logic and all I/Os are powered by the VCC(B) pin. PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 4 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 6.1 Enable The EN pin is active HIGH with an internal pull-up to VCC(B) and allows the user to select when the repeater is active. This can be used to isolate a badly behaved slave on power-up until after the system power-up reset. It should never change state during an I2C-bus operation because disabling during a bus operation will hang the bus and enabling part way through a bus cycle could confuse the I2C-bus parts being enabled. The enable pin should only change state when the global bus and the repeater port are in an idle state to prevent system failures. 6.2 I2C-bus systems As with the standard I2C-bus system, pull-up resistors are required to provide the logic HIGH levels on the buffered bus (standard open-collector configuration of the I2C-bus). The size of these pull-up resistors depends on the system, but each side of the repeater must have a pull-up resistor. This part designed to work with Standard mode and Fast mode I2C-bus devices in addition to SMBus devices. Standard mode I2C-bus devices only specify 3 mA output drive; this limits the termination current to 3 mA in a generic I2C-bus system where Standard-mode devices and multiple masters are possible. Under certain conditions higher termination currents can be used. Please see Application Note AN255, I2C/SMBus Repeaters, Hubs and Expanders for additional information on sizing resistors and precautions when using more than one PCA9517A in a system or using the PCA9517A in conjunction with other bus buffers. 7. Application design-in information A typical application is shown in Figure 5. In this example, the system master is running on a 3.3 V I2C-bus while the slave is connected to a 1.2 V bus. Both buses run at 400 kHz. Master devices can be placed on either bus. 3.3 V 1.2 V 10 kΩ 10 kΩ VCC(A) SDA SDAB SDAA SDA SCL SCLB SCLA SCL BUS MASTER 400 kHz PCA9517A SLAVE 400 kHz EN bus B Fig 5. 10 kΩ 10 kΩ VCC(B) bus A 002aad468 Typical application The PCA9517A is 5 V tolerant, so it does not require any additional circuitry to translate between 0.9 V to 5.5 V bus voltages and 2.7 V to 5.5 V bus voltages. PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 5 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater When port A of the PCA9517A is pulled LOW by a driver on the I2C-bus, a comparator detects the falling edge when it goes below 0.3VCC(A) and causes the internal driver on port B to turn on, causing port B to pull down to about 0.5 V. When port B of the PCA9517A falls, first a CMOS hysteresis type input detects the falling edge and causes the internal driver on port A to turn on and pull the port A pin down to ground. In order to illustrate what would be seen in a typical application, refer to Figure 9 and Figure 10. If the bus master in Figure 5 were to write to the slave through the PCA9517A, waveforms shown in Figure 9 would be observed on the A bus. This looks like a normal I2C-bus transmission except that the HIGH level may be as low as 0.9 V, and the turn on and turn off of the acknowledge signals are slightly delayed. On the B bus side of the PCA9517A, the clock and data lines would have a positive offset from ground equal to the VOL of the PCA9517A. After the eighth clock pulse, the data line will be pulled to the VOL of the slave device which is very close to ground in this example. At the end of the acknowledge, the level rises only to the LOW level set by the driver in the PCA9517A for a short delay while the A bus side rises above 0.3VCC(A) then it continues HIGH. It is important to note that any arbitration or clock stretching events require that the LOW level on the B bus side at the input of the PCA9517A (VIL) be at or below 0.4 V to be recognized by the PCA9517A and then transmitted to the A bus side. Multiple PCA9517A port A sides can be connected in a star configuration (Figure 6), allowing all nodes to communicate with each other. Multiple PCA9517As can be connected in series (Figure 7) as long as port A is connected to port B. I2C-bus slave devices can be connected to any of the bus segments. The number of devices that can be connected in series is limited by repeater delay/time-of-flight considerations on the maximum bus speed requirements. PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 6 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater VCC(A) VCC(B) 10 kΩ 10 kΩ 10 kΩ 10 kΩ VCC(A) VCC(B) SDA SDAA SDAB SDA SCL SCLA SCLB SCL BUS MASTER PCA9517A SLAVE 400 kHz EN 10 kΩ 10 kΩ VCC(A) VCC(B) SDAA SDAB SDA SCLA SCLB SCL PCA9517A SLAVE 400 kHz EN 10 kΩ 10 kΩ VCC(A) VCC(B) SDAA SDAB SDA SCLA SCLB SCL PCA9517A SLAVE 400 kHz EN 002aad469 Fig 6. Typical star application VCC 10 kΩ 10 kΩ 10 kΩ 10 kΩ 10 kΩ 10 kΩ 10 kΩ 10 kΩ SDA SDAA SDAB SDAA SDAB SDAA SDAB SDA SCL SCLA SCLB SCLA SCLB SCLA SCLB SCL BUS MASTER PCA9517A EN PCA9517A EN PCA9517A SLAVE 400 kHz EN 002aad470 Fig 7. Typical series application PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 7 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater CARD 1 VCC(A) CARD 2 RPU VCC(B) RPU 10 kΩ VCC(A) 75 Ω 75 Ω 10 kΩ 10 kΩ (optional) VCC(B) SDAA SCLA SDAB SCLB EN MASTER OR SLAVE GND 002aad644 Remark: Figure 9 and Figure 10 reference Figure 8 and assume master on Bus B side and slave on Bus A side. Fig 8. Typical application of PCA9517A driving a short cable 9th clock pulse acknowledge SCL SDA 002aac775 Fig 9. Bus A (0.9 V to 5.5 V bus) waveform 9th clock pulse acknowledge SCL VOL of PCA9517A SDA 002aad471 VOL of slave Fig 10. Bus B (2.7 V to 5.5 V) waveform PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 8 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 8. Limiting values Table 4. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit VCC(B) supply voltage port B 2.7 V to 5.5 V 0.5 +7 V VCC(A) supply voltage port A adjustable 0.5 +7 V VI/O voltage on an input/output pin port A and port B; enable pin (EN) 0.5 +7 V II/O input/output current port A; port B - 50 mA II input current EN, VCC(A), VCC(B), GND - 50 mA Ptot total power dissipation - 100 mW Tstg storage temperature 55 +125 C Tamb ambient temperature 40 +85 C Tj junction temperature - +125 C PCA9517A Product data sheet operating in free air All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 9 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 9. Static characteristics Table 5. Static characteristics VCC = 2.7 V to 5.5 V; GND = 0 V; Tamb = 40 C to +85 C; unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit Supplies VCC(B) supply voltage port B VCC(A) supply voltage port A 2.7 - 5.5 V 0.9 - 5.5 V ICC(VCC(A)) supply current on pin VCC(A) - - 1 mA ICCH HIGH-level supply current both channels HIGH; VCC = 5.5 V; SDAn = SCLn = VCC - 1.5 5 mA ICCL LOW-level supply current both channels LOW; VCC = 5.5 V; one SDA and one SCL = GND; other SDA and SCL open - 1.5 5 mA ICC(A)c contention port A supply current VCC = 5.5 V; SDAn = SCLn = VCC - 1.5 5 mA 0.7VCC(B) - 5.5 V 0.5 - +0.3VCC(B) V 0.5 0.4 - V [1] Input and output SDAB and SCLB VIH HIGH-level input voltage [2] VIL LOW-level input voltage VILc contention LOW-level input voltage VIK input clamping voltage II = 18 mA - - 1.2 V ILI input leakage current VI = 3.6 V - - 1 A IIL LOW-level input current SDA, SCL; VI = 0.2 V - - 10 A VOL LOW-level output voltage IOL = 100 A or 6 mA 0.47 0.52 0.6 V VOLVILc difference between LOW-level output and LOW-level input voltage contention guaranteed by design - - 70 mV ILOH HIGH-level output leakage current VO = 3.6 V - - 10 A Cio input/output capacitance VI = 3 V or 0 V; VCC = 3.3 V - 6 7 pF VI = 3 V or 0 V; VCC = 0 V - 6 7 pF 0.7VCC(A) - 5.5 V 0.5 - +0.3VCC(A) V Input and output SDAA and SCLA VIH HIGH-level input voltage [3] VIL LOW-level input voltage VIK input clamping voltage II = 18 mA - - 1.2 ILI input leakage current VI = 3.6 V - - 1 A IIL LOW-level input current SDA, SCL; VI = 0.2 V - - 10 A VOL LOW-level output voltage IOL = 6 mA - 0.1 0.2 V ILOH HIGH-level output leakage current VO = 3.6 V - - 10 A Cio input/output capacitance VI = 3 V or 0 V; VCC = 3.3 V - 6 7 pF VI = 3 V or 0 V; VCC = 0 V - 6 7 pF PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 V © NXP Semiconductors N.V. 2016. All rights reserved. 10 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater Table 5. Static characteristics …continued VCC = 2.7 V to 5.5 V; GND = 0 V; Tamb = 40 C to +85 C; unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit 0.5 - +0.3VCC(B) V Enable VIL LOW-level input voltage VIH HIGH-level input voltage IIL(EN) LOW-level input current on pin EN ILI input leakage current Ci input capacitance VI = 0.2 V, EN; VCC = 3.6 V VI = 3.0 V or 0 V 0.7VCC(B) - 5.5 V - 10 30 A 1 - +1 A - 6 7 pF [1] LOW-level supply voltage. [2] VIL specification is for the first LOW level seen by the SDAB/SCLB lines. VILc is for the second and subsequent LOW levels seen by the SDAB/SCLB lines. [3] VIL for port A with envelope noise must be below 0.3VCC(A) for stable performance. 10. Dynamic characteristics Table 6. Dynamic characteristics VCC = 2.7 V to 5.5 V; GND = 0 V; Tamb = 40 C to +85 C; unless otherwise specified.[1][2] Symbol Parameter Min Typ[3] Max Unit [4] 100 170 250 ns [5] 30 80 110 ns VCC(A)  3 V 10 66 300 ns 10 20 30 ns 1 77 105 ns Conditions tPLH LOW to HIGH propagation delay port B to port A; Figure 13 tPHL HIGH to LOW propagation delay port B to port A; Figure 11 VCC(A)  2.7 V tTLH LOW to HIGH output transition time port A; Figure 11 tTHL HIGH to LOW output transition time port A; Figure 11 VCC(A)  2.7 V [5] VCC(A)  3 V tPLH LOW to HIGH propagation delay port A to port B; Figure 12 [6] tPHL HIGH to LOW propagation delay port A to port B; Figure 12 [6] tTLH LOW to HIGH output transition time port B; Figure 12 tTHL HIGH to LOW output transition time port B; Figure 12 tsu set-up time EN HIGH before START condition [7] th hold time EN HIGH after STOP condition [7] 20 70 175 ns 25 53 110 ns 60 79 230 ns 120 140 170 ns 30 48 90 ns 100 - - ns 100 - - ns [1] Times are specified with loads of 1.35 k pull-up resistance and 57 pF load capacitance on port B, and 167  pull-up resistance and 57 pF load capacitance on port A. Different load resistance and capacitance will alter the RC time constant, thereby changing the propagation delay and transition times. [2] Pull-up voltages are VCC(A) on port A and VCC(B) on port B. [3] Typical values were measured with VCC(A) = 3.3 V at Tamb = 25 C, unless otherwise noted. [4] The tPLH delay data from port B to port A is measured at 0.5 V on port B to 0.5VCC(A) on port A when VCC(A) is less than 2 V, and 1.5 V on port A if VCC(A) is greater than 2 V. [5] Typical value measured with VCC(A) = 2.7 V at Tamb = 25 C. [6] The proportional delay data from port A to port B is measured at 0.3VCC(A) on port A to 1.5 V on port B. [7] The enable pin, EN, should only change state when the global bus and the repeater port are in an idle state. PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 11 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 10.1 AC waveforms 3.0 V input 1.5 V 1.5 V tPHL tPLH 80 % output 0.6 V 20 % tTHL 0.6 V 20 % VCC(A) input 0.1 V 80 % tTLH 0.3VCC(A) 0.3VCC(A) tPLH tPHL 1.2 V 3.0 V 80 % 1.5 V 20 % 1.5 V 20 % output VOL tTHL tTLH 002aad642 Fig 11. Propagation delay and transition times; port B to port A 80 % 002aad643 Fig 12. Propagation delay and transition times; port A to port B input SDAB, SCLB 0.5 V output SCLA, SDAA 50 % if VCC(A) is less than 2 V 1.5 V if VCC(A) is greater than 2 V tPLH 002aad641 Fig 13. Propagation delay 11. Test information VCC(B) VCC(B) VCC(A) PULSE GENERATOR VI RL VO DUT CL RT 002aab649 RL = load resistor; 1.35 k on port B; 167  on port A (0.9 V to 2.7 V) and 450  on port A (3.0 V to 5.5 V). CL = load capacitance includes jig and probe capacitance; 57 pF RT = termination resistance should be equal to Zo of pulse generators Fig 14. Test circuit for open-drain outputs PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 12 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 12. Package outline SO8: plastic small outline package; 8 leads; body width 3.9 mm SOT96-1 D E A X c y HE v M A Z 5 8 Q A2 A (A 3) A1 pin 1 index θ Lp 1 L 4 e detail X w M bp 0 2.5 5 mm scale DIMENSIONS (inch dimensions are derived from the original mm dimensions) UNIT A max. A1 A2 A3 bp c D (1) E (2) e HE L Lp Q v w y Z (1) mm 1.75 0.25 0.10 1.45 1.25 0.25 0.49 0.36 0.25 0.19 5.0 4.8 4.0 3.8 1.27 6.2 5.8 1.05 1.0 0.4 0.7 0.6 0.25 0.25 0.1 0.7 0.3 inches 0.069 0.010 0.057 0.004 0.049 0.01 0.019 0.0100 0.014 0.0075 0.20 0.19 0.16 0.15 0.05 0.01 0.01 0.004 0.028 0.012 0.244 0.039 0.028 0.041 0.228 0.016 0.024 θ 8o o 0 Notes 1. Plastic or metal protrusions of 0.15 mm (0.006 inch) maximum per side are not included. 2. Plastic or metal protrusions of 0.25 mm (0.01 inch) maximum per side are not included. REFERENCES OUTLINE VERSION IEC JEDEC SOT96-1 076E03 MS-012 JEITA EUROPEAN PROJECTION ISSUE DATE 99-12-27 03-02-18 Fig 15. Package outline SOT96-1 (SO8) PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 13 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater TSSOP8: plastic thin shrink small outline package; 8 leads; body width 3 mm D E SOT505-1 A X c y HE v M A Z 5 8 A2 pin 1 index (A3) A1 A θ Lp L 1 4 detail X e w M bp 0 2.5 5 mm scale DIMENSIONS (mm are the original dimensions) UNIT A max. A1 A2 A3 bp c D(1) E(2) e HE L Lp v w y Z(1) θ mm 1.1 0.15 0.05 0.95 0.80 0.25 0.45 0.25 0.28 0.15 3.1 2.9 3.1 2.9 0.65 5.1 4.7 0.94 0.7 0.4 0.1 0.1 0.1 0.70 0.35 6° 0° Notes 1. Plastic or metal protrusions of 0.15 mm maximum per side are not included. 2. Plastic or metal protrusions of 0.25 mm maximum per side are not included. OUTLINE VERSION REFERENCES IEC JEDEC JEITA EUROPEAN PROJECTION ISSUE DATE 99-04-09 03-02-18 SOT505-1 Fig 16. Package outline SOT505-1 (TSSOP8) PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 14 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater HWSON8: plastic thermal enhanced very very thin small outline package; no leads; 8 terminals; body 2 x 3 x 0.75 mm SOT1069-2 X B D A A2 A E A1 A3 terminal 1 index area detail X e1 terminal 1 index area e 1 4 C C A B C v w b y y1 C L K E2 8 5 D2 0 1 Dimensions Unit mm 2 mm scale A(1) A1 A2 max 0.80 0.05 0.65 nom 0.75 0.02 0.55 min 0.70 0.00 0.45 A3 b D(1) D2 E(1) E2 e e1 0.2 0.30 0.25 0.18 2.1 2.0 1.9 1.6 1.5 1.4 3.1 3.0 2.9 1.6 1.5 1.4 0.5 1.5 K L 0.40 0.45 0.35 0.40 0.30 0.35 v 0.1 w y y1 0.05 0.05 0.05 Note 1. Plastic or metal protrusions of 0.075 mm maximum per side are not included. References Outline version IEC JEDEC JEITA SOT1069-2 --- MO-229 --- sot1069-2_po European projection Issue date 09-11-18 12-04-18 Fig 17. Package outline SOT1069-2 (HWSON8) PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 15 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 13. Soldering of SMD packages This text provides a very brief insight into a complex technology. A more in-depth account of soldering ICs can be found in Application Note AN10365 “Surface mount reflow soldering description”. 13.1 Introduction to soldering Soldering is one of the most common methods through which packages are attached to Printed Circuit Boards (PCBs), to form electrical circuits. The soldered joint provides both the mechanical and the electrical connection. There is no single soldering method that is ideal for all IC packages. Wave soldering is often preferred when through-hole and Surface Mount Devices (SMDs) are mixed on one printed wiring board; however, it is not suitable for fine pitch SMDs. Reflow soldering is ideal for the small pitches and high densities that come with increased miniaturization. 13.2 Wave and reflow soldering Wave soldering is a joining technology in which the joints are made by solder coming from a standing wave of liquid solder. The wave soldering process is suitable for the following: • Through-hole components • Leaded or leadless SMDs, which are glued to the surface of the printed circuit board Not all SMDs can be wave soldered. Packages with solder balls, and some leadless packages which have solder lands underneath the body, cannot be wave soldered. Also, leaded SMDs with leads having a pitch smaller than ~0.6 mm cannot be wave soldered, due to an increased probability of bridging. The reflow soldering process involves applying solder paste to a board, followed by component placement and exposure to a temperature profile. Leaded packages, packages with solder balls, and leadless packages are all reflow solderable. Key characteristics in both wave and reflow soldering are: • • • • • • Board specifications, including the board finish, solder masks and vias Package footprints, including solder thieves and orientation The moisture sensitivity level of the packages Package placement Inspection and repair Lead-free soldering versus SnPb soldering 13.3 Wave soldering Key characteristics in wave soldering are: • Process issues, such as application of adhesive and flux, clinching of leads, board transport, the solder wave parameters, and the time during which components are exposed to the wave • Solder bath specifications, including temperature and impurities PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 16 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 13.4 Reflow soldering Key characteristics in reflow soldering are: • Lead-free versus SnPb soldering; note that a lead-free reflow process usually leads to higher minimum peak temperatures (see Figure 18) than a SnPb process, thus reducing the process window • Solder paste printing issues including smearing, release, and adjusting the process window for a mix of large and small components on one board • Reflow temperature profile; this profile includes preheat, reflow (in which the board is heated to the peak temperature) and cooling down. It is imperative that the peak temperature is high enough for the solder to make reliable solder joints (a solder paste characteristic). In addition, the peak temperature must be low enough that the packages and/or boards are not damaged. The peak temperature of the package depends on package thickness and volume and is classified in accordance with Table 7 and 8 Table 7. SnPb eutectic process (from J-STD-020D) Package thickness (mm) Package reflow temperature (C) Volume (mm3) < 350  350 < 2.5 235 220  2.5 220 220 Table 8. Lead-free process (from J-STD-020D) Package thickness (mm) Package reflow temperature (C) Volume (mm3) < 350 350 to 2000 > 2000 < 1.6 260 260 260 1.6 to 2.5 260 250 245 > 2.5 250 245 245 Moisture sensitivity precautions, as indicated on the packing, must be respected at all times. Studies have shown that small packages reach higher temperatures during reflow soldering, see Figure 18. PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 17 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater maximum peak temperature = MSL limit, damage level temperature minimum peak temperature = minimum soldering temperature peak temperature time 001aac844 MSL: Moisture Sensitivity Level Fig 18. Temperature profiles for large and small components For further information on temperature profiles, refer to Application Note AN10365 “Surface mount reflow soldering description”. 14. Abbreviations Table 9. PCA9517A Product data sheet Abbreviations Acronym Description BOM Bill Of Materials CDM Charged-Device Model CMOS Complementary Metal-Oxide Semiconductor EOL End Of Life ESD ElectroStatic Discharge HBM Human Body Model I2C-bus Inter Integrated Circuit bus I/O Input/Output RC Resistor-Capacitor network SMBus System Management Bus All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 18 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 15. Revision history Table 10. Revision history Document ID Release date Data sheet status Change notice Supersedes PCA9517A v.4.1 20160524 Product data sheet - PCA9517A v.4 Modifications: PCA9517A v.4 Modifications: • Corrected the text in Section 6 “Functional description” on page 4: “When port B falls first and goes below 0.3VCC(B)” to “When port B falls first and goes below 0.4 V”; “The port B pull-down” to “The port A pull-down”; removed sentence “If the port B low voltage does not go below 0.5 V....” 20120509 • Product data sheet - PCA9517A v.3 Table 1 “PCA9517 and PCA9517A comparison”: – Table note [1] is rewritten – Table note [2] is rewritten • Table 2 “Ordering information” – Added type number PCA9517ADP/DG – Added Table note [2] • Figure 3 “Pin configuration for TSSOP8 (MSOP8)”: added type number PCA9517ADP/DG PCA9517A v.3 20120229 Product data sheet - PCA9517A v.2 PCA9517A v.2 20080505 Product data sheet - PCA9517A v.1 PCA9517A v.1 20080222 Product data sheet - - PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 19 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 16. Legal information 16.1 Data sheet status Document status[1][2] Product status[3] Definition Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification. [1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the Internet at URL http://www.nxp.com. 16.2 Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local NXP Semiconductors sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between NXP Semiconductors and its customer, unless NXP Semiconductors and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the NXP Semiconductors product is deemed to offer functions and qualities beyond those described in the Product data sheet. 16.3 Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. NXP Semiconductors takes no responsibility for the content in this document if provided by an information source outside of NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of NXP Semiconductors. Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. PCA9517A Product data sheet Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. NXP Semiconductors and its suppliers accept no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using NXP Semiconductors products, and NXP Semiconductors accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the NXP Semiconductors product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using NXP Semiconductors products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). NXP does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — NXP Semiconductors products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nxp.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. NXP Semiconductors hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of NXP Semiconductors products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 20 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Non-automotive qualified products — Unless this data sheet expressly states that this specific NXP Semiconductors product is automotive qualified, the product is not suitable for automotive use. It is neither qualified nor tested in accordance with automotive testing or application requirements. NXP Semiconductors accepts no liability for inclusion and/or use of non-automotive qualified products in automotive equipment or applications. In the event that customer uses the product for design-in and use in automotive applications to automotive specifications and standards, customer (a) shall use the product without NXP Semiconductors’ warranty of the product for such automotive applications, use and specifications, and (b) whenever customer uses the product for automotive applications beyond NXP Semiconductors’ specifications such use shall be solely at customer’s own risk, and (c) customer fully indemnifies NXP Semiconductors for any liability, damages or failed product claims resulting from customer design and use of the product for automotive applications beyond NXP Semiconductors’ standard warranty and NXP Semiconductors’ product specifications. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. 16.4 Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. I2C-bus — logo is a trademark of NXP B.V. 17. Contact information For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com PCA9517A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 4.1 — 24 May 2016 © NXP Semiconductors N.V. 2016. All rights reserved. 21 of 22 PCA9517A NXP Semiconductors Level translating I2C-bus repeater 18. Contents 1 2 3 4 5 5.1 5.2 6 6.1 6.2 7 8 9 10 10.1 11 12 13 13.1 13.2 13.3 13.4 14 15 16 16.1 16.2 16.3 16.4 17 18 General description . . . . . . . . . . . . . . . . . . . . . . 1 Features and benefits . . . . . . . . . . . . . . . . . . . . 2 Ordering information . . . . . . . . . . . . . . . . . . . . . 2 Functional diagram . . . . . . . . . . . . . . . . . . . . . . 3 Pinning information . . . . . . . . . . . . . . . . . . . . . . 3 Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 4 Functional description . . . . . . . . . . . . . . . . . . . 4 Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 I2C-bus systems . . . . . . . . . . . . . . . . . . . . . . . . 5 Application design-in information . . . . . . . . . . 5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 9 Static characteristics. . . . . . . . . . . . . . . . . . . . 10 Dynamic characteristics . . . . . . . . . . . . . . . . . 11 AC waveforms . . . . . . . . . . . . . . . . . . . . . . . . 12 Test information . . . . . . . . . . . . . . . . . . . . . . . . 12 Package outline . . . . . . . . . . . . . . . . . . . . . . . . 13 Soldering of SMD packages . . . . . . . . . . . . . . 16 Introduction to soldering . . . . . . . . . . . . . . . . . 16 Wave and reflow soldering . . . . . . . . . . . . . . . 16 Wave soldering . . . . . . . . . . . . . . . . . . . . . . . . 16 Reflow soldering . . . . . . . . . . . . . . . . . . . . . . . 17 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Revision history . . . . . . . . . . . . . . . . . . . . . . . . 19 Legal information. . . . . . . . . . . . . . . . . . . . . . . 20 Data sheet status . . . . . . . . . . . . . . . . . . . . . . 20 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Contact information. . . . . . . . . . . . . . . . . . . . . 21 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’. © NXP Semiconductors N.V. 2016. All rights reserved. For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com Date of release: 24 May 2016 Document identifier: PCA9517A
