PCA9615
2
2-channel multipoint Fast-mode Plus differential I C-bus
buffer with hot-swap logic
Rev. 2 — 16 September 2021
1
Product data sheet
General description
2
The PCA9615 is a Fast-mode Plus (Fm+) SMBus/I C-bus buffer that extends the normal
2
single-ended SMBus/I C-bus through electrically noisy environments using a differential
2
2
2
SMBus/I C-bus (dI C) physical layer, which is transparent to the SMBus/I C-bus protocol
layer. It consists of two single-ended to differential driver channels for the SCL (serial
clock) and SDA (serial data).
2
The use of differential transmission lines between identical dI C bus buffers removes
electrical noise and common-mode offsets that are present when signal lines must pass
between different voltage domains, are bundled with hostile signals, or run adjacent to
electrical noise sources, such as high energy power supplies and electric motors.
2
The SMBus/I C-bus was conceived as a simple slow speed digital link for short runs,
typically on a single PCB or between adjacent PCBs with a common ground connection.
Applications that extend the bus length or run long cables require careful design to
preserve noise margin and reject interference.
2
The dI C-bus buffers were designed to solve these problems and are ideally suited for
rugged high noise environments and/or longer cable applications, allow multiple targets,
and operate at bus speeds up to 1 MHz clock rate. Cables can be extended to at least
2
3 meters (3 m), or longer cable runs at lower clock speeds. The dI C-bus buffers are
2
compatible with existing SMBus/I C-bus devices and can drive Standard, Fast-mode, and
Fast-mode Plus devices on the single-ended side.
Signal direction is automatic, and requires no external control. To prevent bus latch up,
2
the standard SMBus/I C-bus side of the bus buffer, the PCA9615 employs static offset,
2
care should be taken when connecting these to other SMBus/I C-bus buffers that may
not operate with offset.
2
This device is a bridge between the normal 2-wire single-ended wired-OR SMBus/I C2
bus and the 4-wire dI C-bus.
Additional circuitry allows the PCA9615 to be used for ‘hot swap’ applications, where
systems are always on, but require insertion or removal of modules or cards without
disruption to existing signals.
The PCA9615 has two supply voltages, VDD(A) and VDD(B). VDD(A), the card side supply,
only serves as a reference and ranges from 2.3 V to 5.5 V. VDD(B), the line side supply,
serves as the majority supply for circuitry and ranges from 3.0 V to 5.5 V.
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
single-ended
I2C-bus
VDD(A)1 VDD(B)
VDD(B)
dI2C-bus
(differential I2C-bus,
1 of 2 lines shown)
VDD(B)
VDD(B) VDD(A)2
SCL
SCL
SDA
single-ended
I2C-bus
PCA9615
PCA9615
SDA
twisted-pair cable
EN
GND1
2
EN
GND2
2
aaa-011961
2
Figure 1. SMBus/I C-bus translation to dI C-bus and back to SMBus/I C-bus
2
Features and benefits
2
• New dI C-bus buffers offer improved resistance to system noise and ground offset up
1
to ⁄2 of supply voltage
2
2
• 2 channel dI C (differential I C-bus) to Fm+ single-ended buffer operating up to 1 MHz
with 30 mA SDA/SCL drive capability
• Hot swap (allows insertion or removal of modules or card without disruption to bus
data)
• EN signal (PCA9615 input) controls PCA9615 hot swap sequence
• Bus idle detect (PCA9615 internal function) waits for a bus idle condition before
connection is made
2
• Compatible with I C-bus Standard/Fast-mode and SMBus, Fast-mode Plus up to
1 MHz
2
• Single-ended I C-bus on card side up to 540 pF
2
• Differential I C-bus on cable side supporting multi-drop bus
– Maximum cable length: 3 m (approximately 10 feet) (longer at lower frequency)
2
– dI C output: 1.5 V differential output with nominal terminals
– Differential line impedance (user defined): 100 Ω nominal suggested
– Receive input sensitivity: ±200 mV
– Hysteresis: ±30 mV typical
– Input impedance: high-impedance (200 kΩ typical)
– Receive input voltage range: -0.5 V to +5.5 V
• Lock-up free operation
2
• Supports arbitration and clock stretching across the dI C-bus buffers
2
• Powered-off and powering-up high-impedance I C-bus pins
• Operating supply voltage (VDD(A)) range of 2.3 V to 5.5 V with single-ended side 5.5 V
tolerant
2
• Differential I C-bus operating supply voltage (VDD(B)) range of 3.0 V to 5.5 V with 5.5 V
tolerant. Best operation is at 5 V.
• ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per
JESD22-C101
• Latch-up testing is done to JEDEC Standard JESD78 which exceeds 100 mA

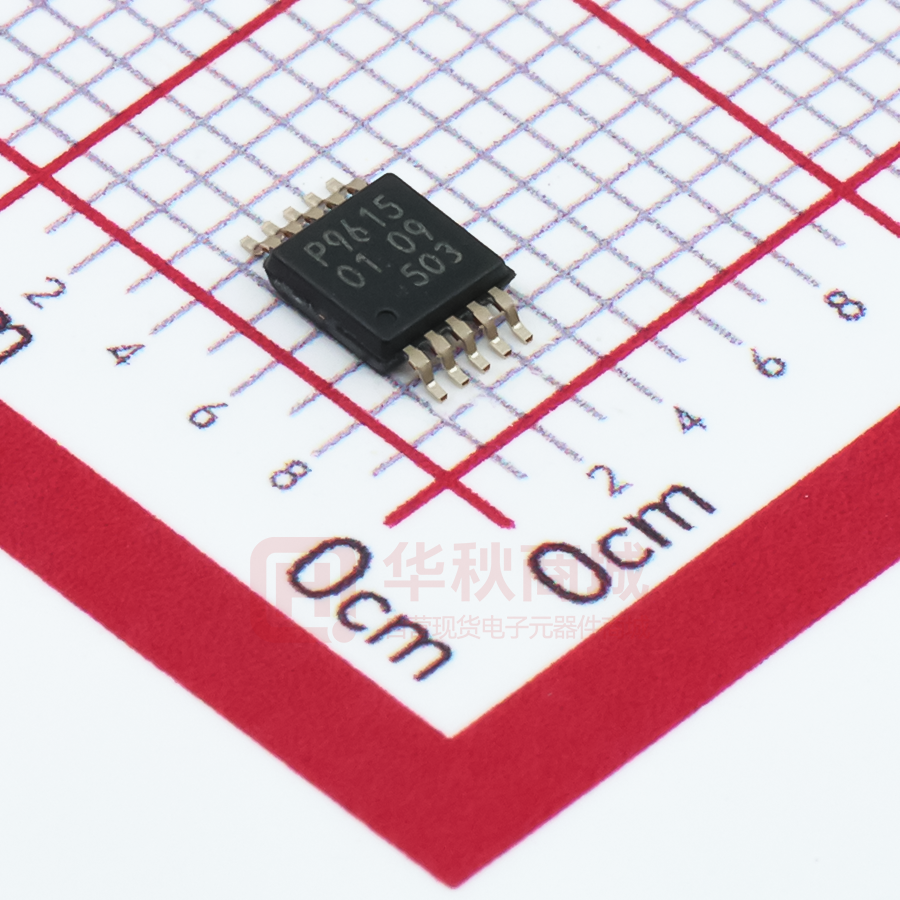

• Package offering: TSSOP10
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
2 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
3
Applications
•
•
•
•
•
•
4
Monitor remote temperature/leak detectors in harsh environment
Control of power supplies in high noise environment
2
Transmission of I C-bus between equipment cabinets
Commercial lighting and industrial heating/cooling control
2
Any application that requires long I C-bus runs in electrically noisy environments
Any application with multiple power suppliers and the potential for ground offsets up to
2.5 V
Ordering information
Table 1. Ordering information
Type number
PCA9615DP
Topside
marking
Package
Name
Description
Version
P9615
TSSOP10
plastic thin shrink small outline package; 10 leads;
body width 3 mm
SOT552-1
4.1 Ordering options
Table 2. Ordering options
Type number
Orderable part
number
PCA9615DP
PCA9615DP
[1]
[2]
[3]
Package
Packing method
PCA9615DPJ
TSSOP10
PCA9615DPZ
TSSOP10
[2]
[1]
Minimum order
quantity
Temperature range
Reel 13" Q1/T1
*standard mark SMD
2500
Tamb = –40 °C to +85 °C
Reel 13" Q1/T1
*standard mark SMD
[3]
SSB
2500
Tamb = –40 °C to +85 °C
Standard packing quantities and other packaging data are available at www.nxp.com/packages/
Discontinuation Notice 202104010DN - PCA9615DPZ is drop in replacement in accordance with PCN 202104008A.
This packing method uses a Static Shielding Bag (SSB) solution. Material should be kept in sealed bag between uses.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
3 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
5
Block diagram
PCA9615
connect
connect
DSCLP
SCL
DSCLM
DSDAP
SDA
DSDAM
VDD(A)
I2C-BUS
HOT SWAP LOGIC
EN
en
VDD(A)
VDD(B)
POWER-ON RESET,
PLUG-IN DETECTION
AND DEBOUNCING
VSS
002aah765
Figure 2. Block diagram (level 0)
DSCLP, DSDAP
VDD
DSCLM, DSDAM
aaa-011989
Figure 3. Differential output driver simplified circuit
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
4 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
6
Pinning information
6.1 Pinning
VDD(A)
1
SDA
2
10 VDD(B)
9 DSDAM
PCA9615DP
EN
3
8
DSDAP
SCL
4
7
DSCLP
VSS
5
6
DSCLM
002aah766
Figure 4. Pin configuration for TSSOP10
6.2 Pin description
Table 3. Pin description
PCA9615
Product data sheet
Symbol
Pin
Description
VDD(A)
1
I C-bus side power supply (2.3 V to 5.5 V)
SDA
2
card side open-drain serial data input/output
EN
3
enable input (active HIGH); internal pull-up resistor to VDD(A)
SCL
4
card side open-drain serial clock input/output
VSS
5
ground supply voltage (0 V)
DSCLM
6
line side differential open-drain clock minus input/output
DSCLP
7
line side differential open-drain clock plus input/output
DSDAP
8
line side differential open-drain data plus input/output
DSDAM
9
line side differential open-drain data minus input/output
VDD(B)
10
differential side power supply (3.0 V to 5.5 V)
2
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
5 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
7
Functional description
Refer to Figure 2.
2
The PCA9615 is used at each node of the dI C-bus signal path, to provide conversion
2
2
from the dI C-bus signal format to conventional I C-bus/SMBus, allowing the connection
2
of existing I C-bus/SMBus devices as targets or the bus controller. Because the signal
2
2
voltages on the I C-bus/SMBus bus side may be different from the dI C-bus side, there
2
are two power supply pins and a common ground. To prevent bus latch-up, the I C-bus/
2
SMBus side employs static offset. Signal direction is determined by the I C-bus/SMBus
bus protocol, and does not require a direction signal, as these bus buffers automatically
set signal flow direction. An enable pin (EN) is provided to disable the bus buffer, and is
useful for fault finding, power-up sequencing, or reconfiguration of a large bus system by
isolating sections not needed at all times.
Construction of the differential transmission line is not device-dependent. PCB traces,
open wiring, twisted-pair cables or a combination of these may be used. Twisted-pair
cables offer the best performance. A typical twisted-pair transmission line cable has a
characteristic impedance of ‘about 100 Ω’ and must be terminated at both ends in 100 Ω
2
to prevent unwanted signal reflections. Multiple nodes (each using a dI C-bus buffer)
may be connected at any point along this transmission line, however, the stub length
degrades the bus performance, and should therefore be minimized.
2
7.1 I C-bus/SMBus side
2
The I C-bus/SMBus side of the PCA9615 differential bus buffer is connected to other
2
I C-bus/SMBus devices and requires pull-up resistors on each of the SCL and SDA
signals. The value of the resistor should be chosen based on the bus capacitance and
desired data speed, being careful not to overload the driver current rating of 3 mA for
2
Standard and Fast modes, 30 mA for Fast-mode Plus (Fm+). The I C-bus/SMBus side of
the PCA9615 is powered from the VDD(A) supply pin.
2
7.2 dI C-bus side differential pair
2
In previous I C-bus/SMBus designs, the nodes (Controller and one or more Targets)
are connected by wired-OR in combination with a single pull-up resistor. This simple
arrangement is not suited for long distances more than 1 meter (1 m) or about 3 feet (3
ft), due to ringing and reflections on the un-terminated bus. The use of a transmission line
with correct termination eliminates this problem, and is further improved by differential
2
signaling used in the dI C-bus scheme. Each node acts as both a driver and a receiver
to allow bidirectional signal flow, but not at the same time. Switching from transmit to
2
receive is done automatically. The dI C-bus side of the PCA9615 is powered from the
VDD(B) supply pin.
2
The dI C-bus is also biased to an idle state (D+ more positive than D-) to be compatible
2
with the I C-bus/SMBus wired-OR scheme, when not transmitting traffic (data). This
allows every node to receive broadcast messages from the Controller, and return
ACK/NACK and data in response. Biasing is done with additional resistors, connected
to VDD(B) and VSS (the local ground), as shown in Figure 5. The transmission line is
terminated in the characteristic impedance of the cable, typically 100 Ω. This is the value
defined by three resistors, the other two resistors providing the idle condition bias to the
twisted pair.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
6 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
DxxxP
DxxxP
DxxxM
DxxxM
twisted-pair cable
aaa-011061
2
Figure 5. dI C-bus terminations
7.2.1 Noise rejection
2
2
Impulse noise coupled into the I C-bus/SMBus signals can prevent the I C-bus/SMBus
bus from operating reliably. The hostile signals may appear on the SCL line, SDA line,
or both. Impulse noise may also enter the common ground connection, or be caused by
current in the ground path caused by DC power supplies, or other signals sharing the
common ground return path. This problem is removed by using a differential transmission
2
2
2
line, in place of the I C-bus/SMBus signal path. The dI C-bus receiver (at each dI Cbus node) subtracts the signals on the two differential lines (D+ and D-), and eliminates
2
any common-mode noise that is coupled into the dI C-bus. The receiver amplifies the
signals which are also attenuated by the bulk resistance of the transmission line cable
connection, and does not rely on a common ground connection at each node.
7.2.2 Rejection of ground offset voltage
2
Hostile signals interfere with the I C-bus/SMBus bus through the common ground
connection between each node. Current in this ground path causes an offset that may
2
cause false data or push the I C-bus/SMBus signals outside of an acceptable range.
Unwanted ground offset can be caused by heavy DC current in the ground path, or
injection of ground current from AC signals, either of which may show up as false signals.
2
Because the dI C-bus node receiver responds only to the difference between the two
2
dI C-bus transmission lines, common-mode signals are ignored. There is no need to
have a ground connection between each of the nodes, which may be powered locally.
2
Nodes may also be powered by extra conductors (for VDD and ground) run with the dI Cbus signals. Voltage offsets caused by DC current in these additional wires are ignored
2
by the dI C-bus receiver, which subtracts the two differential signals (D+ and D-).
7.3 EN pin
Enable input to connect the device into the bus. When this pin is LOW, the device never
connects to the bus, and disconnect the SCL/SDA from differential SCL/SDA. When
EN is driven HIGH, and VDD(A) and VDD(B) are stable, the EN pin connects SDA/SCL to
differential SDA/SCL after a stop bit or bus idle has been detected on differential line
2
bus. It should never change state during an I C-bus/SMBus operation because disabling
during a bus operation hangs the bus and enabling part way through a bus cycle could
2
confuse the I C-bus/SMBus parts being enabled. The EN pin should only change state
when the global bus and the buffer port are in an idle state to prevent system failures.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
7 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
7.4 Hot swap and power-on reset
During a power-on sequence, an initialization circuit holds the PCA9615 in a
disconnected state, meaning all outputs — SDA, SCL and the differential pins DSCLP/
DSCLM and DSDAP/DSDAM — are in a high-impedance state. As the power supply
rises (either power-up or live insertion), the initialization circuit enters a state where the
internal references are stabilized and an internal timer is triggered. After 1 ms, power is
applied to the rest of the circuitry and the PCA9615 detects the status on the differential
DSCLP/DSCLM and DSDAP/DSDAM lines. When the differential lines are detected as
connected to a bus with valid termination, that is, both DSCLM/DSDAM < 0.9 × VDD(B)
and DSCLP/DSDAP > 0.1 × VDD(B), another timer is triggered. At the end of 10 ms,
hot-swap logic (Figure 2) is enabled and the EN pin can detect a Stop Bit and Bus Idle
condition. However, there is still no connection between SDA and DSDAP/DSDAM or
between SCL and DSCLP/DSCLM. A successful EN pin sequence must occur for actual
connection.
When the EN pin is set HIGH and the DSDAP and DSCLP pins have been HIGH for
the bus idle time or when both the SCL and SDA pins are HIGH and a STOP condition
has been seen on the differential bus (DSDAP/DSDAM and DSCLP/DSCLM pins), a
connection is established between the differential and the single-ended buses. Whenever
disconnected status is detected or the device is unpowered, the PCA9615 disconnects
the single-ended to differential buses, and the hot swap sequence repeats again before
the PCA9615 connects SDA to DSDAP/DSDAM and SCL to DSCLP/DSCLM.
Remark: Start-up process is the same for both PCA9616PW and PCA9615DP, except
that PIDET and READY signals are only available in 16-pin package.
VDD(A), VDD(B)
~11 ms
~1 ms
pwon
ten for power-on
and stabilization
~10 ms
plug-in debouncing time
not allowed
only when EN goes HIGH,
11 ms after plug-in,
will the bus idle/stop detector
start functioning
EN
SCL/SDA,
DSCL/DSDA
tidle
tstop
connect differential
to single-ended bus
002aah774
For PCA9615, the ready time is at least 11 ms (1 ms for power ready, 10 ms for plug-in
debouncing delay), which means the device can only be in operation after 11 ms with VDD(A),
VDD(B) ON and a bus idle/stop detected; tidle = 100 μs
Figure 6. Hot swap related timings
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
8 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
8
Application design-in information
2
8.1 I C-bus
2
As with the standard I C-bus system, pull-up resistors are required to provide the logic
HIGH levels on the single-ended buffered bus (standard open-drain configuration of
2
the I C-bus). The size of these pull-up resistors depends on the system. The device is
2
designed to work with Standard-mode, Fast-mode and Fast-mode Plus I C-bus devices
2
in addition to SMBus devices. Standard-mode and Fast-mode I C-bus and SMBus
devices only specify 3 mA output drive; this limits the termination current to 3 mA in
2
a generic I C-bus system where Standard-mode devices and multiple controllers are
possible. When only Fast-mode Plus devices are used, then higher termination currents
can be used due to their 30 mA sink capability.
2
8.2 Differential I C-bus application
See Figure 7 through Figure 9.
2
The simple application (Figure 7) shows an existing SMBus/I C-bus being extended over
2
a section of dI C-bus transmission line, containing a dedicated twisted pair for SCL and
SDA. At one end of the transmission line, a resistor network (R1-R2-R1) terminates the
twisted-pair cable and biases D+ positive with respect to D-. An identical resistor network
at the other end of the transmission line terminates the twisted-pair cable. DC power for
each end of the transmission line and the VDD(B) of each PCA9615 bus buffer can be
from separate and isolated power supplies, or use the same supply and ground run in
2
separate wires along the same path as the dI C-bus signal twisted pairs.
Telecom category 5 (‘CAT 5’) data cable is well suited for this task, but loose wires may
also be used, with a reduction in performance. Assuming VDD(B) is 5 V, and using CAT 5
cable, R2 is 120 Ω, R1 is 600 Ω. The parallel combination yields a termination of 100 Ω at
each end of the twisted pairs.
2
2
Either side of the dI C-bus buffer pair is connected to standard SMBus/I C buses,
which require their own pull-up resistors to VDD(A) of the PCA9615 bus buffers. VDD(A)
and VDD(B) can be the same supply, however, making them different voltages enables
2
2
the PCA9615 bus buffers to level translate between the SMBus/I C-bus and dI C-bus
sections of the bus, or to have different supply voltages and level translate at either end
2
2
of the dI C-bus and SMBus/I C-bus system.
For example, the left-hand bus controller (and local target) may operate on a 3.3 V
2
2
supply and SMBus/I C-bus while the dI C-bus transmission lines are at 5 V, and the
2
right-hand target is operated from a different 3.3 V supply and SMBus/I C-bus, or even a
different bus voltage other than 3.3 V.
Depending upon the timing from the system controller, clock toggle rates can vary from
2
10 kHz for the SMBus (or less for SMBus/I C-bus protocol) up to 100 kHz (Standard
mode), 400 kHz (Fast mode), or up to 1 MHz (Fast-mode Plus).
2
The bus path is bidirectional. Assume that the left side SMBus/I C-bus becomes active.
A START condition (SDA goes LOW while SDA is HIGH) is sent. This upsets the idle
2
condition on the dI C-bus section of the bus, because D+ was more positive than D- and
now they are reversed. The right side bus buffer sees the differential lines change polarity
2
and in turn pulls SDA LOW on the SMBus/I C-bus side of the bus buffer, transmitting the
2
START condition to the target on that section of the SMBus/I C-bus.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
9 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
If the data clocked out by the left side controller contains a valid address of the right
side target, that target responds by pulling SDA LOW on the ninth clock. This condition
2
is transmitted across the dI C-bus section that has now changed flow direction, and
received by the left side bus buffer (again, D+ was more positive than D- and now they
are reversed).
This sequence continues until the controller sends the STOP condition (SCL HIGH while
SDA goes HIGH), placing the active target (on the right side) back to idle. When idle, the
2
normal SMBus/I C-bus (both left and right sections) are pulled up by their respective pull2
ups. In turn, the dI C-bus section of the bus rests with D+ more positive than D-.
2
The idle condition can be changed by any node on either SMBus/I C-bus section or an
2
2
additional dI C-bus node, if present, on the dI C-bus section of the system. This allows
2
2
the existing SMBus/I C-bus protocol to operate transparently over a mix of SMBus/I C
2
and dI C bus segments.
2
Due to the SMBus/I C-bus handshake protocol (ACK/NACK on the ninth clock pulse),
2
the direction of the SMBus/I C-bus is reversed often. The ‘time of flight’ for the signals to
pass through each bus buffer and for the target to respond defines the maximum speed
2
of the bus, regardless of how fast the clock toggles. The dI C-bus section of the bus
2
requires two additional PCA9615 bus buffers, further delaying the SMBus/I C-bus traffic.
2
If the dI C-bus transmission line section is made longer, the bus operates much slower,
regardless of the clock toggle speed.
2
It is not necessary to have a ground connection between each end of the dI C section
2
of the bus. The dI C-bus receiver responds to reversal of the polarity of the D+ and Dsignals, and ignores the common-mode voltage that may be present.
Ideally, the common-mode voltage is the same at each end of the twisted pairs, and no
2
current flows along the twisted pair when the bus is idle, because the D+ and D- dI Cbus drivers are both high-impedance, the bus is biased by R1-R2-R1 at each end. If the
common-mode voltage is not 0 V, current flows along the twisted pair, returning through
the common ground or common power supply connection if present.
If both ends of the twisted pair are powered by the same VDD(B) supply and one end is
2
remote, there will be a common-mode offset between them. This is ignored by the dI Cbus receivers, which only respond to the difference between D+ and D-.
However, a large common-mode offset voltage forces the D+ and D- signals out of the
range of the receiver, and data are lost. The PCA9615 bus buffers use standard ESD
protection networks to protect the external pins, and therefore should not be biased
above or below the VDD(B) and VSS pins respectively. This limits the common-mode range
to approximately 0.5 × VDD(B).
DC resistance of the transmission line attenuates the signals, more so over longer
2
distances. The loss of signal amplitude is made up by the gain of the dI C-bus receiver.
2
There is a limit to how long the dI C-bus section can be made, as it is necessary for the
driver to overcome the bias on the transmission line, in order to signal a polarity change
(D+ and D- reversal) at the receiver end.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
10 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
Figure 7. Typical application for PCA9615
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
11 / 30
NXP Semiconductors
PCA9615
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
V DD(B)
VDD(A)
DSCLP
termination
SDA
CONTROLLER
TARGET
PCA9615
DSCLM
SCL
DSDAP
V DD(B)
DSDAM
VDD(B)
VSS
V DD
VDD
VSS
VSS
CARD
PCA9615
PCA9615
PCA9615
optional
TARGET
CONTROLLER
TARGET
VDD(A)
CARD
CONTROLLER
CARD
TARGET
VDD(A)
CARD
CONTROLLER
V DD(A)
002aah768
Remark: Keep drops as short as possible.
2
Remark: There is only one ground pin on the PCA9615, so the single-ended I C-bus signals that are not ground offset tolerant must be referenced to the ground pin on the part.
And any ground offset must be on the differential side where the differential input and output can tolerate a ground offset of up to 0.5 × VDD(B).
Figure 8. PCA9615 application diagram; VDD and VSS are routed through the cable
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
12 / 30
NXP Semiconductors
PCA9615
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
V DD(B)
PCA9615
TARGET
VSS
PCA9615
CONTROLLER
TARGET
V DD(A)
CARD
PCA9615
CONTROLLER
TARGET
VDD(A)
CARD
CONTROLLER
V DD(A)
CARD
V DD(B)
V DD(A)
SCL
SDA
CONTROLLER
CARD
TARGET
PCA9615
DSCLP
DSCLM
DSDAP
DSDAM
VSS
PCA9615
TARGET
CARD
PCA9615
CONTROLLER
TARGET
VDD(A)
CARD
PCA9615
CONTROLLER
TARGET
VDD(A)
CARD
PCA9615
CONTROLLER
TARGET
V DD(A)
CARD
CONTROLLER
V DD(A)
002aah769
Figure 9. PCA9615 application diagram; VDD and VSS are not routed through the cable
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
13 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
Backplane connector
3.3 V
5V
PCA9615
VDD(A)
VDD(B)
EN
DSCL
SCL
DSDA
SDA
CONTROLLER
VSS
Differential terminations
are always on backplane.
Card with controller.
PCA9615
VDD(A)
VDD(B)
EN
DSCL
SCL
DSDA
SDA
TARGET
VSS
Card without controller.
002aah770
Figure 10. Hot swap application
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
14 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
Figure 11. Differential bus waveform
9th clock pulse
acknowledge
SCL
VOL of PCA9615 (from target)
SDA
002aah771
VOL of controller
Figure 12. Single-ended bus waveform (controller side of bus)
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
15 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
9
Limiting values
Table 4. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
Conditions
Min
Max
Unit
VDD(B)
supply voltage port B
differential bus; 3.0 V to 5.5 V
-0.5
+6
V
VDD(A)
supply voltage port A
single-ended bus; 2.3 V to 5.5 V
-0.5
+6
V
VO(dif)
differential output voltage
-0.5
+6
V
2
Vbus
bus voltage
voltage on I C-bus A side, or enable (EN)
-0.5
+6
V
II/O
input/output current
SDA, SCL, Dxxxx
-
80
mA
IDD(B)
supply current port B
-
160
mA
Ptot
total power dissipation
-
100
mW
Tstg
storage temperature
-55
+125
°C
Tamb
ambient temperature
-40
+85
°C
Tj
junction temperature
-
125
°C
PCA9615
Product data sheet
operating in free air
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
16 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
10 Static characteristics
Table 5. Static characteristics
VDD(B) = 3.0 V to 5.5 V; VSS = 0 V; Tamb = -40 °C to +85 °C; unless otherwise specified.
Symbol
Parameter
Conditions
supply voltage port B
differential bus
Min
Typ
Max
Unit
3.0
-
5.5
V
2.3
-
5.5
V
-
-
16
μA
Supplies
VDD(B)
VDD(A)
supply voltage port A
single-ended bus
IDD(VDDA) supply current on pin
VDD(A)
[1]
IDDH(B)
port B HIGH-level supply
current
both channels HIGH; VDD(B) = 5.5 V; SDAn
= SCLn = VDD(A) = 5.5 V
-
0.8
1.6
mA
IDDL(B)
port B LOW-level supply
current
both channels LOW; VDD(B) = 5.5 V; SDA
and SCL = VSS; differential I/Os open
-
1.1
1.8
mA
driving termination; 2 channel
-
70
91
mA
Input and output SDA and SCL
VIH
HIGH-level input voltage
0.7VDD(A) -
5.5
V
VIL
LOW-level input voltage
-0.5
-
+0.4
V
VIK
input clamping voltage
II = -18 mA
-1.5
-
0
V
ILI
input leakage current
VI = VDD(A)
-
-
±2
μA
IIL
LOW-level input current
SDA, SCL; VI = 0.2 V
-
-
12
μA
VOL
LOW-level output voltage
IOL = 200 μA or 30 mA
0.47
0.52
0.6
V
VOL-VIL
difference between LOWlevel output and LOWlevel input voltage
guaranteed by design
-
-
90
mV
ILOH
HIGH-level output leakage VO = VDD(A)
current
-
-
±2
μA
Cio
input/output capacitance
-
7
10
pF
0
-
VDD(B)
V
VI = VDD(A) or 0 V; disabled or VDD(A) = 0 V
Input and output DSDAP/DSDAM and DSCLP/DSCLM
Vcm
common-mode voltage
ILI
input leakage current
VI = VDD(B)
-
-
±40
μA
IIL
LOW-level input current
VI = 0.2 V
-
-
±40
μA
RPU
pull-up resistance
internal pull-up resistor on DSCLM and
DSDAM connected to VDD(B) rail
-
200
-
kΩ
Rpd
pull-down resistance
internal pull-down resistor on DSCLP and
DSDAP connected to VSS rail
-
200
-
kΩ
Vth(dif)
differential receiver
threshold voltage
0 V ≤ Vcm ≤ VDD(B)
-200
-
+200
mV
VI(hys)
hysteresis of input voltage receiver; 0 V ≤ Vcm ≤ VDD(B)
-
30
-
mV
no load
-VDD(B)
-
-
V
RL = 54 Ω at VDD(B) = 5 V
-5.0
-1.5
-1.0
V
Vo(dif)(p-p) peak-to-peak differential
output voltage
PCA9615
Product data sheet
single-ended input LOW
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
17 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
Table 5. Static characteristics...continued
VDD(B) = 3.0 V to 5.5 V; VSS = 0 V; Tamb = -40 °C to +85 °C; unless otherwise specified.
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Cio
input/output capacitance
VI = VDD(B) or 0 V; disabled or VDD(B) = 0 V
-
7
10
pF
V
Input EN
VIH
HIGH-level input voltage
0.7VDD(A) -
5.5
VIL
LOW-level input voltage
-0.5
-
+0.3VDD(A) V
ILI
input leakage current
VI = VDD(B)
-1
-
+1
μA
IIL(EN)
LOW-level input current
on pin EN
VI = 0.2 V, EN; VDD(A) = 5.5 V
-
-20
-54
μA
Ci
input capacitance
VI = VDD(A)
-
6
10
pF
RPU
pull-up resistance
internal pull-up resistor connected to
VDD(A) rail
-
300
-
kΩ
[1]
LOW-level supply voltage.
11 Dynamic characteristics
Table 6. Dynamic characteristics
[1][2]
VDD = 2.7 V to 5.5 V; VSS = 0 V; Tamb = -40 °C to +85 °C; unless otherwise specified.
Symbol
Parameter
Conditions
tPLH
LOW to HIGH propagation delay single-ended side to differential side;
Figure 15
tPLH2
LOW to HIGH propagation delay single-ended side to differential side;
2
Figure 15
tPHL
HIGH to LOW propagation delay single-ended side to differential side;
Figure 13
SRr
rising slew rate
SRf
falling slew rate
[4]
[5]
differential side; Figure 13
differential side; Figure 13
-120
-
ns
-
-
100
ns
-
-
120
ns
V/ns
-
-
1
V/ns
-
-
150
ns
-
-
150
ns
-
-
0.1
V/ns
-
-
200
ns
HIGH to LOW propagation delay differential side to single-ended side;
Figure 14
[6]
SRf
falling slew rate
[2]
[3]
[4]
[5]
[6]
[7]
Unit
1
tPHL
[1]
Max
-
LOW to HIGH propagation delay differential side to single-ended side;
Figure 14
single-ended side; Figure 14
EN LOW to disable
-140
[3]
-
tPLH
disable time
Typ
[5]
[6]
tdis
Min
[7]
Times are specified with loads of 1.35 kΩ pull-up resistance and 50 pF load capacitance on the A side, and 50 Ω termination network resistance and 50
pF load capacitance on the B side. Different load resistance and capacitance alters the RC time constant, thereby changing the propagation delay and
transition times.
Pull-up voltages are VDD(A) on the A side and termination network on the B side.
Typical values were measured with VDD(A) = 3.3 V at Tamb = 25 °C, unless otherwise noted.
The tPLH delay data from B side to A side is measured at 0 V differential on the B side to 0.5VDD(A) on the A side.
Typical value measured with VDD(A) = 3.3 V at Tamb = 25 °C.
The proportional delay data from A side to B side is measured at 0.5VDD(A) on the A side to 0 V on the B side.
The enable pin (EN) should only change state when the global bus and the repeater port are in an idle state.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
18 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
11.1 AC waveforms
VDD(A)
input
0.5VDD(A)
0.5VDD(A)
tPHL
output
80 %
0.1 V
tPLH
0V
20 %
0V
20 %
tTHL
80 %
tTLH
input
0.3 V
differential
voltage
- 2.5 V
output
0V
0V
tPHL
tPLH
80 %
002aag416
0.5VDD(A) 0.5VDD(A)
20 %
20 %
tTHL
0.3 V
differential
voltage
- 0.3 V
80 %
VDD(A)
tTLH
VDD(A) = 3.0 V.
SRf = 0.6 × (Vhigh - Vlow) / tTHL
SRr = 0.6 × (Vhigh - Vlow) / tTLH
VDD(A) = 3.0 V.
SRf = 0.6 ´ VDD(A) / tTHL
Figure 13. Propagation delay and transition times;
single-ended side to differential side
Figure 14. Propagation delay and transition times;
differential side to single-ended side
002aag417
tPLH
0.5VDD(A)
input
SDA, SCL
0.5 V
0.3 V
output
DSCLP/DSCLM,
DSDAP/DSDAM
0V
tPLH2
- 2.5 V
002aag418
Figure 15. Propagation delay
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
19 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
12 Test information
VDD(B)
VDD(A)
VDD(B)
VDD(A)
I2C-BUS
LEVEL SHIFTER
PULSE
GENERATOR
VI
DUT
300
VO
P
M
60
RT
DIFFERENTIAL
PROBE
300
002aag419
RL = load resistor; 1.35 kΩ on single-ended side.
RT = termination resistance should be equal to Zo of pulse generators.
Figure 16. Test circuit for differential outputs
VDD(A)
VDD(A)
VDD(B)
DIFFERENTIAL
RT
P
DUT
M
RL
VO
CL
002aag420
RL = load resistor; 1.35 kΩ on single-ended side.
CL = load capacitance includes jig and probe capacitance; 50 pF.
RT = termination resistance should be equal to Zo of pulse generators.
Figure 17. Test circuit for open-drain output
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
20 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
13 Package outline
TSSOP10: plastic thin shrink small outline package; 10 leads; body width 3 mm
D
E
SOT552-1
A
X
c
y
HE
v M A
Z
6
10
A2
pin 1 index
(A3)
A1
A
θ
Lp
L
1
5
e
detail X
w M
bp
0
2.5
5 mm
scale
DIMENSIONS (mm are the original dimensions)
UNIT
A
max.
A1
A2
A3
bp
c
D (1)
E (2)
e
HE
L
Lp
v
w
y
Z (1)
θ
mm
1.1
0.15
0.05
0.95
0.80
0.25
0.30
0.15
0.23
0.15
3.1
2.9
3.1
2.9
0.5
5.0
4.8
0.95
0.7
0.4
0.1
0.1
0.1
0.67
0.34
6°
0°
Notes
1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.
2. Plastic or metal protrusions of 0.25 mm maximum per side are not included.
OUTLINE
VERSION
REFERENCES
IEC
JEDEC
JEITA
EUROPEAN
PROJECTION
ISSUE DATE
99-07-29
03-02-18
SOT552-1
Figure 18. Package outline SOT552-1 (TSSOP10)
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
21 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
14 Soldering of SMD packages
This text provides a very brief insight into a complex technology. A more in-depth account
of soldering ICs can be found in Application Note AN10365 "Surface mount reflow
soldering description."
14.1 Introduction to soldering
Soldering is one of the most common methods through which packages are attached
to Printed Circuit Boards (PCBs), to form electrical circuits. The soldered joint provides
both the mechanical and the electrical connection. There is no single soldering method
that is ideal for all IC packages. Wave soldering is often preferred when through-hole
and Surface Mount Devices (SMDs) are mixed on one printed wiring board; however, it is
not suitable for fine pitch SMDs. Reflow soldering is ideal for the small pitches and high
densities that come with increased miniaturization.
14.2 Wave and reflow soldering
Wave soldering is a joining technology in which the joints are made by solder coming
from a standing wave of liquid solder. The wave soldering process is suitable for the
following:
• Through-hole components
• Leaded or leadless SMDs, which are glued to the surface of the printed circuit board
Not all SMDs can be wave soldered. Packages with solder balls, and some leadless
packages which have solder lands underneath the body, cannot be wave soldered. Also,
leaded SMDs with leads having a pitch smaller than ~0.6 mm cannot be wave soldered,
due to an increased probability of bridging.
The reflow soldering process involves applying solder paste to a board, followed by
component placement and exposure to a temperature profile. Leaded packages,
packages with solder balls, and leadless packages are all reflow solderable.
Key characteristics in both wave and reflow soldering are:
•
•
•
•
•
•
Board specifications, including the board finish, solder masks and vias
Package footprints, including solder thieves and orientation
The moisture sensitivity level of the packages
Package placement
Inspection and repair
Lead-free soldering versus SnPb soldering
14.3 Wave soldering
Key characteristics in wave soldering are:
• Process issues, such as application of adhesive and flux, clinching of leads, board
transport, the solder wave parameters, and the time during which components are
exposed to the wave
• Solder bath specifications, including temperature and impurities
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
22 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
14.4 Reflow soldering
Key characteristics in reflow soldering are:
• Lead-free versus SnPb soldering; note that a lead-free reflow process usually leads
to higher minimum peak temperatures (see Figure 19) than a SnPb process, thus
reducing the process window
• Solder paste printing issues including smearing, release, and adjusting the process
window for a mix of large and small components on one board
• Reflow temperature profile; this profile includes preheat, reflow (in which the board
is heated to the peak temperature) and cooling down. It is imperative that the peak
temperature is high enough for the solder to make reliable solder joints (a solder
paste characteristic). In addition, the peak temperature must be low enough that the
packages and/or boards are not damaged. The peak temperature of the package
depends on package thickness and volume and is classified in accordance with Table 7
and Table 8
Table 7. SnPb eutectic process (from J-STD-020D)
Package thickness (mm)
Package reflow temperature (°C)
3
Volume (mm )
< 350
≥ 350
< 2.5
235
220
≥ 2.5
220
220
Table 8. Lead-free process (from J-STD-020D)
Package thickness (mm)
Package reflow temperature (°C)
3
Volume (mm )
< 350
350 to 2 000
> 2 000
< 1.6
260
260
260
1.6 to 2.5
260
250
245
> 2.5
250
245
245
Moisture sensitivity precautions, as indicated on the packing, must be respected at all
times.
Studies have shown that small packages reach higher temperatures during reflow
soldering, see Figure 19.
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
23 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
temperature
maximum peak temperature
= MSL limit, damage level
minimum peak temperature
= minimum soldering temperature
peak
temperature
time
001aac844
MSL: Moisture Sensitivity Level
Figure 19. Temperature profiles for large and small components
For further information on temperature profiles, refer to Application Note AN10365
"Surface mount reflow soldering description".
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
24 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
15 Soldering: PCB footprints
Footprint information for reflow soldering of TSSOP10 package
SOT552 -1
Hx
P1
Hy
Gy
solder land
occupied area
Dimensions in mm
Gy
Hy
Hx
P1
3.1
5.0
3.1
0.5
Issue date
11-04-19
13-05-02
sot552-1_fr
Figure 20. PCB footprint for SOT552-1 (TSSOP10); reflow soldering
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
25 / 30
PCA9615
NXP Semiconductors
2
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
16 Abbreviations
Table 9. Abbreviations
Acronym
Description
CDM
Charged-Device Model
2
dI C-bus
differential Inter-Integrated Circuit bus
ESD
ElectroStatic Discharge
HBM
Human Body Model
2
I C-bus
Inter-Integrated Circuit bus
I/O
Input/Output
LED
Light Emitting Diode
SMBus
System Management Bus
17 Revision history
Table 10. Revision history
Document ID
Release date
Data sheet status
Change notice
Supersedes
PCA9615 v.2
20210916
Product data sheet
PCN 202104008A
PCA9615 v.1.1
Modifications
• The format of this data sheet has been redesigned to comply with the new identity guidelines
of NXP Semiconductors, N.V. Legal texts have been adapted to the new company name where
appropriate.
• Global changes, revised as follows:
– "Master" or "master": revised to "Controller" or "controller" to conform with NXP inclusive
language guidelines.
– "Slave" or "slave": revised to "Target" or "target" to conform with NXP inclusive language
guidelines.
• Section 4.1, Table 2, added footnote on PCA9615DPJ and inserted new part number
PCA9615DPZ.
PCA9615 v.1.1
20160510
Product data sheet
-
PCA9615 v.1
PCA9615 v.1
20140502
Product data sheet
-
-
PCA9615
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
26 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
18 Legal information
18.1 Data sheet status
Document status
[1][2]
Product status
[3]
Definition
Objective [short] data sheet
Development
This document contains data from the objective specification for product
development.
Preliminary [short] data sheet
Qualification
This document contains data from the preliminary specification.
Product [short] data sheet
Production
This document contains the product specification.
[1]
[2]
[3]
Please consult the most recently issued document before initiating or completing a design.
The term 'short data sheet' is explained in section "Definitions".
The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple
devices. The latest product status information is available on the Internet at URL http://www.nxp.com.
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
18.2 Definitions
Draft — A draft status on a document indicates that the content is still
under internal review and subject to formal approval, which may result
in modifications or additions. NXP Semiconductors does not give any
representations or warranties as to the accuracy or completeness of
information included in a draft version of a document and shall have no
liability for the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is
intended for quick reference only and should not be relied upon to contain
detailed and full information. For detailed and full information see the
relevant full data sheet, which is available on request via the local NXP
Semiconductors sales office. In case of any inconsistency or conflict with the
short data sheet, the full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
NXP Semiconductors and its customer, unless NXP Semiconductors and
customer have explicitly agreed otherwise in writing. In no event however,
shall an agreement be valid in which the NXP Semiconductors product
is deemed to offer functions and qualities beyond those described in the
Product data sheet.
18.3 Disclaimers
Limited warranty and liability — Information in this document is believed
to be accurate and reliable. However, NXP Semiconductors does not
give any representations or warranties, expressed or implied, as to the
accuracy or completeness of such information and shall have no liability
for the consequences of use of such information. NXP Semiconductors
takes no responsibility for the content in this document if provided by an
information source outside of NXP Semiconductors. In no event shall NXP
Semiconductors be liable for any indirect, incidental, punitive, special or
consequential damages (including - without limitation - lost profits, lost
savings, business interruption, costs related to the removal or replacement
of any products or rework charges) whether or not such damages are based
on tort (including negligence), warranty, breach of contract or any other
legal theory. Notwithstanding any damages that customer might incur for
any reason whatsoever, NXP Semiconductors’ aggregate and cumulative
liability towards customer for the products described herein shall be limited
in accordance with the Terms and conditions of commercial sale of NXP
Semiconductors.
Right to make changes — NXP Semiconductors reserves the right to
make changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
PCA9615
Product data sheet
Suitability for use — NXP Semiconductors products are not designed,
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of an NXP Semiconductors product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. NXP Semiconductors and its suppliers accept no liability for
inclusion and/or use of NXP Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at the customer’s own
risk.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. NXP Semiconductors makes
no representation or warranty that such applications will be suitable
for the specified use without further testing or modification. Customers
are responsible for the design and operation of their applications and
products using NXP Semiconductors products, and NXP Semiconductors
accepts no liability for any assistance with applications or customer product
design. It is customer’s sole responsibility to determine whether the NXP
Semiconductors product is suitable and fit for the customer’s applications
and products planned, as well as for the planned application and use of
customer’s third party customer(s). Customers should provide appropriate
design and operating safeguards to minimize the risks associated with
their applications and products. NXP Semiconductors does not accept any
liability related to any default, damage, costs or problem which is based
on any weakness or default in the customer’s applications or products, or
the application or use by customer’s third party customer(s). Customer is
responsible for doing all necessary testing for the customer’s applications
and products using NXP Semiconductors products in order to avoid a
default of the applications and the products or of the application or use by
customer’s third party customer(s). NXP does not accept any liability in this
respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those
given in the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — NXP Semiconductors
products are sold subject to the general terms and conditions of commercial
sale, as published at http://www.nxp.com/profile/terms, unless otherwise
agreed in a valid written individual agreement. In case an individual
agreement is concluded only the terms and conditions of the respective
agreement shall apply. NXP Semiconductors hereby expressly objects to
applying the customer’s general terms and conditions with regard to the
purchase of NXP Semiconductors products by customer.
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
27 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
No offer to sell or license — Nothing in this document may be interpreted
or construed as an offer to sell products that is open for acceptance or
the grant, conveyance or implication of any license under any copyrights,
patents or other industrial or intellectual property rights.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
Non-automotive qualified products — Unless this data sheet expressly
states that this specific NXP Semiconductors product is automotive qualified,
the product is not suitable for automotive use. It is neither qualified nor
tested in accordance with automotive testing or application requirements.
NXP Semiconductors accepts no liability for inclusion and/or use of nonautomotive qualified products in automotive equipment or applications. In
the event that customer uses the product for design-in and use in automotive
applications to automotive specifications and standards, customer (a) shall
use the product without NXP Semiconductors’ warranty of the product for
such automotive applications, use and specifications, and (b) whenever
customer uses the product for automotive applications beyond NXP
Semiconductors’ specifications such use shall be solely at customer’s own
risk, and (c) customer fully indemnifies NXP Semiconductors for any liability,
damages or failed product claims resulting from customer design and use
of the product for automotive applications beyond NXP Semiconductors’
standard warranty and NXP Semiconductors’ product specifications.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
PCA9615
Product data sheet
Security — Customer understands that all NXP products may be subject
to unidentified or documented vulnerabilities. Customer is responsible
for the design and operation of its applications and products throughout
their lifecycles to reduce the effect of these vulnerabilities on customer’s
applications and products. Customer’s responsibility also extends to other
open and/or proprietary technologies supported by NXP products for use
in customer’s applications. NXP accepts no liability for any vulnerability.
Customer should regularly check security updates from NXP and follow up
appropriately. Customer shall select products with security features that best
meet rules, regulations, and standards of the intended application and make
the ultimate design decisions regarding its products and is solely responsible
for compliance with all legal, regulatory, and security related requirements
concerning its products, regardless of any information or support that may
be provided by NXP. NXP has a Product Security Incident Response Team
(PSIRT) (reachable at PSIRT@nxp.com) that manages the investigation,
reporting, and solution release to security vulnerabilities of NXP products.
18.4 Trademarks
Notice: All referenced brands, product names, service names and
trademarks are the property of their respective owners.
2
I C-bus — logo is a trademark of NXP B.V.
NXP — wordmark and logo are trademarks of NXP B.V.
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
28 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
Tables
Tab. 1.
Tab. 2.
Tab. 3.
Tab. 4.
Tab. 5.
Ordering information ..........................................3
Ordering options ................................................3
Pin description ...................................................5
Limiting values ................................................ 16
Static characteristics ....................................... 17
Tab. 6.
Tab. 7.
Tab. 8.
Tab. 9.
Tab. 10.
Dynamic characteristics .................................. 18
SnPb eutectic process (from J-STD-020D) ..... 23
Lead-free process (from J-STD-020D) ............ 23
Abbreviations ...................................................26
Revision history ...............................................26
Fig. 12.
Single-ended bus waveform (controller side
of bus) ............................................................. 15
Propagation delay and transition times;
single-ended side to differential side ............... 19
Propagation delay and transition times;
differential side to single-ended side ............... 19
Propagation delay ........................................... 19
Test circuit for differential outputs ....................20
Test circuit for open-drain output .....................20
Package outline SOT552-1 (TSSOP10) ..........21
Temperature profiles for large and small
components ..................................................... 24
PCB footprint for SOT552-1 (TSSOP10);
reflow soldering ............................................... 25
Figures
Fig. 1.
Fig. 2.
Fig. 3.
Fig. 4.
Fig. 5.
Fig. 6.
Fig. 7.
Fig. 8.
Fig. 9.
Fig. 10.
Fig. 11.
SMBus/I2C-bus translation to dI2C-bus and
back to SMBus/I2C-bus .................................... 2
Block diagram (level 0) ..................................... 4
Differential output driver simplified circuit .......... 4
Pin configuration for TSSOP10 ......................... 5
dI2C-bus terminations ....................................... 7
Hot swap related timings ...................................8
Typical application for PCA9615 ..................... 11
PCA9615 application diagram; VDD and
VSS are routed through the cable ...................12
PCA9615 application diagram; VDD and
VSS are not routed through the cable ............. 13
Hot swap application ....................................... 14
Differential bus waveform ................................15
PCA9615
Product data sheet
Fig. 13.
Fig. 14.
Fig. 15.
Fig. 16.
Fig. 17.
Fig. 18.
Fig. 19.
Fig. 20.
All information provided in this document is subject to legal disclaimers.
Rev. 2 — 16 September 2021
© NXP B.V. 2021. All rights reserved.
29 / 30
NXP Semiconductors
2
PCA9615
2-channel multipoint Fast-mode Plus differential I C-bus buffer with hot-swap logic
Contents
1
2
3
4
4.1
5
6
6.1
6.2
7
7.1
7.2
7.2.1
7.2.2
7.3
7.4
8
8.1
8.2
9
10
11
11.1
12
13
14
14.1
14.2
14.3
14.4
15
16
17
18
General description ............................................ 1
Features and benefits .........................................2
Applications .........................................................3
Ordering information .......................................... 3
Ordering options ................................................ 3
Block diagram ..................................................... 4
Pinning information ............................................ 5
Pinning ............................................................... 5
Pin description ................................................... 5
Functional description ........................................6
I2C-bus/SMBus side .......................................... 6
dI2C-bus side differential pair ............................6
Noise rejection ...................................................7
Rejection of ground offset voltage ..................... 7
EN pin ................................................................7
Hot swap and power-on reset ........................... 8
Application design-in information ..................... 9
I2C-bus .............................................................. 9
Differential I2C-bus application ..........................9
Limiting values .................................................. 16
Static characteristics ........................................ 17
Dynamic characteristics ...................................18
AC waveforms ................................................. 19
Test information ................................................ 20
Package outline .................................................21
Soldering of SMD packages .............................22
Introduction to soldering .................................. 22
Wave and reflow soldering .............................. 22
Wave soldering ................................................ 22
Reflow soldering .............................................. 23
Soldering: PCB footprints ................................ 25
Abbreviations .................................................... 26
Revision history ................................................ 26
Legal information .............................................. 27
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in section 'Legal information'.
© NXP B.V. 2021.
All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
Date of release: 16 September 2021
Document identifier: PCA9615
工商网监
湘ICP备2023018690号
