TJA1043
High-speed CAN transceiver
Rev. 5 — 23 May 2016
Product data sheet
1. General description
The TJA1043 high-speed CAN transceiver provides an interface between a Controller
Area Network (CAN) protocol controller and the physical two-wire CAN bus. The
transceiver is designed for high-speed CAN applications in the automotive industry,
providing differential transmit and receive capability to (a microcontroller with) a CAN
protocol controller.
The TJA1043 belongs to the third generation of high-speed CAN transceivers from NXP
Semiconductors, offering significant improvements over first- and second-generation
devices such as the TJA1041A. It offers improved ElectroMagnetic Compatibility (EMC)
and ElectroStatic Discharge (ESD) performance, very low power consumption, and
passive behavior when the supply voltage is turned off. Advanced features include:
• Low-power management controls the power supply throughout the node while
supporting local and remote wake-up with wake-up source recognition
• Several protection and diagnostic functions including bus line short-circuit detection
and battery connection detection
• Can be interfaced directly to microcontrollers with supply voltages from 3 V to 5 V
The TJA1043 implements the CAN physical layer as defined in the current ISO11898
standard (ISO11898-2:2003, ISO11898-5:2007 and the pending updated version of ISO
11898-2:2016). Pending the release of ISO11898-2:2016 including CAN FD and
SAE-J2284-4/5, additional timing parameters defining loop delay symmetry are specified.
This implementation enables reliable communication in the CAN FD fast phase at data
rates up to 5 Mbit/s.
These features make the TJA1043 the ideal choice for high speed CAN networks
containing nodes that need to be available all times, even when the internal VIO and VCC
supplies are switched off.
2. Features and benefits
2.1 General
Fully ISO 11898-2:2003 and ISO 11898-5:2007 compliant
Loop delay symmetry timing enables reliable communication at data rates up to
5 Mbit/s in the CAN FD fast phase
Suitable for 12 V and 24 V systems
Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
VIO input allows for direct interfacing with 3 V and 5 V microcontrollers
SPLIT voltage output for stabilizing the recessive bus level
TJA1043
NXP Semiconductors
High-speed CAN transceiver
Listen-only mode for node diagnosis and failure containment
Available in SO14 and HVSON14 packages
Leadless HVSON14 package (3.0 mm 4.5 mm) with improved Automated Optical
Inspection (AOI) capability
AEC-Q100 qualified
Dark green product (halogen free and Restriction of Hazardous Substances (RoHS)
compliant)
2.2 Low-power management
Very low current Standby and Sleep modes, with local and remote wake-up
Capability to power down the entire node while supporting local, remote and host
wake-up
Wake-up source recognition
Transceiver disengages from the bus (zero load) when VBAT absent
Functional behavior predictable under all supply conditions
2.3 Protection and diagnosis (detection and signalling)
High ESD handling capability on the bus pins
Bus pins and VBAT protected against transients in automotive environments
Transmit Data (TXD) dominant time-out function with diagnosis
TXD-to-RXD short-circuit handler with diagnosis
Thermal protection with diagnosis
Undervoltage detection and recovery on pins VCC, VIO and VBAT
Bus line short-circuit diagnosis
Bus dominant clamping diagnosis
Cold start diagnosis (first battery connection)
3. Quick reference data
Table 1.
Quick reference data
Symbol
Parameter
Conditions
Min
Typ Max
Unit
VCC
supply voltage
4.5
-
5.5
V
VIO
supply voltage on pin VIO
2.8
-
5.5
V
Vuvd(VCC)
undervoltage detection voltage on
pin VCC
3
3.5
4.3
V
Vuvd(VIO)
undervoltage detection voltage on
pin VIO
VBAT or VCC > 4.5 V
0.8
1.8
2.5
V
ICC
supply current
Normal mode; bus dominant
30
48
65
mA
Normal or Listen-only mode; bus recessive
3
6
9
mA
IIO
VESD
supply current on pin VIO
electrostatic discharge voltage
TJA1043
Product data sheet
Standby or Sleep mode
0
0.75 2
A
Normal mode; VTXD = 0 V (dominant)
-
150
500
A
Normal or Listen-only mode; VTXD = VIO
(recessive)
0
1
4
A
Standby or Sleep mode
0
1
4
A
IEC 61000-4-2 at pins CANH and CANL
8
-
+8
kV
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
2 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
Table 1.
Quick reference data …continued
Symbol
Parameter
Min
Typ Max
Unit
VCANH
voltage on pin CANH
Conditions
58
-
+58
V
VCANL
voltage on pin CANL
58
-
+58
V
Tvj
virtual junction temperature
40
-
+150 C
4. Ordering information
Table 2.
Ordering information
Type number
Package
Name
Description
Version

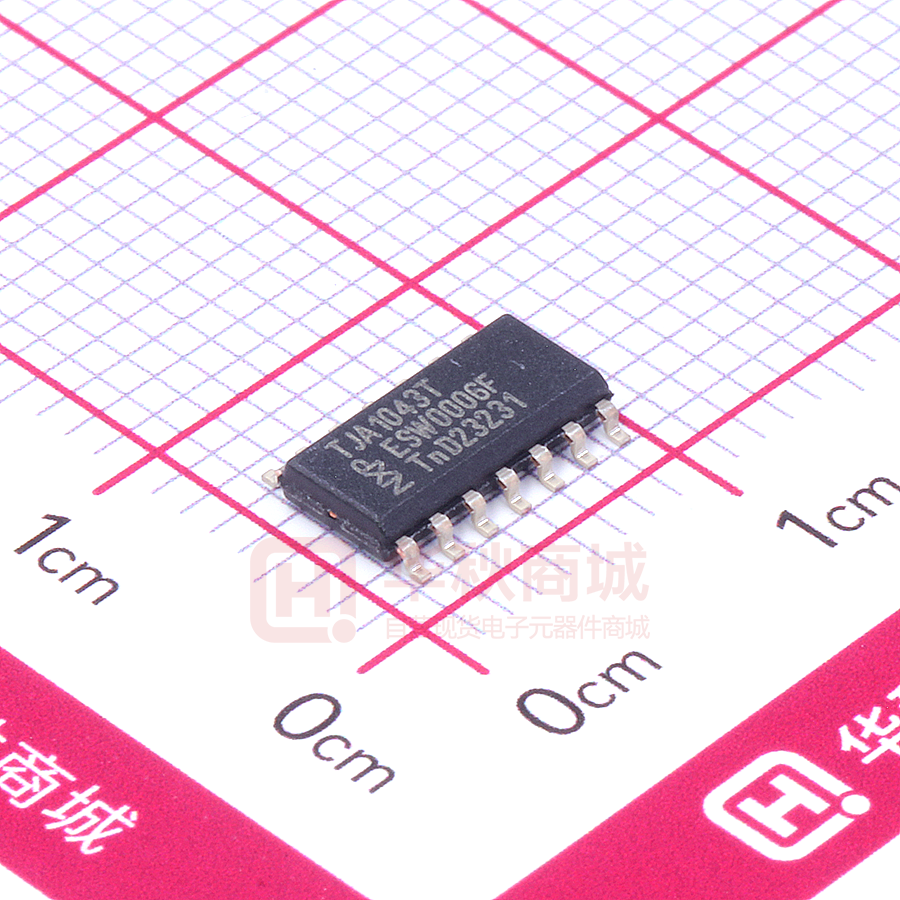

TJA1043T
SO14
plastic small outline package; 14 leads; body width 3.9 mm
SOT108-1
TJA1043TK
HVSON14 plastic, thermal enhanced very thin small outline package; no leads;
14 terminals; body 3 4.5 0.85 mm
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
SOT1086-2
© NXP Semiconductors N.V. 2016. All rights reserved.
3 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
5. Block diagram
VIO
VCC
5
3
VBAT
10
VCC
TJA1043
TEMPERATURE
PROTECTION
13
VIO
TXD
1
SLOPE
CONTROL
+
DRIVER
TIME-OUT
12
CANH
CANL
VBAT
WAKE
ERR_N
STB_N
9
8
14
11
MODE
CONTROL
+
WAKE-UP
CONTROL
+
ERROR
DETECTION
SPLIT
SPLIT
VBAT
7
EN
RXD
INH
6
4
MUX
+
DRIVER
WAKE-UP
FILTER
2
GND
Fig 1.
015aaa061
Block diagram
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
4 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
6. Pinning information
6.1 Pinning
terminal 1
index area
TXD
1
14 STB_N
TXD
1
14 STB_N
GND
2
13 CANH
GND
2
13 CANH
VCC
3
12 CANL
VCC
3
12 CANL
RXD
4
11 SPLIT
RXD
4
VIO
5
10 VBAT
VIO
5
10 VBAT
EN
6
9
WAKE
EN
6
9
WAKE
INH
7
8
ERR_N
INH
7
8
ERR_N
TJA1043T
TJA1043TK
015aaa376
015aaa062
Fig 2.
11 SPLIT
Pin configuration diagram: SO14
Fig 3.
Pin configuration diagram: HVSON14
6.2 Pin description
Table 3.
Pin description
Symbol
Pin
Description
TXD
1
transmit data input
GND[1]
2
ground supply
VCC
3
transceiver supply voltage
RXD
4
receive data output; reads out data from the bus lines
VIO
5
supply voltage for I/O level adaptor
EN
6
enable control input
INH
7
inhibit output for switching external voltage regulators
ERR_N
8
error and power-on indication output (active LOW)
WAKE
9
local wake-up input
VBAT
10
battery supply voltage
SPLIT
11
common-mode stabilization output
CANL
12
LOW-level CAN bus line
CANH
13
HIGH-level CAN bus line
STB_N
14
standby control input (active LOW)
[1]
HVSON14 package die supply ground is connected to both the GND pin and the exposed center pad. The
GND pin must be soldered to board ground. For enhanced thermal and electrical performance, it is
recommended that the exposed center pad also be soldered to board ground.
7. Functional description
The TJA1043 is a stand-alone high-speed CAN transceiver with a number of operating
modes, fail-safe features and diagnostic features that offer enhanced system reliability
and advanced power management. The transceiver combines the functionality of the
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
5 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
TJA1041A with improved EMC and ESD capability and quiescent current performance.
Improved slope control and high DC handling capability on the bus pins provide additional
application flexibility.
7.1 Operating modes
The TJA1043 supports five operating modes. Control pins STB_N and EN are used to
select the operating mode. Switching between modes allows access to a number of
diagnostics flags via pin ERR_N. Table 4 describes how to switch between modes.
Figure 4 illustrates the mode transitions when VCC, VIO and VBAT are valid.
Table 4.
Operating mode selection
Internal flags
UVNOM[1]
Control pins
UVBAT
Wake[2]
STB_N[3]
Operating mode
Pin INH
EN
From Normal, Listen-only, Standby and Go-to-Sleep modes
set
X
X
X
X
Sleep mode
floating
cleared
set
X
HIGH
X
Standby mode
HIGH
cleared
X
set
LOW
X
Standby mode
HIGH
cleared
X
cleared
LOW
LOW
Standby mode
HIGH
cleared
X
cleared
LOW
HIGH
Go-to-Sleep mode[4]
HIGH[4]
cleared
cleared
X
HIGH
LOW
Listen-only mode
HIGH
cleared
cleared
X
HIGH
HIGH
Normal mode
HIGH
From Sleep mode
TJA1043
Product data sheet
set
X
X
X
X
Sleep mode
floating
cleared
set
X
HIGH
X
Standby mode
HIGH
cleared
X
set
LOW
X
Standby mode
HIGH
cleared
X
cleared
LOW
X
Sleep mode
floating
cleared
cleared
X
HIGH
LOW
Listen-only mode
HIGH
cleared
cleared
X
HIGH
HIGH
Normal mode
HIGH
[1]
Setting the UVNOM flag will clear the WAKE flag.
[2]
Setting the Wake flag will clear the UVNOM flag.
[3]
A LOW-to-HIGH transition on pin STB_N will clear the UVNOM flag
[4]
After the minimum hold time, in Go-to-Sleep mode, th(min), the transceiver will enter Sleep mode and pin
INH will be set floating.
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
6 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
STB_N = H
and
EN = H
STB_N = H
and
EN = L
LISTENONLY MODE
STB_N = H
and
EN = L
NORMAL
MODE
STB_N = H
and
EN = H
STB_N = H
and
EN = L
STB_N = H
and
EN = H
STB_N = L
and
(EN = L or Wake flag set)
STB_N = L and EN = H
and
Wake flag cleared
STB_N = L
and
EN = H
STB_N = L
and
EN = L
STB_N = L and EN = H
and
Wake flag cleared
STANDBY
MODE
GO-TO-SLEEP
MODE
STB_N = L
and
(EN = L or Wake flag set)
STB_N = H and EN = L
Wake flag cleared
and
t > th(min)
STB_N = L
and
Wake flag set
STB_N = H and EN = H
SLEEP
MODE
LEGEND:
= H, = L
Fig 4.
logical state of pin
015aaa063
Mode transitions when valid VCC, VIO and VBAT voltages are present
7.1.1 Normal mode
In Normal mode, the transceiver can transmit and receive data via the bus lines CANH
and CANL (see Figure 1 for the block diagram). The differential receiver converts the
analog data on the bus lines into digital data which is output to pin RXD. The slopes of the
output signals on the bus lines are controlled internally and are optimized in a way that
guarantees the lowest possible EME. The bus pins are biased to 0.5VCC (via Ri). Pin INH
is active, so voltage regulators controlled by pin INH (see Figure 9) will be active too.
7.1.2 Listen-only mode
In Listen-only mode, the transceiver’s transmitter is disabled, effectively providing a
transceiver listen-only feature. The receiver will still convert the analog bus signal on
pins CANH and CANL into digital data, available for output on pin RXD. As in Normal
mode, the bus pins are biased at 0.5VCC and pin INH remains active.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
7 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
7.1.3 Standby mode
Standby mode is the TJA1043’s first-level power saving mode, offering reduced current
consumption. In Standby mode, the transceiver is unable to transmit or receive data and
the low-power receiver is activated to monitor bus activity. The bus pins are biased at
ground level (via Ri). Pin INH is still active, so voltage regulators controlled by this pin will
also be active.
Pins RXD and ERR_N will reflect any active wake-up requests (provided that VIO and
VBAT are present).
7.1.4 Go-to-Sleep mode
Go-to-Sleep mode is the controlled route for entering Sleep mode. In Go-to-Sleep mode,
the transceiver behaves as in Standby mode, with the addition that a go-to-sleep
command is issued to the transceiver. The transceiver will remain in Go-to-Sleep mode for
the minimum hold time (th(min)) before entering Sleep mode. The transceiver will not enter
Sleep mode if the state of pin STB_N or pin EN is changed or if the Wake flag is set
before th(min) has elapsed.
7.1.5 Sleep mode
Sleep mode is the TJA1043’s second-level power saving mode. Sleep mode is entered
via Go-to-Sleep mode, and also when the undervoltage detection time on either VCC or
VIO elapses before the relevant voltage level has recovered. In Sleep mode, the
transceiver behaves as described for Standby mode, with the exception that pin INH is set
floating. Voltage regulators controlled by this pin will be switched off, and the current into
pin VBAT will be reduced to a minimum. Pins STB_N, EN and the Wake flag can be used to
wake up a node from Sleep mode (see Table 4).
7.2 Internal flags
The TJA1043 makes use of seven internal flags for its fail-safe fallback mode control and
system diagnosis support. Five of these flags can be polled by the controller via pin
ERR_N. Which flag is available on pin ERR_N at any time depends on the active
operating mode and on a number of other conditions. Table 5 describes how to access
these flags.
Table 5.
TJA1043
Product data sheet
Accessing internal flags via pin ERR_N
Internal
flag
Flag is available on pin ERR_N[1]
Flag is cleared
UVNOM
no
by setting the Pwon or Wake flags, by a
LOW-to-HIGH transition on STB_N or
when both VIO and VBAT have
recovered.
UVBAT
no
when VBAT has recovered
Pwon
in Listen-only mode (coming from Standby on entering Normal mode
mode, Go-to-Sleep mode, or Sleep mode)
Wake
in Standby mode, Go-to-Sleep mode, and
Sleep mode (provided that VIO and VBAT
are present)
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
on entering Normal mode or by setting
the UVNOM flag
© NXP Semiconductors N.V. 2016. All rights reserved.
8 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
Table 5.
Accessing internal flags via pin ERR_N …continued
Internal
flag
Flag is available on pin ERR_N[1]
Wake-up
source
in Normal mode (before the fourth
on leaving Normal mode
dominant-to-recessive edge on pin TXD[2])
Bus failure
on re-entering Normal mode or by
in Normal mode (after the fourth
dominant-to-recessive edge on pin TXD[2]) setting the Pwon flag
Local failure in Listen-only mode (coming from Normal
mode)
Flag is cleared
on entering Normal mode or when RXD
is dominant while TXD is recessive
(provided that all local failures are
resolved) or by setting the Pwon flag
[1]
Pin ERR_N is an active-LOW output, so a LOW-level indicates a set flag and a HIGH-level indicates a
cleared flag. Allow pin ERR_N to stabilize for at least 8 s after changing operating modes.
[2]
Allow for a TXD dominant time of at least 4 s per dominant-recessive cycle.
7.2.1 UVNOM flag
UVNOM is the VCC and VIO undervoltage detection flag. The flag is set when the voltage on
pin VCC drops below the VCC undervoltage detection voltage, Vuvd(VCC), for longer than the
undervoltage detection time, tdet(uv), or when the voltage on pin VIO drops below Vuvd(VIO)
for longer than tdet(uv). When the UVNOM flag is set, the transceiver enters Sleep mode to
save power and to ensure the bus is not disturbed. In Sleep mode the voltage regulators
connected to pin INH are disabled, avoiding any extra power consumption that might be
generated as a result of a short-circuit condition.
Any wake-up request, setting the Pwon flag or a LOW-to-HIGH transition on STB_N will
clear UVNOM and the timers, allowing the voltage regulators to be reactivated (at least until
UVNOM is set again). UVNOM will also be cleared if both VCC and VIO recover for longer
than the undervoltage recovery time, trec(uv). The transceiver will then switch to the
operating mode indicated by the logic levels on pins STB_N and EN (see Table 4).
7.2.2 UVBAT flag
UVBAT is the VBAT undervoltage detection flag. This flag is set when the voltage on
pin VBAT drops below Vuvd(VBAT). When UVBAT is set, the transceiver will try to enter
Standby mode to save power and will disengage from the bus (zero load). UVBAT is
cleared when the voltage on pin VBAT recovers. The transceiver will then switch to the
operating mode indicated by the logic levels on pins STB_N and EN (see Table 4).
7.2.3 Pwon flag
Pwon is the VBAT power-on flag. This flag is set when the voltage on pin VBAT recovers
after previously dropping below Vuvd(VBAT) (usually because the battery was
disconnected). Setting the Pwon flag clears the UVNOM flag and timers. The Wake and
Wake-up source flags are set to ensure consistent system power-up under all supply
conditions. In Listen-only mode the Pwon flag can be polled via pin ERR_N (see Table 5).
The flag is cleared when the transceiver enters Normal mode.
7.2.4 Wake flag
The Wake flag is set when the transceiver detects a local or remote wake-up request. A
local wake-up request is detected when the logic level on pin WAKE changes, and the
new level remains stable for at least twake. The Wake flag can be set in Standby mode,
Go-to-Sleep mode or Sleep mode. Setting the Wake flag clears the UVNOM flag and
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
9 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
timers. Once set, the Wake flag status is immediately available on pins ERR_N and RXD
(provided VIO and VBAT are present). This flag is also set at power-on and cleared when
the UVNOM flag is set or the transceiver enters Normal mode.
7.2.5 Remote wake-up (via the CAN bus)
The TJA1043 wakes up from Standby or Sleep mode when a dedicated wake-up pattern
(specified in ISO11898-5: 2007) is detected on the bus. This filtering helps avoid spurious
wake-up events. A spurious wake-up sequence could be triggered by, for example, a
dominant clamped bus or by dominant phases due to noise or spikes on the bus.
The wake-up pattern consists of:
• a dominant phase of at least twake(busdom) followed by
• a recessive phase of at least twake(busrec) followed by
• a dominant phase of at least twake(busdom)
Dominant or recessive bits between the above mentioned phases that are shorter than
twake(busdom) and twake(busrec) respectively are ignored.
The complete dominant-recessive-dominant pattern must be received within tto(wake)bus to
be recognized as a valid wake-up pattern (see Figure 5). Otherwise, the internal wake-up
logic is reset. The complete wake-up pattern will then need to be retransmitted to trigger a
wake-up event. Pin RXD remains HIGH until the wake-up event has been triggered.
A wake-up event is not flagged on RXD if any of the following events occurs while a valid
wake-up pattern is being received:
• The TJA1043 switches to Normal mode
• The complete wake-up pattern was not received within tto(wake)bus
• A VCC or VIO undervoltage is detected (UVNOM flag set; see Section 7.2.1)
&$1+
92 GLI
&$1/
WZDNH EXVGRP
WZDNH EXVUHF
WZDNH EXVGRP
5;'
WWR ZDNH EXV
DDD
Fig 5.
Wake-up timing
7.2.6 Wake-up source flag
Wake-up source recognition is provided via the Wake-up source flag, which is set when
the Wake flag is set by a local wake-up request via the WAKE pin. The Wake-up source
flag can be polled via the ERR_N pin in Normal mode (see Table 5). This flag is also set at
power-on and cleared when the transceiver leaves Normal mode.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
10 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
7.2.7 Bus failure flag
The Bus failure flag is set if the transceiver detects a bus line short-circuit condition to
VBAT, VCC or GND during four consecutive dominant-recessive cycles on pin TXD, while
trying to drive the bus lines dominant. The Bus failure flag can be polled via the ERR_N
pin in Normal mode (see Table 5). This flag is cleared at power-on or when the transceiver
re-enters Normal mode.
7.2.8 Local failure flag
In Normal and Listen-only modes, the transceiver can distinguish four different local
failure events, any of which will cause the Local failure flag to be set. The four local failure
events are: TXD dominant clamping, TXD-to-RXD short circuit, bus dominant clamping
and an overtemperature event. The nature and detection of these local failures is
described in Section 7.3. The Local failure flag can be polled via the ERR_N pin in
Listen-only mode (see Table 5). This flag is cleared at power-on, when entering Normal
mode or when RXD is dominant while TXD is recessive, provided that all local failures
have been resolved.
7.3 Local failures
The TJA1043 can detect four different local failure conditions. Any of these failures will set
the Local failure flag, and in most cases the transmitter of the transceiver will be disabled.
7.3.1 TXD dominant time-out function
A permanent LOW level on pin TXD (due to a hardware or software application failure)
would drive the CAN bus into a permanent dominant state, blocking all network
communications. The TXD dominant time-out function prevents such a network lock-up by
disabling the transmitter if pin TXD remains LOW for longer than the TXD dominant
time-out time tto(dom)TXD. The tto(dom)TXD timer defines the minimum possible bit rate of
40 kbit/s. The transmitter remains disabled until the Local failure flag has been cleared.
7.3.2 TXD-to-RXD short-circuit detection
A short-circuit between pins RXD and TXD would lock the bus in a permanent dominant
state once it had been driven dominant, because the low-side driver of RXD is typically
stronger than the high-side driver of the controller connected to TXD. TXD-to-RXD
short-circuit detection prevents such a network lock-up by disabling the transmitter. The
transmitter remains disabled until the Local failure flag has been cleared.
7.3.3 Bus dominant time-out function
A CAN bus short circuit (to VBAT, VCC or GND) or a failure in one of the other network
nodes could result in a differential voltage on the bus high enough to represent a bus
dominant state. Because a node will not start transmission if the bus is dominant, the
normal bus failure detection will not detect this failure, but the bus dominant clamping
detection will. The Local failure flag is set if the dominant state on the bus persists for
longer than tto(dom)bus. By checking this flag, the controller can determine if a clamped bus
is blocking network communications. There is no need to disable the transmitter. Note that
the Local failure flag does not retain a bus dominant clamping failure, and is released as
soon as the bus returns to recessive state.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
11 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
7.3.4 Overtemperature detection
If the junction temperature becomes excessive, the transmitter will shut down in time to
protect the output drivers from overheating without compromising the maximum operating
temperature. The transmitter will remain disabled until the Local failure flag has been
cleared.
7.4 SPLIT pin
Using the SPLIT pin on the TJA1043 in conjunction with a split termination network (see
Figure 6 and Figure 9) can help to stabilize the recessive voltage level on the bus. This
will reduce EME in networks with DC leakage to ground (e.g. from deactivated nodes with
poor bus leakage performance). In Normal and Listen-only modes, pin SPLIT delivers a
DC output voltage of 0.5VCC. In Standby, Go-to-Sleep and Sleep modes, pin SPLIT is
floating.
VCC
TJA1043
CANH
VSPLIT = 0.5VCC
in normal mode
and pwon/listen-only
mode;
otherwise floating
60 Ω
R
VSPLIT
SPLIT
60 Ω
R
CANL
GND
015aaa064
Fig 6.
Stabilization circuit and application
7.5 VIO supply pin
Pin VIO should be connected to the microcontroller supply voltage (see Figure 9). This will
cause the signal levels of pins TXD, RXD, STB_N, EN and ERR_N to be adjusted to the
I/O levels of the microcontroller, facilitating direct interfacing without the need for glue
logic.
7.6 WAKE pin
A local wake-up event is triggered by a LOW-to-HIGH or HIGH-to-LOW transition on the
WAKE pin, allowing for maximum flexibility when designing a local wake-up circuit.To
minimize current consumption, the internal bias voltage will follow the logic state on the
pin after a delay of twake. A HIGH level on pin WAKE is followed by an internal pull-up to
VBAT. A LOW level on pin WAKE is followed by an internal pull-down towards GND. In
applications that don’t make use of the local wake-up facility, it is recommended that the
WAKE pin be connected to VBAT or GND to ensure optimal EMI performance.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
12 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
8. Limiting values
Table 6.
Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol
Parameter
Conditions
voltage[1]
VBAT
battery supply
Vx
voltage on pin x[1]
V(CANH-CANL)
voltage between pin CANH
and pin CANL
IWAKE
current on pin WAKE
transient voltage
Vtrt
58
V
V
on pins INH and WAKE
0.3
+58
V
on pins VCC, VIO, TXD, RXD, STB_N, EN,
ERR_N
0.3
+7
V
20
+20
V
-
15
mA
pulse 1
100
-
V
pulse 2a
-
75
V
pulse 3a
150
-
V
-
100
V
8
+8
kV
at pins CANH and CANL
8
+8
kV
at any other pin
4
+4
kV
300
+300
V
750
+750
V
500
+500
V
40
+150
C
55
+150
C
Machine Model (MM); 200 pF, 0.75 H, 10
[2]
[3]
[4]
[5]
at any pin
Charged Device Model (CDM); field Induced
charge; 4 pF
[6]
at corner pins
at any pin
storage temperature
V
+58
Human Body Model (HBM); 100 pF, 1.5 k
virtual junction temperature
+58
-
at pins CANH and CANL
Tvj
0.3
58
IEC 61000-4-2 (150 pF, 330 )
Tstg
Unit
load dump
on pins CANH, CANL, SPLIT and VBAT
electrostatic discharge
voltage
Max
on pins CANH, CANL and SPLIT
pulse 3b
VESD
Min
[7]
[1]
The device can sustain voltages up to the specified values over the product lifetime, provided applied voltages (including transients)
never exceed these values.
[2]
According to IEC TS 62228 (2007), Section 4.2.4; parameters for standard pulses defined in ISO7637 part 2: 2004-06.
[3]
According to IEC TS 62228 (2007), Section 4.3; DIN EN 61000-4-2.
[4]
According to AEC-Q100-002.
[5]
According to AEC-Q100-003.
[6]
According to AEC-Q100-011 Rev-C1. The classification level is C4B.
[7]
In accordance with IEC 60747-1. An alternative definition of virtual junction temperature is: Tvj = Tamb + P Rth(vj-a), where Rth(vj-a) is a
fixed value to be used for the calculation of Tvj. The rating for Tvj limits the allowable combinations of power dissipation (P) and ambient
temperature (Tamb).
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
13 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
9. Thermal characteristics
Table 7.
Thermal characteristics
Value determined for free convection conditions on a JEDEC 2S2P board.
Symbol
Parameter
Conditions
Typ
Unit
Rth(vj-a)
thermal resistance from virtual junction to ambient
SO14 package; in free air
68
K/W
HVSON14 package; in free air
44
K/W
10. Static characteristics
Table 8.
Static characteristics
VCC = 4.5 V to 5.5 V; VIO = 2.8 V to VCC; VBAT = 4.5 V to 40 V; RL = 60 ; Tvj = 40 C to +150 C; unless otherwise
specified; all voltages are defined with respect to ground; positive currents flow into the device [1].
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Supply pin VCC
VCC
supply voltage
4.5
-
5.5
V
Vuvd(VCC)
undervoltage detection
voltage on pin VCC
VBAT > 4.5 V
3
3.5
4.3
V
ICC
supply current
Normal mode; VTXD = 0 V (dominant)
30
48
65
mA
Normal or Listen-only mode;
VTXD = VIO (recessive)
3
6
9
mA
Standby or Sleep mode; VBAT > VCC
0
0.75
2
A
I/O level adapter supply; pin VIO
VIO
supply voltage on pin VIO
2.8
-
5.5
V
Vuvd(VIO)
undervoltage detection
voltage on pin VIO
VBAT or VCC > 4.5 V
0.8
1.8
2.5
V
IIO
supply current on pin VIO
Normal mode; VTXD = 0 V (dominant)
-
150
500
A
Normal or Listen-only mode;
VTXD = VIO (recessive)
0
1
4
A
Standby or Sleep mode
0
1
4
A
Supply pin VBAT
VBAT
battery supply voltage
4.5
-
40
V
Vuvd(VBAT)
undervoltage detection
voltage on pin VBAT
3
3.5
4.3
V
IBAT
battery supply current
Normal or Listen-only mode
15
40
70
A
Standby mode; VCC > 4.5 V;
VINH = VWAKE = VBAT
5
18
30
A
Sleep mode; VINH = VCC = VIO = 0 V;
VWAKE = VBAT
5
18
30
A
CAN transmit data input; pin TXD
VIH
HIGH-level input voltage
0.7VIO
-
VIO + 0.3 V
VIL
LOW-level input voltage
0.3
-
+0.3VIO
V
IIH
HIGH-level input current
VTXD = VIO
5
0
+5
A
IIL
LOW-level input current
Normal mode; VTXD = 0 V
300
200
30
A
Ci
input capacitance
not tested
-
5
10
pF
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
14 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
Table 8.
Static characteristics …continued
VCC = 4.5 V to 5.5 V; VIO = 2.8 V to VCC; VBAT = 4.5 V to 40 V; RL = 60 ; Tvj = 40 C to +150 C; unless otherwise
specified; all voltages are defined with respect to ground; positive currents flow into the device [1].
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
CAN receive data output; pin RXD
IOH
HIGH-level output current
VRXD = VIO 0.4 V; VIO = VCC
12
6
1
mA
IOL
LOW-level output current
VRXD = 0.4 V; VTXD = VIO; bus dominant
2
6
14
mA
0.7VIO
-
VIO +0.3 V
Standby and enable control inputs; pins STB_N and EN
VIH
HIGH-level input voltage
VIL
LOW-level input voltage
0.3
-
0.3VIO
V
IIH
HIGH-level input current
VSTB_N or VEN 0.7VIO
1
4
10
A
IIL
LOW-level input current
VSTB_N = VEN = 0 V
1
0
+1
A
Error and power-on indication output; pin ERR_N
IOH
HIGH-level output current
VERR_N = VIO 0.4 V; VIO = VCC
50
20
4
A
IOL
LOW-level output current
VERR_N = 0.4 V
0.1
0.5
2
mA
VWAKE = VBAT 1.9 V
10
5
1
A
5
10
A
Local wake-up input; pin WAKE
IIH
HIGH-level input current
IIL
LOW-level input current
VWAKE = VBAT 3.1 V
1
Vth
threshold voltage
VSTB_N = 0 V
VBAT 3 VBAT VBAT 2 V
2.5
Inhibit output; pin INH
VH
HIGH-level voltage drop
IINH = 0.18 mA
0
0.25
0.8
V
IL
leakage current
Sleep mode
2
0
+2
A
Bus lines; pins CANH and CANL
VO(dom)
dominant output voltage
VTXD = 0 V; t < tto(dom)TXD
pin CANH; RL = 50 to 65
2.75
3.5
4.5
V
pin CANL; RL = 50 to 65
0.5
1.5
2.25
V
400
-
+400
mV
0.9VCC
-
1.1VCC
V
Vdom(TX)sym
transmitter dominant
voltage symmetry
Vdom(TX)sym = VCC VCANH VCANL
VTXsym
transmitter voltage
symmetry
VTXsym = VCANH + VCANL; fTXD = 250 kHz;
CSPLIT = 4.7 nF
differential output voltage
dominant; Normal mode; VTXD = 0 V;
t < tto(dom)TXD; VCC = 4.75 V to 5.25 V
VO(dif)
[2]
[3]
RL = 50 to 65
1.5
-
3
V
RL = 45 to 70
1.4
-
3.3
V
RL = 2240
1.5
-
5
V
Normal or Listen-only mode;
VTXD = VIO
50
-
+50
mV
Standby or Sleep mode
0.2
-
+0.2
V
recessive; no load
VO(rec)
recessive output voltage
Normal or Listen-only mode
2
0.5VCC 3
V
Standby or Sleep mode
0.1
0
+0.1
V
IO(sc)dom
dominant short-circuit
output current
VTXD = 0 V (dominant); VCC = 5 V
pin CANH; VCANH = 3 V to +40 V
100
70
40
mA
pin CANL; VCANL = 3 V to +40 V
40
70
100
mA
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
15 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
Table 8.
Static characteristics …continued
VCC = 4.5 V to 5.5 V; VIO = 2.8 V to VCC; VBAT = 4.5 V to 40 V; RL = 60 ; Tvj = 40 C to +150 C; unless otherwise
specified; all voltages are defined with respect to ground; positive currents flow into the device [1].
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
IO(sc)rec
recessive short-circuit
output current
Normal mode; VTXD = VIO;
VCANH = VCANL = 27 V to +32 V
3
-
+3
mA
Vth(RX)dif
differential receiver
threshold voltage
30 V VCANL +30 V;
30 V VCANH +30 V
0.5
0.7
0.9
V
Normal or Listen-only mode
Standby or Sleep mode
0.4
0.7
1.15
V
Vrec(RX)
receiver recessive voltage
Normal or Listen-only mode;
30 V VCANL +30 V;
30 V VCANH +30 V
3
-
0.5
V
Vdom(RX)
receiver dominant voltage
Normal or Listen-only mode;
30 V VCANL +30 V;
30 V VCANH +30 V
0.9
-
8.0
V
Vhys(RX)dif
differential receiver
hysteresis voltage
Normal or Listen-only mode;
30 V VCANL +30 V;
30 V VCANH +30 V
50
120
400
mV
IL
leakage current
VCC = 0 V; VCANH = VCANL = 5 V
100
170
250
A
VBAT = 0 V; VCANH = VCANL = 5 V
2
-
+2
A
VCC = VIO = VBAT = 0 V or
VCC = VIO = VBAT = shorted to ground via
47 k; VCANH = VCANL = 5 V
2
-
+2
A
9
15
28
k
Ri
input resistance
Ri
input resistance deviation
Ri(dif)
differential input resistance
Ci(cm)
common-mode input
capacitance
VTXD = VCC
Ci(dif)
differential input
capacitance
VTXD = VCC
3
0
+3
%
19
30
52
k
[2]
-
-
20
pF
[2]
-
-
10
pF
Normal or Listen-only mode;
500 A < ISPLIT < 500 A
0.3VCC
0.5VCC 0.7VCC
Normal or Listen-only mode RL = 1 M
0.45VCC 0.5VCC 0.55VCC
V
Standby or Sleep mode;
58 V < VSPLIT < +58 V
3
0
+3
A
-
190
-
C
between VCANH and VCANL
Common-mode stabilization output; pin SPLIT
output voltage
VO
leakage current
IL
V
Temperature detection
Tj(sd)
[2]
shutdown junction
temperature
[1]
All parameters are guaranteed over the virtual junction temperature range by design. Factory testing uses correlated test conditions to
cover the specified temperature and power supply voltage range.
[2]
Not tested in production; guaranteed by design.
[3]
The test circuit used to measure the bus output voltage symmetry (which includes CSPLIT) is shown in Figure 12.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
16 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
11. Dynamic characteristics
Table 9.
Dynamic characteristics;
VCC = 4.5 V to 5.5 V; VIO = 2.8 V to VCC; VBAT = 4.5 V to 40 V; RL = 60 ; Tvj = 40 C to +150 C; unless otherwise
specified; all voltages are defined with respect to ground; positive currents flow into the device[1].
Symbol
Parameter
Conditions
Min
Typ
Max
Unit
Timing characteristics; Figure 7
td(TXD-busdom)
delay time from TXD to bus dominant
Normal mode
-
70
-
ns
td(TXD-busrec)
delay time from TXD to bus recessive
Normal mode
-
90
-
ns
td(busdom-RXD) delay time from bus dominant to RXD
Normal or Listen-only mode
-
60
-
ns
td(busrec-RXD)
delay time from bus recessive to RXD
Normal or Listen-only mode
-
70
-
ns
td(TXDL-RXDL)
delay time from TXD LOW to RXD LOW
Normal mode
40
-
240
ns
td(TXDH-RXDH)
delay time from TXD HIGH to RXD HIGH Normal mode
40
-
240
ns
tdet(uv)
undervoltage detection time
100
-
350
ms
trec(uv)
undervoltage recovery time
tbit(bus)
transmitted recessive bit width
tbit(RXD)
trec
bit time on pin RXD
receiver timing symmetry
tto(dom)TXD
TXD dominant time-out time
1
-
5
ms
tbit(TXD) = 500 ns
[2]
435
-
530
ns
tbit(TXD) = 200 ns
[2]
155
-
210
ns
tbit(TXD) = 500 ns
[2]
400
-
550
ns
tbit(TXD) = 200 ns
[2]
120
-
220
ns
tbit(TXD) = 500 ns
65
-
+40
ns
tbit(TXD) = 200 ns
45
-
+15
ns
VTXD = 0 V
0.4
0.6
1.5
ms
tto(dom)bus
bus dominant time-out time
VO(dif) > 0.9 V
0.4
0.6
1.5
ms
th
hold time
from issuing go-to-sleep
command to entering Sleep
mode
20
35
50
s
twake(busdom)
bus dominant wake-up time
Standby or Sleep mode;
VBAT = 12 V
0.5
1.75
3
s
twake(busrec)
bus recessive wake-up time
Standby or Sleep mode;
VBAT = 12 V
0.5
1.75
3
s
tto(wake)bus
bus wake-up time-out time
twake
wake-up time
in response to a falling or rising
edge on pin WAKE; Standby or
Sleep mode
0.5
-
2
ms
5
25
50
s
[1]
All parameters are guaranteed over the virtual junction temperature range by design. Factory testing uses correlated test conditions to
cover the specified temperature and power supply voltage range.
[2]
See Figure 8.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
17 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
+,*+
7;'
/2:
&$1+
&$1/
GRPLQDQW
9
92 GLI
9
UHFHVVLYH
+,*+
5;'
/2:
WG 7;'EXVGRP
WG 7;'EXVUHF
WG EXVGRP5;'
WG 7;'+5;'+
WG 7;'/5;'/
Fig 7.
WG EXVUHF5;'
DDD
CAN transceiver timing diagram
7;'
[WELW 7;'
WELW 7;'
9
92 GLI
9
WELW EXV
5;'
WELW 5;'
DDD
Fig 8.
TJA1043
Product data sheet
Loop delay symmetry timing diagram
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
18 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
12. Application information
12.1 Application diagram
%$7
9
9
,1+
9%$7
9&&
9,2
:$.(
7-$
*1'
&$1+
63/,7
&$1EXVZLUHV
9&&
67%B1
(1
SRUW[\]
(55B1
0,&52
&21752//(5
5;'
5;'
7;'
7;'
&$1/
DDD
(1) Optional, depends on regulator.
Fig 9.
Typical application with 3 V microcontroller
12.2 Application hints
Further information on the application of the TJA1043 can be found in NXP application
hints AH1014 Application Hints - Standalone high speed CAN transceiver
TJA1042/TJA1043/TJA1048/TJA1051.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
19 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
13. Test information
95;'
+,*+
/2:
K\VWHUHVLV
9L GLI EXV 9
PJV
Fig 10. Hysteresis of the receiver
+12 V
+5 V
47 μF
100 nF
5
TXD
EN
STB_N
WAKE
VCC
VIO
3
10
1
13
6
11
14
12
TJA1043
9
10 μF
VBAT
8
7
4
CANH
SPLIT
RL
100 pF
CANL
ERR_N
INH
RXD
2
15 pF
GND
015aaa163
Fig 11. Test circuit for timing characteristics
7;'
9&&
9%$7
9,2
&$1+
ȍ
I N+]
7-$
&63/,7
Q)
5;'
*1'
&$1/
ȍ
DDD
Fig 12. Test circuit for measuring transceiver driver symmetry
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
20 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
13.1 Quality information
This product has been qualified in accordance with the Automotive Electronics Council
(AEC) standard Q100 Rev-G - Failure mechanism based stress test qualification for
integrated circuits, and is suitable for use in automotive applications.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
21 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
14. Package outline
62 SODVWLFVPDOORXWOLQHSDFNDJH OHDGV ERG\ZLGWK PP
627
'
(
$
;
F
\
+(
Y 0 $
=
4
$
$
$
$
SLQLQGH[
ș
/S
/
H
GHWDLO;
Z 0
ES
PP
VFDOH
',0(16,216 LQFKGLPHQVLRQVDUHGHULYHGIURPWKHRULJLQDOPPGLPHQVLRQV
81,7
$
PD[
$
$
$
ES
F
'
(
H
+(
/
/S
4
Y
Z
\
=
PP
LQFKHV
ș
R
R
1RWH
3ODVWLFRUPHWDOSURWUXVLRQVRIPP LQFK PD[LPXPSHUVLGHDUHQRWLQFOXGHG
5()(5(1&(6
287/,1(
9(56,21
,(&
-('(&
627
(
06
-(,7$
(8523($1
352-(&7,21
,668('$7(
Fig 13. Package outline SOT108-1 (SO14)
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
22 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
+9621 SODVWLFWKHUPDOHQKDQFHGYHU\WKLQVPDOORXWOLQHSDFNDJH QROHDGV
WHUPLQDOV ERG\[[PP
627
;
%
'
$
$
(
$
F
WHUPLQDO
LQGH[DUHD
GHWDLO;
H
WHUPLQDO
LQGH[DUHD
H
Y
Z
E
&
& $ %
&
\ &
\
/
N
(K
'K
'LPHQVLRQV
8QLW
PP
PP
VFDOH
$
$
E
F
PD[
QRP
PLQ
'
'K
(
(K
H
H
N
/
Y
Z
\
\
VRW
5HIHUHQFHV
2XWOLQH
YHUVLRQ
,(&
-('(&
-(,7$
627
02
(XURSHDQ
SURMHFWLRQ
,VVXHGDWH
Fig 14. Package outline SOT1086 (HVSON14)
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
23 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
15. Handling information
All input and output pins are protected against ElectroStatic Discharge (ESD) under
normal handling. When handling ensure that the appropriate precautions are taken as
described in JESD625-A or equivalent standards.
16. Soldering of SMD packages
This text provides a very brief insight into a complex technology. A more in-depth account
of soldering ICs can be found in Application Note AN10365 “Surface mount reflow
soldering description”.
16.1 Introduction to soldering
Soldering is one of the most common methods through which packages are attached to
Printed Circuit Boards (PCBs), to form electrical circuits. The soldered joint provides both
the mechanical and the electrical connection. There is no single soldering method that is
ideal for all IC packages. Wave soldering is often preferred when through-hole and
Surface Mount Devices (SMDs) are mixed on one printed wiring board; however, it is not
suitable for fine pitch SMDs. Reflow soldering is ideal for the small pitches and high
densities that come with increased miniaturization.
16.2 Wave and reflow soldering
Wave soldering is a joining technology in which the joints are made by solder coming from
a standing wave of liquid solder. The wave soldering process is suitable for the following:
• Through-hole components
• Leaded or leadless SMDs, which are glued to the surface of the printed circuit board
Not all SMDs can be wave soldered. Packages with solder balls, and some leadless
packages which have solder lands underneath the body, cannot be wave soldered. Also,
leaded SMDs with leads having a pitch smaller than ~0.6 mm cannot be wave soldered,
due to an increased probability of bridging.
The reflow soldering process involves applying solder paste to a board, followed by
component placement and exposure to a temperature profile. Leaded packages,
packages with solder balls, and leadless packages are all reflow solderable.
Key characteristics in both wave and reflow soldering are:
•
•
•
•
•
•
Board specifications, including the board finish, solder masks and vias
Package footprints, including solder thieves and orientation
The moisture sensitivity level of the packages
Package placement
Inspection and repair
Lead-free soldering versus SnPb soldering
16.3 Wave soldering
Key characteristics in wave soldering are:
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
24 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
• Process issues, such as application of adhesive and flux, clinching of leads, board
transport, the solder wave parameters, and the time during which components are
exposed to the wave
• Solder bath specifications, including temperature and impurities
16.4 Reflow soldering
Key characteristics in reflow soldering are:
• Lead-free versus SnPb soldering; note that a lead-free reflow process usually leads to
higher minimum peak temperatures (see Figure 15) than a SnPb process, thus
reducing the process window
• Solder paste printing issues including smearing, release, and adjusting the process
window for a mix of large and small components on one board
• Reflow temperature profile; this profile includes preheat, reflow (in which the board is
heated to the peak temperature) and cooling down. It is imperative that the peak
temperature is high enough for the solder to make reliable solder joints (a solder paste
characteristic). In addition, the peak temperature must be low enough that the
packages and/or boards are not damaged. The peak temperature of the package
depends on package thickness and volume and is classified in accordance with
Table 10 and 11
Table 10.
SnPb eutectic process (from J-STD-020D)
Package thickness (mm)
Package reflow temperature (C)
Volume (mm3)
< 350
350
< 2.5
235
220
2.5
220
220
Table 11.
Lead-free process (from J-STD-020D)
Package thickness (mm)
Package reflow temperature (C)
Volume (mm3)
< 350
350 to 2000
> 2000
< 1.6
260
260
260
1.6 to 2.5
260
250
245
> 2.5
250
245
245
Moisture sensitivity precautions, as indicated on the packing, must be respected at all
times.
Studies have shown that small packages reach higher temperatures during reflow
soldering, see Figure 15.
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
25 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
maximum peak temperature
= MSL limit, damage level
temperature
minimum peak temperature
= minimum soldering temperature
peak
temperature
time
001aac844
MSL: Moisture Sensitivity Level
Fig 15. Temperature profiles for large and small components
For further information on temperature profiles, refer to Application Note AN10365
“Surface mount reflow soldering description”.
17. Soldering of HVSON packages
Section 16 contains a brief introduction to the techniques most commonly used to solder
Surface Mounted Devices (SMD). A more detailed discussion on soldering HVSON
leadless package ICs can found in the following application notes:
• AN10365 ‘Surface mount reflow soldering description”
• AN10366 “HVQFN application information”
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
26 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
18. Appendix: ISO 11898-2:2016 parameter cross-reference list
Table 12.
ISO 11898-2:2016 to NXP data sheet parameter conversion
ISO 11898-2:2016
NXP data sheet
Parameter
Notation
Symbol
Parameter
Single ended voltage on CAN_H
VCAN_H
VO(dom)
dominant output voltage
Single ended voltage on CAN_L
VCAN_L
Differential voltage on normal bus load
VDiff
VO(dif)
differential output voltage
VSYM
VTXsym
transmitter voltage symmetry
Absolute current on CAN_H
ICAN_H
IO(sc)dom
Absolute current on CAN_L
ICAN_L
dominant short-circuit output
current
HS-PMA dominant output characteristics
Differential voltage on effective resistance during arbitration
Optional: Differential voltage on extended bus load range
HS-PMA driver symmetry
Driver symmetry
Maximum HS-PMA driver output current
HS-PMA recessive output characteristics, bus biasing active/inactive
VO(rec)
recessive output voltage
VDiff
VO(dif)
differential output voltage
tdom
tto(dom)TXD
TXD dominant time-out time
Single ended output voltage on CAN_H
VCAN_H
Single ended output voltage on CAN_L
VCAN_L
Differential output voltage
Optional HS-PMA transmit dominant timeout
Transmit dominant timeout, long
Transmit dominant timeout, short
HS-PMA static receiver input characteristics, bus biasing active/inactive
Recessive state differential input voltage range
VDiff
Vth(RX)dif
differential receiver threshold
voltage
Vrec(RX)
receiver recessive voltage
Vdom(RX)
receiver dominant voltage
Dominant state differential input voltage range
HS-PMA receiver input resistance (matching)
Differential internal resistance
RDiff
Ri(dif)
differential input resistance
Single ended internal resistance
RCAN_H
RCAN_L
Ri
input resistance
Matching of internal resistance
MR
Ri
input resistance deviation
tLoop
td(TXDH-RXDH)
delay time from TXD HIGH to
RXD HIGH
td(TXDL-RXDL)
delay time from TXD LOW to RXD
LOW
HS-PMA implementation loop delay requirement
Loop delay
Optional HS-PMA implementation data signal timing requirements for use with bit rates above 1 Mbit/s up to
2 Mbit/s and above 2 Mbit/s up to 5 Mbit/s
tBit(Bus)
tbit(bus)
transmitted recessive bit width
Received recessive bit width @ 2 Mbit/s / @ 5 Mbit/s
tBit(RXD)
tbit(RXD)
bit time on pin RXD
Receiver timing symmetry @ 2 Mbit/s / @ 5 Mbit/s
tRec
trec
receiver timing symmetry
Transmitted recessive bit width @ 2 Mbit/s / @ 5 Mbit/s,
intended
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
27 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
Table 12.
ISO 11898-2:2016 to NXP data sheet parameter conversion
ISO 11898-2:2016
NXP data sheet
Parameter
Notation
Symbol
Parameter
VDiff
V(CANH-CANL)
voltage between pin CANH and
pin CANL
Vx
voltage on pin x
HS-PMA maximum ratings of VCAN_H, VCAN_L and VDiff
Maximum rating VDiff
General maximum rating VCAN_H and VCAN_L
VCAN_H
Optional: Extended maximum rating VCAN_H and VCAN_L VCAN_L
HS-PMA maximum leakage currents on CAN_H and CAN_L, unpowered
Leakage current on CAN_H, CAN_L
ICAN_H
ICAN_L
IL
leakage current
tFilter
twake(busdom)[1] bus dominant wake-up time
HS-PMA bus biasing control timings
CAN activity filter time, long
twake(busrec)[1]
bus recessive wake-up time
tWake
tto(wake)bus
bus wake-up time-out time
Timeout for bus inactivity
tSilence
tto(silence)
bus silence time-out time
Bus Bias reaction time
tBias
td(busact-bias)
delay time from bus active to bias
CAN activity filter time, short
Wake-up timeout, short
Wake-up timeout, long
[1]
tfltr(wake)bus - bus wake-up filter time, in devices with basic wake-up functionality
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
28 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
19. Revision history
Table 13.
Revision history
Document ID
Release date
TJA1043 v.5.01 20160523
Modifications:
•
•
•
•
•
•
•
•
•
Data sheet status
Change notice
Supersedes
Product data sheet
-
TJA1043 v.4
Section 1: text amended (2nd paragraph)
Table 3: Table note 1: text revised
Section 7.2.4: text amended
Section 7.2.5 added
Section 7.3.1 , Section 7.3.3 : section titles changed
Table 6: Table note 1 added; Table note 2 amended; parameter Vtrt revised
Table 9: values changed for parameters twake(busdom), twake(busrec), tto(dom)TXD and tto(dom)bus
Figure 9 amended; Figure 12 added
ISO 11898-2:2016 compliance:
– Section 1: text amended (3rd paragraph)
– Section 2.1: text of second feature revised (up to 5 Mbit/s)
– Table 6: parameter V(CANH-CA NL) added
– Table 8:
- measurement conditions changed for parameters Vth(RX)dif and Vhys(RX)dif (associated table note
removed), VO(dom), VO(rec), VO(dif), IL, and IO(sc)dom
- added parameters VTXsym (and associated table note), Vrec(RX) and Vdom(RX)
- symbols VO(dif)bus and ILI renamed as VO(dif) and IL
- additional measurements included for parameter VO(dif)
– Table 9:
- measurement conditions changed for parameter tto(dom)bus
- added parameters tbit(bus) and trec
- parameter tPD(TXD-RXD) replaced with parameters td(TXDL-RXDL) and td(TXDH-RXDH)
- additional measurements included for parameter tbit(RXD)
– Figure 7, Figure 8 amended
– Section 18 added
TJA1043 v.4
20150119
TJA1043 v.3
20130424
Product data sheet
-
TJA1043 v.2
TJA1043 v.2
20110620
Product data sheet
-
TJA1043 v.1
TJA1043 v.1
20100330
Product data sheet
-
-
TJA1043
Product data sheet
Product data sheet
-
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
TJA1043 v.3
© NXP Semiconductors N.V. 2016. All rights reserved.
29 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
20. Legal information
20.1 Data sheet status
Document status[1][2]
Product status[3]
Definition
Objective [short] data sheet
Development
This document contains data from the objective specification for product development.
Preliminary [short] data sheet
Qualification
This document contains data from the preliminary specification.
Product [short] data sheet
Production
This document contains the product specification.
[1]
Please consult the most recently issued document before initiating or completing a design.
[2]
The term ‘short data sheet’ is explained in section “Definitions”.
[3]
The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status
information is available on the Internet at URL http://www.nxp.com.
20.2 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in
modifications or additions. NXP Semiconductors does not give any
representations or warranties as to the accuracy or completeness of
information included herein and shall have no liability for the consequences of
use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet
with the same product type number(s) and title. A short data sheet is intended
for quick reference only and should not be relied upon to contain detailed and
full information. For detailed and full information see the relevant full data
sheet, which is available on request via the local NXP Semiconductors sales
office. In case of any inconsistency or conflict with the short data sheet, the
full data sheet shall prevail.
Product specification — The information and data provided in a Product
data sheet shall define the specification of the product as agreed between
NXP Semiconductors and its customer, unless NXP Semiconductors and
customer have explicitly agreed otherwise in writing. In no event however,
shall an agreement be valid in which the NXP Semiconductors product is
deemed to offer functions and qualities beyond those described in the
Product data sheet.
20.3 Disclaimers
Limited warranty and liability — Information in this document is believed to
be accurate and reliable. However, NXP Semiconductors does not give any
representations or warranties, expressed or implied, as to the accuracy or
completeness of such information and shall have no liability for the
consequences of use of such information. NXP Semiconductors takes no
responsibility for the content in this document if provided by an information
source outside of NXP Semiconductors.
In no event shall NXP Semiconductors be liable for any indirect, incidental,
punitive, special or consequential damages (including - without limitation - lost
profits, lost savings, business interruption, costs related to the removal or
replacement of any products or rework charges) whether or not such
damages are based on tort (including negligence), warranty, breach of
contract or any other legal theory.
Notwithstanding any damages that customer might incur for any reason
whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards
customer for the products described herein shall be limited in accordance
with the Terms and conditions of commercial sale of NXP Semiconductors.
Right to make changes — NXP Semiconductors reserves the right to make
changes to information published in this document, including without
limitation specifications and product descriptions, at any time and without
notice. This document supersedes and replaces all information supplied prior
to the publication hereof.
TJA1043
Product data sheet
Suitability for use in automotive applications — This NXP
Semiconductors product has been qualified for use in automotive
applications. Unless otherwise agreed in writing, the product is not designed,
authorized or warranted to be suitable for use in life support, life-critical or
safety-critical systems or equipment, nor in applications where failure or
malfunction of an NXP Semiconductors product can reasonably be expected
to result in personal injury, death or severe property or environmental
damage. NXP Semiconductors and its suppliers accept no liability for
inclusion and/or use of NXP Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at the customer's own
risk.
Applications — Applications that are described herein for any of these
products are for illustrative purposes only. NXP Semiconductors makes no
representation or warranty that such applications will be suitable for the
specified use without further testing or modification.
Customers are responsible for the design and operation of their applications
and products using NXP Semiconductors products, and NXP Semiconductors
accepts no liability for any assistance with applications or customer product
design. It is customer’s sole responsibility to determine whether the NXP
Semiconductors product is suitable and fit for the customer’s applications and
products planned, as well as for the planned application and use of
customer’s third party customer(s). Customers should provide appropriate
design and operating safeguards to minimize the risks associated with their
applications and products.
NXP Semiconductors does not accept any liability related to any default,
damage, costs or problem which is based on any weakness or default in the
customer’s applications or products, or the application or use by customer’s
third party customer(s). Customer is responsible for doing all necessary
testing for the customer’s applications and products using NXP
Semiconductors products in order to avoid a default of the applications and
the products or of the application or use by customer’s third party
customer(s). NXP does not accept any liability in this respect.
Limiting values — Stress above one or more limiting values (as defined in
the Absolute Maximum Ratings System of IEC 60134) will cause permanent
damage to the device. Limiting values are stress ratings only and (proper)
operation of the device at these or any other conditions above those given in
the Recommended operating conditions section (if present) or the
Characteristics sections of this document is not warranted. Constant or
repeated exposure to limiting values will permanently and irreversibly affect
the quality and reliability of the device.
Terms and conditions of commercial sale — NXP Semiconductors
products are sold subject to the general terms and conditions of commercial
sale, as published at http://www.nxp.com/profile/terms, unless otherwise
agreed in a valid written individual agreement. In case an individual
agreement is concluded only the terms and conditions of the respective
agreement shall apply. NXP Semiconductors hereby expressly objects to
applying the customer’s general terms and conditions with regard to the
purchase of NXP Semiconductors products by customer.
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
30 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
No offer to sell or license — Nothing in this document may be interpreted or
construed as an offer to sell products that is open for acceptance or the grant,
conveyance or implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
Translations — A non-English (translated) version of a document is for
reference only. The English version shall prevail in case of any discrepancy
between the translated and English versions.
Export control — This document as well as the item(s) described herein
may be subject to export control regulations. Export might require a prior
authorization from competent authorities.
20.4 Trademarks
Quick reference data — The Quick reference data is an extract of the
product data given in the Limiting values and Characteristics sections of this
document, and as such is not complete, exhaustive or legally binding.
Notice: All referenced brands, product names, service names and trademarks
are the property of their respective owners.
21. Contact information
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
TJA1043
Product data sheet
All information provided in this document is subject to legal disclaimers.
Rev. 5 — 23 May 2016
© NXP Semiconductors N.V. 2016. All rights reserved.
31 of 32
TJA1043
NXP Semiconductors
High-speed CAN transceiver
22. Contents
1
2
2.1
2.2
2.3
3
4
5
6
6.1
6.2
7
7.1
7.1.1
7.1.2
7.1.3
7.1.4
7.1.5
7.2
7.2.1
7.2.2
7.2.3
7.2.4
7.2.5
7.2.6
7.2.7
7.2.8
7.3
7.3.1
7.3.2
7.3.3
7.3.4
7.4
7.5
7.6
8
9
10
11
12
12.1
12.2
13
13.1
General description . . . . . . . . . . . . . . . . . . . . . . 1
Features and benefits . . . . . . . . . . . . . . . . . . . . 1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Low-power management . . . . . . . . . . . . . . . . . 2
Protection and diagnosis (detection and
signalling) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Quick reference data . . . . . . . . . . . . . . . . . . . . . 2
Ordering information . . . . . . . . . . . . . . . . . . . . . 3
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Pinning information . . . . . . . . . . . . . . . . . . . . . . 5
Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 5
Functional description . . . . . . . . . . . . . . . . . . . 5
Operating modes . . . . . . . . . . . . . . . . . . . . . . . 6
Normal mode . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Listen-only mode . . . . . . . . . . . . . . . . . . . . . . . 7
Standby mode. . . . . . . . . . . . . . . . . . . . . . . . . . 8
Go-to-Sleep mode . . . . . . . . . . . . . . . . . . . . . . 8
Sleep mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Internal flags . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
UVNOM flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
UVBAT flag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pwon flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Wake flag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote wake-up (via the CAN bus) . . . . . . . . 10
Wake-up source flag. . . . . . . . . . . . . . . . . . . . 10
Bus failure flag . . . . . . . . . . . . . . . . . . . . . . . . 11
Local failure flag . . . . . . . . . . . . . . . . . . . . . . . 11
Local failures . . . . . . . . . . . . . . . . . . . . . . . . . 11
TXD dominant time-out function . . . . . . . . . . . 11
TXD-to-RXD short-circuit detection . . . . . . . . 11
Bus dominant time-out function . . . . . . . . . . . 11
Overtemperature detection . . . . . . . . . . . . . . . 12
SPLIT pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
VIO supply pin . . . . . . . . . . . . . . . . . . . . . . . . . 12
WAKE pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . 13
Thermal characteristics . . . . . . . . . . . . . . . . . 14
Static characteristics. . . . . . . . . . . . . . . . . . . . 14
Dynamic characteristics . . . . . . . . . . . . . . . . . 17
Application information. . . . . . . . . . . . . . . . . . 19
Application diagram . . . . . . . . . . . . . . . . . . . . 19
Application hints . . . . . . . . . . . . . . . . . . . . . . . 19
Test information . . . . . . . . . . . . . . . . . . . . . . . . 20
Quality information . . . . . . . . . . . . . . . . . . . . . 21
14
15
16
16.1
16.2
16.3
16.4
17
18
19
20
20.1
20.2
20.3
20.4
21
22
Package outline. . . . . . . . . . . . . . . . . . . . . . . .
Handling information . . . . . . . . . . . . . . . . . . .
Soldering of SMD packages . . . . . . . . . . . . . .
Introduction to soldering. . . . . . . . . . . . . . . . .
Wave and reflow soldering. . . . . . . . . . . . . . .
Wave soldering . . . . . . . . . . . . . . . . . . . . . . .
Reflow soldering . . . . . . . . . . . . . . . . . . . . . .
Soldering of HVSON packages . . . . . . . . . . .
Appendix: ISO 11898-2:2016 parameter
cross-reference list . . . . . . . . . . . . . . . . . . . . .
Revision history . . . . . . . . . . . . . . . . . . . . . . .
Legal information . . . . . . . . . . . . . . . . . . . . . .
Data sheet status . . . . . . . . . . . . . . . . . . . . . .
Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disclaimers . . . . . . . . . . . . . . . . . . . . . . . . . .
Trademarks . . . . . . . . . . . . . . . . . . . . . . . . . .
Contact information . . . . . . . . . . . . . . . . . . . .
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
24
24
24
24
24
25
26
27
29
30
30
30
30
31
31
32
Please be aware that important notices concerning this document and the product(s)
described herein, have been included in section ‘Legal information’.
© NXP Semiconductors N.V. 2016.
All rights reserved.
For more information, please visit: http://www.nxp.com
For sales office addresses, please send an email to: salesaddresses@nxp.com
Date of release: 23 May 2016
Document identifier: TJA1043
工商网监
湘ICP备2023018690号
