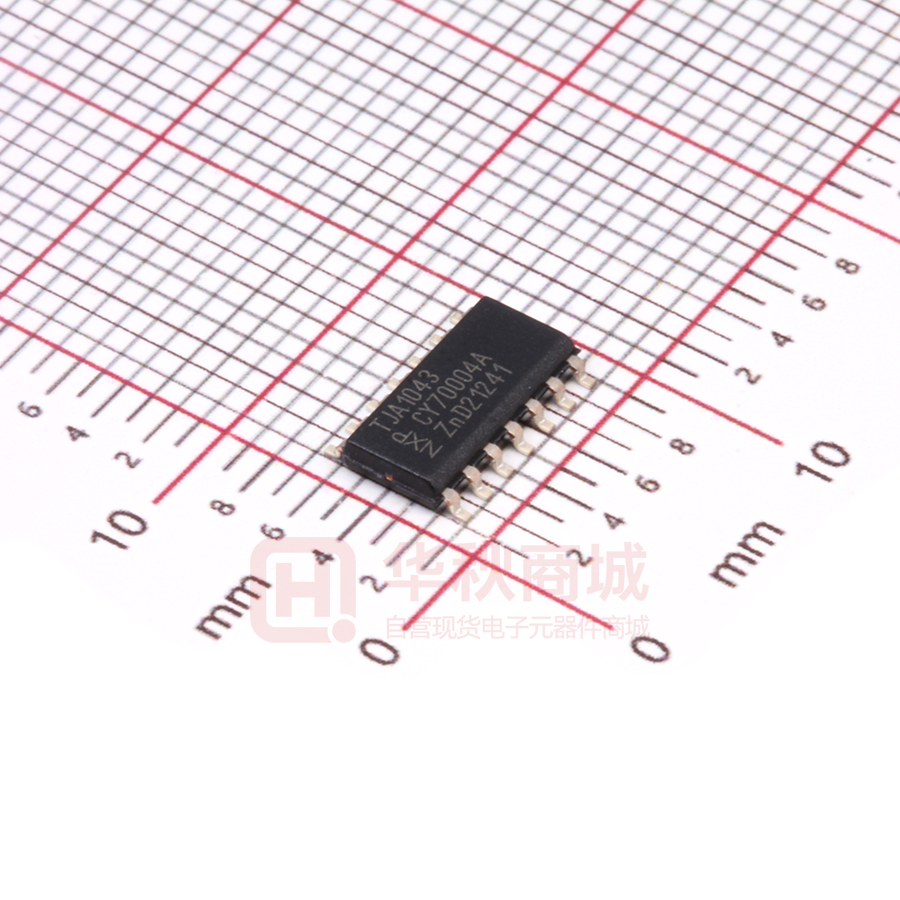

TJA1043T/1J

TJA1043 High-speed CAN transceiver Rev. 6 — 10 November 2017 Product data sheet 1. General description The TJA1043 high-speed CAN transceiver provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The transceiver is designed for high-speed CAN applications in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. The TJA1043 belongs to the third generation of high-speed CAN transceivers from NXP Semiconductors, offering significant improvements over first- and second-generation devices such as the TJA1041A. It offers improved ElectroMagnetic Compatibility (EMC) and ElectroStatic Discharge (ESD) performance, very low power consumption, and passive behavior when the supply voltage is turned off. Advanced features include: • Low-power management controls the power supply throughout the node while supporting local and remote wake-up with wake-up source recognition • Several protection and diagnostic functions including bus line short-circuit detection and battery connection detection • Can be interfaced directly to microcontrollers with supply voltages from 3 V to 5 V The TJA1043 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. These features make the TJA1043 the ideal choice for high speed CAN networks containing nodes that need to be available all times, even when the internal VIO and VCC supplies are switched off. 2. Features and benefits 2.1 General  ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5 compliant  Loop delay symmetry timing enables reliable communication at data rates up to 5 Mbit/s in the CAN FD fast phase  Suitable for 12 V and 24 V systems  Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)  VIO input allows for direct interfacing with 3 V and 5 V microcontrollers  SPLIT voltage output for stabilizing the recessive bus level  Listen-only mode for node diagnosis and failure containment  Available in SO14 and HVSON14 packages TJA1043 NXP Semiconductors High-speed CAN transceiver  Leadless HVSON14 package (3.0 mm  4.5 mm) with improved Automated Optical Inspection (AOI) capability  AEC-Q100 qualified  Dark green product (halogen free and Restriction of Hazardous Substances (RoHS) compliant) 2.2 Low-power management  Very low current Standby and Sleep modes, with local and remote wake-up  Capability to power down the entire node while supporting local, remote and host wake-up  Wake-up source recognition  Transceiver disengages from the bus (zero load) when VBAT absent  Functional behavior predictable under all supply conditions 2.3 Protection and diagnosis (detection and signalling)          High ESD handling capability on the bus pins Bus pins and VBAT protected against transients in automotive environments Transmit Data (TXD) dominant time-out function with diagnosis TXD-to-RXD short-circuit handler with diagnosis Thermal protection with diagnosis Undervoltage detection and recovery on pins VCC, VIO and VBAT Bus line short-circuit diagnosis Bus dominant clamping diagnosis Cold start diagnosis (first battery connection) 3. Quick reference data Table 1. Quick reference data Symbol Parameter Min Typ Max Unit VCC supply voltage 4.5 - 5.5 V VIO supply voltage on pin VIO 2.8 - 5.5 V Vuvd(VCC) undervoltage detection voltage on pin VCC 3 3.5 4.3 V Vuvd(VIO) undervoltage detection voltage on pin VIO VBAT or VCC > 4.5 V 0.8 1.8 2.5 V ICC supply current Normal mode; bus dominant 30 48 65 mA Normal or Listen-only mode; bus recessive 3 6 9 mA Standby or Sleep mode 0 0.75 2 A Normal mode; VTXD = 0 V (dominant) - 150 500 A Normal or Listen-only mode; VTXD = VIO (recessive) 0 1 4 A Standby or Sleep mode 0 1 4 A IEC 61000-4-2 at pins CANH and CANL 8 - +8 kV IIO VESD Conditions supply current on pin VIO electrostatic discharge voltage TJA1043 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 10 November 2017 © NXP Semiconductors N.V. 2017. All rights reserved. 2 of 32 TJA1043 NXP Semiconductors High-speed CAN transceiver Table 1. Quick reference data …continued Symbol Parameter Min Typ Max Unit VCANH voltage on pin CANH Conditions 58 - +58 V VCANL voltage on pin CANL 58 - +58 V Tvj virtual junction temperature 40 - +150 C 4. Ordering information Table 2. Ordering information Type number Package Name Description Version TJA1043T SO14 plastic small outline package; 14 leads; body width 3.9 mm SOT108-1 TJA1043TK HVSON14 plastic, thermal enhanced very thin small outline package; no leads; 14 terminals; body 3  4.5  0.85 mm TJA1043 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 10 November 2017 SOT1086-2 © NXP Semiconductors N.V. 2017. All rights reserved. 3 of 32 TJA1043 NXP Semiconductors High-speed CAN transceiver 5. Block diagram 9,2 9&&   9%$7  9&& 7-$ 7(03(5$785( 3527(&7,21  9,2  7;'  7,0(287 6/23( &21752/  '5,9(5  &$1+ &$1/ 9%$7 :$.( (55B1 67%B1 (1 5;'     02'( &21752/  :$.(83 &21752/  (5525 '(7(&7,21 63/,7 63/,7 9%$7  ,1+   08;  '5,9(5 :$.(83 ),/7(5  *1' Fig 1. DDD Block diagram TJA1043 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 10 November 2017 © NXP Semiconductors N.V. 2017. All rights reserved. 4 of 32 TJA1043 NXP Semiconductors High-speed CAN transceiver 6. Pinning information 6.1 Pinning WHUPLQDO LQGH[DUHD 7;'   67%B1 7;'   67%B1 *1'   &$1+ *1'   &$1+ 9&&   &$1/ 9&&   &$1/ 5;'   63/,7 5;'  9,2   9%$7 9,2   9%$7 (1   :$.( (1   :$.( ,1+   (55B1 ,1+   (55B1 7-$7 7-$7. DDD Fig 2.  63/,7 DDD Pin configuration diagram: SO14 Fig 3. Pin configuration diagram: HVSON14 6.2 Pin description Table 3. Pin description Symbol Pin Description TXD 1 transmit data input GND[1] 2 ground supply VCC 3 transceiver supply voltage RXD 4 receive data output; reads out data from the bus lines VIO 5 supply voltage for I/O level adaptor EN 6 enable control input INH 7 inhibit output for switching external voltage regulators ERR_N 8 error and power-on indication output (active LOW) WAKE 9 local wake-up input VBAT 10 battery supply voltage SPLIT 11 common-mode stabilization output CANL 12 LOW-level CAN bus line CANH 13 HIGH-level CAN bus line STB_N 14 standby control input (active LOW) [1] HVSON14 package die supply ground is connected to both the GND pin and the exposed center pad. The GND pin must be soldered to board ground. For enhanced thermal and electrical performance, it is recommended that the exposed center pad also be soldered to board ground. 7. Functional description The TJA1043 is a stand-alone high-speed CAN transceiver with a number of operating modes, fail-safe features and diagnostic features that offer enhanced system reliability and advanced power management. The transceiver combines the functionality of the TJA1043 Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 10 November 2017 © NXP Semiconductors N.V. 2017. All rights reserved. 5 of 32 TJA1043 NXP Semiconductors High-speed CAN transceiver TJA1041A with improved EMC and ESD capability and quiescent current performance. Improved slope control and high DC handling capability on the bus pins provide additional application flexibility. 7.1 Operating modes The TJA1043 supports five operating modes. Control pins STB_N and EN are used to select the operating mode. Switching between modes allows access to a number of diagnostics flags via pin ERR_N. Table 4 describes how to switch between modes. Figure 4 illustrates the mode transitions when VCC, VIO and VBAT are valid. Table 4. Operating mode selection Internal flags UVNOM[1] Control pins UVBAT Wake[2] STB_N[3] Operating mode Pin INH EN From Normal, Listen-only, Standby and Go-to-Sleep modes set X X X X Sleep mode floating cleared set X HIGH X Standby mode HIGH cleared X set LOW X Standby mode HIGH cleared X cleared LOW LOW Standby mode HIGH cleared X cleared LOW HIGH Go-to-Sleep mode[4] HIGH[4] cleared cleared X HIGH LOW Listen-only mode HIGH cleared cleared X HIGH HIGH Normal mode HIGH From Sleep mode TJA1043 Product data sheet set X X X X Sleep mode floating cleared set X HIGH X Standby mode HIGH cleared X set LOW X Standby mode HIGH cleared X cleared LOW X Sleep mode floating cleared cleared X HIGH LOW Listen-only mode HIGH cleared cleared X HIGH HIGH Normal mode HIGH [1] Setting the UVNOM flag will clear the WAKE flag. [2] Setting the Wake flag will clear the UVNOM flag. [3] A LOW-to-HIGH transition on pin STB_N will clear the UVNOM flag [4] After the minimum hold time, in Go-to-Sleep mode, th(min), the transceiver will enter Sleep mode and pin INH will be set floating. All information provided in this document is subject to legal disclaimers. Rev. 6 — 10 November 2017 © NXP Semiconductors N.V. 2017. All rights reserved. 6 of 32 TJA1043 NXP Semiconductors High-speed CAN transceiver 67%B1 + DQG (1 + 67%B1 + DQG (1 / /,67(1 21/
