MC102827503J

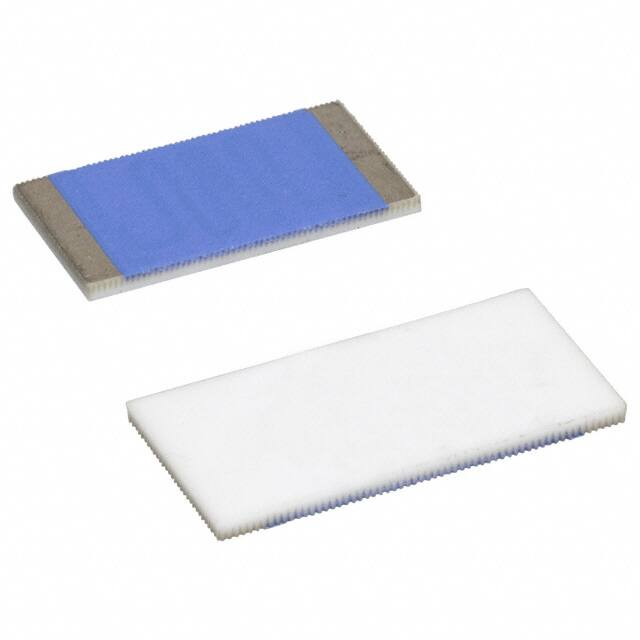

Macrochip Series High Voltage/High Resistance Precision Thick Film Surface Mount Ohmite’s MacroChip resistors bring precision high voltage capabilities to surface mount applications. Designed with thick film on alumina substrate technology, the resistors can be provided in precision tolerances, high voltage ratings, and high resistance values. The planar package design is low profile for easy use with instrumentation, medical equipment, voltage regulators, and power supplies. F e at u r e s • Non-inductive design (less than 50 nanohenries) • Low voltage coefficient • Surface mount • Pd Ag terminations • J-bend terminals for applications involving shock and vibration A p p l i c at i o n s • Medical instrumentation • Power Supplies • Avionics • Light Magnification Systems S ER I E S S PEC I F I CAT I ON S Series MC101 MC102 MC103 MC104 MC202 MC204 Resistance Range (Ohms) 100Ω to 1,000M 200Ω to 5,000M 250Ω to 5,000M 1K to 5,000M 500Ω to 5,000M 1K to 5,000M Contact Ohmite for custom configurations. Power @25°C 0.75W 1.50W 2.00W 2.50W 2.50W 3.25W c h a r a c t e r is t i c s Resistor Thick film on Alumina Resistance Range 100 Ohms to 5,000M Power Rating 0.75W to 3.25W Voltage Rating 2.0KV to 10.0KV Tolerance 0.5% to 20% Operating -55°C to +180°C Temperature TCR and VCR See chart below Solder Silver solder is recommended for Macrochip resistors. Leaching of the silver in the termination will occur if non-silver solder is used. 60/40 tin-lead solders are not recommended for use with the Macrochip product. Recommended Solder Profile Temperature °C 300 Preheating: 145°C ±15°, max. 120 sec. Soldering 10 sec. 250 200 Preheating 60 sec. 120 sec. 150 Cooling Voltage Rating 2.0KV 5.0KV 7.5KV 10.0KV 5.0KV 10.0KV Standard Temp. Coefficient 85°-125°C 50PPM/°C 100PPM/°C 100Ω-100M 101M-1,000M 200Ω-250M 251M-5,000M 250Ω-100M 101M-5,000M 500Ω-450M 451M-5,000M 500Ω-200M 201M-5,000M 1K-375M 376M-5,000M p e r f o r m a n c e d ata Characteristic Test Method Humidity MIL-STD-202, Method 103B, Condition B Dielectric Withstanding MIL-STD-202, Method 301, Voltage 750V Insulation Resistance MIL-STD-202, Method 302, Condition A or B Thermal Shock MIL-STD-202, Method 107G, Condition B, B-1, or F Load Life MIL-STD-202, Method 108A, Condition D Resistance to Solvents MIL-STD-202, Method 215G 0 50 100 150 200 Time (sec.) ±0.25% >10,000M or greater dry ±0.20% ±1.0% No degradation of coating or marking ±0.25% Vibration, High MIL-STD-202, Method 204D, Frequency Condition D ±.020% Power Conditioning MIL-R-49462A, Par 4.8 Soldering: min. 220°C, max. 60 sec. 50 0 ±0.25% Shock (Specified Pulse) MIL-STD-202, Method 213B, Condition I Max. Temp.: 260°C ±5°, 10 sec. 100 Specification 250 1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com 25 ±0.50% Macrochip Series High Voltage/High Resistance Precision Thick Film Surface Mount d im e n si o n s (in./mm) Series Power A ±.01” B ±.01” B’ max. (J-bend) With Terminal Options: B B' MC101 0.75W 0.25” (6.35) MC103 2.00W 0.25” (6.35) MC102 1.50W MC104 A 2.50W MC202 2.50W MC204 0.050" (1.27 mm) two places 0.030" ±0.005 (0.76 mm ±0.13) NAS CC21AA-D22W-OFA J Lead 0.050" centers 0.055" typ. (1.40mm) 0.035" typ. (0.89mm) 3.25W 0.29” (7.37) 1000 2500 0.79” (20.07) 1000 2500 0.25” (6.35) 0.50” (12.70) 0.54” (13.72) 0.25” (6.35) 1.00” (25.40) 1.04” (26.42) 0.75” (19.05) 0.50” (12.70) 0.50” (12.70) 0.50” (12.70) 1000 2500 1.00” (25.40) Contact Ohmite for custom configurations. Land Pattern 0.14" (3.6mm) J-bend 0.25” (6.35) Qty./Reel w/J-bend w/o J-bend Land pattern dimensions are for reference only. 0.065" (1.65mm) Size M L N M N O L MC101 0.280 0.080 0.278 0.120 MC102 0.530 0.080 0.278 0.370 MC103 0.780 0.080 0.278 0.620 SMD MC104 1.030 0.080 0.278 0.870 MC202 0.530 0.080 0.556 0.370 O MC204 1.030 0.080 0.556 0.870 T e m p . / V o lt a g e C o e f f i c i e n t s o f R e sis t a n c e 0°C-85°C Resistor Series 25 PPM/°C MC101 MC102 MC103 MC104 MC202 MC204 Temp. Coeff. of Resistance* 85°C-125°C 50 PPM/°C 100 PPM/°C 100 to 800M 200 to 1,500M 250 to 800M 500 to 2,500M 500 to 1,500M 1K to 1,750M 100Ω 200Ω 250Ω 500Ω to to to to 100M 250M 440M 450M 101M 251M 441M 451M to to to to 1,000M 5,000M 5,000M 5,000M Voltage Coeff. of Resistance** < 2PPM/Volt < 5PPM/Volt 100Ω to 270M 271M to 1,000M 200Ω to 640M 641M to 5,000M 250Ω to 1,100M 1,101M to 5,000M 500Ω to 1,100M 1,101M to 5,000M 500Ω to 200M 201M to 5,000M 500Ω to 520M 521M to 5,000M 1K to 375M 376M to 5,000M 1K to 950M 951M to 5,000M *TCR of 25ppm for temperature range of 0°C-85°C. TCR of 50ppm and 100ppm for -55°C to 125°C. Consult factory for TCR values operating higher than 125°C **VC’s of
