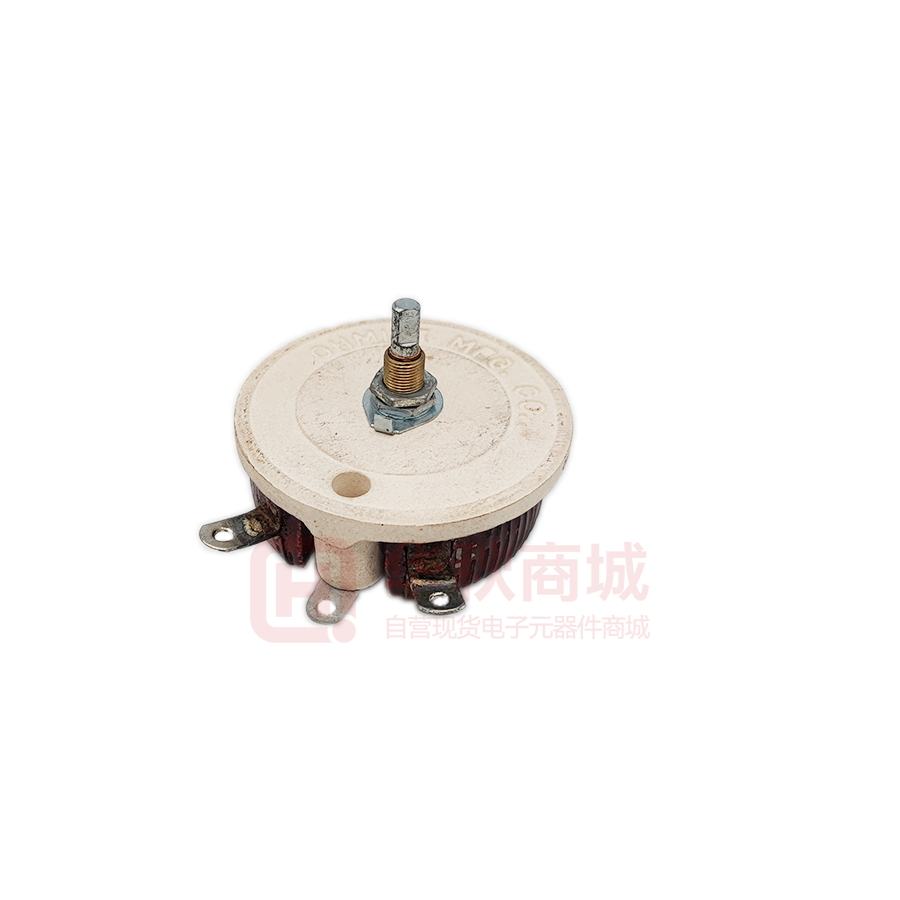

RKS7R5E

Rheostats (Potentiometers) Wirewound Model C Max. Ohmic Voltage Behind panel “B" Diameter “D" Dimension “C" Shaft Rotation Model Type Watts range Core (RMS)* (in./mm Ref.) (in./mm Ref.) (in./mm Ref.) torque (±5°) C RCS/RCL 7.5 10.0-5K enclosed 305 0.875/22.23 0.515/ 13.08 — 0.25-3 oz. in. 300° • See Catalog #203 for complete details. Mounting: Panels to 0.125" (3.18mm) thick with 1/4-32 bushing and hex nut (1/16" thick). 0.531" 13.49 mm Locking shaft 0.25" 6.4 mm D 0.125" 3.18 mm 0.25" 6.4 mm B 0.625" 0.625" 15.88 mm 15.88 mm 0.25" 6.4 mm Standard shaft 0.109" 2.78 mm Model E Max. Ohmic Voltage Behind panel “B" Model Type Watts range Core (RMS)* (in./mm Ref.) E RES/REL 12.5 1.0-15K open 305 0.688/17.46 E REE 12.5 1.0-15K enclosed 305 1.219/30.96 • See Catalog #203 for complete details. unenclosed D 0.25" 6.35 mm Mounting: Panels to 0.125" (3.18mm) thick with 1/4-32 bushing and hex nut (1/16" thick). 0.625" 15.88 mm 0.125" 3.18 mm standard shaft 0.25" 6.35 mm Diameter “D" Dimension “C" Shaft Rotation (in./mm Ref.) (in./mm Ref.) torque (±5°) 0.875/ 22.23 0.594/15.08 1-6 oz. in. 300° 1.047/ 26.59 — 1-6 oz. in. 300° 0.531" shaft 13.49 mm locking nut B C REL locking shaft 0.078" 1.98 mm 0.406" 10.32 mm enclosed D 0.094" 2.38 mm B Dimensions for reference only; consult factory for details. Since all rheostats/potentiometers are electro-mechanical devices, they are subject to mechanical wear and, therefore, have a finite life. Models H, J, K, L and N are listed under UL File No. E-10946 and CSA File No. 21309 unless noted otherwise. All rheostats are 10% tolerance. 1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com 187 Rheostats (Potentiometers) Wirewound Models H, J, G, K, L Max. Ohmic Voltage Behind panel “B" Model Type Watts range Core (RMS)* (in./mm Ref.) H RHS/RHL 25 1.0-25K open 500 1.375/34.93 J RJS 50 0.5-50K open 750 1.375/34.93 G RGS 75 0.5-50K open 900 1.750/44.45 K RKS 100 0.5-50K open 1000 1.750/44.45 L RLS 150 0.5-50K open 1200 2.000 / 50.8 • Models H, J, G, and K also available in enclosed versions. Diameter “D" (in./mm Ref.) 1.560/ 39.62 2.31 / 58.67 2.75 / 69.25 3.125/ 79.38 4.00 /101.60 Dimension “C" Shaft Rotation (in./mm Ref.) torque (±5°) 0.940/23.88 0.25-0.5 lb. in. 300° 1.56 /39.62 0.25-2 lb. in. 300° 1.78 /45.21 0.5-2 lb. in. 300° 1.91 /48.51 0.5-2 lb. in. 300° 2.28 /57.91 0.5-3 lb. in. 300° • See Catalog #203 for complete details. 1.75" 44.5 mm D 0.031" 0.79 mm 0.25" 6.35 mm 0.5" 12.7 mm 0.375" 9.53 mm 0.75" 19.05 mm bushing projection 0.625" 15.88 mm 0.031" 0.79 mm drill 0.188" (4.76 mm) hole in panel. washer not included in model L C 0.344" 8.73 mm holes for: no. 2 screws (model H) no. 8 screws (J, G, K, L) mounting bracket on model L only 0.063" 1.59 mm B 0.875" 22.23 mm standard shaft (models H, J, G, K, L) shaft locking nut Mounting: Panels to 0.25" (6.35mm) thick with 3/8-32 bushing and hex nut (3/32" thick) (or with 10-32 x 0.75 flat-head screws for model L only). locking shaft (only model H stocked) M o d e l s P, N , R , U Max. Ohmic Voltage Behind panel “B" Diameter “D" Model Type Watts range Core (RMS)* (in./mm Ref.) (in./mm Ref.) P RPS 225 1.0-30K open 1300 2.125/53.98 5.00 /127.00 N RNS 300 1.0-50K open 1225 2.375/60.33 6.00 /152.40 R RRS 500 1.0-20K open 1450 2.125/53.98 8.00 /203.20 U RUS 1000 1.0-20K open 1600 3.000 / 76.2 12.00 /304.80 • See Catalog #203 for complete details. M P N R U Dimension “M" 0.875" 22.23 mm 1.188" 30.16 mm 1.5" 38.1 mm 3" 76.2 mm Dimension “C" (in./mm Ref.) 2.97 /75.44 3.44 /87.38 4.31/109.47 6.38/162.05 Shaft Rotation torque (±5°) 2.5-4 lb. in. 310° 2.5-5 lb. in. 320° 4.5-7 lb. in. 325° 3.5-7 lb. in. 335° 2" 51 mm B M 0.375" 9.53 mm D Mounting: Panels to 1.25" (31.75mm) thick with 1/4-20 flat-head screws. 0.031" 0.79 mm holes for no. 8 screws /4 - 20 thread for mounting screws 1 C 1.563" 39.7 mm (continued) 188 1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com Rheostats (Potentiometers) Wirewound o r d e r i ng i n f o rm a t i o n 1000W Model U Amps max. RUS––– 500W Model R RRS––– 300W Model N Amps max. 225W Model P Amps max. 150W Model L RNS––– Amps max. * Voltage rating dependent on resistance value. Amps max. Amps max. • Made-to-order rheostats available: Contact nearest Ohmite sales office. RPS––– Amps max. • RoHS compliant product available. Add “E" suffix to part number to specify. Amps max. 100W Model K RKS––– 75W Model G RGS––– 50W Model J RJS––– Amps max. RHL––– Locking 25W Model H RHS––– Std. shaft Amps max. REE––– Enclosed RES––– Std. shaft RCSR50E *Check table for standard resistance values and maximum current values 12.5W Model E REL––– Locking Amps max. RCL––– Locking RCS––– Std. shaft Part No. Prefix  Suffix  Ohmic value 7.5W Model C Resistance Value* Example: R50 = 0.50Ω 1R0 = 1Ω 7R5 = 7.5Ω 250 = 250Ω 1K0 = 1,000Ω 1K75 = 1,750Ω 4K5 = 4,500Ω 50K = 50,000Ω E = RoHS compliant Series Rheostats Wirewound Potentiometers RLS––– Code Watts Model Shaft Core CL = 7.5 C Locking Enclosed CS = 7.5 C Standard Enclosed EE = 12.5 E Standard Enclosed EL = 12.5 E Locking Open ES = 12.5 E Standard Open GS = 75 G Standard Open HL = 25 H Locking Open HS = 25 H Standard Open JS = 50 J Standard Open KS = 100 K Standard Open LS = 150 L Standard Open NS = 300 N Standard Open PS = 225 P Standard Open RS = 500 R Standard Open US = 1000 U Standard Open 0.5 –––R50  10.0  12.3  14.1  17.3 1 –––1R0    3.53   5.00  7.07  8.66  10  12.3  15.0  17.32  22.3  31.6 1.5 –––1R5  18.2  25.8 2 –––2R0    2.50   3.54  5.00  6.12  7.07  8.65  10.6  12.24  15.8  22.4 2.5 –––2R5    2.24  14.1  20.0 3 –––3R0    2.04   2.88  5.00  5.75  7.07  8.66  10.00  12.9  18.3 4 –––4R0  3.53  7.50  8.66  11.2  15.8 5 –––5R0    1.58  3.88  4.47  5.48  6.71  7.75  10.0  14.1 6 –––6R0    1.44   2.04  2.88 7.5 –––7R5  3.16  3.65  4.47  5.49  6.32 8 –––8R0    1.25   1.77  2.50  7.90  11.2 10 –––10R   0.86    1.12   1.58  2.74  3.16  3.88  4.74  5.48  10.0 12 –––12R  2.04 12.5 –––12R5  6.30  8.95 15 –––15R   0.71    0.91   1.29  3.163  3.87  4.47 16 –––16R  1.76  2.17  2.50  5.60  7.90 22 –––22R  1.50 25 –––25R   0.55    0.71   1.00  1.73  2.0  2.450  3.00  3.46  4.47  6.33 35 –––35R   0.46    0.60   0.845  1.19  2.070 40 –––40R  3.54 50 –––50R   0.39    0.50   0.707  1.00  1.23  1.41  1.735  2.12  2.45  3.16  4.47 75 –––75R   0.32    0.40   0.575  1.00  1.15  1.415  1.73  2.00  3.65 80 –––80R  0.790  2.52 100 –––100   0.27    0.36   0.500  0.866  1.00  1.225  1.50  1.73  3.16 125 –––125    0.32   0.445  0.630  2.00 150 –––150   0.22    0.29  0.575  1.000  1.22  1.41 160 –––160 175 –––175    0.27   0.375  1.69  2.39 200 –––200   0.19    0.25  0.612  0.707  0.865  1.06  1.22 225 –––225  0.470  2.11 250 –––250   0.17    0.22   0.316  0.775  1.41 300 –––300  0.408  0.500  0.575  0.866  1.00  1.83 325 –––325  1.24 350 –––350   0.15    0.19   0.267  0.655 400 –––400  0.433  0.500  0.750  0.866  1.48 500 –––500   0.12    0.16   0.222  0.316  0.388  0.447  0.548  1.00  1.41 600 –––600 700 –––700  0.567  0.655 750 –––750   0.10    0.13   0.182  0.316  0.365  0.447  0.817  1.15 800 –––800  0.250 900 –––900  0.500  0.578 1000 –––1K0   0.086    0.10   0.155  0.224  0.274  0.316  0.707  1.00 1200 –––1K2  0.433  0.500 1250 –––1K25  0.346 1500 –––1K5   0.071    0.090   0.129  0.224  0.258  0.387  0.447  0.577  0.816 1600 –––1K6  0.176 1750 –––1K75  0.358  0.414 1800 –––1K8  0.288 2000 –––2K0  0.194  0.224  0.336  0.387  0.500 2250 –––2K25  0.259 2500 –––2K5   0.055    0.070   0.100  0.141  0.173  0.200  0.300  0.346  0.447  0.633 3000 –––3K0  0.224 3500 –––3K5   0.046    0.060   0.084  0.119 4500 –––4K5  0.182  = Standard values; check availability 5000 –––5K0   0.039    0.050   0.070  0.100  0.123  0.141 Rheostats are silicone-ceramic coated at and 7500 –––7K5    0.041   0.058  0.100  0.115  0.141 8000 –––8K0  0.079 above the following ohmic values: 10000 –––10K    0.035   0.050  0.070  0.087  0.100  0.122 Model C: all Model G: 5000Ω 12500 –––12K5    0.031 15000 –––15K    0.029   0.041  0.058 Model E: 750Ω Model K: 5000Ω 20000 –––20K   0.035  0.050 Model H: 2000Ω Model L: 7500Ω 25000 –––25K   0.032  0.045 30000 –––30K  0.041 Model J: 5000Ω 40000 –––40K  0.035 50000 –––50K  0.032 1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com 189
