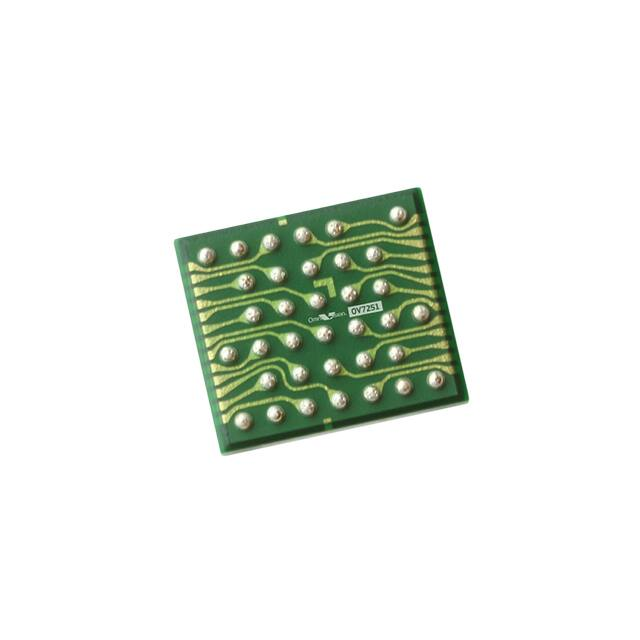

OV07251-EAAA-1G-AA0A

OV7251 VGA product brief lead free available in a lead-free package Low Power and Compact CameraChip™ Sensor with Industry's Smallest Global Shutter Pixel The OV7251 is a small form factor, low power CameraChip™ sensor that uses a global shutter to reduce or eliminate unwanted image artifacts, which occur with traditional rolling shutter image sensors as a result of motion during image capture. The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that has a need for gesture detection, head and eye tracking, and depth and motion detection. The OV7251's compact form factor makes it a highly attractive camera solution for space-constrained applications such as head-mounted displays, smartphones, tablets, notebooks and Ultrabooks. Likewise, the sensor's low-power consumption makes it an ideal dedicated gesture sensor for similar application areas. Leveraging the industry's smallest global shutter pixel, the black and white OV7251 is capable of capturing VGA (640x480) resolution video at 120 frames per second (fps), QVGA (320x240) at 180 fps with binning, and QQVGA (160x120) at 360 fps with binning and skipping. The OV7251's high frame rates make it an ideal solution for low-latency machine vision applications. The 1/7.5-inch OV7251 features multiple low-power modes, including light sensing mode and ultra-low power standby mode. In light sensing mode, the OV7251 behaves like an Ambient Light Sensor (ALS), which wakes the sensor up from "sleep mode" only when a change in light has been detected. Similarly, in ultra-low power mode, the sensor can reduce the resolution and frame rates to further reduce power consumption. Find out more at www.ovt.com. OV7251 Applications ¬ Computer Vision ¬ Gesture Recognition ¬ 3D Systems ¬ Feature Tracking Ordering Information Product Features ¬ fast mode switching ¬ improved shutter efficiency for machine vision applications ¬ supports horizontal and vertical 2:1 and 4:1 monochrome subsampling ¬ integral 850 nm bandpass filter ¬ OV07251-A35A-1G (b&w, lead-free, 35-pin CSP) ¬ OV07251-A35A-2B (b&w, improved PLS, lead-free, 35-pin CSP) ¬ OV07251-G04A-1G (b&w, reconstructed wafer with good die) ¬ OV07251-G04A-2B (b&w, improved PLS, reconstructed wafer with good die) ¬ OV07251-A35A-1J (b&w, lead-free, 35-pin CSP, black mask) ¬ supports 2x2 monochrome binning ¬ 3 µm x 3 µm pixel with OmniPixel®3-GS technology ¬ automatic black level calibration (ABLC) ¬ programmable controls for: - frame rate - mirror and flip - cropping - windowing ¬ one-lane MIPI serial output interface ¬ one-lane LVDS serial output interface Technical Specifications ¬ embedded 256 bits of one-time programmable (OTP) memory for part identification ¬ support output formats: 8/10-bit RAW ¬ support for image sizes: - 640 x 480 - 320 x 240 - 160 x 120 ¬ active array size: 640 x 480 ¬ maximum image transfer rate: - 640 x 480: 120 fps ¬ two on-chip phase lock loops (PLLs) ¬ built-in 1.5V regulator for core ¬ power supply: - analog: 2.8V (nominal) - core: 1.5V (optional) - I/O: 1.8V (nominal) ¬ PWM ¬ built-in strobe control OV7251 output interface FIFO black level calibration row select 10-bit ADC MIPI image sensor array column sample/hold AMP MCP/N MDP/N gain control regulator 4275 Burton Drive Santa Clara, CA 95054 USA Version 1.9, October 2020 Tel: + 1 408 567 3000 Fax: + 1 408 567 3001 www.ovt.com TMO PWM STROBE timing generator FSIN/VSYNC system control logic TM PLL EXTCLK (6-27 MHz) SIOD SIOC SCCB slave interface XSHUTDOWN control register bank ¬ output interface: 1-lane MIPI/LVDS serial output ¬ lens size: 1/7.5" ¬ power requirements: - active: 119 mW @ 120 fps, VGA output ¬ lens chief ray angle: 29° non-linear - standby: 15 µA for AVDD, 40 µA for DOVDD without input clock, ¬ scan mode: progressive 700 µA for DOVDD with input clock ¬ pixel size: 3 µm x 3 µm - XSHUTDOWN: 5 µA for AVDD, 5 µA for DOVDD ¬ image area: 1968 µm x 1488 µm ¬ output formats: 10-bit B&W RAW Functional Block Diagram image array ¬ temperature range: - operating: -30°C to +70°C junction temperature - stable image: 0°C to +50°C junction temperature OmniVision reserves the right to make changes to their products or to discontinue any product or service without further notice. OmniVision, the OmniVision logo, and OmniPixel are registered trademarks of OmniVision Technologies, Inc. CameraChip is a trademark of OmniVision Technologies, Inc. All other trademarks are the property of their respective owners.
