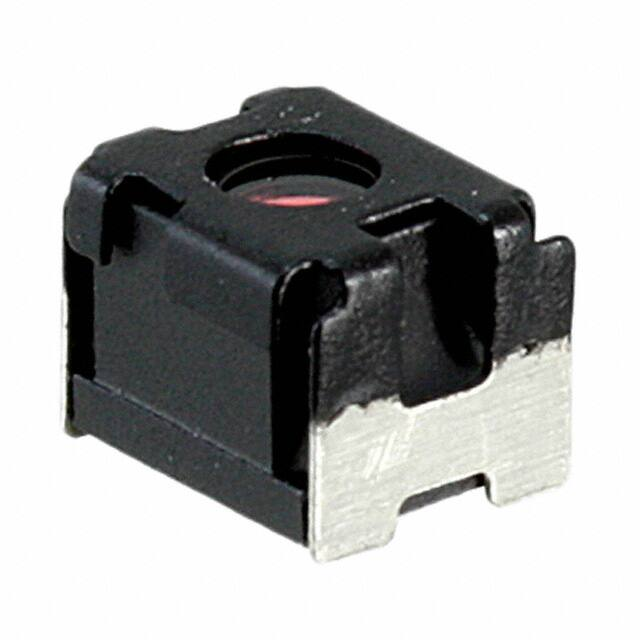

OVM7692 lead free available in a lead-free package 640 x 480 CameraCubeChip™ product brief Feature-Rich VGA CameraCubeChip™ for Mobile and Picture Phone Applications The OVM7692 VGA CameraCubeChip delivers proven performance and an extended feature set in an ultracompact size to meet the performance and manufacturing requirements for a new generation of mobile and picture phones. The CameraCubeChip is a complete VGA camera solution with DVP parallel or MIPI serial interface support and automatic luminance detection. Featuring OmniVision's proprietary OmniPixel3-HS™ architecture, the OVM7692 delivers industry leading lowlight sensitivity of 960 mV/lux-sec. The image sensor's compact size is a critical characteristic for slim camera phones where the camera can be no thicker than the LCD housing. The complete camera solution offered by the OVM7962 significantly simplifies design, integration and manufacturing, making it easier and cheaper to source. It is designed to withstand multiple reflows during rework or dual-sided reflow to meet the stringent requirements of all handset manufacturers. The OVM7692 CameraCubeChip comes in a 1/13-inch optical format, offering automatic exposure control (AEC), automatic gain control (AGC), automatic 50/60 Hz luminance detection and automatic black level calibration (ABLC). It supports horizontal and vertical sub-sampling, mirror, flip, scaling, and windowing. The following image quality controls are included: color saturation, hue, gamma, sharpness (edge enhancement), lens correction, defective pixel canceling and noise canceling, as well as support for black sun cancellation. The OVM7692 can interface via DVP parallel output, MIPI serial output or SCCB, and has a programmable I/O drive capability and on-chip phase lock loop. Offering low power consumption, the OVM7692 has a 2.8V power supply and a built-in 1.5V regulator for sensor core power. Find out more at www.ovt.com. OVM7692 Applications ¬ Cellular and Picture Phones Ordering Information Product Features ¬ OmniPixel3-HS. structure using 0.11 µm process ¬ support for black sun cancellation ¬ digital video port (DVP) parallel output interface ¬ optical size of 1/13" ¬ automatic/manual control of automatic ¬ MIPI serial output interface exposure control (AEC), automatic gain control (AGC), automatic 50/60 Hz ¬ serial camera control bus luminance detection and automatic (SCCB) interface black level calibration (ABLC) ¬ programmable I/O drive capability ¬ support for horizontal and vertical sub-sampling ¬ on-chip phase lock loop (PLL) ¬ mirror, flip, scaling, windowing ¬ OVM7692-RYAA (color, lead-free, CameraCubeChip™ with metal can) ¬ OVM7692-RAAA (color, lead-free, CameraCubeChip™ with black coating) ¬ OVM7692-RYCA (color, lead-free, CameraCubeChip™ with metal can) ¬ OVM7692-RACA (color, lead-free, CameraCubeChip™ with black coating) Product Specifications ¬ 2.8V power supply ¬ image quality controls: color saturation, ¬ built-in 1.5V regulator for sensor hue, gamma, sharpness (edge core power enhancement), lens correction, defective pixel canceling, and ¬ low power consumption noise canceling ¬ active array size: 640 x 480 ¬ input clock frequency: 6 ~ 27 MHz, 54 MHz ¬ power supply: ¬ max S/N ratio: 38 dB - analog: 2.6 ~ 3.0V - I/O: 1.7 ~ 3.0V ¬ dynamic range: 66 dB ¬ power requirements: - active: ~120 mW @ AVDD = 2.8V, DOVDD = 1.8V - standby: 23 µA ¬ programmable gamma correction ¬ temperature range: - operating: -30°C to 70°C junction temperature - stable image: 0°C to 50°C junction temperature ¬ output formats: RAW 8-bit, RAW 10-bit (for MIPI only), YUV422, RGB565/444 ¬ optical format: 1/13" - RYAA/RAAA: 1.15 mm - RYCA/RACA: 1.10 mm Functional Block Diagram OVM7692 DVP gain control D[7:0] MIPI FIFO DSP image output interface formatter digital gain black level calibration row select 50/60 Hz auto detection 10-bit A/D MCP MCN MDP MDN control register bank 4275 Burton Drive Santa Clara, CA 95054 USA Version 1.7, March, 2013 Tel: + 1 408 567 3000 Fax: + 1 408 567 3001 www.ovt.com SIOC SCCB slave interface SIOD PCLK HREF PWDN timing generator and system control logic VSYNC XVCLK PLL ¬ pixel size: 1.75 µm x 1.75 µm - RYAA: 3470 x 2950 x 2760 µm - RAAA: 3179 x 2815 x 2600 µm - RYCA: 3450 x 2820 x 2350 µm - RACA: 3180 x 2820 x 2060 µm ¬ focal length: AMP ¬ maximum exposure interval: 511 x tROW ¬ package dimensions (including ball height): - RYAA/RAAA: F/3.0 - RYCA/RACA: F/2.8 image array ¬ scan mode: progressive junction temperature ¬ f no.: image sensor processor ¬ sensitivity: 960 mV/lux-sec ¬ image area: 1148 µm x 861 µm - RYAA/RAAA: 64° - RYCA/RACA: 71.9° image sensor core - VGA (640x480): 30 fps - CIF (352x288): 30 fps - QVGA (320x240): 60 fps - QCIF (176x144): 60 fps ¬ dark current: 10 mV/sec @ 60°C ¬ diagonal field of view (FOV): column sample/hold ¬ maximum image transfer rate: OmniVision reserves the right to make changes to their products or to discontinue any product or service without further notice. OmniVision, the OmniVision logo and OmniPixel are registered trademarks of OmniVision Technologies, Inc. CameraCubeChip and OmniPixel3-HS are trademarks of OmniVision Technologies, Inc. All other trademarks are the property of their respective owners.
