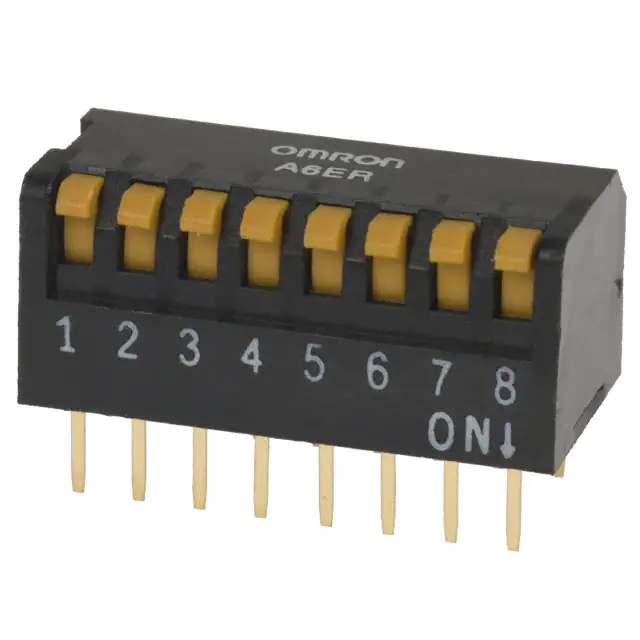

A6ER Piano DIP Switch DIP Switch with a variety of assortment of Poles and Actuators in Piano Types • The sealed bottom prevents flux penetration. • Gold-plated contacts and terminals ensure high reliability. RoHS Compliant List of Models ● Models in Tube Packages Type (actuator color) Piano actuator (short) (Orange) Piano actuator (long) (Orange) No. of poles Quantity per tube 2 70 A6ER-2101 A6ER-2104 3 50 A6ER-3101 A6ER-3104 4 39 A6ER-4101 A6ER-4104 5 32 A6ER-5101 A6ER-5104 6 27 A6ER-6101 A6ER-6104 7 24 A6ER-7101 A6ER-7104 8 21 A6ER-8101 A6ER-8104 9 19 A6ER-9101 A6ER-9104 10 17 A6ER-0101 A6ER-0104 Note: Order in multiples of the package quantity. Ratings / Characteristics Rating (resistive load) 25 mA at 24 VDC 10 μA (minimum current) at 3.5 VDC Ambient operating temperature –20 to +70°C at 60% max. (with no icing or condensation) Ambient operating humidity 35% to 95% (at +5 to +35°C) Insulation resistance 100 MΩ min. (at 250 VDC with insulation tester) Contact resistance (initial value) 200 mΩ max. Dielectric strength Between terminals 500 VAC for 1 min Vibration resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude Shock resistance Malfunction 300 m/s2 min. Durability Electrical 1,000 operations min. Washing Not possible Degree of protection IEC IP40 Operating force 0.29 to 9.8 N {30 to 1,000 gf} Weight 1.01 g (2 poles), 1.51 g (4 poles), 2.00 g (6 poles), 2.51 g (8 poles), 3.02 g (10 poles) 1 A6ER Piano DIP Switch Dimensions (Unit: mm) ● Piano Actuator (Short) A6ER-@101 PCB Dimensions (Top View) 1.0±0.05 dia. 7.62±0.1 P: Number of poles 2.54 × (P-1) ±0.1 A±0.2 ● Piano Actuator (Long) A6ER-@104 Model No. of poles Piano (short) Piano (long) Dimension 2 A6ER-2101 A6ER-2104 3 A6ER-3101 A6ER-3104 9.18 4 A6ER-4101 A6ER-4104 11.72 5 A6ER-5101 A6ER-5104 14.26 6 A6ER-6101 A6ER-6104 16.80 7 A6ER-7101 A6ER-7104 19.34 8 A6ER-8101 A6ER-8104 21.88 9 A6ER-9101 A6ER-9104 24.42 10 A6ER-0101 A6ER-0104 26.96 A 6.64 10.8 Piano Actuator (short) Piano Actuator (long) 1.8 10.8 12.6 30° 10.2 max. 1 2 3 4 5 6 7 8 ON 3.2 min. 2.54 2.54 × (P−1) 0.6 0.15±0.1 0.15±0.1 7.62±0.5 7.62±0.5 P: Number of poles Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. Internal Connections Contact Form (Top View) ON 1 2 9 10 Safety Precautions Be sure to read the Safety precautions common to all DIP Switches for correct use. • Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product. • Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or equipment, and be sure to provide the system or equipment with double safety mechanisms. Note: Do not use this document to operate the Unit. OMRON Corporation Electronic and Mechanical Components Company 2 Contact: www.omron.com/ecb Cat. No. A103-E1-06 0316(0207)(O)
