A6SN-1101

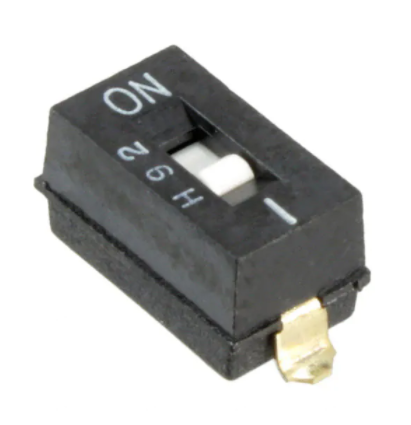

Slide DIP Switch A6SN Surface-Mounting Slide DIP Switches with High Contact Reliability ● Knife-edge structure with high contact pressure mechanism assures high reliability. ● Washable , without seal tape available. ● With seal tape enables adsorption on auto mount- ing machine. ● Models with from 1 to 10 poles meet wide needs. ● Embossed 100 pcs reel type is recommended for flexible demand. RoHS Compliant ■ List of Models Tube Packaging Type Flat actuator Raised actuator No. of poles Quantity per tube 1 100 A6SN-1101 A6SN-1104 2 60 A6SN-2101 A6SN-2104 3 45 A6SN-3101 A6SN-3104 4 35 A6SN-4101 A6SN-4104 5 30 A6SN-5101 A6SN-5104 6 25 A6SN-6101 A6SN-6104 7 20 A6SN-7101 A6SN-7104 8 20 A6SN-8101 A6SN-8104 9 15 A6SN-9101 A6SN-9104 10 15 A6SN-0101 A6SN-0104 Embossed Taping * Type Flat actuator Standard No. of poles Quantity per tube Quantity per tube 2 A6SN-2101-P A6SN-2102-P A6SN-2104-P 3 A6SN-3101-P A6SN-3102-P A6SN-3104-P 4 A6SN-4101-P A6SN-4102-P A6SN-4104-P 5 A6SN-5101-P A6SN-5102-P 6 Note: Quantity per tube Raised actuator With seal tape 750 A6SN-6101-P 750 A6SN-6102-P A6SN-5104-P 700 A6SN-6104-P 7 A6SN-7101-P A6SN-7102-P A6SN-7104-P 8 A6SN-8101-P A6SN-8102-P A6SN-8104-P 9 A6SN-9101-P A6SN-9102-P A6SN-9104-P 10 A6SN-0101-P A6SN-0102-P A6SN-0104-P 1. Order in multiples of the package quantity. 1 A6SN A6SN Embossed Taping (100 pcs reel) Type Flat actuator Standard Quantity per tube No. of poles Quantity per tube Quantity per tube 2 A6SN-2101-R100 A6SN-2102-R100 A6SN-2104-R100 3 A6SN-3101-R100 A6SN-3102-R100 A6SN-3104-R100 4 A6SN-4101-R100 A6SN-4102-R100 A6SN-4104-R100 5 A6SN-5101-R100 A6SN-5102-R100 A6SN-5104-R100 100 6 7 ■ Raised actuator With seal tape 100 A6SN-6101-R100 A6SN-7101-R100 A6SN-6102-R100 A6SN-6104-R100 A6SN-7104-R100 8 A6SN-8101-R100 A6SN-8102-R100 A6SN-8104-R100 9 A6SN-9101-R100 A6SN-9102-R100 A6SN-9104-R100 10 A6SN-0101-R100 A6SN-0102-R100 A6SN-0104-R100 Ratings/Characteristics Rating (resistive load) 25 mA at 24 VDC 10 μA (minimum current) at 3.5 VDC Ambient operating temperature -30 to +85 °C at 60% max. (with no icing or condensation) Ambient operating humidity 35% to 95% (at +5 to +35 °C) Insulation resistance 100 MΩ min. (at 100 VDC with insulation tester) Contact resistance (initial value) 200 mΩ max. Dielectric strength Between terminals 300 VAC for 1 min Vibration resistance Malfunction 10 to 55 Hz, 1.5-mm double amplitude Shock resistance Malfunction 490 m/s2 min. Durability Electrical 1,000 operations min. Washing Possible Degree of protection IEC IP40 Operating force 0.98 to 7.9 N {100 to 806 gf} Weight 0.3 g (2 poles) 2 100 A6SN-7102-R100 0.55 g (4 poles) 0.8 g (6 poles) 1.05 g (8 poles) 1.3 g (10 poles) A6SN ■ A6SN Dimensions (Unit: mm) ● Flat actuator 1 pole type Standard A6SN-@101 A6SN-@101-P A6SN-@101-R100 4.48±0.5 1.2 1 ON A6SN 0 1.6 −0.2 7.5 4.25±0.15 0 to 0.2 0 0.6 −0.1 1 2 3 4 5 6 7 8 Flat actuator Standard A±0.5 Raised actuator 1 Seal tape (t=0.04) 1.2 With seal tape A6SN-@102-P A6SN-@102-R100 Flat actuator With seal tape 3.5±0.15 7.5 1 4.35 to 4.55 0.25 2.54 2.54× (P−1) 0 1.6 −0.2 0.8±0.2 0 0.6 −0.1 0.8±0.2 9.3±0.5 Dimensions of PCB pad (Reference) (Top View) ● Raised actuator 2.54× (P−1) ±0.1 A6SN-@104 A6SN-@104-P A6SN-@104-R100 6.1 10.4 1.1 Flat actuator No. of poles Standard Raised actuator 1 2 3 4 5 6 7 8 9 10 A6SN-1101 A6SN-2101 A6SN-3101 A6SN-4101 A6SN-5101 A6SN-6101 A6SN-7101 A6SN-8101 A6SN-9101 A6SN-0101 A6SN-1104 A6SN-2104 A6SN-3104 A6SN-4104 A6SN-5104 A6SN-6104 A6SN-7104 A6SN-8104 A6SN-9104 A6SN-0104 Note: ■ P: Number of poles Embossed taping Flat actuator Raised With seal actuator Standard tape ------A6SN-2101-P A6SN-2102-P A6SN-2104-P A6SN-3101-P A6SN-3102-P A6SN-3104-P A6SN-4101-P A6SN-4102-P A6SN-4104-P A6SN-5101-P A6SN-5102-P A6SN-5104-P A6SN-6101-P A6SN-6102-P A6SN-6104-P A6SN-7101-P A6SN-7102-P A6SN-7104-P A6SN-8101-P A6SN-8102-P A6SN-8104-P A6SN-9101-P A6SN-9102-P A6SN-9104-P A6SN-0101-P A6SN-0102-P A6SN-0104-P Embossed taping (100 pcs reel) Flat actuator Raised actuator Standard With seal tape --A6SN-2101-R100 A6SN-3101-R100 A6SN-4101-R100 A6SN-5101-R100 A6SN-6101-R100 A6SN-7101-R100 A6SN-8101-R100 A6SN-9101-R100 A6SN-0101-R100 --A6SN-2102-R100 A6SN-3102-R100 A6SN-4102-R100 A6SN-5102-R100 A6SN-6102-R100 A6SN-7102-R100 A6SN-8102-R100 A6SN-9102-R100 A6SN-0102-R100 --A6SN-2104-R100 A6SN-3104-R100 A6SN-4104-R100 A6SN-5104-R100 A6SN-6104-R100 A6SN-7104-R100 A6SN-8104-R100 A6SN-9104-R100 A6SN-0104-R100 A 4.48 7.0 9.6 12.1 14.6 17.2 19.7 22.3 24.8 27.3 Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimentions. Internal Connections Contact Form (Top View) ON 1 ■ 2 9 10 Precautions Be sure to read the Safety precautions common to all DIP Switches for correct use. 3 A6SN A6SN • Application examples provided in this document are for reference only. In actual applications, confirm equipment functions and safety before using the product. • Consult your OMRON representative before using the product under conditions which are not described in the manual or applying the product to nuclear control systems, railroad systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines, safety equipment, and other systems or equipment that may have a serious influence on lives and property if used improperly. Make sure that the ratings and performance characteristics of the product provide a margin of safety for the system or equipment, and be sure to provide the system or equipment with double safety mechanisms. Note: Do not use this document to operate the Unit. OMRON Corporation Electronic and Mechanical Components Company 4 Contact: www.omron.com/ecb Cat. No. A193-E1-06 0619(0207)(O)
