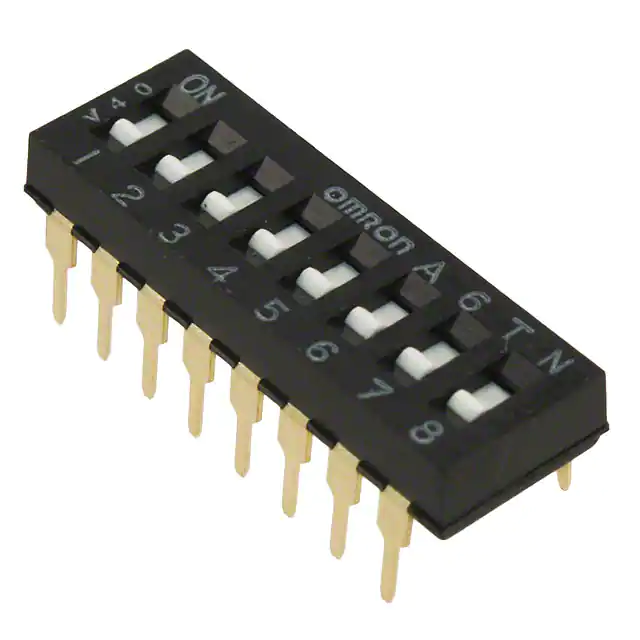

A6TN-9101

Slide DIP Switch Knife-edge Structure with High Contact Pressure Mechanism Assures High reliability ■ Knife-edge structure enables washing without seal. ■ Improved solder heat resistance (peak solder tem- A6TN perature: 265 °C). RoHS Compliant Ordering Information ■ List of Models Type and color of actuator Flat actuator (white) Raised actuator (white) Tube packaging type No.of poles 1 2 3 4 5 6 7 8 9 10 Note: Quantity per tube 100 60 45 35 30 25 20 20 15 15 A6TN-1101 A6TN-2101 A6TN-3101 A6TN-4101 A6TN-5101 A6TN-6101 A6TN-7101 A6TN-8101 A6TN-9101 A6TN-0101 A6TN-1104 A6TN-2104 A6TN-3104 A6TN-4104 A6TN-5104 A6TN-6104 A6TN-7104 A6TN-8104 A6TN-9104 A6TN-0104 Order in multiples of the package quantity. Specifications ■ Ratings/Characteristics 25 mA at 24 VDC, 10 μA (minimum current) at 3.5 VDC -30 to 85 °C at 60% max. (with no icing or condensation) 35% to 95% (at 5 to 35 °C) 100 MΩ min. (at 100 VDC) 200 mΩ max. (initial value) 300 VAC for 1 min between terminals Malfunction: 10 to 55 Hz, 1.5-mm double amplitude Malfunction: 490 m/s2 min. Electrical: 1,000 operations min. 0.98 to 7.9 N {100 to 806 gf} 0.31 g (2 poles) 0.58 g (4 poles) 0.84 g (6 poles) 1.1 g (8 poles) 1.36 g (10 poles) Rating Ambient operating temperature Ambient operating humidity Insulation resistance Contact resistance Dielectric strength Vibration resistance Shock resistance Durability Operating force Weight 1 A6TN A6TN Dimensions Note: ■ 1. All units are in millimeters unless otherwise indicated. 2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions. Flat actuator 1.2 ON 7.5 1 2 3 4 5 6 7 8 4.48±0.5 A6TN-@101 A6TN Dimensions of PCB pad (Top View) 2.54× (P−1) ±0.1 4.25±0.15 5.25 2.7±0.1 1.6 −0.1 0.6 −0 0.2 0 3.25 7.62±0.1 0.8 +0.2 0 dia. P: Number of poles 1 pole type A±0.5 1.2 1 7.5 1 ■ Raised actuator A6TN-@104 2.54 2.54× (P−1) 3.5±0.15 2.7±0.1 4 0.6 −0 0.1 1.6 −0 0.2 7.6 to 8.7 0.25 Raised actuator Flat actuator No.of poles 1 2 3 4 5 6 7 8 9 10 Models Flat actuator Raised actuator A6TN-1101 A6TN-1104 A6TN-2101 A6TN-2104 A6TN-3101 A6TN-3104 A6TN-4101 A6TN-4104 A6TN-5101 A6TN-5104 A6TN-6101 A6TN-6104 A6TN-7101 A6TN-7104 A6TN-8101 A6TN-8104 A6TN-9101 A6TN-9104 A6TN-0101 A6TN-0104 A 4.48 7.0 9.6 12.1 14.6 17.2 19.7 22.3 24.8 27.3 Internal Connection ■ Contact Form (Top View) ON 1 2 9 10 Precautions Be sure to read the Safety precautions common to all DIP Switches for correct use. ALL DIMENSIONS SHOWN ARE IN MILLIMETERS. To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. 2
