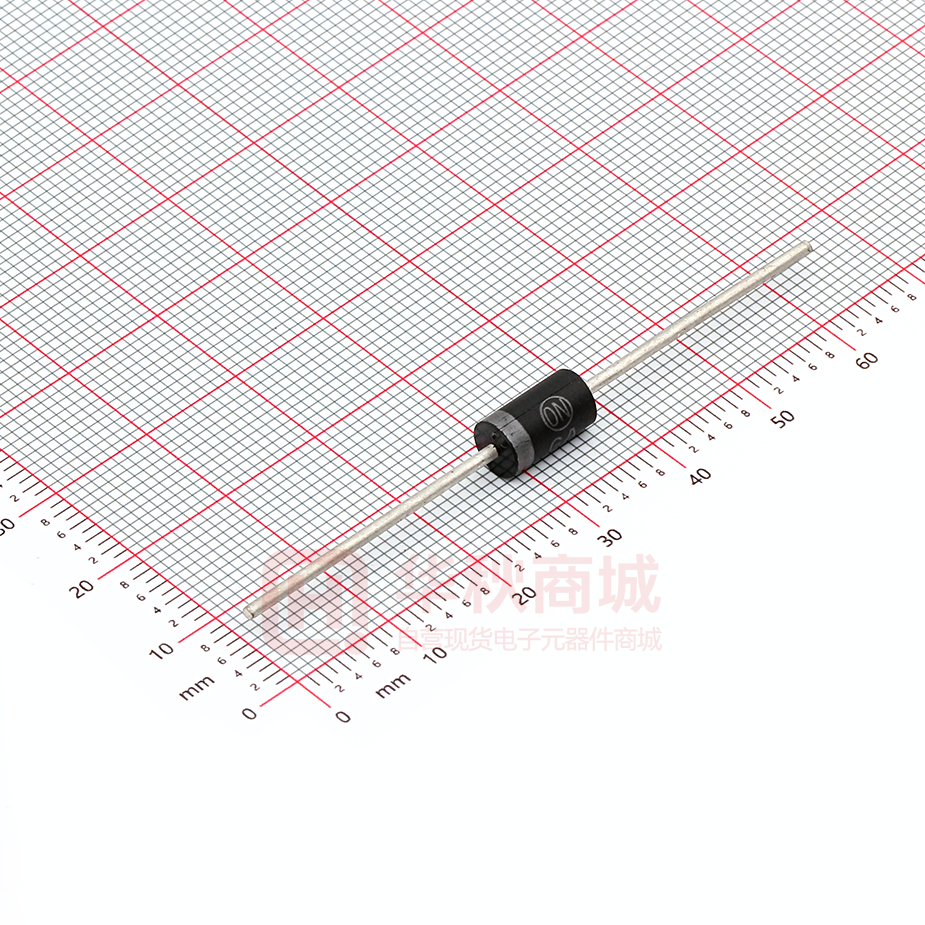

1N5408RLG

1N5400 thru 1N5408 Axial-Lead Glass Passivated Standard Recovery Rectifiers Lead mounted standard recovery rectifiers are designed for use in power supplies and other applications having need of a device with the following features: Features • • • • • • • www.onsemi.com STANDARD RECOVERY RECTIFIERS 50−1000 VOLTS 3.0 AMPERES High Current to Small Size High Surge Current Capability Low Forward Voltage Drop Void−Free Economical Plastic Package Available in Volume Quantities Plastic Meets UL 94 V−0 for Flammability These are Pb−Free Devices Mechanical Characteristics: • Case: Epoxy, Molded • Weight: 1.1 Gram (Approximately) • Finish: All External Surfaces Corrosion Resistant and Terminal • • Leads are Readily Solderable Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds Polarity: Cathode Indicated by Polarity Band *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. AXIAL LEAD CASE 267−05 STYLE 1 MARKING DIAGRAM A 1N 540x YYWWG G A = Assembly Location 1N540x = Device Number x = 0, 1, 2, 4, 6, 7 or 8 YY = Year WW = Work Week G = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION See detailed ordering and shipping information on page 5 of this data sheet. © Semiconductor Components Industries, LLC, 2008 June, 2018 − Rev. 11 1 Publication Order Number: 1N5400/D 1N5400 thru 1N5408 MAXIMUM RATINGS Symbol 1N5400 1N5401 1N5402 1N5404 1N5406 1N5407 1N5408 Unit Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Rating VRRM VRWM VR 50 100 200 400 600 800 1000 V Non−repetitive Peak Reverse Voltage VRSM 100 200 300 525 800 1000 1200 V Average Rectified Forward Current (Single Phase Resistive Load, 1/2 in. Leads, TL = 105°C) IO 3.0 A Non−repetitive Peak Surge Current (8 ms Single Half−Sine−Wave) IFSM 200 (one cycle) A Operating and Storage Junction Temperature Range TJ Tstg − 65 to +150 − 65 to +175 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS Characteristic Thermal Resistance, Junction−to−Ambient (PC Board Mount, 1/2 in. Leads) Symbol Typ Unit RqJA 53 °C/W ELECTRICAL CHARACTERISTICS Characteristic Symbol Min Typ Max Unit Forward Voltage (IF = 3.0 A, TA = 25°C) vF − − 1.0 V Reverse Current (Rated DC Voltage) TA = 25°C TA = 100°C IR − − − − 10 50 mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. Ratings at 25°C ambient temperature unless otherwise specified. 60 Hz resistive or inductive loads. For capacitive load, derate current by 20%. www.onsemi.com 2 1N5400 thru 1N5408 NOTE 1 — AMBIENT MOUNTING DATA Data shown for thermal resistance junction−to−ambient (RqJA) for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured. TYPICAL VALUES FOR RqJA IN STILL AIR Mounting Method 1 2 Lead Length, L (IN) 1/8 1/4 1/2 3/4 55 51 53 50 63 59 61 58 °C/W °C/W 3 28 °C/W MOUNTING METHOD 1 P.C. Board Where Available Copper Surface area is small L RqJA MOUNTING METHOD 3 P.C. Board with 1−1/2” x 1−1/2” Copper Surface L ÉÉÉÉÉÉÉÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉ ÉÉÉÉÉÉÉÉÉ L = 1/2” MOUNTING METHOD 2 Vector Push−In Terminals T−28 Board Ground Plane L L www.onsemi.com 3 1N5400 thru 1N5408 200 IFSM, PEAK HALF WAVE CURRENT (A) 400 TJ = 25°C 100 TYPICAL 50 30 20 200 1 CYCLE 100 90 80 70 60 50 40 1.0 5.0 7.0 10 2.0 3.0 20 50 70 100 30 10 NUMBER OF CYCLES 7.0 Figure 2. Maximum Nonrepetitive Surge Current IF(AV), AVERAGE FORWARD CURRENT (A) 5.0 3.0 2.0 1.0 0.7 0.5 0.3 0.2 0.4 0.8 1.2 1.6 2.0 2.4 2.8 Square Wave 1/4” 2 L = 1/32” 1/2” 1 50 60 70 80 90 100 110 120 130 140 150 160 Figure 3. Maximum Current Derating, Lead, Various Lengths 4 DC 3 DC 2 Square Wave 50 3 Figure 1. Forward Voltage RqJA = 28°C/W RqJA = 50°C/W 40 4 TL, LEAD TEMPERATURE (°C) 5 0 Both Leads to Heat Sink with Lengths as Shown DC vF, INSTANTANEOUS VOLTAGE (V) 6 1 5 0 40 3.2 60 70 80 90 100 110 120 130 140 150 160 TA, AMBIENT TEMPERATURE (°C) PF(AV), AVERAGE POWER DISSIPATION (W) iF, INSTANTANEOUS FORWARD CURRENT (AMPS) 70 Surge Applied @ TJ = 25°C f = 60 Hz 300 16 IPK/IAV = 20 14 5 10 Square Wave 12 10 dc 8 6 4 2 0 TJ = 25°C 0 1 2 3 4 5 6 7 8 IF(AV), AVERAGE FORWARD CURRENT (A) Figure 5. Forward Power Dissipation Figure 4. Maximum Current Derating, Ambient, PC Board Mounting www.onsemi.com 4 9 10 1N5400 thru 1N5408 ORDERING INFORMATION Package Shipping† 1N5400G Axial Lead* 500 Units/Box 1N5400RLG Axial Lead* 1200/Tape & Reel 1N5401G Axial Lead* 500 Units/Box 1N5401RLG Axial Lead* 1200/Tape & Reel 1N5402G Axial Lead* 500 Units/Box 1N5402RLG Axial Lead* 1200/Tape & Reel 1N5404G Axial Lead* 500 Units/Box 1N5404RLG Axial Lead* 1200/Tape & Reel 1N5406G Axial Lead* 500 Units/Box 1N5406RLG Axial Lead* 1200/Tape & Reel 1N5407G Axial Lead* 500 Units/Box 1N5407RLG Axial Lead* 1200/Tape & Reel 1N5408G Axial Lead* 500 Units/Box 1N5408RLG Axial Lead* 1200/Tape & Reel Device †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *This package is inherently Pb−Free. www.onsemi.com 5 1N5400 thru 1N5408 PACKAGE DIMENSIONS AXIAL LEAD CASE 267−05 ISSUE G K D A 1 2 B K NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. DIM A B D K INCHES MIN MAX 0.287 0.374 0.189 0.209 0.047 0.051 1.000 --- MILLIMETERS MIN MAX 7.30 9.50 4.80 5.30 1.20 1.30 25.40 --- STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 www.onsemi.com 6 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative 1N5400/D
