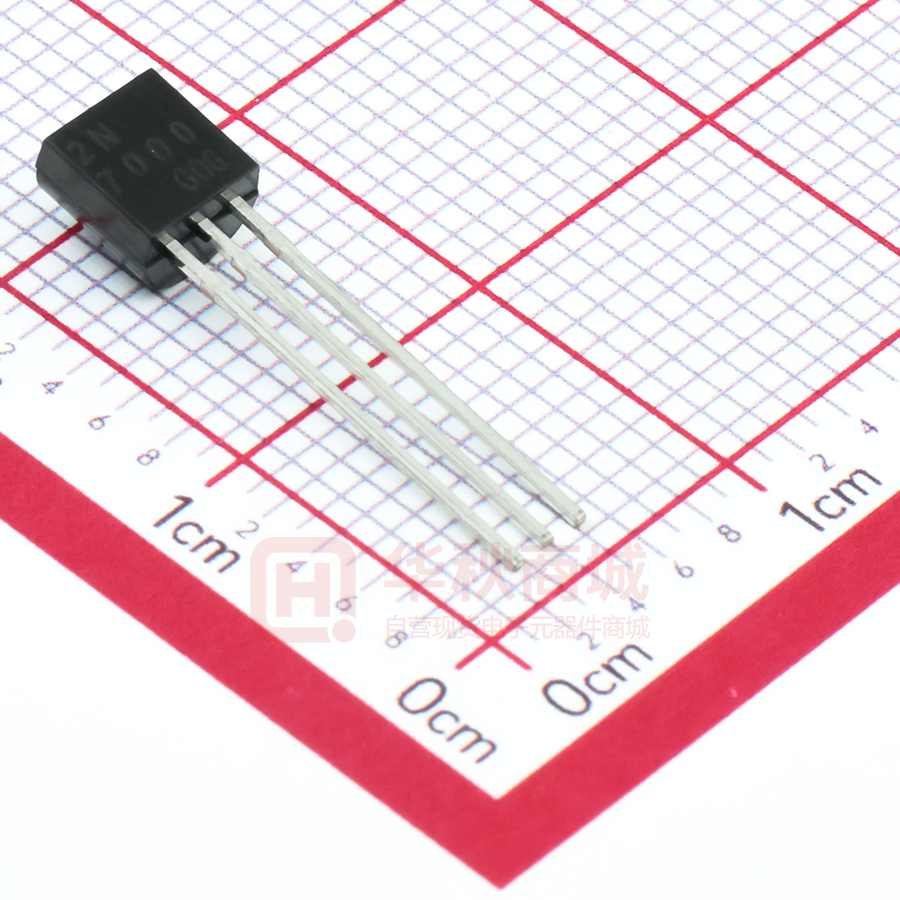

2N7000

DATA SHEET www.onsemi.com N-Channel Enhancement Mode Field Effect Transistor D G 2N7000, 2N7002, NDS7002A S Description These N−channel enhancement mode field effect transistors are produced using onsemi’s proprietary, high cell density, DMOS technology. These products have been designed to minimize on−state resistance while providing rugged, reliable, and fast switching performance. They can be used in most applications requiring up to 400 mAdc and can deliver pulsed currents up to 2 A. These products are particularly suited for low−voltage, low−current applications, such as small servo motor control, power MOSFET gate drivers, and other switching applications. 1 − Source 2 − Gate 3 − Drain 12 2 3 TO−92 CASE 135AR TO−92 CASE 135AN MARKING DIAGRAM Features • • • • • 1 3 High Density Cell Design for Low RDS(on) Voltage Controlled Small Signal Switch Rugged and Reliable High Saturation Current Capability This Device is Pb−Free and Halogen Free $Y&Z&3 2N 7000 $Y &Z &3 2N7000 = Logo = Assembly Plant Code = Date Code = Specific Device Code 3 1 − Gate 2 − Source 3 − Drain 1 2 SOT−23 CASE 318−08 MARKING DIAGRAM &E&Y 7x2&E&G &E &Y 7x2 &G = Designates Space = Binary Calendar Year Coding Scheme = Specific Device Code x= 0, 1 = Date Code ORDERING INFORMATION See detailed ordering and shipping information on page 7 of this data sheet. © Semiconductor Components Industries, LLC, 1998 July, 2022 − Rev. 7 1 Publication Order Number: NDS7002A/D 2N7000, 2N7002, NDS7002A ABSOLUTE MAXIMUM RATINGS Values are at TC = 25°C unless otherwise noted. Value Symbol 2N7000 Parameter 2N7002 NDS7002A Unit VDSS Drain−to−Source Voltage 60 V VDGR Drain−Gate Voltage (RGS ≤ 1 MW) 60 V VGSS Gate−Source Voltage − Continuous ±20 V Gate−Source Voltage − Non Repetitive (tp < 50 ms) ±40 ID PD TJ, TSTG TL mA Maximum Drain Current − Continuous 200 115 280 Maximum Drain Current − Pulsed 500 800 1500 Maximum Power Dissipation Derated above 25°C 400 200 300 mW 3.2 1.6 2.4 mW/°C −65 to 150 °C Operating and Storage Temperature Range −55 to 150 Maximum Lead Temperature for Soldering Purposes, 1/16−inch from Case for 10 s 300 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS Values are at TC = 25°C unless otherwise noted. Value Symbol RθJA Parameter Thermal Resistance, Junction to Ambient 2N7000 2N7002 NDS7002A Unit 312.5 625 417 °C/W ELECTRICAL CHARACTERISTICS Values are at TC = 25°C unless otherwise noted. Symbol Parameter Conditions Type Min Typ Max Unit V OFF CHARACTERISTICS BVDSS IDSS Drain−Source Breakdown Voltage VGS = 0 V, ID = 10 mA All 60 − − Zero Gate Voltage Drain Current VDS = 48 V, VGS = 0 V 2N7000 − − 1 mA − − 1 mA 2N7002 NDS7002A − − 1 mA − − 0.5 mA nA VDS = 48 V, VGS = 0 V, TC = 125°C VDS = 60 V, VGS = 0 V VDS = 60 V, VGS = 0 V, TC = 125°C IGSSF IGSSR Gate − Body Leakage, Forward VGS = 15 V, VDS = 0 V 2N7000 − − 10 VGS = 20 V, VDS = 0 V 2N7002 NDS7002A − − 100 Gate − Body Leakage, Reverse VGS = −15 V, VDS = 0 V 2N7000 − − −10 VGS = −20 V, VDS = 0 V 2N7002 NDS7002A − − −100 2N7000 0.8 2.1 3 2N7002 NDS7002A 1 2.1 2.5 nA ON CHARACTERISTICS VGS(th) Gate Threshold Voltage VDS = VGS, ID = 1 mA VDS = VGS, ID = 250 mA www.onsemi.com 2 V 2N7000, 2N7002, NDS7002A ELECTRICAL CHARACTERISTICS (continued) Values are at TC = 25°C unless otherwise noted. Symbol Parameter Conditions Type Min Typ Max Unit 2N7000 − 1.2 5 W VGS = 10 V, ID = 500 mA, TC = 125°C − 1.9 9 VGS = 4.5 V, ID = 75 mA − 1.8 5.3 − 1.2 7.5 VGS = 10 V, ID = 500 mA, TC = 100°C − 1.7 13.5 VGS = 5 V, ID = 50 mA − 1.7 7.5 VGS = 5 V, ID = 50 mA, TC = 100°C − 2.4 13.5 − 1.2 2 VGS = 10 V, ID = 500 mA, TC = 125°C − 2 3.5 VGS = 5 V, ID = 50 mA − 1.7 3 VGS = 5 V, ID = 50 mA, TC = 125°C − 2.8 5 − 0.6 2.5 − 0.14 0.4 − 0.6 3.75 − 0.09 1.5 − 0.6 1 − 0.09 0.15 ON CHARACTERISTICS RDS(on) Static Drain−Source On−Resistance VGS = 10 V, ID = 500 mA VGS = 10 V, ID = 500 mA VGS = 10 V, ID = 500 mA VDS(on) Drain−Source On−Voltage VGS = 10 V, ID = 500 mA 2N7002 NDS7002A 2N7000 VGS = 4.5 V, ID = 75 mA VGS = 10 V, ID = 500 mA 2N7002 VGS = 5.0 V, ID = 50 mA VGS = 10 V, ID = 500 mA NDS7002A VGS = 5.0 V, ID = 50 mA ID(on) gFS On−State Drain Current Forward Transconductance VGS = 4.5 V, VDS = 10 V 2N7000 75 600 − VGS = 10 V, VDS ≥ 2 VDS(on) 2N7002 500 2700 − VGS = 10 V, VDS ≥ 2 VDS(on) NDS7002A 500 2700 − VDS = 10 V, ID = 200 mA 2N7000 100 320 − VDS ≥ 2 VDS(on), ID = 200 mA 2N7002 80 320 − VDS ≥ 2 VDS(on), ID = 200 mA NDS7002A 80 320 − All − 20 50 All − 11 25 All − 4 5 VDD = 15 V, RL = 25 W, ID = 500 mA, VGS = 10 V, RGEN = 25 W 2N7000 − − VDD = 30 V, RL = 150 W, ID = 200 mA, VGS = 10 V, RGEN = 25 W 2N7002 NDS7002A − VDD = 15 V, RL = 25 W, ID = 500 mA, VGS = 10 V, RGEN = 25 W 2N7000 − VDD = 30 V, RL = 150 W, ID = 200 mA, VGS = 10 V, RGEN = 25 W 2N7002 NDS7002A V mA mS DYNAMIC CHARACTERISTICS Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance ton toff Turn−On Time Turn−Off Time VDS = 25 V, VGS = 0 V, f = 1.0 MHz www.onsemi.com 3 pF ns 10 − 20 ns − 10 − − 20 2N7000, 2N7002, NDS7002A ELECTRICAL CHARACTERISTICS (continued) Values are at TC = 25°C unless otherwise noted. Symbol Parameter Conditions Type Min Typ Max Unit 2N7002 − − 115 mA NDS7002A − − 280 2N7002 − − 0.8 NDS7002A − − 1.5 VGS = 0 V, IS = 115 mA (Note 1) 2N7002 − 0.88 1.5 VGS = 0 V, IS = 400 mA (Note 1) NDS7002A − 0.88 1.2 DRAIN−SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS IS Maximum Continuous Drain−Source Diode Forward Current ISM Maximum Pulsed Drain−Source Diode Forward Current VSD Drain−Source Diode Forward Voltage A V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. Pulse test: Pulse Width ≤ 300 ms, Duty Cycel ≤ 2 % TYPICAL PERFORMANCE CHARACTERISTICS 3 9.0 8.0 VGS = 10 V 7.0 RDS(on), Normalized Drain−Source On−Resistance ID, Drain−Source Current (A) 2 1.5 6.0 1 5.0 4.0 0.5 3.0 0 1 2 3 4 7.0 8.0 1.5 9.0 10 1 0 0.4 0.8 1.2 1.6 ID, Drain Current (A) Figure 1. On−Region Characteristics Figure 2. On−Resistance Variation with Gate Voltage and Drain Current 2 3 VGS = 10 V ID = 500 mA RDS(on), Normalized Drain−Source On−Resistance RDS(on), Normalized Drain−Source On−Resistance 6.0 VDS, Drain−Source Voltage (V) 1.5 1.25 1 0.75 0.5 −50 5.0 2 5 2 1.75 4.5 2.5 0.5 0 V = 4.0 −25 0 25 50 75 100 125 150 VGS 2.5 TJ = 125°C 2 1.5 25°C 1 −55°C 0.5 0 0 TJ, Junction Temperature (5C) 0.4 0.8 1.2 1.6 ID, Drain Current (A) Figure 3. On−Resistance Variation with Temperature Figure 4. On−Resistance Variation with Drain Current and Temperature www.onsemi.com 4 2 2N7000, 2N7002, NDS7002A TYPICAL PERFORMANCE CHARACTERISTICS (Continued) 2 125°C T = −55°C 1.2 0.8 0.4 Vth, Normalized Gate−Source Threshold Voltage 1.6 ID, Drain Current (A) 1.1 25°C VDS = 10 V 0 0 2 4 6 8 1 0.95 0.9 0.85 0.8 −50 10 25 50 75 100 125 Figure 5. Transfer Characteristics Figure 6. Gate Threshold Variation with Temperature 2 IS, Reverse Drain Current (A) 1.050 1.025 1.000 0.975 150 VGS = 0 V 1 0.5 T = 125°C 0.1 25°C 0.05 −55°C 0.01 0.005 0.950 0.925 −50 −25 0 25 50 75 100 TJ, Junction Temperature (5C) 125 150 0.001 0.2 Figure 7. Breakdown Voltage Variation with Temperature 10 VGS, GA E−Source Voltage (V) 40 Ciss 20 Coss 10 5 Crss 2 1 f = 1 MHz V=0V 1 2 3 5 10 20 30 1.2 0.4 0.6 0.8 1 VSD, Body Diode Forward Voltage (V) 1.4 Figure 8. Body Diode Forward Voltage Variation with 60 Capacitance (pF) 0 TJ, Junction Temperature (5C) ID = 250 mA 1.075 −25 VGS, Gate to Source Voltage (V) 1.100 BVDSS, Normalized Drain−Source Breakdown Voltage VDS = VGS I = 1 mA 1.05 50 VDS = 25 V 8 6 I = 500 mA 4 280 mA 2 115 mA 0 0 0.4 0.8 1.2 1.6 VDS, Drain to Source Voltage (V) Qg, Gate Charge (nC) Figure 9. Capacitance Characteristics Figure 10. Gate Charge Characteristics www.onsemi.com 5 2 2N7000, 2N7002, NDS7002A TYPICAL PERFORMANCE CHARACTERISTICS (Continued) ton VDD td(on) RL VIN RGEN tf 90% 90% Output, Vout DUT G td(off) tr VOUT D VGS toff 10% 10% 90% S 50% 50% Input, Vin 10% Inverted Pulse Width Figure 11. Switching Test Circuit Figure 12. Switching Waveforms 3 2 3 2 100 ms 1 ms 0.1 100 ms 10 ms 0.05 1s VGS = 10 V Single Pulse TA = 25°C 0.01 0.005 1 2 10 s ID, Drain Current (A) 0.5 100 ms 1 RDS(on) Limit DS 5 10 20 RDS(on) Limit 0.5 60 80 0.05 0.005 VGS = 10 V Single Pulse TA = 25°C 1 DC 2 5 RDS(on) Limit 100 ms 1 ms 0.5 10 ms 0.1 100 ms 0.05 0.005 1s VGS = 10 V Single Pulse TA = 25°C 1 2 20 1s 30 60 80 Figure 14. 2N7002 Maximum Safe Operating Area 1 0.01 10 10 s VDS, Drain−Source Voltage (V) Figure 13. 2N7000 Maximum Safe Operating Area 3 2 10 ms 100 ms 0.01 30 1 ms 0.1 VDS, Drain−Source Voltage (V) ID, Drain Current (A) ID, Drain Current (A) 1 DC 5 10 20 10 s 30 60 80 VDS, Drain−Source Voltage (V) Figure 15. NDS7000A Maximum Safe Operating Area www.onsemi.com 6 2N7000, 2N7002, NDS7002A TYPICAL PERFORMANCE CHARACTERISTICS (Continued) r(t), Normalized Effective Transient Thermal Resistance 1 0.5 0.2 0.1 0.05 0.02 0.01 D = 0.5 0.2 RqJA(t) = r(t) * RqJA RqJA = (See Datasheet) 0.1 0.05 P(pk) t1 0.02 0.01 Single Pulse 0.0001 t2 TJ − TA = P * RqJA(t) Duty Cycle, D = t1/t2 0.001 0.01 0.1 1 10 100 300 t1, Time (s) Figure 16. TO−92, 2N7000 Transient Thermal Response Curve r(t), Normalized Effective Transient Thermal Resistance 1 0.5 0.2 D = 0.5 0.2 0.1 0.1 0.05 0.05 RqJA(t) = r(t) * RqJA RqJA = (See Datasheet) P(pk) 0.02 0.01 0.002 0.001 t1 0.01 TJ − TA = P * RqJA(t) Duty Cycle, D = t1/t2 Single Pulse 0.0001 t2 0.001 0.01 0.1 1 10 100 300 t1, Time (s) Figure 17. SOT−23, 2N7002 / NDS7002A Transient Thermal Response Curve ORDERING INFORMATION Part Number Marking Package Packing Method† Min Order Qty / Immediate Pack Qty 2N7000 2N7000 TO−92 3L (Pb−Free) Bulk 10000 / 1000 Ammo 2000 / 2000 Tape and Reel 2000 / 2000 2N7000−D74Z 2N7000−D75Z 2N7000−D26Z 2000 / 2000 2N7002 702 NDS7002A 712 SOT−23 3L (Pb−Free) Tape and Reel 3000 / 3000 3000 / 3000 †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. www.onsemi.com 7 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS TO−92 3 4.825x4.76 CASE 135AN ISSUE O DOCUMENT NUMBER: DESCRIPTION: 98AON13880G TO−92 3 4.825X4.76 DATE 31 JUL 2016 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS TO−92 3 4.83x4.76 LEADFORMED CASE 135AR ISSUE O DOCUMENT NUMBER: DESCRIPTION: 98AON13879G DATE 30 SEP 2016 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. TO−92 3 4.83X4.76 LEADFORMED PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOT−23 (TO−236) CASE 318−08 ISSUE AS DATE 30 JAN 2018 SCALE 4:1 D 0.25 3 E 1 2 T HE NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF THE BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. DIM A A1 b c D E e L L1 HE T L 3X b L1 VIEW C e TOP VIEW A A1 SIDE VIEW SEE VIEW C c MIN 0.89 0.01 0.37 0.08 2.80 1.20 1.78 0.30 0.35 2.10 0° MILLIMETERS NOM MAX 1.00 1.11 0.06 0.10 0.44 0.50 0.14 0.20 2.90 3.04 1.30 1.40 1.90 2.04 0.43 0.55 0.54 0.69 2.40 2.64 −−− 10 ° MIN 0.035 0.000 0.015 0.003 0.110 0.047 0.070 0.012 0.014 0.083 0° INCHES NOM 0.039 0.002 0.017 0.006 0.114 0.051 0.075 0.017 0.021 0.094 −−− MAX 0.044 0.004 0.020 0.008 0.120 0.055 0.080 0.022 0.027 0.104 10° GENERIC MARKING DIAGRAM* END VIEW RECOMMENDED SOLDERING FOOTPRINT XXXMG G 1 3X 2.90 3X XXX = Specific Device Code M = Date Code G = Pb−Free Package 0.90 *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. 0.95 PITCH 0.80 DIMENSIONS: MILLIMETERS STYLE 1 THRU 5: CANCELLED STYLE 6: PIN 1. BASE 2. EMITTER 3. COLLECTOR STYLE 7: PIN 1. EMITTER 2. BASE 3. COLLECTOR STYLE 9: PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 10: PIN 1. DRAIN 2. SOURCE 3. GATE STYLE 11: STYLE 12: PIN 1. ANODE PIN 1. CATHODE 2. CATHODE 2. CATHODE 3. CATHODE−ANODE 3. ANODE STYLE 15: PIN 1. GATE 2. CATHODE 3. ANODE STYLE 16: PIN 1. ANODE 2. CATHODE 3. CATHODE STYLE 17: PIN 1. NO CONNECTION 2. ANODE 3. CATHODE STYLE 18: STYLE 19: STYLE 20: PIN 1. NO CONNECTION PIN 1. CATHODE PIN 1. CATHODE 2. CATHODE 2. ANODE 2. ANODE 3. GATE 3. ANODE 3. CATHODE−ANODE STYLE 21: PIN 1. GATE 2. SOURCE 3. DRAIN STYLE 22: PIN 1. RETURN 2. OUTPUT 3. INPUT STYLE 23: PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 24: PIN 1. GATE 2. DRAIN 3. SOURCE STYLE 27: PIN 1. CATHODE 2. CATHODE 3. CATHODE STYLE 28: PIN 1. ANODE 2. ANODE 3. ANODE DOCUMENT NUMBER: DESCRIPTION: 98ASB42226B SOT−23 (TO−236) STYLE 8: PIN 1. ANODE 2. NO CONNECTION 3. CATHODE STYLE 13: PIN 1. SOURCE 2. DRAIN 3. GATE STYLE 25: PIN 1. ANODE 2. CATHODE 3. GATE STYLE 14: PIN 1. CATHODE 2. GATE 3. ANODE STYLE 26: PIN 1. CATHODE 2. ANODE 3. NO CONNECTION Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
