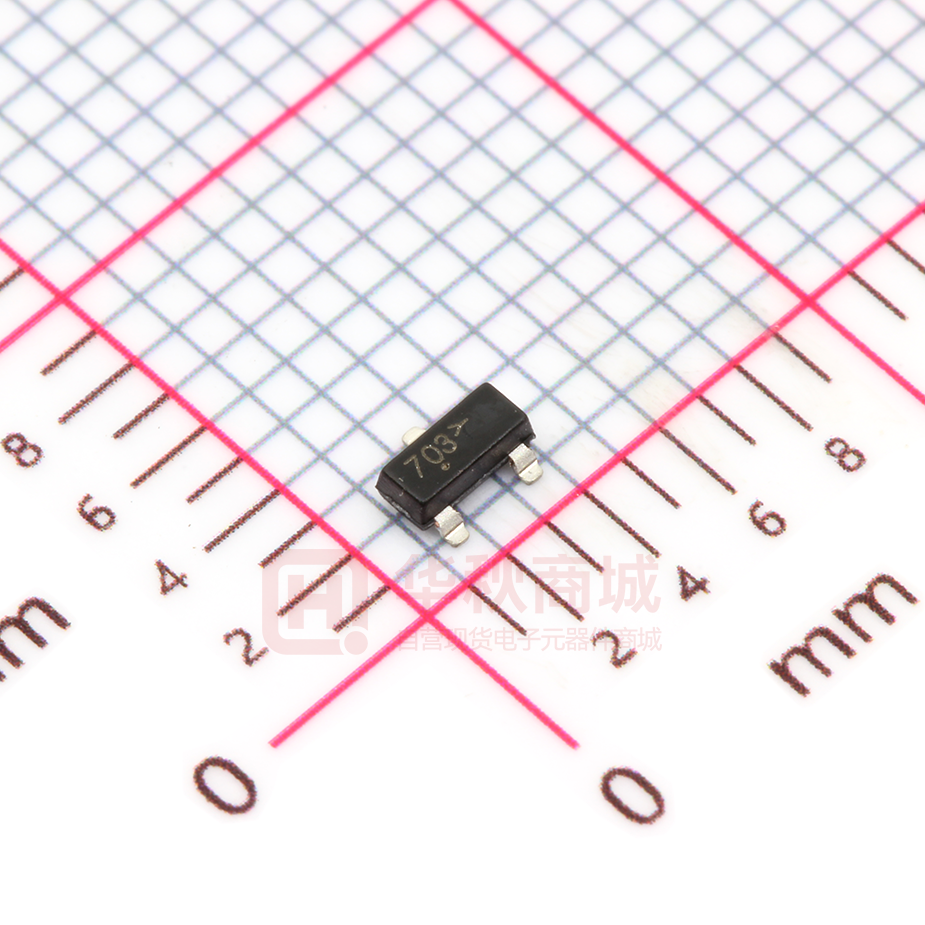

2N7002ET1G

2N7002E Small Signal MOSFET Single N−Channel, 60 V, 310 mA, 2.5 Ohm Features • • • • • Low RDS(on) Small Footprint Surface Mount Package Trench Technology S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant www.onsemi.com V(BR)DSS RDS(on) MAX ID MAX (Note 1) 60 V 3.0 W @ 4.5 V 310 mA 2.5 W @ 10 V Simplified Schematic Applications • • • • N−Channel 3 Low Side Load Switch Level Shift Circuits DC−DC Converter Portable Applications i.e. DSC, PDA, Cell Phone, etc. 1 MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Symbol Value Unit Drain−to−Source Voltage VDSS 60 V Gate−to−Source Voltage VGS ±20 V Rating Drain Current (Note 1) Steady State t
