2N7002K

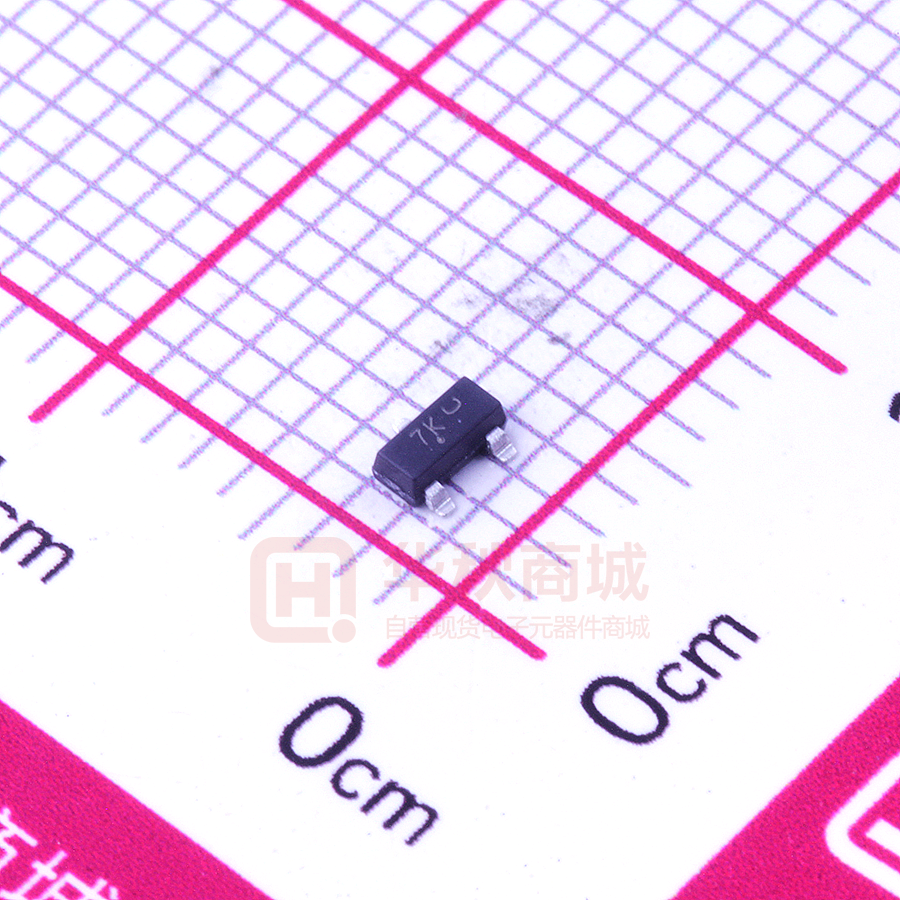

Field Effect Transistor N-Channel, Enhancement Mode 2N7002K Features • • • • • • • • Low On−Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input / Output Leakage Ultra−Small Surface Mount Package ESD HBM = 2000 V (Typical: 3000 V) as per JESD22 A114 and ESD CDM = 2000 V as per JESD22 C101 This Device is Pb−Free, Halogen Free/BFR Free and is RoHS Compliant www.onsemi.com SOT−23 (TO−236) CASE 318−08 MARKING DIAGRAM 7K M ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise specified) Symbol Parameter Value Unit 60 V VDSS Drain−Source Voltage VDGR Drain−Gate Voltage (RGS ≤ 1.0 MW) 60 V VGSS Gate−Source Voltage ±20 V 300 mA ID Drain Current TJ Operating Junction Temperature Range −55 to +150 °C Storage Temperature Range −55 to +150 °C Continuous Pulsed TSTG 1 7K M = Specific Device Code = Date Code FUNCTIONAL SCHEMATIC D 800 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. THERMAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Symbol PD RqJA Parameter Value G S Unit Total Device Dissipation 350 mW Derate Above TA = 25°C 2.8 mW/°C Thermal Resistance, Junction−to−Ambient (Note 1) 350 °C/W ORDERING INFORMATION See detailed ordering and shipping information on page 4 of this data sheet. 1. Device mounted on FR−4 PCB, 1 inch x 0.85 inch x 0.062 inch;Minimum land pad size. © Semiconductor Components Industries, LLC, 2020 October, 2020 − Rev. 2 1 Publication Order Number: 2N7002K−FSC/D 2N7002K ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise noted) Symbol Parameter Conditions Min Max Unit OFF CHARACTERISTICS (Note 2) BVDSS IDSS IGSS Drain−Source Breakdown Voltage VGS = 0 V, ID = 10 mA 60 − V Zero Gate Voltage Drain Current VDS = 60 V, VGS = 0 V − 1.0 mA VDS = 60 V, VGS = 0 V, TJ = 125°C − 500 VGS = ±20 V, VDS = 0 V − ±10 mA 1.0 2.5 V W Gate−Body Leakage ON CHARACTERISTICS (Note 2) VGS(th) Gate Threshold Voltage VDS = VGS, ID = 250 mA RDS(ON) Static Drain−Source On−Resistance VGS = 10 V, ID = 0.5 A − 2 VGS = 4.5 V, ID = 200 mA − 4 On−State Drain Current VGS = 10 V, VDS = 7.5 V 1.5 − A Forward Transconductance VDS = 10 V, ID = 0.2 A 200 − mS − 50 pF ID(ON) gFS DYNAMIC CHARACTERISTICS VDS = 25 V, VGS= 0 V, f = 1.0 MHz Ciss Input Capacitance Coss Output Capacitance − 15 pF Crss Reverse Transfer Capacitance − 6 pF − 5 ns − 30 ns SWITCHING CHARACTERISTICS tD(ON) Turn−On Delay Time tD(OFF) Turn−Off Delay Time VDD = 30 V, IDSS = 200 mA, RG = 10 W, VGS = 10 V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 2. Short duration test pulse used to minimize self−heating effect. www.onsemi.com 2 2N7002K 2.0 3.0 VGS = 10 V RDS(on), DRAIN−SOURCE ON−RESISTANCE (W) ID, DRAIN−SOURCE CURRENT (A) TYPICAL PERFORMANCE CHARACTERISTICS 5V 1.5 4V 1.0 3V 0.5 0.0 VGS = 3 V 2.5 4.5 V 5V 2.0 7V 1.0 8V 0 3.0 2 4 6 8 0.5 0.0 10 10 V 0.2 1.5 1.0 0 50 100 1.0 ID = 500 mA 0.5 0.0 150 ID = 50 mA 2 Vth, GATE−SOURCE THRESHOLD VOLTAGE (V) 25°C 0.8 150°C TJ = −25°C 125°C 0.4 75°C 0.2 3 4 5 4 5 6 7 8 9 10 Figure 4. On−Resistance Variation with Gate−Source Voltage 1.0 VDS = 10 V 3 VGS, GATE−SOURCE VOLTAGE (V) Figure 3. On−Resistance Variation with Temperature 2 1.0 1.5 TJ, JUNCTION TEMPERATURE (°C) 0.6 0.8 2.0 2.0 0.5 −50 0.6 Figure 2. On−Resistance Variation with Gate Voltage and Drain Current VDS = 10 V ID = 500 mA 2.5 0.4 ID, DRAIN−SOURCE CURRENT (A) RDS(on), DRAIN−SOURCE ON−RESISTANCE (W) RDS(on), DRAIN−SOURCE ON−RESISTANCE (W) 9V 2V Figure 1. On−Region Characteristics ID, DRAIN−SOURCE CURRENT (A) 6V 1.5 VDS, DRAIN−SOURCE VOLTAGE (V) 0.0 4V 2.0 VDS = VGS 1.8 ID = 1 mA 1.6 ID = 0.25 mA 1.4 1.2 1.0 −50 6 VGS, GATE−SOURCE VOLTAGE (V) 0 50 100 TJ, JUNCTION TEMPERATURE (°C) Figure 5. Transfer Characteristics Figure 6. Gate Threshold Variation with Temperature www.onsemi.com 3 150 VDS = 10 V VGS, GATE−SOURCE VOLTAGE (V) IS, REVERSE DRAIN CURRENT (mA) 2N7002K 100 TA = 150°C 25°C 10 −55°C 1 0.0 0.2 0.4 0.6 0.8 1.0 10 8 6 500 mA 280 mA 4 2 115 mA 0 0 0.1 0.2 VDS, DRAIN−SOURCE VOLTAGE (V) 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 Qg, GATE CHARGE Figure 7. Reverse Drain Current Variation with Diode Forward Voltage and Temperature Figure 8. Gate Charge Characteristics 1 ID, DRAIN CURRENT (A) 0.5 100 ms RDS(ON) LIMIT 1 ms 0.05 10ms SINGLE PULSE RqJA = 350°C/W TA = 25°C 0.005 0.01 0.1 1 100 ms 1s 10 s DC 10 100 200 VDS, DRAIN−SOURCE VOLTAGE (V) Figure 9. Maximum Safe Operating Area ORDERING INFORMATION Part Number Top Mark Package Shipping† 2N7002K 7K SOT−23 3L (Pb−Free) 3000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. www.onsemi.com 4 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOT−23 (TO−236) CASE 318−08 ISSUE AS DATE 30 JAN 2018 SCALE 4:1 D 0.25 3 E 1 2 T HE NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF THE BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. DIM A A1 b c D E e L L1 HE T L 3X b L1 VIEW C e TOP VIEW A A1 SIDE VIEW SEE VIEW C c MIN 0.89 0.01 0.37 0.08 2.80 1.20 1.78 0.30 0.35 2.10 0° MILLIMETERS NOM MAX 1.00 1.11 0.06 0.10 0.44 0.50 0.14 0.20 2.90 3.04 1.30 1.40 1.90 2.04 0.43 0.55 0.54 0.69 2.40 2.64 −−− 10 ° MIN 0.035 0.000 0.015 0.003 0.110 0.047 0.070 0.012 0.014 0.083 0° INCHES NOM 0.039 0.002 0.017 0.006 0.114 0.051 0.075 0.017 0.021 0.094 −−− MAX 0.044 0.004 0.020 0.008 0.120 0.055 0.080 0.022 0.027 0.104 10° GENERIC MARKING DIAGRAM* END VIEW RECOMMENDED SOLDERING FOOTPRINT XXXMG G 1 3X 2.90 3X XXX = Specific Device Code M = Date Code G = Pb−Free Package 0.90 *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. 0.95 PITCH 0.80 DIMENSIONS: MILLIMETERS STYLE 1 THRU 5: CANCELLED STYLE 6: PIN 1. BASE 2. EMITTER 3. COLLECTOR STYLE 7: PIN 1. EMITTER 2. BASE 3. COLLECTOR STYLE 9: PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 10: PIN 1. DRAIN 2. SOURCE 3. GATE STYLE 11: STYLE 12: PIN 1. ANODE PIN 1. CATHODE 2. CATHODE 2. CATHODE 3. CATHODE−ANODE 3. ANODE STYLE 15: PIN 1. GATE 2. CATHODE 3. ANODE STYLE 16: PIN 1. ANODE 2. CATHODE 3. CATHODE STYLE 17: PIN 1. NO CONNECTION 2. ANODE 3. CATHODE STYLE 18: STYLE 19: STYLE 20: PIN 1. NO CONNECTION PIN 1. CATHODE PIN 1. CATHODE 2. CATHODE 2. ANODE 2. ANODE 3. GATE 3. ANODE 3. CATHODE−ANODE STYLE 21: PIN 1. GATE 2. SOURCE 3. DRAIN STYLE 22: PIN 1. RETURN 2. OUTPUT 3. INPUT STYLE 23: PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 24: PIN 1. GATE 2. DRAIN 3. SOURCE STYLE 27: PIN 1. CATHODE 2. CATHODE 3. CATHODE STYLE 28: PIN 1. ANODE 2. ANODE 3. ANODE DOCUMENT NUMBER: DESCRIPTION: 98ASB42226B SOT−23 (TO−236) STYLE 8: PIN 1. ANODE 2. NO CONNECTION 3. CATHODE STYLE 13: PIN 1. SOURCE 2. DRAIN 3. GATE STYLE 25: PIN 1. ANODE 2. CATHODE 3. GATE STYLE 14: PIN 1. CATHODE 2. GATE 3. ANODE STYLE 26: PIN 1. CATHODE 2. ANODE 3. NO CONNECTION Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: onsemi: 2N7002K
