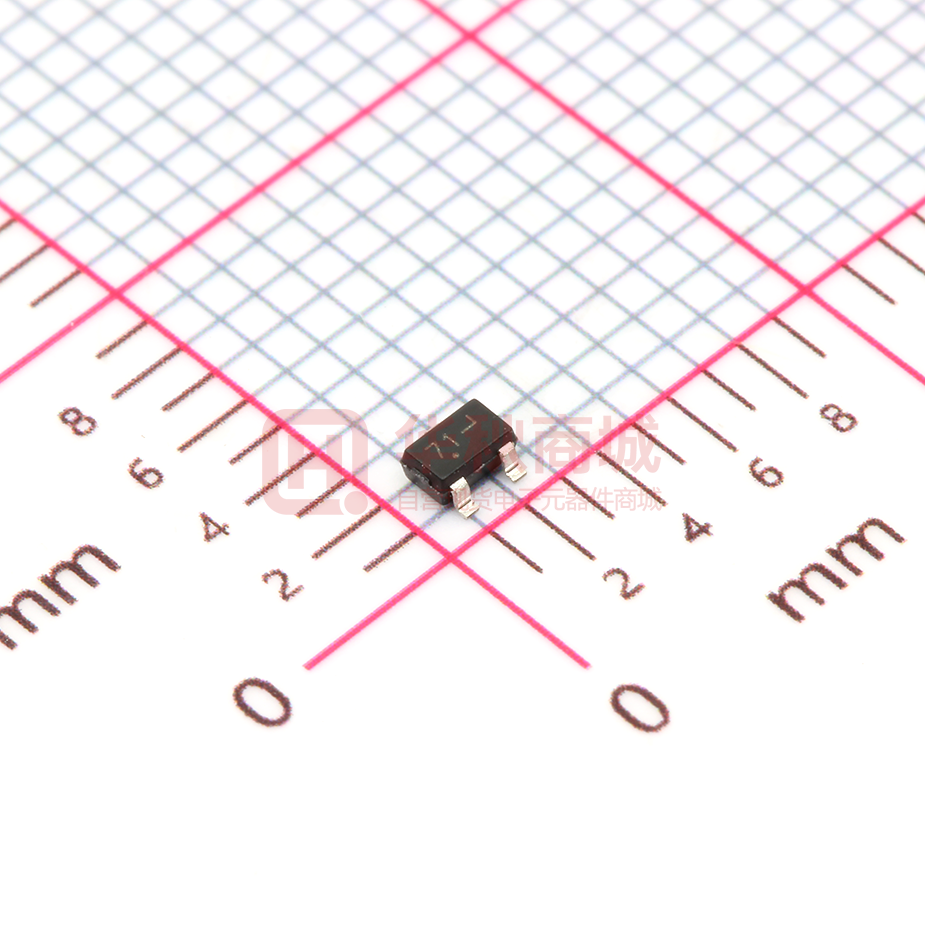

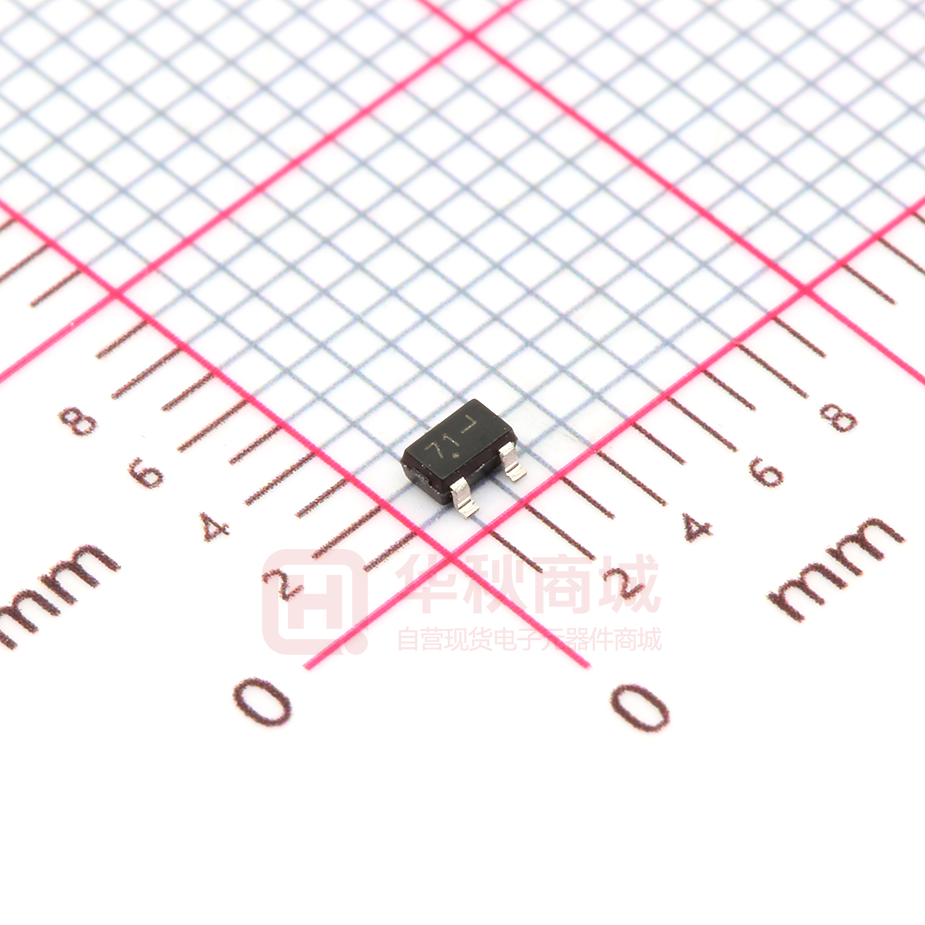

2N7002WT1G

2N7002W Small Signal MOSFET 60 V, 340 mA, Single, N−Channel, SC−70 Features • • • • • • • • ESD Protected Low RDS(on) Small Footprint Surface Mount Package This is a Pb−Free Device http://onsemi.com V(BR)DSS 60 V RDS(on) MAX 1.6 W @ 10 V 2.5 W @ 4.5 V ID MAX (Note 1) 340 mA Applications Low Side Load Switch Level Shift Circuits DC−DC Converter Portable Applications i.e. DSC, PDA, Cell Phone, etc. Simplified Schematic Gate Unit V V mA Source 2 (Top View) 1 3 Drain MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Rating Drain−to−Source Voltage Gate−to−Source Voltage Drain Current (Note 1) Steady State t
