Ordering number:ENN4668

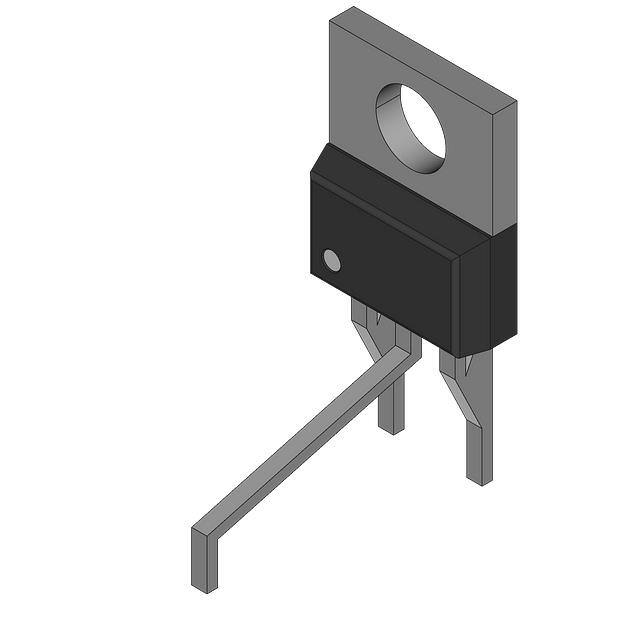

PNP Epitaxial Planar Silicon Transistor
2SA1723
High-Frequency Amplifier, Medium-Power
Amplifier Applications
Applications
Package Dimensions
· Wideband amplifiers.
· High-frequency drivers.
unit:mm
2009B
[2SA1723]
Features
8.0
2.7
1.5
7.0
3.0
11.0
4.0
· High fT (fT=1.5GHz typ).
· High current (IC=300mA).
· Adoption of FBET process.
3.0
1.6
0.8
0.8
0.6
15.5
0.5
2
3
1 : Emitter
2 : Collector
3 : Base
JEDEC : TO-126
1.2
1
2.4
Specifications
4.8
Absolute Maximum Ratings at Ta = 25˚C
Parameter
Symbol
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Conditions
Ratings
Unit
VCBO
VCEO
–30
V
–20
V
VEBO
IC
–3
–300
mA
ICP
–600
mA
1.2
W
Collector Dissipation
PC
Junction Temperature
Tj
Storage Temperature
Tstg
Tc=25˚C
V
5
W
150
˚C
–55 to +150
˚C
Electrical Characteristics at Ta = 25˚C
Parameter
Symbol
Conditions
Ratings
min
typ
max
Unit
Collector Cutoff Current
ICBO
VCB=–20V, IE=0
–0.1
µA
Emitter Cutoff Current
IEBO
VEB=–2V, IC=0
–1.0
µA
hFE1
hFE2
VCE=–5V, IC=–50mA
VCE=–5V, IC=–300mA
fT
VCE=–5V, IC=–100mA
DC Current Gain
Gain-Bandwidth Product
15
100
5
1.5
GHz
Output Capacitance
Cob
VCB=–10V, f=1MHz
5.8
pF
Reverse Transfer Capacitance
Cre
VCB=–10V, f=1MHz
5.0
pF
Collector-to-Emitter Saturation Voltage
VCE(sat)
IC=–100mA, IB=–10mA
–0.4
–1.0
V
Base-to-Emitter Saturation Voltage
VBE(sat)
IC=–100mA, IB=–10mA
–0.9
–1.2
V
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges,or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
40804TN (PC)/970794MT (KOTO) BX-0975 No.4668–1/3
2SA1723
IC -- VCE
--80
--60
A
--0.6mA
--40
--0.4mA
--0.2mA
--20
--160
--8
--12
--2.0mA
--1.5mA
--80
--1.0mA
--40
--0.5mA
IB=0
0
--16
0
--20
Collector-to-Emitter Voltage, VCE – V
--1
--2
--3
--4
ITR04379
f T -- IC
3
VCE=--5V
Gain-Bandwidth Product, fT –GHz
VCE=--5V
100
DC Current Gain, hFE
--5
Collector-to-Emitter Voltage, VCE – V
ITR04378
hFE -- IC
2
--2.5mA
--120
IB=0
--4
A
--4.5m
--4.0mA
--3.5mA
--3.0mA
mA
0
--5.
--0.8m
0
0
IC -- VCE
--200
A
A
.0m 1.8m A
--2 -6m
--1.
mA
--1.4
mA
--1.2
A
--1.0m
Collector Current, IC – mA
Collector Current, IC – mA
--100
7
5
3
2
10
7
2
1.0
7
5
3
2
0.1
5
7
3
5
5
7 --1.0
2
3
5
7 --10
2
3
5
7 --100
2
Collector Current, IC – mA
5
5
7
2
3
5
7 --10
2
3
5
7 --100
2
Collector Current, IC – mA
3
5
ITR04381
Cob, Cre -- VCB
3
IC / IB=10
2
f=1MHz
2
--1.0
10
Cob, Cre -- pF
7
5
3
2
Cob
Cre
7
5
3
2
--0.1
7
1.0
5
7
3
5
7 --1.0
2
3
5
7 --10
2
3
5
7 --100
Collector Current, IC – mA
2
3
5
5
5
Collector Dissipation, PC – W
--100
7
5
3
2
Tc=25°C
7
--1.0
7
--10
2
3
5
7
ITR04383
PC -- Ta
s
ms
DC operation
5
5
1.2
2
--10
3
1m
10
3
2
Collector-to-Base Voltage, VCB -- V
1.4
ICP=–600mA
IC=–300mA
5
7 --1.0
ITR04382
ASO
7
Collector Current, IC – mA
7 --1.0
ITR04380
VCE(sat) -- IC
3
Collector-to-Emitter
Saturation Voltage, VCE (sat) – V
3
1.0
No
0.8
he
at
sin
k
0.6
0.4
0.2
0
2
3
5
7
--10
Collector-to-Emitter Voltage, VCE – V
2
3
ITR04384
0
20
40
60
80
100
120
Ambient Temperature, Ta – ˚C
140
160
ITR04385
No.4668–2/3
