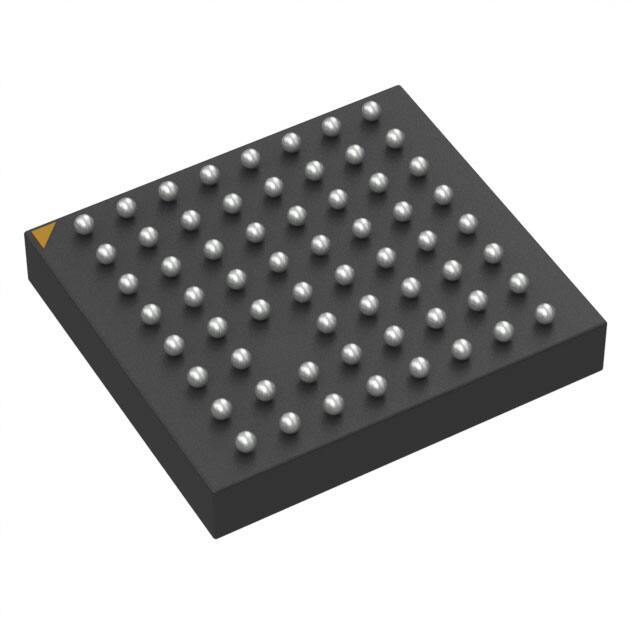

AR1335CSSC11SMKA0-CP

Intelligent Technology. Better Future. AR1335 CMOS Image Sensor, 13 MP, 1/3" Product Overview For complete documentation, see the data sheet. The AR1335 is a 1/3.2-inch CMOS active-pixel digital image sensor with a pixel array of 4208H x 3120V. The AR1335 digital image sensor, features breakthrough 1.1µm pixel technology that delivers superior low-light image quality through leading sensitivity, quantum efficiency and linear full well. This allows image quality that rivals digital still cameras. With a sensor architecture focused on low power and a high Chief Ray Angle (CRA) for low Z-heights, the AR1335 is ideal for smartphone and other mobile device applications. It incorporates sophisticated on-chip camera functions such as windowing, mirroring, column and row skip modes, and snapshot mode. It is programmable through a simple two-wire serial interface. The AR1335 sensor can generate full resolution image at up to 30 frames per second (fps) and supports advanced video modes including 4K 30fps, 1080P 60fps and 720P 120fps. Features • 13MP CMOS sensor with advanced 1.1µm pixel BSI technology • Data interfaces: 2,3 and 4 lane MIPI • Bit-depth compression available for MIPI: 10-8 and 10-6 to lower bandwidth • 3D synchronization controls to enable stereo video capture • 6.8 kbits one time programmable memory (OTPM) • Programmable controls: gain, horizontal and vertical blanking, auto black level offset correction, frame size/rate, exposure, left-right and top-bottom image reversal, window size, and panning • Two on-die phase-locked loop (PLL) oscillators for super low noise performance • On-chip temperature sensor • Bayer pattern horizontal down-size scaler • Simple two-wire fast-mode+ serial interface For more features, see the data sheet Applications End Products • Mobile • Smart Phone • 4K video capture • Digital Still Camera • High resolution still capture • PC Camera • Consumer devices AR1335 CMOS Image Sensor, 13 MP, 1/3" pg 1 / 3 Part Electrical Specifications Status Type Megapi xels Frame Rate (fps) Optical Format Shutter Type Pixel Size (µm) Output Interfac e Color AR1335CSSC11 SMD20 Active CMOS 13 30 1/3.2 inch Electron ic Rolling 1.1 x 1.1 MIPI RGB AR1335CSSC11 SMKA0-CP1 Active CMOS 13 30 1/3.2 inch Electron ic Rolling 1.1 x 1.1 MIPI RGB ODCSP63 AR1335CSSC11 SMKA0-CP2 Active CMOS 13 30 1/3.2 inch Electron ic Rolling 1.1 x 1.1 MIPI RGB ODCSP63 AR1335CSSC32 SMD20 Active CMOS 13 30 1/3.2 inch Electron ic Rolling 1.1 x 1.1 MIPI RGB AR1335CSSM11 SMD20 Active CMOS 13 30 1/3.2 inch Electron ic Rolling 1.1 x 1.1 MIPI Mono Product Pricing ($/Unit) AR1335 Complian ce CMOS Image Sensor, 13 MP, 1/3" Packag e Type pg 2 / 3 Application Diagram AR1335 CMOS Image Sensor, 13 MP, 1/3" pg 3 / 3
