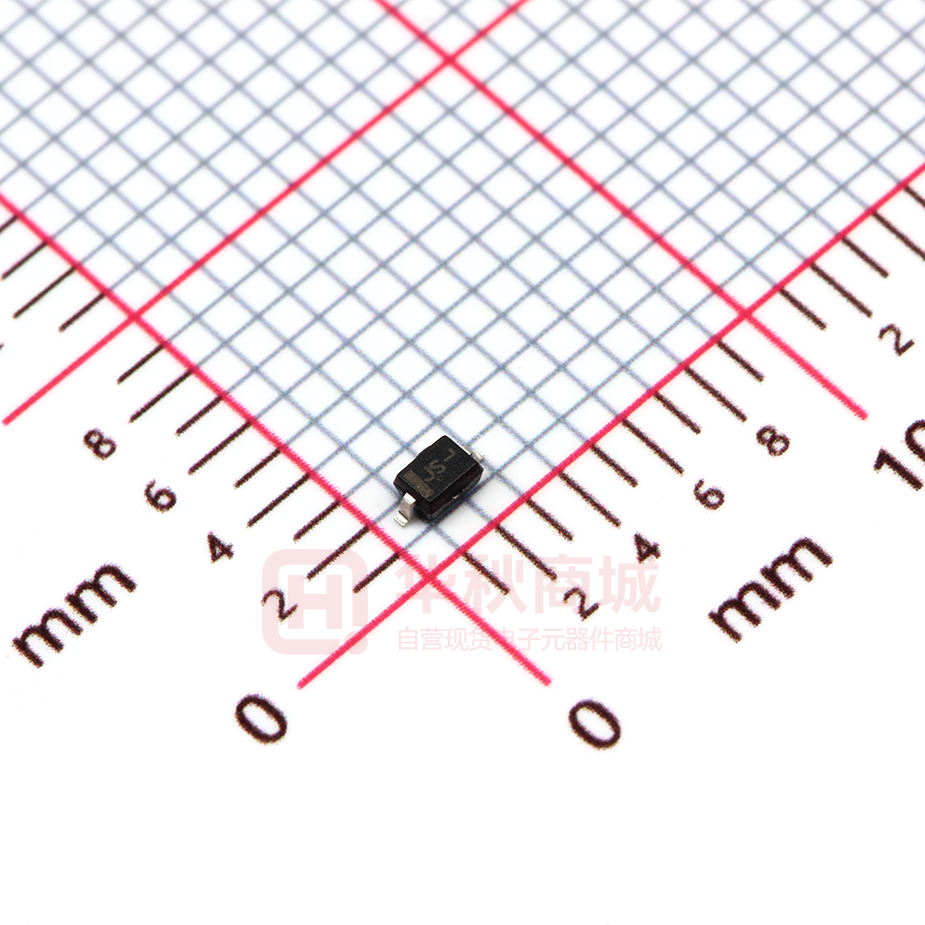

BAS21HT1G

BAS21H High Voltage Switching Diode Features • NSV Prefix for Automotive and Other Applications Requiring • www.onsemi.com Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant HIGH VOLTAGE SWITCHING DIODE MAXIMUM RATINGS Rating Continuous Reverse Voltage Repetitive Peak Reverse Voltage Peak Forward Current Repetitive Peak Forward Current Non−Repetitive Peak Forward Surge Current, 60 Hz Non−Repetitive Peak Forward Current (Square Wave, TJ = 25°C prior to surge) t = 1 ms t = 10 ms t = 100 ms t = 1 ms t=1s Symbol Value Unit VR 250 V VRRM 250 V IF 200 mA IFRM 500 mA IFSM(surge) 2.5 A IFSM A 20 20 10 4 1 Characteristic Symbol Max Unit Total Device Dissipation FR−5 Board, (Note 1) TA = 25°C Derate above 25°C PD 200 mW 1.57 mW/°C RqJA 635 °C/W TJ, Tstg −55 to +150 °C Junction and Storage Temperature Range Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. FR−5 Minimum Pad 2 ANODE MARKING DIAGRAM 2 SOD−323 CASE 477 STYLE 1 1 JS M G THERMAL CHARACTERISTICS Thermal Resistance, Junction−to−Ambient 1 CATHODE JS M G G = Device Code = Date Code* = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Device Package Shipping† BAS21HT1G, NSVBAS21HT1G SOD−323 (Pb−Free) 3000 / Tape & Reel BAS21HT3G, NSVBAS21HT3G SOD−323 (Pb−Free) 10000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2016 February, 2019 − Rev. 13 1 Publication Order Number: BAS21HT1/D BAS21H ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Characteristic Min Max − − 0.1 100 250 − − − 1000 1250 Unit OFF CHARACTERISTICS Reverse Voltage Leakage Current (VR = 200 Vdc) (VR = 200 Vdc, TJ = 150°C) IR Reverse Breakdown Voltage (IBR = 100 mAdc) V(BR) mAdc Vdc Forward Voltage (IF = 100 mAdc) (IF = 200 mAdc) VF mV Diode Capacitance (VR = 0, f = 1.0 MHz) CD − 5.0 pF Reverse Recovery Time (IF = IR = 30 mAdc, RL = 100 W) trr − 50 ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 820 W +10 V 2.0 k 100 mH tr 0.1 mF IF tp t IF trr 10% t 0.1 mF 90% D.U.T. 50 W OUTPUT PULSE GENERATOR 50 W INPUT SAMPLING OSCILLOSCOPE iR(REC) = 3.0 mA IR VR INPUT SIGNAL OUTPUT PULSE (IF = IR = 30 mA; MEASURED at iR(REC) = 3.0 mA) Notes: 1. A 2.0 kW variable resistor adjusted for a Forward Current (IF) of 30 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 30 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit www.onsemi.com 2 BAS21H TYPICAL CHARACTERISTICS TA = −55°C 1000 25°C 800 REVERSE CURRENT (nA) FORWARD VOLTAGE (mV) 1200 155°C 600 400 200 1 1 10 100 7000 6000 5000 4000 3000 4 3 2 TA = 25°C TA = −55°C 1 2 5 10 20 50 100 FORWARD CURRENT (mA) REVERSE VOLTAGE (V) Figure 2. Forward Voltage Figure 3. Reverse Leakage 200 300 25 1.0 0.9 Based on square wave currents TJ = 25°C prior to surge 20 0.8 0.7 IFSM (A) Cd, DIODE CAPACITANCE (pF) 6 5 1 0 1000 TA = 155°C 0.6 15 10 0.5 5 0.4 0.3 0 1 2 3 4 5 6 7 0 8 0.001 0.01 0.1 1 VR, REVERSE VOLTAGE (V) Tp (mSec) Figure 4. Diode Capacitance Figure 5. Maximum Non−repetitive Peak Forward Current as a Function of Pulse Duration, Typical Values www.onsemi.com 3 10 BAS21H PACKAGE DIMENSIONS SOD−323 CASE 477−02 ISSUE H NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 A3 A C NOTE 3 L NOTE 5 A1 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 STYLE 1: PIN 1. CATHODE 2. ANODE SOLDERING FOOTPRINT* 0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 www.onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative BAS21HT1/D
