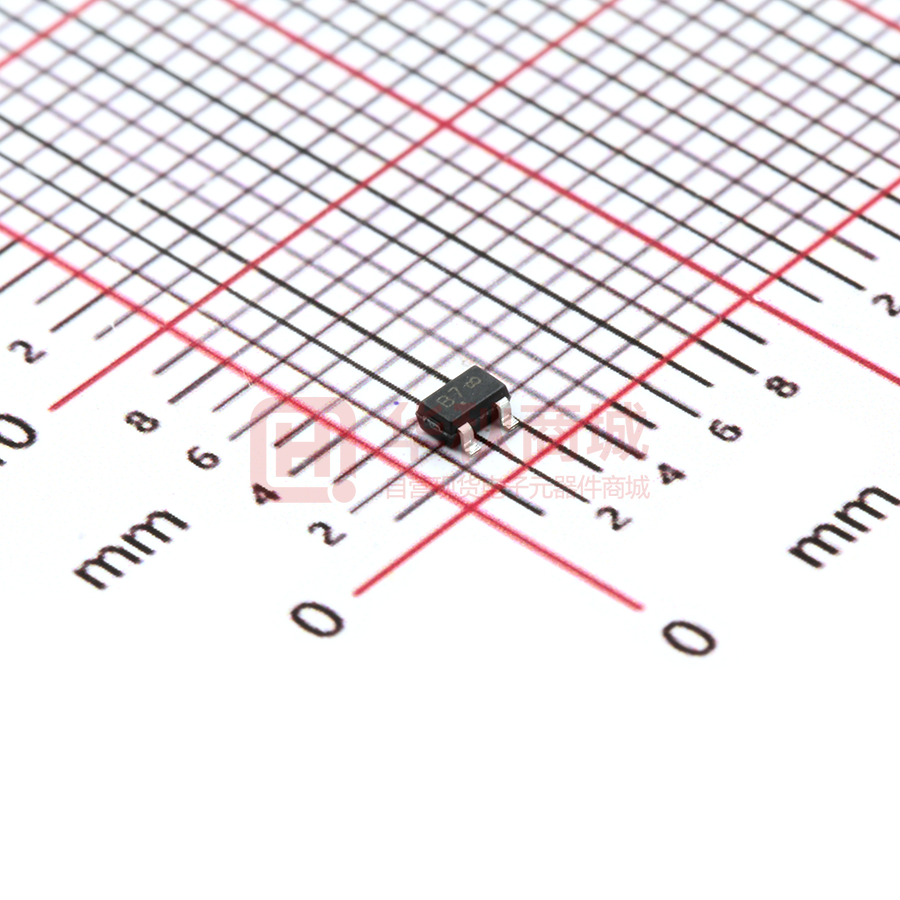

BAT54AWT1G

BAT54AW Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. www.onsemi.com Features • Extremely Fast Switching Speed • Low Forward Voltage − 0.35 V (Typ) @ IF = 10 mAdc • S Prefix for Automotive and Other Applications Requiring Unique • Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* 30 VOLT SCHOTTKY BARRIER DETECTOR AND SWITCHING DIODES MAXIMUM RATINGS (TJ = 125°C unless otherwise noted) Rating Symbol Value Unit Reverse Voltage VR 30 V Forward Power Dissipation @ TA = 25°C Derate above 25°C PF 200 1.6 mW mW/°C Forward Current (DC) IF 200 Max mA Non−Repetitive Peak Forward Current tp < 10 msec IFSM Repetitive Peak Forward Current Pulse Wave = 1 sec, Duty Cycle = 66% IFRM SOT−323 CASE 419 STYLE 4 CATHODE 1 ANODE 3 2 CATHODE mA MARKING DIAGRAM 600 mA 300 Junction Temperature TJ −55 to 150 °C Storage Temperature Range Tstg −55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. B7M G G 1 B7 M G = Device Code = Date Code* = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation may vary depending upon manufacturing location. ORDERING INFORMATION Package Shipping† BAT54AWT1G SOT−323 (Pb−Free) 3,000/Tape & Reel SBAT54AWT1G SOT−323 (Pb−Free) 3,000/Tape & Reel Device *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2015 October, 2015 − Rev. 5 1 †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Publication Order Number: BAT54AWT1/D BAT54AW ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) (EACH DIODE) Characteristic Symbol Reverse Breakdown Voltage (IR = 10 A) Min Typ Max 30 − − − 7.6 10 − 0.5 2.0 − − − − − 0.22 0.29 0.35 0.41 0.52 0.24 0.32 0.40 0.50 0.80 − − 5.0 Unit V(BR)R Total Capacitance (VR = 1.0 V, f = 1.0 MHz) CT Reverse Leakage (VR = 25 V) IR Forward Voltage (IF = 0.1 mA) (IF = 1.0 mA) (IF = 10 mA) (IF = 30 mA) (IF = 100 mA) VF Reverse Recovery Time (IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc, Figure 1) trr V pF Adc V ns 820  +10 V 2k 100 H 0.1 F IF tr 0.1 F tp T IF trr 10% T DUT 50  OUTPUT PULSE GENERATOR 50  INPUT SAMPLING OSCILLOSCOPE 90% iR(REC) = 1 mA IR VR INPUT SIGNAL OUTPUT PULSE (IF = IR = 10 mA; measured at iR(REC) = 1 mA) Notes: 1. A 2.0 k variable resistor adjusted for a Forward Current (IF) of 10 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit www.onsemi.com 2 BAT54AW 100 IF, FORWARD CURRENT (mA) 1 25°C 85°C 10 1 50°C 1.0 25°C 0.1 0.0 −40°C −55°C 0.2 0.3 0.4 VF, FORWARD VOLTAGE (V) 0.1 0.5 0.6 Figure 2. Forward Voltage 1000 IR, REVERSE CURRENT (A) TA = 150°C 100 TA = 125°C 10 1.0 TA = 85°C 0.1 0.01 TA = 25°C 0.001 0 5 15 10 20 VR, REVERSE VOLTAGE (V) 25 30 25 30 Figure 3. Leakage Current CT, TOTAL CAPACITANCE (pF) 14 12 10 8 6 4 2 0 0 5 10 15 20 VR, REVERSE VOLTAGE (V) Figure 4. Total Capacitance www.onsemi.com 3 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SC−70 (SOT−323) CASE 419 ISSUE P DATE 07 OCT 2021 SCALE 4:1 GENERIC MARKING DIAGRAM XX MG G 1 XX M G = Specific Device Code = Date Code = Pb−Free Package *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. STYLE 1: CANCELLED STYLE 6: PIN 1. EMITTER 2. BASE 3. COLLECTOR DOCUMENT NUMBER: DESCRIPTION: STYLE 2: PIN 1. ANODE 2. N.C. 3. CATHODE STYLE 3: PIN 1. BASE 2. EMITTER 3. COLLECTOR STYLE 4: PIN 1. CATHODE 2. CATHODE 3. ANODE STYLE 5: PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 7: PIN 1. BASE 2. EMITTER 3. COLLECTOR STYLE 8: PIN 1. GATE 2. SOURCE 3. DRAIN STYLE 9: PIN 1. ANODE 2. CATHODE 3. CATHODE-ANODE STYLE 10: PIN 1. CATHODE 2. ANODE 3. ANODE-CATHODE 98ASB42819B SC−70 (SOT−323) STYLE 11: PIN 1. CATHODE 2. CATHODE 3. CATHODE Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries. onsemi reserves the right to make changes without further notice to any products herein. onsemi makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. onsemi does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
