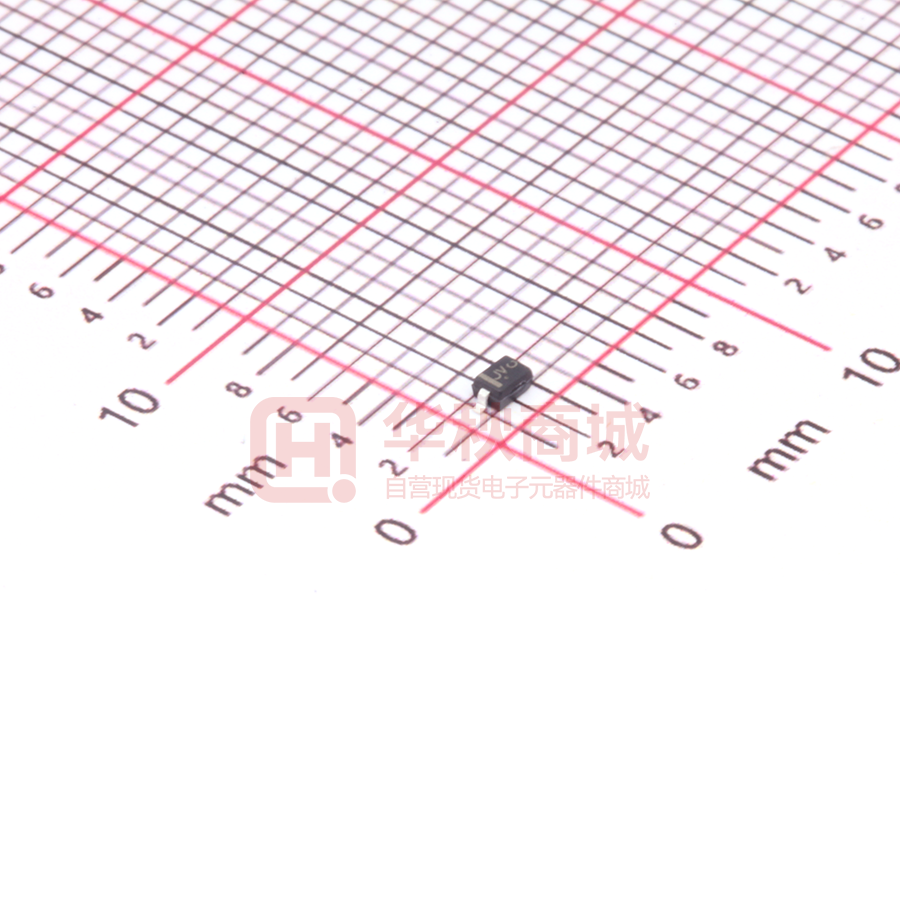

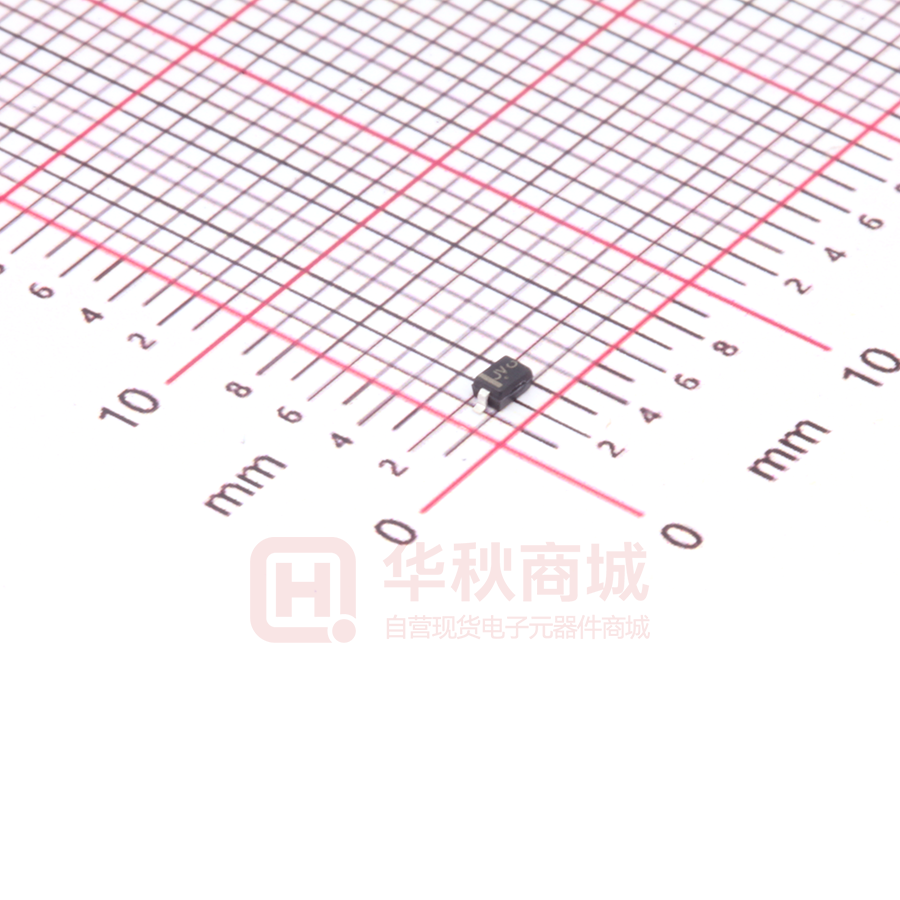

BAT54HT1G

BAT54H Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. www.onsemi.com Features • • • • • Extremely Fast Switching Speed Low Forward Voltage − 0.35 V (Typ) @ IF = 10 mAdc Device Marking: JV NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant* 30 VOLT SILICON HOT−CARRIER DETECTOR AND SWITCHING DIODES SOD−323 CASE 477 STYLE 1 MAXIMUM RATINGS (TJ = 125°C unless otherwise noted) Rating Reverse Voltage Symbol Value Unit VR 30 V 1 CATHODE Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. MARKING DIAGRAM THERMAL CHARACTERISTICS Characteristic Symbol Total Device Dissipation FR−5 Board, (Note 1) TA = 25°C Derate above 25°C PD Forward Current (DC) IF Non−Repetitive Peak Forward Current, tp < 10 msec IFSM Repetitive Peak Forward Current Pulse Wave = 1 sec, Duty Cycle = 66% IFRM Thermal Resistance Junction−to−Ambient RqJA Junction and Storage Temperature Range Max Unit 200 1.57 mW mW/°C 200 Max mA mA 600 mA 300 TJ, Tstg 1 JV M G °C −55 to150 JVM G G 2 = Device Code = Date Code = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping† BAT54HT1G SOD−323 (Pb−Free) 3,000 / Tape & Reel NSVBAT54HT1G SOD−323 (Pb−Free) 3,000 / Tape & Reel °C/W 635 2 ANODE †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. 1. FR−4 Minimum Pad *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. © Semiconductor Components Industries, LLC, 2014 December, 2014 − Rev. 7 1 Publication Order Number: BAT54HT1/D BAT54H ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Characteristic Symbol Reverse Breakdown Voltage (IR = 10 μA) Min Typ Max 30 − − − 7.6 10 − 0.5 2.0 − − − − − 0.22 0.29 0.35 0.41 0.52 0.24 0.32 0.40 0.50 0.80 − − 5.0 V(BR)R Total Capacitance (VR = 1.0 V, f = 1.0 MHz) CT Reverse Leakage (VR = 25 V) IR Forward Voltage (IF = 0.1 mA) (IF = 1.0 mA) (IF = 10 mA) (IF = 30 mA) (IF = 100 mA) VF Reverse Recovery Time (IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc) Figure 1 trr Unit V pF μAdc V ns 820 Ω +10 V 2k 100 μH 0.1 μF tr IF tp 0.1 μF t IF trr 10% t DUT 50 Ω Output Pulse Generator 50 Ω Input Sampling Oscilloscope 90% iR(REC) = 1 mA IR VR INPUT SIGNAL OUTPUT PULSE (IF = IR = 10 mA; measured at iR(REC) = 1 mA) Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (IF) of 10 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit www.onsemi.com 2 BAT54H IF, FORWARD CURRENT (mA) 100 1 50°C 10 1 25°C 1.0 85°C 25°C 0.1 0.0 0.2 0.1 −40°C 0.3 −55°C 0.4 0.5 0.6 VF, FORWARD VOLTAGE (VOLTS) Figure 2. Forward Voltage 1000 IR, REVERSE CURRENT (μA) TA = 150°C 100 TA = 125°C 10 1.0 TA = 85°C 0.1 0.01 TA = 25°C 0.001 0 5 10 15 20 25 30 VR, REVERSE VOLTAGE (VOLTS) Figure 3. Leakage Current CT, TOATAL CAPACITANCE (pF) 14 12 10 8 6 4 2 0 0 5 10 15 20 VR, REVERSE VOLTAGE (VOLTS) Figure 4. Total Capacitance www.onsemi.com 3 25 30 BAT54H PACKAGE DIMENSIONS SOD−323 CASE 477−02 ISSUE H NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 A3 A C NOTE 3 L NOTE 5 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 STYLE 1: PIN 1. CATHODE (POLARITY BAND) 2. ANODE A1 SOLDERING FOOTPRINT* 0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 www.onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative BAT54HT1/D
