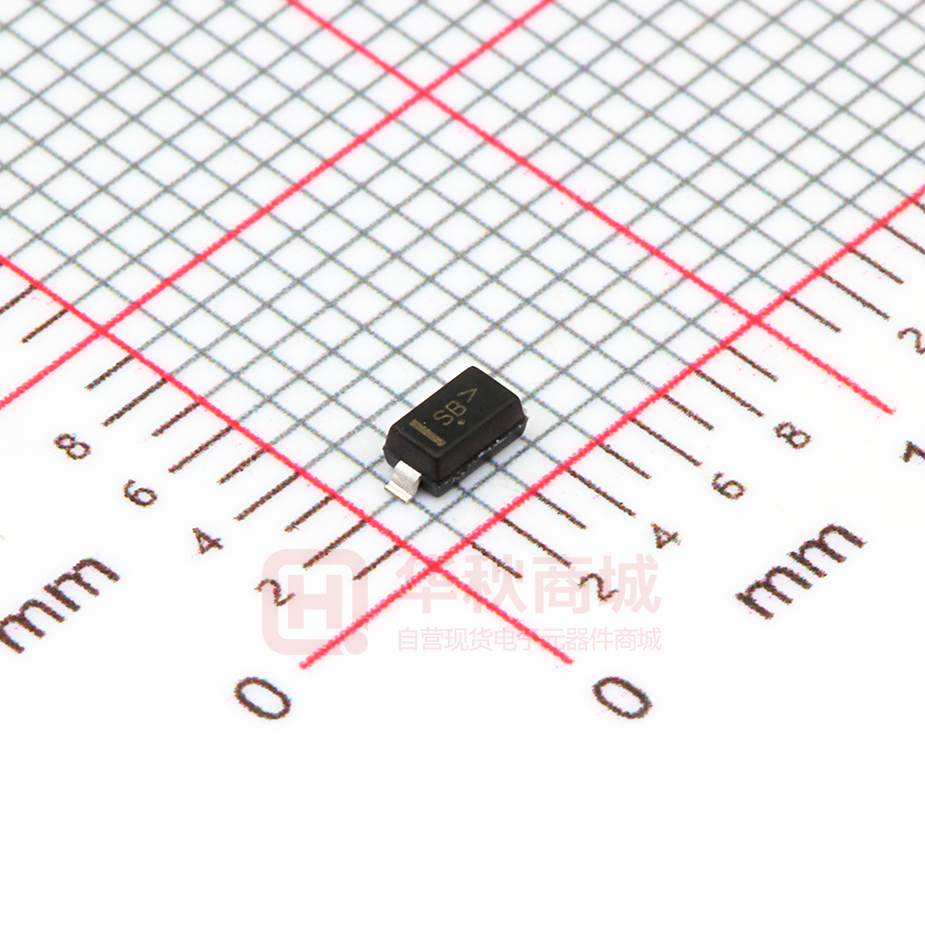

BAT54T1G

BAT54T1G, SBAT54T1G Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited. http://onsemi.com Features • Extremely Fast Switching Speed • Low Forward Voltage − 0.35 Volts (Typ) @ IF = 10 mAdc • S Prefix for Automotive and Other Applications Requiring Unique • Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant 30 VOLT SCHOTTKY BARRIER DETECTOR AND SWITCHING DIODES 1 CATHODE MAXIMUM RATINGS (TJ = 125°C unless otherwise noted) Symbol Value Unit Reverse Voltage VR 30 V Forward Power Dissipation, FR−5 Board (Note 1) @ TA = 25°C Derate above 25°C PF Rating 2 400 3.2 mW mW/°C Thermal Resistance, Junction−to−Case RJL 174 °C/W Thermal Resistance, Junction−to−Ambient RJA 492 °C/W IF 200 Max mA Non−Repetitive Peak Forward Current tp < 10 msec IFSM 600 mA Repetitive Peak Forward Current Pulse Wave = 1 sec, Duty Cycle = 66% IFRM 300 mA Junction Temperature TJ −55 to 125 °C Storage Temperature Range Tstg −55 to +150 °C Forward Current (DC) 2 ANODE 1 SOD−123 CASE 425 STYLE 1 MARKING DIAGRAM Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. FR-5 = 1.0 x 0.75 x 0.062 in. 1 SB M G SBM G G = Device Code = Date Code = Pb−Free Package (Note: Microdot may be in either location) ORDERING INFORMATION Device Package Shipping† BAT54T1G SOD−123 (Pb−Free) 3000 / Tape & Reel SBAT54T1G SOD−123 (Pb−Free) 3000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. © Semiconductor Components Industries, LLC, 2014 April, 2014 − Rev. 10 1 Publication Order Number: BAT54T1/D BAT54T1G, SBAT54T1G ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Min Typ Max Unit V(BR)R 30 − − V Total Capacitance (VR = 1.0 V, f = 1.0 MHz) CT − 7.6 10 pF Reverse Leakage (VR = 25 V) IR − 0.5 2.0 Adc Forward Voltage (IF = 0.1 mAdc) VF − 0.22 0.24 Vdc Forward Voltage (IF = 30 mAdc) VF − 0.41 0.5 Vdc Forward Voltage (IF = 100 mAdc) VF − 0.52 0.8 Vdc Reverse Recovery Time (IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc, Figure 1) trr − − 5.0 ns Forward Voltage (IF = 1.0 mAdc) VF − 0.29 0.32 Vdc Forward Voltage (IF = 10 mAdc) VF − 0.35 0.40 Vdc Characteristic Reverse Breakdown Voltage (IR = 10 A) Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 820  +10 V 2k 100 H 0.1 F tr IF 0.1 F tp t IF trr 10% t DUT 50  Output Pulse Generator 50  Input Sampling Oscilloscope 90% iR(REC) = 1 mA IR VR INPUT SIGNAL OUTPUT PULSE (IF = IR = 10 mA; measured at iR(REC) = 1 mA) Notes: 1. A 2.0 k variable resistor adjusted for a Forward Current (IF) of 10 mA. Notes: 2. Input pulse is adjusted so IR(peak) is equal to 10 mA. Notes: 3. tp » trr Figure 1. Recovery Time Equivalent Test Circuit http://onsemi.com 2 BAT54T1G, SBAT54T1G 100 IF, FORWARD CURRENT (mA) 1 25°C 85°C 10 1 50°C 1.0 25°C 0.1 0.0 −40°C −55°C 0.2 0.3 0.4 0.1 0.5 VF, FORWARD VOLTAGE (VOLTS) 0.6 Figure 2. Forward Voltage 1000 IR, REVERSE CURRENT (A) TA = 150°C 100 TA = 125°C 10 1.0 TA = 85°C 0.1 0.01 TA = 25°C 0.001 0 5 15 25 10 20 VR, REVERSE VOLTAGE (VOLTS) 30 Figure 3. Leakage Current CT, TOTAL CAPACITANCE (pF) 14 12 10 8 6 4 2 0 0 5 10 15 20 VR, REVERSE VOLTAGE (VOLTS) Figure 4. Total Capacitance http://onsemi.com 3 25 30 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS SOD−123 CASE 425−04 ISSUE G DATE 07 OCT 2009 SCALE 5:1 D A ÂÂÂÂ ÂÂÂÂ ÂÂÂÂ A1 1 HE DIM A A1 b c D E HE L q E 2 q L b C ÉÉÉ ÉÉÉ ÉÉÉ 2.36 0.093 4.19 0.165 ÉÉÉ ÉÉÉ ÉÉÉ MILLIMETERS MIN NOM MAX 0.94 1.17 1.35 0.00 0.05 0.10 0.51 0.61 0.71 ----0.15 1.40 1.60 1.80 2.54 2.69 2.84 3.56 3.68 3.86 ----0.25 --10 ° 0° MIN 0.037 0.000 0.020 --0.055 0.100 0.140 0.010 0° INCHES NOM 0.046 0.002 0.024 --0.063 0.106 0.145 ----- MAX 0.053 0.004 0.028 0.006 0.071 0.112 0.152 --10 ° GENERIC MARKING DIAGRAM* 1 SOLDERING FOOTPRINT* 0.91 0.036 NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: INCH. XXXMG G XXX = Specific Device Code M = Date Code G = Pb−Free Package (Note: Microdot may be in either location) 1.22 0.048 *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “ G”, may or may not be present. STYLE 1: PIN 1. CATHODE 2. ANODE SCALE 10:1 mm Ǔ ǒinches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DOCUMENT NUMBER: DESCRIPTION: 98ASB42927B SOD−123 Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
