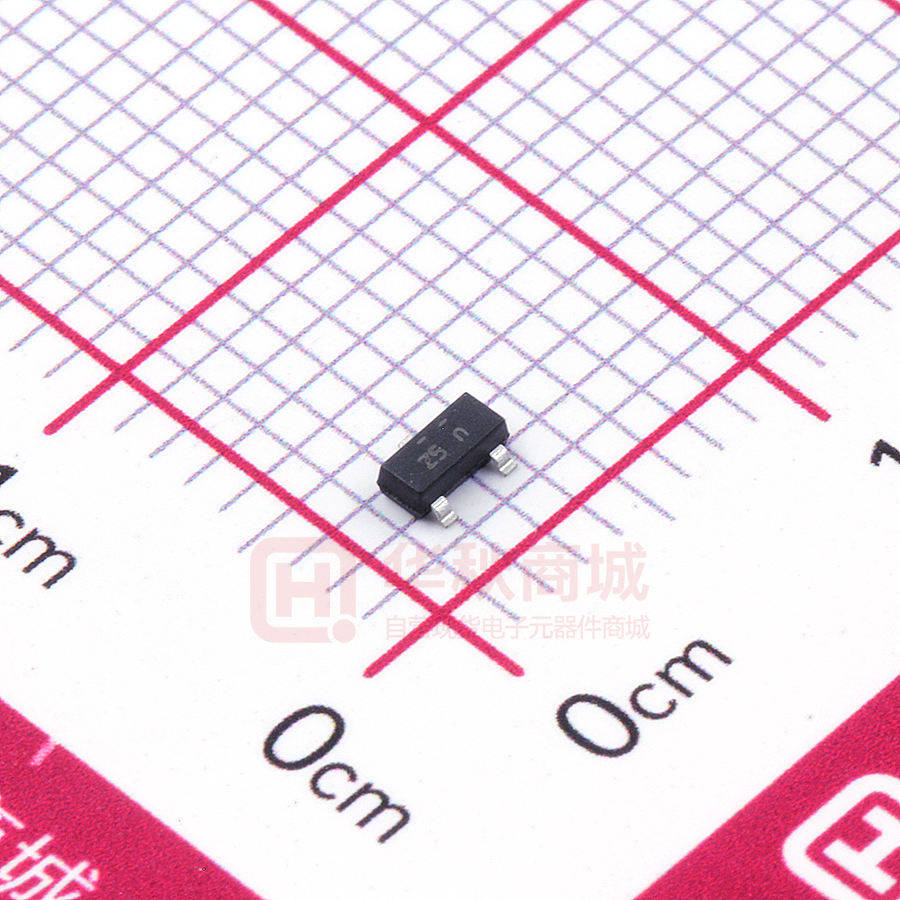

BZX84C6V8

November 2015 BZX84C3V3 - BZX84C33 Zeners Tolerance: C = 5% Absolute Maximum Ratings(1),(2) Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Values are at TA = 25°C unless otherwise noted. Symbol Value Unit IFRM Repetitive Peak Forward Current 250 mA IZRM Repetitive Peak Working Current 250 mA PD R JA JL TSTG TJ Parameter Power Dissipation Referencing R Referencing JA, TA = 25°C JL, TL = 25°C 250 550 mW Junction-to-Ambient Thermal Resistance(3) 465 C/W Junction-to-Lead Thermal Characteristics (with reference to Cathode) 220 C/W Storage Temperature Range -55 to +150 °C Operating Junction Temperature -55 to +150 °C Notes: 1. These ratings are based on a maximum junction temperature of 150 C. 2. These are steady-state limits. Fairchild Semiconductor should be consulted on applications involving pulsed or low-duty-cycle operations. 3. Device mounted on FR-4 PCB, board size = 76.2 mm x 114.3 mm © 2001 Fairchild Semiconductor Corporation BZX84C3V3 - BZX84C33 Rev. 1.10 www.fairchildsemi.com Electrical Characteristics Values are at TA = 25°C unless otherwise noted. IZ = 5.0 mA Device Mark VZ (V) Min. Max. IZ = 1.0 mA VZ (V) ZZ ( ) Min. Max. IZ = 20 mA ZZ ( ) VZ (V) Min. Max. ZZ ( ) BZX84C3V3 Z14 3.1 3.5 95 2.3 2.9 600 3.6 4.2 40 BZX84C3V6 Z15 3.4 3.8 90 2.7 3.3 600 3.9 4.5 40 BZX84C3V9 Z16 3.7 4.1 90 2.9 3.5 600 4.1 4.7 30 BZX84C4V3 Z17 4.0 4.6 90 3.3 4.0 600 4.4 5.1 30 BZX84C4V7 Z1 4.4 5.0 80 3.7 4.7 500 4.5 5.4 15 BZX84C5V1 Z2 4.8 5.4 60 4.2 5.3 480 5.0 5.9 15 BZX84C5V6 Z3 5.2 6.0 40 4.8 6.0 400 5.2 6.3 10 BZX84C6V2 Z4 5.8 6.6 10 5.6 6.6 150 5.8 6.8 6 BZX84C6V8 Z5 6.4 7.2 15 6.3 7.2 80 6.4 7.4 6 BZX84C7V5 Z6 7.0 7.9 15 6.9 7.9 80 7.0 8.0 6 BZX84C8V2 Z7 7.7 8.7 15 7.6 8.7 80 7.7 8.8 6 BZX84C9V1 Z8 8.5 9.6 15 8.4 9.6 100 8.5 9.7 8 BZX84C10 Z9 9.4 10.6 20 9.3 10.6 150 9.4 10.7 10 BZX84C11 Y1 10.4 11.6 20 10.2 11.6 150 10.4 11.8 10 BZX84C12 Y2 11.4 12.7 25 11.2 12.7 150 11.4 12.9 10 BZX84C13 Y3 12.4 14.1 30 12.3 14.0 170 12.5 14.2 15 BZX84C15 Y4 13.8 15.6 30 13.7 15.5 200 13.9 15.7 20 BZX84C16 Y5 15.3 17.1 40 15.2 17.0 200 15.4 17.2 20 BZX84C18 Y6 16.8 19.1 45 16.7 19.0 225 16.9 19.2 20 BZX84C20 Y7 18.8 21.2 55 18.7 21.1 225 18.9 21.4 20 BZX84C22 Y8 20.8 23.3 55 20.7 23.2 250 20.9 23.4 25 BZX84C24 Y9 22.8 25.6 70 22.7 25.5 250 22.9 25.7 25 BZX84C27 Y10 25.1 28.9 80 25.0 28.9 300 25.2 29.3 45 BZX84C30 Y11 28.0 32.0 80 27.8 32.0 300 28.1 32.4 50 BZX84C33 Y12 31.0 35.0 80 30.8 35.0 325 31.1 35.4 55 VF Forward Voltage = 0.9 V Maximum at IF =10 mA for all BZX84 series © 2001 Fairchild Semiconductor Corporation BZX84C3V3 - BZX84C33 Rev. 1.10 www.fairchildsemi.com 2 Electrical Characteristics (Continued) Values are at TA = 25°C unless otherwise noted. DVZ / Dt at 5.0 mA (mV/k) Device VR (V) IR ( A) Cap(4) (pF) Min. Max. BZX84C3V3 1.0 5.0 450 -3.5 0.0 BZX84C3V6 1.0 5.0 450 -3.5 0.0 BZX84C3V9 1.0 5.0 450 -3.5 0.0 BZX84C4V3 1.0 5.0 450 -3.5 0.0 BZX84C4V7 2.0 3 260 -3.5 0.2 BZX84C5V1 2.0 2 225 -2.7 1.2 BZX84C5V6 2.0 1 200 -2.0 2.5 BZX84C6V2 4.0 3 185 0.4 3.7 BZX84C6V8 4.0 2 155 1.2 4.5 BZX84C7V5 5.0 1 140 2.5 5.3 BZX84C8V2 5.0 0.7 135 3.2 6.2 BZX84C9V1 6.0 0.5 130 3.8 7.0 BZX84C10 7.0 0.2 130 4.5 8.0 BZX84C11 8.0 0.1 130 5.4 9.0 BZX84C12 8.0 0.1 130 6.0 10 BZX84C13 8.0 0.1 120 7.0 11 BZX84C15 10.5 0.05 110 9.2 13 BZX84C16 11.2 0.05 105 10.4 14 BZX84C18 12.6 0.05 100 12.4 16 BZX84C20 14 0.05 85 14.4 18 BZX84C22 15.4 0.05 85 16.4 20 BZX84C24 16.8 0.05 80 18.4 22 BZX84C27 18.9 0.05 70 21.4 25.3 BZX84C30 21 0.05 70 24.4 29.4 BZX84C33 23.1 0.05 70 27.4 33.4 Note: 4. Capacitance at VR= 0.0 V, f = 1.0 MHz. © 2001 Fairchild Semiconductor Corporation BZX84C3V3 - BZX84C33 Rev. 1.10 www.fairchildsemi.com 3 Typical Performance Characteristics Figure 2. Zener Current vs. Zener Impedance Figure 1. Zener Current vs. Zener Voltage 4.5 VZ= 3.3 V 4.0 o TA= -25 C 3.5 o TA= 25 C o TA= 85 C 3.0 o TA= 100 C o TA= 125 C 2.5 2.0 1 10 IZ - ZENER CURRENT (mA) Figure 3. 3.3 V Zener Voltage vs. Temperature Figure 4. 5.1 V Zener Voltage vs. Temperature Figure 5. 12 V Zener Voltage vs. Zener Temperature Figure 6. 33 V Zener Voltage vs. Zener Temperature © 2001 Fairchild Semiconductor Corporation BZX84C3V3 - BZX84C33 Rev. 1.10 www.fairchildsemi.com 4 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303 675 2175 or 800 344 3860 Toll Free USA/Canada Fax: 303 675 2176 or 800 344 3867 Toll Free USA/Canada Email: orderlit@onsemi.com Semiconductor Components Industries, LLC N. American Technical Support: 800 282 9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81 3 5817 1050 www.onsemi.com 1 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative www.onsemi.com
