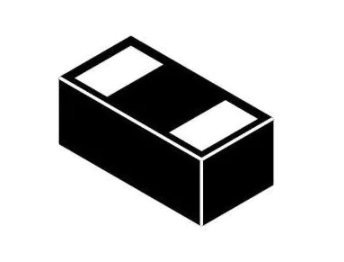

ESD5481MUT5G

ESD5481 ESD Protection Diode Micro−Packaged Diodes for ESD Protection The ESD5481 is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time provide best in class protection on designs that are exposed to ESD. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space comes at a premium. www.onsemi.com 1 Specification Features • • • • • • • • • • Low Capacitance 15 pF Low Clamping Voltage Small Body Outline Dimensions: 0.60 mm x 0.30 mm Low Body Height: 0.3 mm Stand−off Voltage: 5.0 V Low Leakage Response Time is < 1 ns IEC61000−4−2 Level 4 ESD Protection IEC61000−4−4 Level 4 EFT Protection These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant X3DFN2 CASE 152AF AM A = Specific Device Code M = Date Code ORDERING INFORMATION Package Shipping† X3DFN2 (Pb−Free) 10,000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. MAXIMUM RATINGS Symbol Value Unit IEC 61000−4−2 (ESD) Contact Air ±20 ±20 kV IEC 61000−4−4 (EFT) 5/50 ns 40 A Total Power Dissipation on FR−5 Board (Note 1) @ TA = 25°C Thermal Resistance, Junction−to−Ambient °PD° 300 mW RqJA 400 °C/W Junction and Storage Temperature Range TJ, Tstg −55 to +150 °C TL 260 °C Lead Solder Temperature − Maximum (10 Second Duration) PIN 1 ESD5481MUT5G Device Meets MSL 1 Requirements Rating MARKING DIAGRAM Device Mechanical Characteristics MOUNTING POSITION: Any QUALIFIED MAX REFLOW TEMPERATURE: 260°C 2 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. FR−5 = 1.0 x 0.75 x 0.62 in. See Application Note AND8308/D for further description of survivability specs. © Semiconductor Components Industries, LLC, 2016 September, 2017 − Rev. 9 1 Publication Order Number: ESD5481/D ESD5481 ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) IPP Parameter Symbol IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR IT IR VRWM VBR VC IT Working Peak Reverse Voltage V RDYN Breakdown Voltage @ IT IPP Test Current RDYN RDYN IT VC VBR VRWM IR Maximum Reverse Leakage Current @ VRWM VBR I Dynamic Resistance Bi−Directional *See Application Note AND8308/D for detailed explanations of datasheet parameters. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Reverse Working Voltage Symbol VRWM Conditions Min Typ I/O Pin to I/O Pin Max Unit 5.0 V Breakdown Voltage VBR IT = 5 mA 4.5 10 V Breakdown Voltage VBR IT = 1 mA 5.7 8.0 V 1.0 mA Reverse Leakage Current IR VRWM = 5.0 V Clamping Voltage (Note 2) VC IEC61000−4−2, ±8 kV Contact Clamping Voltage TLP (Note 3) VC IPP = 16 A IPP = −16 A Clamping Voltage 8/20 ms Waveform per Figure 10 VC Dynamic Resistance RDYN See Figures 1 and 2 V 19.7 −11 23 −13 V IPP = 1 A IPP = 2 A 9.8 12.4 12 15 V Pin 1 to Pin 2 Pin 2 to Pin 1 0.49 0.28 W A IEC 61000−4−2 Level 2 equivalent (±8 kV Contact, ±15 kV Air) Reverse Peak Pulse Current IPP per IEC 61000−4−5 (8/20 ms) Figure 10 2.0 Junction Capacitance CJ VR = 0 V, f = 1 MHz 12 15 pF Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 2. For test procedure see application note AND8307/D. 3. ANSI/ESD STM5.5.1 − Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model. TLP conditions: Z0 = 50 W, tp = 100 ns, tr = 4 ns, averaging window; t1 = 30 ns to t2 = 60 ns. Figure 1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2 Figure 2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000−4−2 www.onsemi.com 2 ESD5481 IEC61000−4−2 Waveform IEC 61000−4−2 Spec. Ipeak Level Test Voltage (kV) First Peak Current (A) Current at 30 ns (A) Current at 60 ns (A) 1 2 7.5 4 2 2 4 15 8 4 3 6 22.5 12 6 4 8 30 16 8 100% 90% I @ 30 ns I @ 60 ns 10% tP = 0.7 ns to 1 ns Figure 3. IEC61000−4−2 Spec Oscilloscope ESD Gun 50 W Cable 50 W Figure 4. Diagram of ESD Test Setup The following is taken from Application Note AND8308/D − Interpretation of Datasheet Parameters for ESD Devices. systems such as cell phones or laptop computers it is not clearly defined in the spec how to specify a clamping voltage at the device level. ON Semiconductor has developed a way to examine the entire voltage waveform across the ESD protection diode over the time domain of an ESD pulse in the form of an oscilloscope screenshot, which can be found on the datasheets for all ESD protection diodes. For more information on how ON Semiconductor creates these screenshots and how to interpret them please refer to AND8307/D. ESD Voltage Clamping For sensitive circuit elements it is important to limit the voltage that an IC will be exposed to during an ESD event to as low a voltage as possible. The ESD clamping voltage is the voltage drop across the ESD protection diode during an ESD event per the IEC61000−4−2 waveform. Since the IEC61000−4−2 was written as a pass/fail spec for larger www.onsemi.com 3 ESD5481 −24 20 −22 10 12 6 10 4 8 6 4 0 2 4 6 8 10 12 14 16 18 20 22 24 TLP Current[A] 14 EQUIVALENT VIEC (kV) 8 16 2 0 12 10 −20 18 TLP Current [A] −26 12 22 −18 8 −16 −14 6 −12 −10 4 −8 −6 2 −4 0 −2 0 2 0 −2 −4 −6 Vc [V] Figure 5. Positive TLP I−V Curve NOTE: EQUIVALENT VIEC (kV) 24 −8 Vc [V] −10 −12 −14 0 Figure 6. Negative TLP I−V Curve TLP parameter: Z0 = 50 W, tp = 100 ns, tr = 300 ps, averaging window: t1 = 30 ns to t2 = 60 ns. VIEC is the equivalent voltage stress level calculated at the secondary peak of the IEC 61000−4−2 waveform at t = 30 ns with 2 A/kV. See TLP description below for more information. Transmission Line Pulse (TLP) Measurement L Transmission Line Pulse (TLP) provides current versus voltage (I−V) curves in which each data point is obtained from a 100 ns long rectangular pulse from a charged transmission line. A simplified schematic of a typical TLP system is shown in Figure 7. TLP I−V curves of ESD protection devices accurately demonstrate the product’s ESD capability because the 10s of amps current levels and under 100 ns time scale match those of an ESD event. This is illustrated in Figure 8 where an 8 kV IEC 61000−4−2 current waveform is compared with TLP current pulses at 8 A and 16 A. A TLP I−V curve shows the voltage at which the device turns on as well as how well the device clamps voltage over a range of current levels. For more information on TLP measurements and how to interpret them please refer to AND9007/D. S Attenuator ÷ 50 W Coax Cable 10 MW IM 50 W Coax Cable VM DUT VC Oscilloscope Figure 7. Simplified Schematic of a Typical TLP System www.onsemi.com 4 ESD5481 Figure 8. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms 1E−02 1E−03 1E−04 1E−05 1E−06 1E−08 1E−09 1E−10 1E−11 1E−12 1E−13 1E−14 −8 −6 −4 −2 0 V1[V] 2 4 6 8 Figure 9. IV Characteristics 100 % OF PEAK PULSE CURRENT I [A] 1E−07 PEAK VALUE IRSM @ 8 ms tr 90 PULSE WIDTH (tP) IS DEFINED AS THAT POINT WHERE THE PEAK CURRENT DECAY = 8 ms 80 70 60 HALF VALUE IRSM/2 @ 20 ms 50 40 30 tP 20 10 0 0 20 40 t, TIME (ms) 60 Figure 10. 8 X 20 ms Pulse Waveform www.onsemi.com 5 80 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS X3DFN2, 0.62x0.32, 0.355P, (0201) CASE 152AF ISSUE A DATE 17 FEB 2015 SCALE 8:1 NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. A B D PIN 1 INDICATOR (OPTIONAL) DIM A A1 b D E e L2 E TOP VIEW 0.05 C A 2X 0.05 C A1 SIDE VIEW C MILLIMETERS MIN MAX 0.25 0.33 −−− 0.05 0.22 0.28 0.58 0.66 0.28 0.36 0.355 BSC 0.17 0.23 GENERIC MARKING DIAGRAM* SEATING PLANE PIN 1 XM e 1 2X 0.05 M 2 2X b X = Specific Device Code M = Date Code 0.05 L2 M C A B RECOMMENDED MOUNTING FOOTPRINT* C A B BOTTOM VIEW 0.74 2X 0.30 1 2X 0.31 DIMENSIONS: MILLIMETERS See Application Note AND8398/D for more mounting details *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. DOCUMENT NUMBER: DESCRIPTION: 98AON56472E Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. X3DFN2, 0.62X0.32, 0.355P, (0201) PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2019 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
