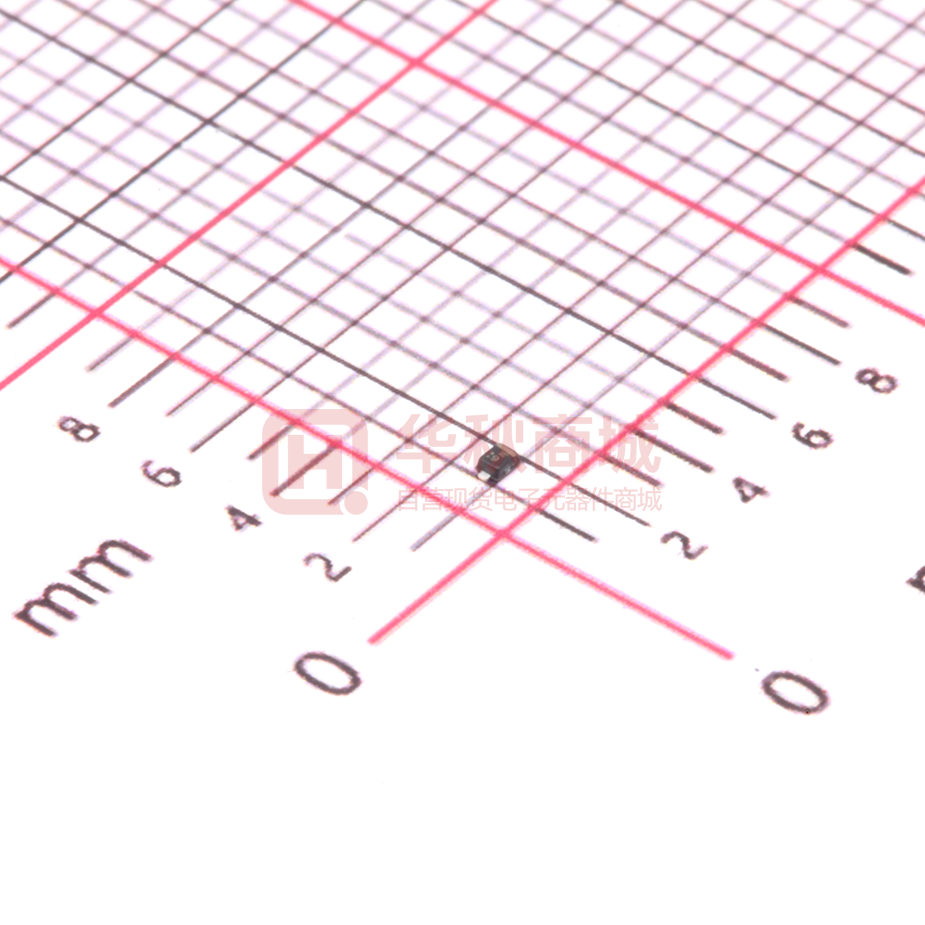

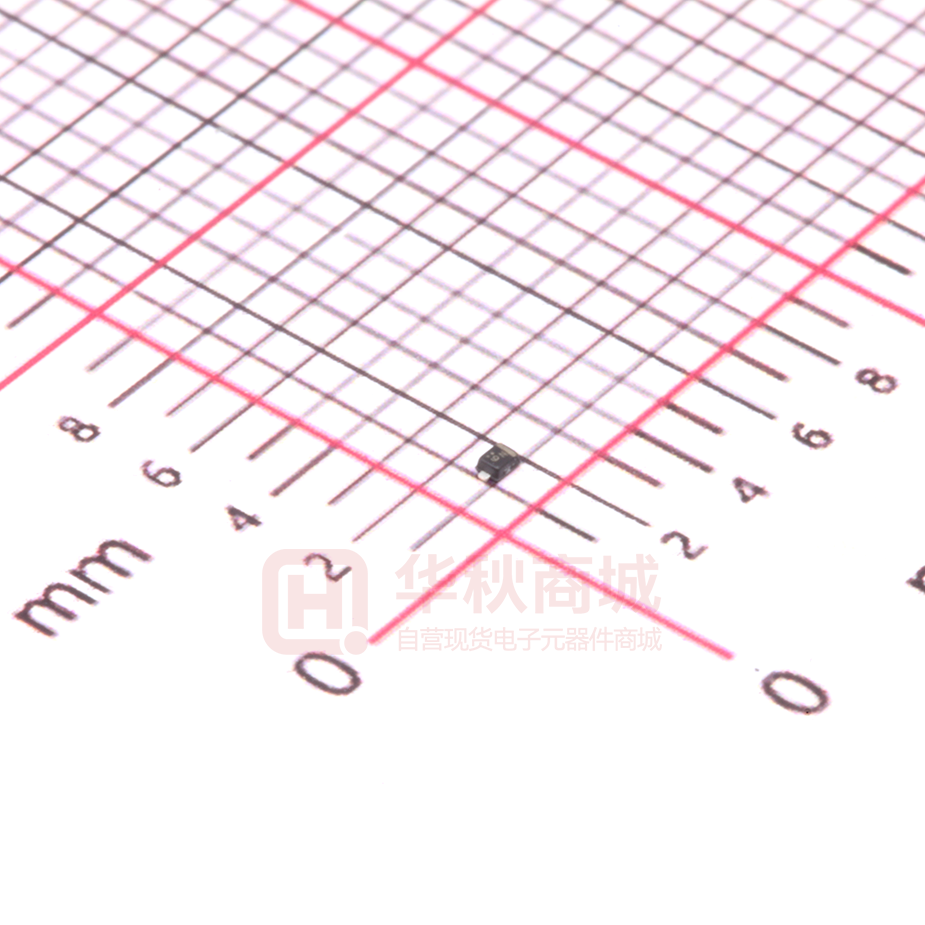

ESD7951ST5G

ESD7951ST5G

  • 厂商:

    ONSEMI(安森美)

  • 封装:

    SOD923

  • 描述:

    ESD二极管 VRWM=5V 0.5pF ±15KV(air) ±8KV(contact)

  • 数据手册
  • 价格&库存
ESD7951ST5G 数据手册
ESD7951S ESD Protection Diode Ultra−Low Capacitance The ESD7951 is designed to protect voltage sensitive components that require ultra−low capacitance from ESD and transient voltage events. Excellent clamping capability, low capacitance, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its low capacitance, it is suited for use in high frequency designs such as USB 2.0 high speed and antenna line applications. www.onsemi.com 1 2 PIN 1. 2. Specification Features: • Ultra Low Capacitance 0.5 pF • Low Clamping Voltage • Small Body Outline Dimensions: • • • • • • • CATHODE ANODE 2 0.039″ x 0.024″ (1.00 mm x 0.60 mm) Low Body Height: 0.016″ (0.4 mm) Stand−off Voltage: 5 V Low Leakage Response Time is Typically < 1.0 ns IEC61000−4−2 Level 4 ESD Protection SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable This is a Pb−Free Device 1 SOD−923 CASE 514AB MARKING DIAGRAM AA M 1 2 Mechanical Characteristics: CASE: Void-free, transfer-molded, thermosetting plastic AA M Epoxy Meets UL 94 V−0 LEAD FINISH: 100% Matte Sn (Tin) MOUNTING POSITION: Any ORDERING INFORMATION QUALIFIED MAX REFLOW TEMPERATURE: 260°C Device Meets MSL 1 Requirements MAXIMUM RATINGS Rating IEC 61000−4−2 (ESD) Symbol Contact Air Value Unit ±8 ±15 kV Total Power Dissipation on FR−5 Board (Note 1) @ TA = 25°C °PD° 150 mW Storage Temperature Range Tstg −55 to +150 °C Junction Temperature Range TJ −55 to +125 °C Lead Solder Temperature − Maximum (10 Second Duration) TL 260 °C = Specific Device Code = Date Code Device Package Shipping† ESD7951ST5G, SZESD7951ST5G SOD−923 (Pb−Free) 8000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. FR−5 = 1.0 x 0.75 x 0.62 in. See Application Note AND8308/D for further description of survivability specs. © Semiconductor Components Industries, LLC, 2014 November, 2017 − Rev. 5 1 Publication Order Number: ESD7951S/D ESD7951S ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) Symbol Parameter IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ IPP VRWM IR I Working Peak Reverse Voltage IT VC VBR VRWM IR Maximum Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT IT Test Current IF Forward Current VF Forward Voltage @ IF Ppk Peak Power Dissipation C IPP IR VRWM VBR VC IT V IPP Bi−Directional Capacitance @ VR = 0 and f = 1.0 MHz *See Application Note AND8308/D for detailed explanations of datasheet parameters. ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted) VRWM (V) IR (mA) @ VRWM VBR (V) @ IT (Note 2) IT C (pF) VC (V) @ IPP = 1 A (Note 3) VC Per IEC61000−4−2 (Note 4) Device* Device Marking Max Max Min mA Typ Max Max ESD7951ST5G AA 5.0 1.0 5.4 1.0 0.5 0.9 12.9 Figures 1 and 2 See Below Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. *Includes SZ−prefix devices where applicable. 2. VBR is measured with a pulse test current IT at an ambient temperature of 25°C. 3. Surge current waveform per Figure 5. 4. For test procedure see Figures 3 and 4 and Application Note AND8307/D. Figure 1. ESD Clamping Voltage Screenshot Positive 8 kV Contact per IEC61000−4−2 Figure 2. ESD Clamping Voltage Screenshot Negative 8 kV Contact per IEC61000−4−2 www.onsemi.com 2 ESD7951S IEC61000−4−2 Waveform IEC 61000−4−2 Spec. Ipeak Level Test Voltage (kV) First Peak Current (A) Current at 30 ns (A) Current at 60 ns (A) 1 2 7.5 4 2 2 4 15 8 4 3 6 22.5 12 6 4 8 30 16 8 100% 90% I @ 30 ns I @ 60 ns 10% tP = 0.7 ns to 1 ns Figure 3. IEC61000−4−2 Spec Device Under ESD Gun Oscilloscope Test 50 W 50 W Cable Figure 4. Diagram of ESD Test Setup The following is taken from Application Note AND8308/D − Interpretation of Datasheet Parameters for ESD Devices. systems such as cell phones or laptop computers it is not clearly defined in the spec how to specify a clamping voltage at the device level. ON Semiconductor has developed a way to examine the entire voltage waveform across the ESD protection diode over the time domain of an ESD pulse in the form of an oscilloscope screenshot, which can be found on the datasheets for all ESD protection diodes. For more information on how ON Semiconductor creates these screenshots and how to interpret them please refer to AND8307/D. ESD Voltage Clamping For sensitive circuit elements it is important to limit the voltage that an IC will be exposed to during an ESD event to as low a voltage as possible. The ESD clamping voltage is the voltage drop across the ESD protection diode during an ESD event per the IEC61000−4−2 waveform. Since the IEC61000−4−2 was written as a pass/fail spec for larger % OF PEAK PULSE CURRENT 100 PEAK VALUE IRSM @ 8 ms tr 90 PULSE WIDTH (tP) IS DEFINED AS THAT POINT WHERE THE PEAK CURRENT DECAY = 8 ms 80 70 60 HALF VALUE IRSM/2 @ 20 ms 50 40 30 tP 20 10 0 0 20 40 t, TIME (ms) 60 Figure 5. 8 x 20 ms Pulse Waveform www.onsemi.com 3 80 ESD7951S PACKAGE DIMENSIONS SOD−923 CASE 514AB ISSUE C D −X− NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. −Y− E 1 2X b 0.08 X Y 2 TOP VIEW DIM A b c D E HE L L2 A c HE SIDE VIEW MILLIMETERS MIN NOM MAX 0.34 0.37 0.40 0.15 0.20 0.25 0.07 0.12 0.17 0.75 0.80 0.85 0.55 0.60 0.65 0.95 1.00 1.05 0.19 REF 0.05 0.10 0.15 SOLDERING FOOTPRINT* 2X L 1.20 2X 2X 0.36 2X INCHES MIN NOM MAX 0.013 0.015 0.016 0.006 0.008 0.010 0.003 0.005 0.007 0.030 0.031 0.033 0.022 0.024 0.026 0.037 0.039 0.041 0.007 REF 0.002 0.004 0.006 L2 PACKAGE OUTLINE BOTTOM VIEW 0.25 DIMENSIONS: MILLIMETERS See Application Note AND8455/D for more mounting details *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor P.O. Box 5163, Denver, Colorado 80217 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 www.onsemi.com 4 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative ESD7951S/D
