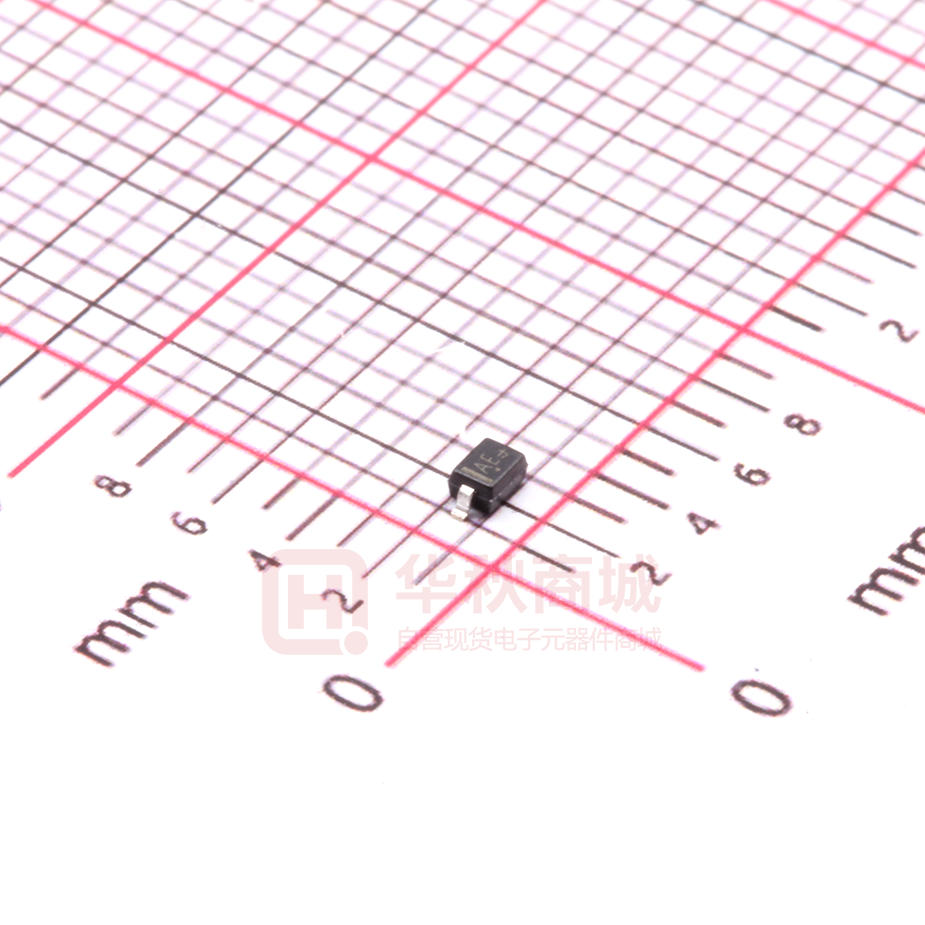

ESD8351HT1G

ESD8351, SZESD8351 ESD Protection Diodes Low Capacitance ESD Protection Diode for High Speed Data Line The ESD8351 Series ESD protection diodes are designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. www.onsemi.com MARKING DIAGRAMS Features PIN 1 • USB 2.0 • eSATA 1 2 SOD−523 CASE 502 1 AE M AF 1 2 = Specific Device Code = Date Code PIN CONFIGURATION AND SCHEMATIC MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Rating Symbol Value Unit Operating Junction Temperature Range TJ −55 to +125 °C Storage Temperature Range Tstg −55 to +150 °C Lead Solder Temperature − Maximum (10 Seconds) TL 260 °C ESD ESD ESD ±15 ±15 ±30 kV kV kV Ipp 5.0 A Maximum Peak Pulse Current 8/20 ms @ TA = 25°C SOD−323 CASE 477 X, XX M Typical Applications IEC 61000−4−2 Contact (ESD) IEC 61000−4−2 Air (ESD) ISO 10605 330 pF / 2 kW Contact 2 M 1 Cathode 2 Anode = • IEC 61000−4−2 (Level 4) ISO 10605 Low ESD Clamping Voltage SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant L • • X3DFN2 CASE 152AF M • Low Capacitance (0.55 pF Max, I/O to GND) • Protection for the Following IEC Standards: Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. ORDERING INFORMATION See detailed ordering and shipping information in the package dimensions section on page 6 of this data sheet. See Application Note AND8308/D for further description of survivability specs. © Semiconductor Components Industries, LLC, 2016 August, 2018 − Rev. 10 1 Publication Order Number: ESD8351/D ESD8351, SZESD8351 ELECTRICAL CHARACTERISTICS I (TA = 25°C unless otherwise noted) Symbol VRWM IR VBR IPP Parameter Working Peak Voltage RDYN Maximum Reverse Leakage Current @ VRWM VBR Breakdown Voltage @ IT V VC VRWMVHOLD Test Current IR IT VHOLD Holding Reverse Voltage IHOLD IHOLD Holding Reverse Current RDYN Dynamic Resistance IT VC RDYN IPP Maximum Peak Pulse Current VC Clamping Voltage @ IPP VC = VHOLD + (IPP * RDYN) −IPP VC = VHOLD + (IPP * RDYN) ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Reverse Working Voltage Breakdown Voltage Symbol VRWM VBR Conditions Min Typ I/O Pin to GND IT = 1 mA, I/O Pin to GND 5.5 7.0 Unit 3.3 V 7.8 V 500 nA Reverse Leakage Current IR Holding Reverse Voltage VHOLD I/O Pin to GND 1.15 V Holding Reverse Current IHOLD I/O Pin to GND 20 mA Clamping Voltage TLP (Note 2) See Figures 1 through 11 VC V Clamping Voltage (Note 3) VC Dynamic Resistance RDYN Junction Capacitance CJ VRWM = 3.3 V, I/O Pin to GND Max IPP = 8 A IEC 61000−4−2 Level 2 equivalent (±4 kV Contact, ±4 kV Air) 6.5 IPP = 16 A IEC 61000−4−2 Level 4 equivalent (±8 kV Contact, ±15 kV Air) 11.2 IPP = 5 A tp = 8 x 20 ms 8.2 V Pin1 to Pin2 Pin2 to Pin1 0.62 0.59 W VR = 0 V, f = 1 Mhz VR = 0 V, f = 2.5 Ghz 0.37 0.35 0.55 0.45 pF Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. For test procedure see Figures 8 and 9 and application note AND8307/D. 2. ANSI/ESD STM5.5.1 − Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model. TLP conditions: Z0 = 50 W, tp = 100 ns, tr = 4 ns, averaging window; t1 = 30 ns to t2 = 60 ns. 3. Non−repetitive current pulse at TA = 20°C, per IEC 61000−4−5 waveform. www.onsemi.com 2 1.0 10 0.9 9 0.8 8 0.7 7 0.6 6 Vpk (V) 0.5 0.4 5 4 0.3 3 0.2 2 0.1 0 1 0 0.5 1.0 1.5 2.0 2.5 3.0 0 3.5 1 3 2.5 3.5 4 4.5 5 6 5.5 VBias (V) Ipk (A) Figure 2. Clamping Voltage vs Peak Pulse Current ( tp = 8/20 ms) 1.0 m1 m2 0 0.9 0.8 CAPACITANCE (pF) −2 −4 dB 2 Figure 1. CV Characteristics 2 −6 −8 −10 0.7 0.6 0.5 0.4 0.3 0.2 −12 0.1 −14 0 1E7 1E8 1 1E10 3E10 1E9 2 3 5 4 6 7 9 8 FREQUENCY (Hz) FREQUENCY Figure 3. RF Insertion Loss Figure 4. Capacitance over Frequency 20 10 20 10 10 18 8 14 12 6 10 8 4 6 4 2 16 TLP CURRENT (A) 16 EQUIVALENT VIEC (kV) 18 TLP CURRENT (A) 1.5 8 14 12 6 10 8 4 6 4 2 2 2 0 0 0 0 2 4 6 8 10 12 14 16 18 0 0 20 VC, VOLTAGE (V) 2 4 6 8 10 12 14 16 18 VC, VOLTAGE (V) Figure 5. Positive TLP I−V Curve Figure 6. Negative TLP I−V Curve www.onsemi.com 3 20 EQUIVALENT VIEC (kV) C (pF) ESD8351, SZESD8351 ESD8351, SZESD8351 Latch−Up Considerations stable operating point of the circuit and the system is therefore latch−up free. In the non−latch up free load line case, the IV characteristic of the snapback protection device intersects the load−line in two points (VOPA, IOPA) and (VOPB, IOPB). Therefore in this case, the potential for latch−up exists if the system settles at (VOPB, IOPB) after a transient. Because of this, ESD8351 Series should not be used for HDMI applications – ESD8104 or ESD8040 have been designed to be acceptable for HDMI applications without latch−up. Please refer to Application Note AND9116/D for a more in−depth explanation of latch−up considerations using ESD8000 series devices. ON Semiconductor’s 8000 series of ESD protection devices utilize a snap−back, SCR type structure. By using this technology, the potential for a latch−up condition was taken into account by performing load line analysis of common high speed serial interfaces. Example load lines for latch−up free applications and applications with the potential for latch−up are shown below with a generic IV characteristic of a snapback, SCR type structured device overlaid on each. In the latch−up free load line case, the IV characteristic of the snapback protection device intersects the load−line in one unique point (VOP, IOP). This is the only I I ISSMAX ISSMAX IOP VOP IOPB IOPA V VDD V ESD8351 Latch*up free: USB 2.0 LS/FS, USB 2.0 HS, USB 3.0 SS, DisplayPort VOPA VOPB VDD ESD8351 Potential Latch*up: HDMI 1.4/1.3a TMDS Figure 7. Example Load Lines for Latch−up Free Applications and Applications with the Potential for Latch−up Table 1. SUMMARY OF SCR REQUIREMENTS FOR LATCH−UP FREE APPLICATIONS Application VBR (min) (V) IH (min) (mA) VH (min) (V) ON Semiconductor ESD8000 Series Recommended PN HDMI 1.4/1.3a TMDS 3.465 54.78 1.0 ESD8104, ESD8040 USB 2.0 LS/FS 3.301 1.76 1.0 ESD8004, ESD8351 USB 2.0 HS 0.482 N/A 1.0 ESD8004, ESD8351 USB 3.0 SS 2.800 N/A 1.0 ESD8004, ESD8006, ESD8351 DisplayPort 3.600 25.00 1.0 ESD8004, ESD8006, ESD8351 www.onsemi.com 4 ESD8351, SZESD8351 IEC61000−4−2 Waveform IEC 61000−4−2 Spec. Ipeak Level Test Voltage (kV) First Peak Current (A) Current at 30 ns (A) Current at 60 ns (A) 1 2 7.5 4 2 2 4 15 8 4 3 6 22.5 12 6 4 8 30 16 8 100% 90% I @ 30 ns I @ 60 ns 10% tP = 0.7 ns to 1 ns Figure 8. IEC61000−4−2 Spec Oscilloscope ESD Gun 50 W Cable 50 W Figure 9. Diagram of ESD Clamping Voltage Test Setup The following is taken from Application Note AND8308/D − Interpretation of Datasheet Parameters for ESD Devices. systems such as cell phones or laptop computers it is not clearly defined in the spec how to specify a clamping voltage at the device level. ON Semiconductor has developed a way to examine the entire voltage waveform across the ESD protection diode over the time domain of an ESD pulse in the form of an oscilloscope screenshot, which can be found on the datasheets for all ESD protection diodes. For more information on how ON Semiconductor creates these screenshots and how to interpret them please refer to AND8307/D. ESD Voltage Clamping For sensitive circuit elements it is important to limit the voltage that an IC will be exposed to during an ESD event to as low a voltage as possible. The ESD clamping voltage is the voltage drop across the ESD protection diode during an ESD event per the IEC61000−4−2 waveform. Since the IEC61000−4−2 was written as a pass/fail spec for larger www.onsemi.com 5 ESD8351, SZESD8351 Transmission Line Pulse (TLP) Measurement L Transmission Line Pulse (TLP) provides current versus voltage (I−V) curves in which each data point is obtained from a 100 ns long rectangular pulse from a charged transmission line. A simplified schematic of a typical TLP system is shown in Figure 10. TLP I−V curves of ESD protection devices accurately demonstrate the product’s ESD capability because the 10s of amps current levels and under 100 ns time scale match those of an ESD event. This is illustrated in Figure 11 where an 8 kV IEC 61000−4−2 current waveform is compared with TLP current pulses at 8 A and 16 A. A TLP I−V curve shows the voltage at which the device turns on as well as how well the device clamps voltage over a range of current levels. 50 W Coax Cable S Attenuator ÷ 50 W Coax Cable IM 10 MW VM DUT VC Oscilloscope Figure 10. Simplified Schematic of a Typical TLP System Figure 11. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms ORDERING INFORMATION Device ESD8351HT1G, SZESD8351HT1G* ESD8351XV2T1G, SZESD8351XV2T1G* ESD8351XV2T5G, SZESD8351XV2T5G* Package Shipping† SOD−323 (Pb−Free) 3000 / Tape & Reel 3000 / Tape & Reel SOD−523 (Pb−Free) 8000 / Tape & Reel ESD8351MUT5G X3DFN2 (Pb−Free) 10000 / Tape & Reel SZESD8351MUT5G* X3DFN2 (Pb−Free) 15000 / Tape & Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable. www.onsemi.com 6 ESD8351, SZESD8351 PACKAGE DIMENSIONS X3DFN2, 0.62x0.32, 0.355P, (0201) CASE 152AF ISSUE A NOTES: 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 2. CONTROLLING DIMENSION: MILLIMETERS. A B D PIN 1 INDICATOR (OPTIONAL) DIM A A1 b D E e L2 E TOP VIEW 0.05 C MILLIMETERS MIN MAX 0.25 0.33 −−− 0.05 0.22 0.28 0.58 0.66 0.28 0.36 0.355 BSC 0.17 0.23 A RECOMMENDED MOUNTING FOOTPRINT* 0.05 C 2X A1 SIDE VIEW C SEATING PLANE 0.74 e 2X 1 1 b 2 2X 2X 0.05 M 2X 0.30 0.05 L2 M See Application Note AND8398/D for more mounting details C A B BOTTOM VIEW 0.31 DIMENSIONS: MILLIMETERS C A B *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. www.onsemi.com 7 ESD8351, SZESD8351 PACKAGE DIMENSIONS SOD−323 CASE 477−02 ISSUE H NOTES: 1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 2. CONTROLLING DIMENSION: MILLIMETERS. 3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING. 4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS. 5. DIMENSION L IS MEASURED FROM END OF RADIUS. HE D b 1 2 E MILLIMETERS DIM MIN NOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10 A3 0.15 REF b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35 L 0.08 HE 2.30 2.50 2.70 A3 A C NOTE 3 L NOTE 5 A1 SOLDERING FOOTPRINT* 0.63 0.025 0.83 0.033 1.60 0.063 2.85 0.112 *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. www.onsemi.com 8 INCHES NOM MAX 0.035 0.040 0.002 0.004 0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003 0.090 0.098 0.105 MIN 0.031 0.000 ESD8351, SZESD8351 PACKAGE DIMENSIONS SOD−523 CASE 502 ISSUE E −X− D NOTES: 6. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994. 7. CONTROLLING DIMENSION: MILLIMETERS. 8. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL. 9. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS. −Y− E 2X b 0.08 1 M 2 X Y DIM A b c D E HE L L2 TOP VIEW A c HE RECOMMENDED SOLDERING FOOTPRINT* SIDE VIEW 2X 2X L 2X 0.40 L2 BOTTOM VIEW 1.80 0.48 PACKAGE OUTLINE 2X MILLIMETERS MIN NOM MAX 0.50 0.60 0.70 0.25 0.30 0.35 0.07 0.14 0.20 1.10 1.20 1.30 0.70 0.80 0.90 1.50 1.60 1.70 0.30 REF 0.15 0.20 0.25 DIMENSION: MILLIMETERS *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ◊ N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 www.onsemi.com 9 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative ESD8351/D
