FAN3989
USB/Charger Detection Device with Load Switch
Features
Description
The FAN3989 is a USB connection monitoring device
used to determine if a standard USB device is
connected or a battery-charging device is connected.
Charger/USB Detection Device with Load Switch
Charger/USB Device Detection Flag
Over/Under-Voltage Detection Flag
The FAN3989 sets the FLAG1 pin to logic HIGH or LOW
as an indicator to the system controller that a standard
USB device or a charger is connected to the USB port.
The FAN3989 also monitors the VBUS for over- or undervoltage conditions. The FLAG2 pin is set LOW if VBUS is
less than 3.3V or greater than 6.0V. The internal load
switch control pin is set HIGH if VBUS is less than 3.3V or
greater than 6.0V, turning off the PMOS switch.
Load Switch Output, Up to 1.5A Charge Current
VBUS Supply: 2.7V to 20V
CON: 1.5pF
Package: 8-Lead MLP
Applications
The FAN3989 is available in a very small 8-lead MLP
package suitable for small board space applications, like
mobile phones.
Mobile Phones
Handheld Devices
Related Resources
AN-5067 — PCB Land Pattern Design and Surface
Mount Guidelines for MLP Packages
Ordering Information
Part Number
Operating
Temperature Range
Package
Packing
Method
Quantity

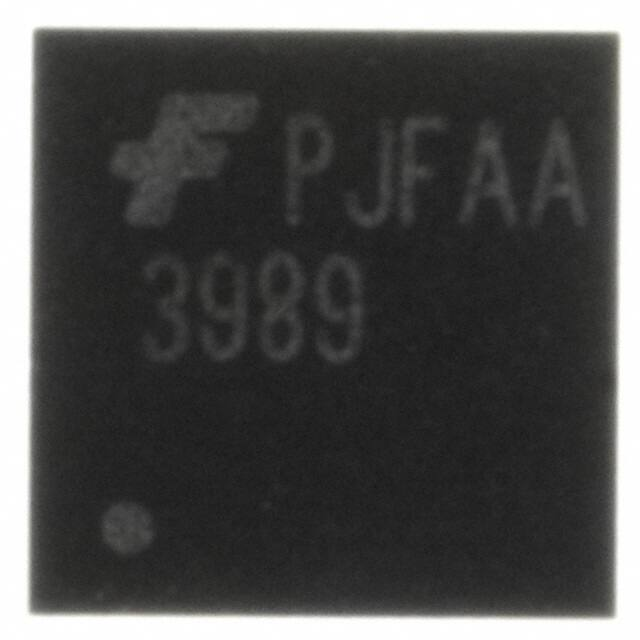

FAN3989MLP8X
-40°C to +85°C
8-Lead Molded Leadless Package (MLP)
Reel
3000
VOUT
LS CTRL
VBUS
Comparator
OVP
UVP
DD+
GND
Std USB/
Charger
Detect
Figure 1.
© 2007 Fairchild Semiconductor Corporation
FAN3989 Rev. 1.0.8
Logic
Logic
FLAG 2
FLAG 1
Block Diagram
www.fairchildsemi.com
FAN3989 — USB/Charger Detection Device with Load Switch
February 2011
Figure 2.
Pin Configuration (Top View)
Figure 3.
Pin Configuration (Bottom View)
Pin Definitions
Pin#
Name
Type
Description
1
D+
Input
USB Data Input
2
GND
Input
Device Ground
3
Flag2
Output
Over-/Under-Voltage Flag Output
4
LSCTRL
Output
PMOS Switch Control – Pull-Up Connection to VBUS
5
VOUT
Output
Voltage Out – Connection also on Package DAP (see PCB Layout Guideline
section)
6
VBUS
Input
7
Flag1
Output
8
D-
Input
FAN3989 — USB/Charger Detection Device with Load Switch
Pin Configuration
Power Input from Charger, USB Device, or Handheld Battery
Charger / Standard USB Device Detect Flag
USB Data Input
Truth Table
Connection
State
VBUS
D-
D+
FLAG1
FLAG2
LS
CTRL
STD USB Device
0V
R to GND
R to VDD
LOW
LOW
HIGH
Load switch open
STD USB Device
5V
R to GND
R to VDD
LOW
HIGH
LOW
Load switch closed
USB Charger
5V
Short to D+
Short to D-
HIGH
HIGH
LOW
Normal state,
load switch closed
VBUS GT 6V
GT 6V
Short to D+
Short to D-
HIGH
LOW
HIGH
Load switch open
VBUS LT 3.3V
LT 3.3V
Short to D+
Short to D-
HIGH
LOW
HIGH
Load switch open
PC Charger
5V
Open
Open
LOW
HIGH
LOW
Load switch closed
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
Description
www.fairchildsemi.com
2
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol
Parameter
Min.
Max.
Unit
VS
DC Supply Voltage
-0.3
20.0
V
VIO
Analog and Digital I/O
-0.3
VCC+0.3
V
Reliability Information
Symbol
TJ
Parameter
Min.
Typ.
Junction Temperature
TSTG
Storage Temperature Range
-65
JA
Thermal Resistance, JEDEC Standard,
Multilayer Test Boards, Still Air
Max.
Unit
+150
°C
+150
°C
41
°C/W
Electrostatic Discharge Information
Symbol
ESD
Parameter
Max.
Human Body Model, JESD22-A114
3
Charged Device Model, JESD22-C101
1
Unit
FAN3989 — USB/Charger Detection Device with Load Switch
Absolute Maximum Ratings
kV
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
Parameter
Min.
TA
Operating Temperature Range
-40
VCC
Supply Voltage Range
2.7
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
Typ.
5.0
Max.
Unit
+85
°C
20.0
V
www.fairchildsemi.com
3
TA = 25°C, VCC = 5.0V, unless otherwise noted.
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Units
2.7
5.0
20.0
V
2.0
mA
Supply
VS
Supply Voltage Range
VS Range
ICC
Quiescent Supply Current
VS = +5.0V, D+ D- Shorted
1.2
Power-Up Stabilization Time
VS = +5.0V, D+ D- Shorted
10
tSUPPLY
ms
Input Characteristics
CD+
CD-
Input Capacitance
Input Capacitance
1.5
2.0
1.5
2.0
pF
pF
Ioff D+
Off Leakage Current
VBUS = 0V or 5V VIN on D+ = 5V
1
µA
Ioff D-
Off Leakage Current
VBUS = 0V or 5V VIN on D- = 5V
1
µA
Output Characteristics
OVDETECT
Over-Voltage Threshold
Detect
VS = +5.0V, Flag2 = LOW
OVHYST
Over-Voltage Hysteresis
Voltage Sweep through Upper
and Lower Trip Points
UVDETECT
Under-Voltage Threshold
Detect
VS = +5.0V, Flag2 = LOW
UVHYST
Under-Voltage Hysteresis
Voltage Sweep through Upper
and Lower Trip Points
5.8
6.2
6.5
100
3.0
3.3
V
mV
3.6
100
V
mV
VOH FLAG1/ Minimum HIGH Output
FLAG2
Voltage
VS = +5.0V, IOH = -20µA
VOL FLAG1/ Maximum LOW Output
FLAG2
Voltage
VS = +5.0V, IOL = 20µA
0.3
V
Maximum LOW Output
Voltage
VS = +5.0V, IOL = 100µA
0.3
V
VBDSS
Drain Source Breakdown
Voltage
VGS = 0V, ID = -250µA
RDSON
Static Drain-Source On
Resistance
VGS = -5.0V, IP = 1A
VOL
LS_CTRL
Ciss
Input Capacitance
Coss
Output Capacitance
td(on)
PMOS Turn-On Delay Time
td(off)
PMOS Turn-Off Delay Time
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
VDS = -10V, VGS = 0V, f = 1.0MHz
VDD = -5V, IP = -0.5A,
VGS = -4.5V, RGEN = 6Ω
2.4
V
-20
FAN3989 — USB/Charger Detection Device with Load Switch
DC Electrical Characteristics
V
186
mΩ
330
pF
80
pF
5
µs
14
µs
www.fairchildsemi.com
4
VCC = 8.0V- 21V
VCC = 2.7V-7.0V
1.00
1.8
0.90
1.6
1.4
0.70
Icc
mA
mA
0.80
1.2
ICC
1
0.60
0.8
0.50
0.6
VCC
21
20
19
18
17
16
15
14
13
12
11
10
8
9
0.4
6.90
6.70
6.50
6.30
6.10
5.90
5.70
5.50
5.30
5.10
4.90
4.70
4.50
4.30
4.10
3.90
3.70
3.50
3.30
3.10
2.90
2.70
0.40
VCC
Figure 4. ICC vs. VCC (2.7V-7.0V) No Load
Figure 5. ICC vs. VCC (8.0V-21V) No Load
RON vs VCC
192.0
190.0
m
188.0
RON
186.0
184.0
182.0
VCC
Figure 6. RON vs. VCC (10 Load)
5.94
5.85
5.75
5.65
5.56
5.46
5.37
5.27
5.18
5.08
4.9
4.8
4.98
4.7
4.6
4.5
4.41
4.31
4.22
4.12
4
3.93
3.83
3.74
3.64
3.55
3.45
180.0
FAN3989 — USB/Charger Detection Device with Load Switch
Typical Performance Characteristics
Figure 7. Turn-On Time
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
www.fairchildsemi.com
5
Figure 8.
Figure 9.
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
Turn-Off Time
FAN3989 — USB/Charger Detection Device with Load Switch
Typical Performance Characteristics (Continued)
No Fault on Flag 1, Skew=65ns
www.fairchildsemi.com
6
Figure 10.
PC Data Running D+/D- (Flag 1 and Flag 2 at Correct Levels)
Figure 11.
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
FAN3989 — USB/Charger Detection Device with Load Switch
Typical Performance Characteristics (Continued)
Standard USB Charger Plug-In
www.fairchildsemi.com
7
V DD
Contro l
1.5K
USB Transceive r
Std 15K pull-dow n
on D- input by US B
device and 1.5K pull-u p
on D+ by USB transceiver .
Batter y
R s en s e
VOUT
LSctrl
VBUS
15 K
V BUS
Comparato r
OVP
UVP
DD+
G nd
USB
Devic e
Flag 2
Logi c
U SB
DD+
Std USB /
Charge r
Detec t
Logi c
Flag 1
GND
Figure 12.
Mobile Phone Battery Charging System with USB Interface
complete. If D+ and D- are shorted when a charger is
plugged into the USB port, the USB switch is on and
pulled to VDD, which is about 3V, making both D+ and
D- HIGH. Flag1 is also set HIGH, indicating that a
charging device is connected to the port. If D+ and Dare connected to a standard USB device, the D+ is
pulled to VDD and D- is set low (due to the 15KΩ pulldown resistor on the USB device) and flag1 is LOW. If
D+ and D- are open (floating), D+ is pulled to VDD and
D- floats LOW, which makes flag1 LOW.
The FAN3989 sets the FLAG1 pin to logic HIGH or
LOW as an indicator to the system controller that a
standard USB device or a charger is connected to the
USB port. The FAN3989 also monitors the VBUS for
over- or under-voltage conditions. If VBUS is less than
3.3V or greater than 6.0V, the FLAG2 pin is set LOW
and the internal load switch control pin is set HIGH,
turning off the PMOS switch.
In a standard USB configuration, there is a switch in
the USB transceiver that is always on in full-speed
mode. It is on during the transition from full-speed to
high-speed mode and turned off after enumeration is
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
FAN3989 — USB/Charger Detection Device with Load Switch
Applications Information
www.fairchildsemi.com
8
Contro l
Batter y
R s en s e
VOUT
LSctrl
VBUS
V BUS
Comparato r
OV P
UV P
DD+
G nd
Flag 2
Logi c
U SB
DD+
Std USB /
Charge r
Detec t
Logi c
Flag 1
GND
5M
FAN3989 — USB/Charger Detection Device with Load Switch
Applications Information (Continued)
1M
V DD
Figure 13.
Mobile Phone Battery Charging System without USB Interface
the USB port (D+ and D- shorted), the voltage divider
of 1M and 5M put a voltage of 2.3V on the D+Dinputs and flag1 is HIGH, indicating a charger is
connected to port.
The FAN3989 sets the FLAG1 pin to logic HIGH or
LOW as an indicator to the system controller that a
standard USB device or a charger is connected to the
USB port. The FAN3989 also monitors the VBUS for
over- or under-voltage conditions. If VBUS is less than
3.3V or greater than 6.0V, the FLAG2 pin is set LOW
and the internal load switch control pin is set HIGH,
turning off the PMOS switch.
If the USB port is connected to a standard USB
device, the D+ input is pulled up to VDD and is in
parallel with the 1.5KΩ on a USB transceiver with a
parallel R value of 1.497KΩ. The D- input is
connected to a 15KΩ pull-down by the USB device
and in parallel with 5MΩ with a parallel R value of
14.955KΩ. This condition forces flag1 LOW. If D+ and
D- are open (floating), D+ is pulled to VDD and Dfloats LOW, which forces flag1 LOW.
Where a USB transceiver is not incorporated or there
is a switch between the USB port and the FAN3989,
external resistors are used to set the correct input
logic states on the D+ and D- inputs. A 5MΩ pulldown on the D- line and a 1MΩ pull-up to VDD on the
D+ line are recommended. If a charger is plugged into
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
www.fairchildsemi.com
9
should never be connected to the ground, power plane,
or Pad2.
Please also see Fairchild Semiconductor applications
note AN-5067 — PCB Land Pattern Design and Surface
Mount Guidelines for MLP Packages
Pad2
This exposed DAP is connected to an internal die
substrate that is at a ground potential. The pad should
be left floating or can be connected to ground plane.
This pad should never be connected to Pad1 or the
power plane.
Pad1
This exposed DAP is connected to the internal FET
drain and labeled VOUT on the device. The pad should
be connected to VOUT pin of the device or left floating. It
Figure 14.
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
PCD / Pad Layout
FAN3989 — USB/Charger Detection Device with Load Switch
PCB Layout Guidelines
www.fairchildsemi.com
10
FAN3989 — USB/Charger Detection Device with Load Switch
Physical Dimensions
Figure 15.
8-Lead Molded Leadless Package (MLP)
Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner
without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or
obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the
warranty therein, which covers Fairchild products.
Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings:
http://www.fairchildsemi.com/packaging/.
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
www.fairchildsemi.com
11
FAN3989 — USB/Charger Detection Device with Load Switch
© 2007 Fairchild Semiconductor Corporation
FAN3989 • Rev. 1.0.8
www.fairchildsemi.com
12
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
© Semiconductor Components Industries, LLC
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
www.onsemi.com
1
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
www.onsemi.com
工商网监
湘ICP备2023018690号
