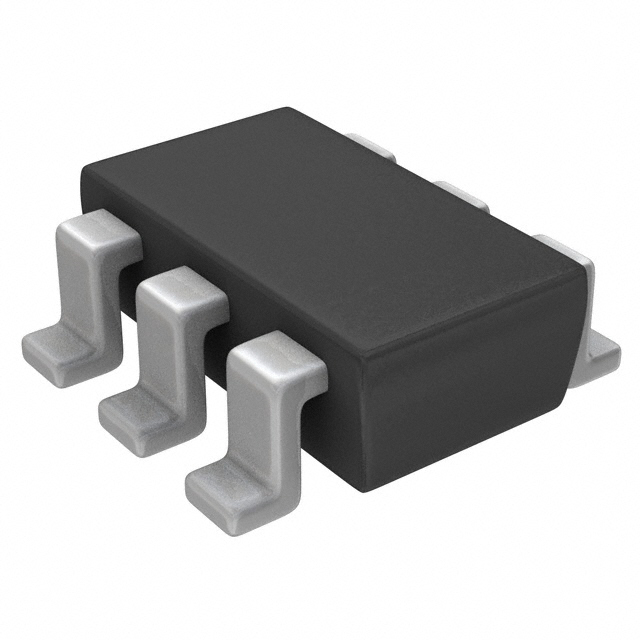

Single N-Channel, Logic Level, PowerTrench® MOSFET
30 V, 6.3 A, 25 mΩ
Features
General Description
Max rDS(on) = 25 mΩ at VGS = 10 V, ID = 6.3 A
This N-Channel Logic Level MOSFET is produced using
ON Semiconductor’s advanced PowerTrench® process
that has been especially tailored to minimize the onstate resistance and yet maintain superior switching
performance.
Max rDS(on) = 33 mΩ at VGS = 4.5 V, ID = 5.5 A
Fast switching
Low gate charge
These devices are well suited for low voltage and battery
powered applicatoins where low in-line power loss and fast
switching are required.
High performance trchnology for extremely low rDS(on)
Termination is Lead-free and RoHS Compliant
D
D
D
D
G
S
MOSFET Maximum Ratings TC = 25°C unless otherwise noted
Symbol
VDS
Drain to Source Voltage
Parameter
VGS
Gate to Source Voltage
-Continuous
ID
TA = 25°C
(Note 1a)
-Pulsed
PD
TJ, TSTG
Ratings
30
Units
V
±20
V
6.3
A
20
Power Dissipation
( Note 1a)
1.6
Power Dissipation
(Note 1b)
0.8
Operating and Storage Junction Temperature Range
W
-55 to + 150
°C
78
°C/W
Thermal Characteristics
RθJA
Thermal Resistance, Junction to Ambient
(Note 1a)
Package Marking and Ordering Information
Device Marking
.55B
Device
FDC655BN
©2010 Semiconductor Components Industries, LLC.
October-2017, Rev.3
Package
SSOT-6TM
1
Reel Size
7 ’’
Tape Width
8 mm
Quantity
3000 units
Publication Order Number:
FDC655BN/D
FDC655BN Single N-Channel, Logic Level, PowerTrench® MOSFET
FDC655BN
Symbol
Parameter
Test Conditions
Min
Typ
Max
Units
Off Characteristics
BVDSS
Drain to Source Breakdown Voltage
ID = 250 µA, VGS = 0 V
∆BVDSS
∆TJ
Breakdown Voltage Temperature
Coefficient
ID = 250 µA, referenced to 25°C
IDSS
Zero Gate Voltage Drain Current
VDS = 24 V, VGS = 0 V
1
µA
IGSS
Gate to Source Leakage Current
VGS = ±20 V, VDS = 0 V
±100
nA
3
V
30
V
25
mV/°C
On Characteristics
VGS(th)
Gate to Source Threshold Voltage
VGS = VDS, ID = 250 µA
∆VGS(th)
∆TJ
Gate to Source Threshold Voltage
Temperature Coefficient
ID = 250 µA, referenced to 25°C
rDS(on)
Static Drain to Source On Resistance
gFS
Forward Transconductance
1
1.9
-5
mV/°C
VGS = 10 V, ID = 6.3 A
21
25
VGS = 4.5 V, ID = 5.5 A
26
33
VGS = 10 V, ID = 6.3 A, TJ = 125°C
30
36
VDS = 10 V, ID = 6.3 A
35
mΩ
S
Dynamic Characteristics
Ciss
Input Capacitance
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
Rg
Gate Resistance
VDS = 15 V, VGS = 0 V,
f = 1MHz
470
620
pF
100
130
pF
60
90
pF
Ω
3.0
Switching Characteristics
td(on)
Turn-On Delay Time
tr
Rise Time
td(off)
Turn-Off Delay Time
tf
Fall Time
Qg
Total Gate Charge
VGS = 0 V to 10 V
Qg
Total Gate Charge
VGS = 0 V to 5 V
Qgs
Gate to Source Charge
Qgd
Gate to Drain “Miller” Charge
VDD = 15 V, ID = 1 A,
VGS = 10 V, RGEN = 6 Ω
VDD = 15 V,
ID = 6.3 A
6
11
ns
2
10
ns
15
26
ns
2
10
ns
9
13
nC
5
7
nC
1.4
nC
1.6
nC
Drain-Source Diode Characteristics
IS
Maximum Continuous Drain-Source Diode Forward Current
VSD
Source-Drain Diode Forward Voltage
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
VGS = 0 V, IS = 1.3 A
1.3
(Note 2)
IF = 6.3 A, di/dt = 100 A/µs
A
0.8
1.2
V
15
26
ns
4
10
nC
Notes:
1: RθJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins.
RθJC is guaranteed by design while RθCA is determined by the user’s board design.
a. 78 °C/W when mounted on a 1 in2 pad of 2 oz copper on FR-4 board.
b. 156 °C/W when mounted on a minimum pad.
2: Pulse Test: Pulse Width
