FDD8424H
Dual N & P-Channel PowerTrench® MOSFET
N-Channel: 40V, 20A, 24mΩ P-Channel: -40V, -20A, 54mΩ
Features
General Description
Q1: N-Channel
These dual N and P-Channel enhancement
Max rDS(on) = 24mΩ at VGS = 10V, ID = 9.0A
MOSFETs are produced using Fairchild Semiconductor’s
mode Power
advanced PowerTrench- process that has been especially
Max rDS(on) = 30mΩ at VGS = 4.5V, ID = 7.0A
tailored
to minimize on-state resistance and
yet
maintain
superior switching performance.
Q2: P-Channel
Max rDS(on) = 54mΩ at VGS = -10V, ID = -6.5A
Application
Max rDS(on) = 70mΩ at VGS = -4.5V, ID = -5.6A
Inverter
Fast switching speed
H-Bridge
RoHS Compliant
D1
D2
D1/D2
G1
G2
G2
S2
G1
S1
S1

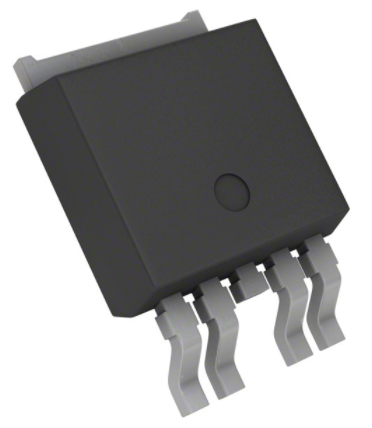

Dual DPAK 4L
N-Channel
S2
P-Channel
MOSFET Maximum Ratings TC = 25°C unless otherwise noted
Symbol
VDS
Drain to Source Voltage
Parameter
Q1
40
Q2
-40
Units
V
VGS
Gate to Source Voltage
±20
±20
V
Drain Current
20
-20
- Continuous (Package Limited)
ID
- Continuous (Silicon Limited)
TC = 25°C
26
-20
- Continuous
TA = 25°C
9.0
-6.5
55
-40
- Pulsed
Power Dissipation for Single Operation
TC = 25°C
PD
EAS
Single Pulse Avalanche Energy
TJ, TSTG
Operating and Storage Junction Temperature Range
(Note 1)
30
35
TA = 25°C (Note 1a)
3.1
TA = 25°C (Note 1b)
1.3
(Note 3)
A
29
W
33
-55 to +150
mJ
°C
Thermal Characteristics
RθJC
Thermal Resistance, Junction to Case, Single Operation for Q1
(Note 1)
4.1
RθJC
Thermal Resistance, Junction to Case, Single Operation for Q2
(Note 1)
3.5
°C/W
Package Marking and Ordering Information
Device Marking
FDD8424H
Device
FDD8424H
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
Package
TO-252-4L
1
Reel Size
13”
Tape Width
16mm
Quantity
2500 units
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
March 2015
Symbol
Parameter
Test Conditions
Type
Min
40
-40
Typ
Max
Units
Off Characteristics
BVDSS
Drain to Source Breakdown Voltage
ID = 250μA, VGS = 0V
ID = -250μA, VGS = 0V
Q1
Q2
ΔBVDSS
ΔTJ
Breakdown Voltage Temperature
Coefficient
ID = 250μA, referenced to 25°C
ID = -250μA, referenced to 25°C
Q1
Q2
IDSS
Zero Gate Voltage Drain Current
VDS = 32V, VGS = 0V
VDS = -32V, VGS = 0V
Q1
Q2
1
-1
μA
IGSS
Gate to Source Leakage Current
VGS = ±20V, VDS = 0V
Q1
Q2
±100
±100
nA
nA
3
-3
V
V
34
-32
mV/°C
On Characteristics
VGS(th)
Gate to Source Threshold Voltage
VGS = VDS, ID = 250μA
VGS = VDS, ID = -250μA
Q1
Q2
ΔVGS(th)
ΔTJ
Gate to Source Threshold Voltage
Temperature Coefficient
ID = 250μA, referenced to 25°C
ID = -250μA, referenced to 25°C
Q1
Q2
-5.3
4.8
VGS = 10V, ID = 9.0A
VGS = 4.5V, ID = 7.0A
VGS = 10V, ID = 9.0A, TJ = 125°C
Q1
19
23
29
24
30
37
VGS = -10V, ID = -6.5A
VGS = -4.5V, ID = -5.6A
VGS = -10V, ID = -6.5A, TJ = 125°C
Q2
42
58
62
54
70
80
VDS = 5V, ID = 9.0A
VDS = -5V, ID = -6.5A
Q1
Q2
29
13
Q1
VDS = 20V, VGS = 0V, f = 1MHZ
Q1
Q2
750
1000
1000
1330
pF
Q1
Q2
115
140
155
185
pF
Q1
Q2
75
75
115
115
pF
1.1
3.3
3.3
9.9
Ω
Q1
Q2
7
7
14
14
ns
Q1
Q2
13
3
24
10
ns
Q1
Q2
17
20
31
36
ns
Q1
Q2
6
3
12
10
ns
Q1
Q2
14
17
20
24
nC
Q1
Q2
2.3
3.0
nC
Q1
Q2
3.2
3.6
nC
rDS(on)
gFS
Static Drain to Source On Resistance
Forward Transconductance
1
-1
1.7
-1.6
mV/°C
mΩ
S
Dynamic Characteristics
Ciss
Input Capacitance
Coss
Output Capacitance
Crss
Reverse Transfer Capacitance
Rg
Gate Resistance
Q2
VDS = -20V, VGS = 0V, f = 1MHZ
Q1
Q2
f = 1MHz
0.1
0.1
Switching Characteristics
td(on)
Turn-On Delay Time
tr
Rise Time
td(off)
Turn-Off Delay Time
tf
Fall Time
Qg(TOT)
Total Gate Charge
Qgs
Gate to Source Charge
Qgd
Gate to Drain “Miller” Charge
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
Q1
VDD = 20V, ID = 9.0A,
VGS = 10V, RGEN = 6Ω
Q2
VDD = -20V, ID = -6.5A,
VGS = -10V, RGEN = 6Ω
Q1
VGS = 10V, VDD = 20V, ID = 9.0A
Q2
VGS = -10V, VDD = -20V, ID = -6.5A
2
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Electrical Characteristics TJ = 25°C unless otherwise noted
Symbol
Parameter
Test Conditions
Type
Min
Typ
Max
Units
Q1
Q2
20
-20
A
55
-40
A
Drain-Source Diode Characteristics
IS
Maximum Continuous Drain to Source Diode Forward Current
ISM
Maximum Pulsed Drain to Source Diode Forward Current
(Note 2)
Q1
Q2
VSD
Source to Drain Diode Forward
Voltage
VGS = 0V, IS = 9.0A
VGS = 0V, IS = -6.5A
(Note 2)
(Note 2)
Q1
Q2
0.87
0.88
1.2
-1.2
V
trr
Reverse Recovery Time
Q1
Q2
25
29
38
44
ns
Qrr
Reverse Recovery Charge
Q1
IF = 9.0A, di/dt = 100A/s
Q2
IF = -6.5A, di/dt = 100A/s
Q1
Q2
19
29
29
44
nC
Notes:
1. RθJA is determined with the device mounted on a 1in2 pad 2 oz copper pad on a 1.5 x 1.5 in. board of FR-4 material. RθJC is guaranteed by design while RθCA is determined
by the user's board design.
Q1
b. 96°C/W when mounted on a
minimum pad of 2 oz copper
a. 40°C/W when mounted on
a 1 in2 pad of 2 oz copper
Scale 1 : 1 on letter size paper
Q2
b. 96°C/W when mounted on a
minimum pad of 2 oz copper
a. 40°C/W when mounted on
a 1 in2 pad of 2 oz copper
Scale 1 : 1 on letter size paper
2. Pulse Test: Pulse Width < 300μs, Duty cycle < 2.0%.
3. Starting TJ = 25°C, N-ch: L = 0.3mH, IAS = 14A, VDD = 40V, VGS = 10V; P-ch: L = 0.3mH, IAS = -15A, VDD = -40V, VGS = -10V.
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
3
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Electrical Characteristics TJ = 25°C unless otherwise noted
3.0
NORMALIZED
DRAIN TO SOURCE ON-RESISTANCE
60
VGS = 4.0V
ID, DRAIN CURRENT (A)
50
VGS = 10V
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
40
VGS = 4.5V
30
VGS = 3.5V
20
10
VGS = 3.0V
0
0
1
2
3
VGS = 3.0V
2.5
2.0
VGS = 4.5V
1.5
1.0
VGS = 10V
0.5
4
0
10
rDS(on), DRAIN TO
1.0
0.8
-50
-25
0
25
50
75
SOURCE ON-RESISTANCE (mΩ)
NORMALIZED
DRAIN TO SOURCE ON-RESISTANCE
1.2
ID = 9A
60
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
TJ = 125oC
30
TJ = 25oC
20
10
100 125 150
2
TJ, JUNCTION TEMPERATURE ( C)
4
6
8
10
VGS, GATE TO SOURCE VOLTAGE (V)
Figure 3. Normalized On -Resistance
vs Junction Temperature
Figure 4. On-Resistance vs Gate to
Source Voltage
60
60
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
IS, REVERSE DRAIN CURRENT (A)
ID, DRAIN CURRENT (A)
50
40
o
VDS = 5V
30
20
TJ = 150oC
TJ = 25oC
10
TJ = -55oC
0
1.5
40
50
ID = 9A
VGS = 10V
1.4
40
30
Figure 2. Normalized On-Resistance
vs Drain Current and Gate Voltage
1.8
50
20
ID, DRAIN CURRENT(A)
Figure 1. On- Region Characteristics
0.6
-75
VGS = 4.0V
VGS = 3.5V
VDS, DRAIN TO SOURCE VOLTAGE (V)
1.6
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
2.0
2.5
3.0
3.5
4.0
TJ = 150oC
1
TJ = 25oC
0.1
0.01
TJ = -55oC
0.001
0.0
4.5
0.3
0.6
0.9
1.2
1.5
VSD, BODY DIODE FORWARD VOLTAGE (V)
VGS, GATE TO SOURCE VOLTAGE (V)
Figure 5. Transfer Characteristics
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
VGS = 0V
10
Figure 6. Source to Drain Diode
Forward Voltage vs Source Current
4
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Typical Characteristics (Q1 N-Channel)TJ = 25°C unless otherwise noted
2000
ID = 9A
Ciss
1000
8
CAPACITANCE (pF)
VGS, GATE TO SOURCE VOLTAGE(V)
10
6
VDD = 20V
VDD = 15V
4
VDD = 25V
Coss
100
2
f = 1MHz
VGS = 0V
30
0.1
0
0
4
8
12
16
1
Figure 7. Gate Charge Characteristics
40
Figure 8. Capacitance vs Drain
to Source Voltage
30
ID, DRAIN CURRENT (A)
30
IAS, AVALANCHE CURRENT(A)
10
VDS, DRAIN TO SOURCE VOLTAGE (V)
Qg, GATE CHARGE(nC)
TJ = 25oC
10
TJ = 125oC
25
Limited by Package
20
VGS = 10V
15
10
VGS = 4.5V
5
o
RθJC = 4.1 C/W
1
0.001
0.01
0.1
1
10
0
25
100
50
75
100
125
150
o
TC, CASE TEMPERATURE ( C)
tAV, TIME IN AVALANCHE(ms)
Figure 9. Unclamped Inductive
Switching Capability
Figure 10. Maximum Continuous Drain
Current vs Case Temperature
100
10000
P(PK), PEAK TRANSIENT POWER (W)
10us
ID, DRAIN CURRENT (A)
Crss
100us
10
THIS AREA IS
LIMITED BY rDS(on)
1
SINGLE PULSE
TJ = MAX RATED
o
1ms
10ms
DC
RθJC = 4.1 C/W
TC = 25oC
0.1
1
10
80
VDS, DRAIN to SOURCE VOLTAGE (V)
ABOVE 25oC DERATE PEAK
CURRENT AS FOLLOWS:
1000
150 – T
C
-----------------------125
I = I25
TC = 25oC
100
SINGLE PULSE
o
RθJC = 4.1 C/W
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
t, PULSE WIDTH (s)
Figure 12. Single Pulse Maximum
Power Dissipation
Figure 11. Forward Bias Safe
Operating Area
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
FOR TEMPERATURES
VGS = 10V
5
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Typical Characteristics (Q1 N-Channel)TJ = 25°C unless otherwise noted
2
NORMALIZED THERMAL
IMPEDANCE, ZθJC
1
0.1
DUTY CYCLE-DESCENDING ORDER
D = 0.5
0.2
0.1
0.05
0.02
0.01
PDM
t1
t2
0.01
0.005
-5
10
NOTES:
DUTY FACTOR: D = t1/t2
PEAK TJ = PDM x ZθJC x RθJC + TC
SINGLE PULSE
RθJC = 4.1oC/W
-4
10
-3
-2
10
10
-1
10
0
10
1
10
t, RECTANGULAR PULSE DURATION (s)
Figure 13. Transient Thermal Response Curve
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
6
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Typical Characteristics (Q1 N-Channel)TJ = 25°C unless otherwise noted
3.0
VGS = -10V
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
30
NORMALIZED
DRAIN TO SOURCE ON-RESISTANCE
-ID, DRAIN CURRENT (A)
40
VGS = -4.5V
VGS = -4V
20
VGS = -3.5V
10
VGS = -3V
0
0
1
2
3
VGS = -3V
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
2.5
VGS = -3.5V
VGS = -4V
2.0
VGS = -4.5V
1.5
VGS = -10V
1.0
0.5
0
4
10
-VDS, DRAIN TO SOURCE VOLTAGE (V)
Figure 14. On- Region Characteristics
40
160
ID = -6.5A
VGS = -10V
rDS(on), DRAIN TO
1.4
1.2
1.0
0.8
0.6
-75
-50
SOURCE ON-RESISTANCE (mΩ)
NORMALIZED
DRAIN TO SOURCE ON-RESISTANCE
30
Figure 15. Normalized on-Resistance vs Drain
Current and Gate Voltage
1.6
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
120
40
TJ = 25oC
2
6
8
10
Figure 17. On-Resistance vs Gate to
Source Voltage
40
-IS, REVERSE DRAIN CURRENT (A)
30
VDS = -5V
20
TJ = 25oC
10
TJ = 150oC
TJ = -55oC
VGS = 0V
10
1
TJ = 25oC
TJ
0.1
5
= 150oC
TJ = -55oC
0.01
0.001
0.0
0
2
3
4
-VGS, GATE TO SOURCE VOLTAGE (V)
4
-VGS, GATE TO SOURCE VOLTAGE (V)
PULSE DURATION = 80μs
DUTY CYCLE = 0.5%MAX
0.3
0.6
0.9
1.2
1.5
-VSD, BODY DIODE FORWARD VOLTAGE (V)
Figure 19. Source to Drain Diode
Forward Voltage vs Source Current
Figure 18. Transfer Characteristics
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
TJ = 125oC
0
-25
0
25 50 75 100 125 150
TJ, JUNCTION TEMPERATURE (oC)
40
1
ID = -6.5A
80
Figure 16. Normalized On-Resistance
vs Junction Temperature
-ID, DRAIN CURRENT (A)
20
-ID, DRAIN CURRENT(A)
7
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Typical Characteristics (Q2 P-Channel)TJ = 25°C unless otherwise noted
2000
Ciss
ID = -6.5A
8
1000
VDD = -15V
CAPACITANCE (pF)
-VGS, GATE TO SOURCE VOLTAGE(V)
10
VDD = -20V
6
VDD = -25V
4
Coss
Crss
100
2
f = 1MHz
VGS = 0V
30
0.1
0
0
4
8
12
16
20
1
Figure 21. Capacitance vs Drain
to Source Voltage
Figure 20. Gate Charge Characteristics
25
10
-ID, DRAIN CURRENT (A)
-IAS, AVALANCHE CURRENT(A)
30
TJ = 25oC
TJ = 125oC
20
VGS = -10V
15
10
VGS = -4.5V
5
o
RθJC = 3.5 C/W
1
0.001
0.01
0.1
1
10
0
100
25
50
tAV, TIME IN AVALANCHE(ms)
75
100
125
150
o
TC, CASE TEMPERATURE ( C)
Figure 23. Maximum Continuous Drain
Current vs Case Temperature
Figure 22. Unclamped Inductive
Switching Capability
100
P(PK), PEAK TRANSIENT POWER (W)
10000
10us
-ID, DRAIN CURRENT (A)
40
10
-VDS, DRAIN TO SOURCE VOLTAGE (V)
Qg, GATE CHARGE(nC)
100us
10
THIS AREA IS
LIMITED BY rds(on)
1ms
1
SINGLE PULSE
TJ = MAX RATED
RθJC = 3.5oC/W
TC = 25oC
0.1
1
10
10ms
DC
80
-VDS, DRAIN to SOURCE VOLTAGE (V)
FOR TEMPERATURES
ABOVE 25oC DERATE PEAK
CURRENT AS FOLLOWS:
1000
150 – T
C
-----------------------125
I = I25
TC = 25oC
100
SINGLE PULSE
o
10
-5
10
RθJC = 3.5 C/W
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
10
3
10
t, PULSE WIDTH (s)
Figure 24. Forward Bias Safe
Operating Area
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
VGS = -10V
Figure 25. Single Pulse Maximum
Power Dissipation
8
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Typical Characteristics (Q2 P-Channel)TJ = 25°C unless otherwise noted
2
NORMALIZED THERMAL
IMPEDANCE, ZθJC
1
0.1
DUTY CYCLE-DESCENDING ORDER
D = 0.5
0.2
0.1
0.05
0.02
0.01
PDM
t1
t2
0.01
0.005
-5
10
NOTES:
DUTY FACTOR: D = t1/t2
PEAK TJ = PDM x ZθJC x RθJC + TC
SINGLE PULSE
o
RθJC = 3.5 C/W
-4
10
-3
-2
10
10
-1
10
0
10
1
10
t, RECTANGULAR PULSE DURATION (s)
Figure 26. Transient Thermal Response Curve
©2013 Fairchild Semiconductor Corporation
FDD8424H Rev.1.5
9
www.fairchildsemi.com
FDD8424H Dual N & P-Channel PowerTrench® MOSFET
Typical Characteristics (Q2 P-Channel)TJ = 25°C unless otherwise noted
6.73
6.35
A
5.46
5.21
B
6.00 MIN
1.25
1.15
0.10 M
C A B
6.50 MIN
6.22
5.97
6.25
1.01
0.64
1
5
0.68
0.81
F
0.61
0.70
0.55
0.10 M
3.00 MIN
1.14
0.80 MIN
4.56
1.14
C A B
4.56
SEE
NOTE D
2.39
2.18
4.32 MIN
C
0.61
0.46
5.21 MIN
SEE DETAIL "A"
5
10.41
9.40
1
0.10 C
0.51
0.127 MAX
GAGE PLANE
SEATING PLANE
1.78
1.40
(2.82) F
0-10°
0.61
0.46
DETAIL A
SCALE 2:1
NOTES: UNLESS OTHERWISE SPECIFED
A. THIS PACKAGE CONFORMS TO JEDEC, TO252
VARIATION AD.
B. ALL DIMENSIONS ARE IN MILLIMETERS.
C. DIMENSIONS ARE EXCLUSIVE OF BURRS,
MOLD FLASH AND TIE BAR PROTRUSIONS
D. HEATSINK TOP EDGE COULD BE IN CHAMFERED
CORNERS OR EDGE PROTRUSION.
E. DIMENSIONS AND TOLERANCES AS PER ASME
Y14.5-2009.
F EXCEPTION TO TO-252 STANDARD.
G. FILE NAME: TO252B05REV3
H. FAIRCHILDSEMICONDUCTOR
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
© Semiconductor Components Industries, LLC
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
www.onsemi.com
1
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
www.onsemi.com
