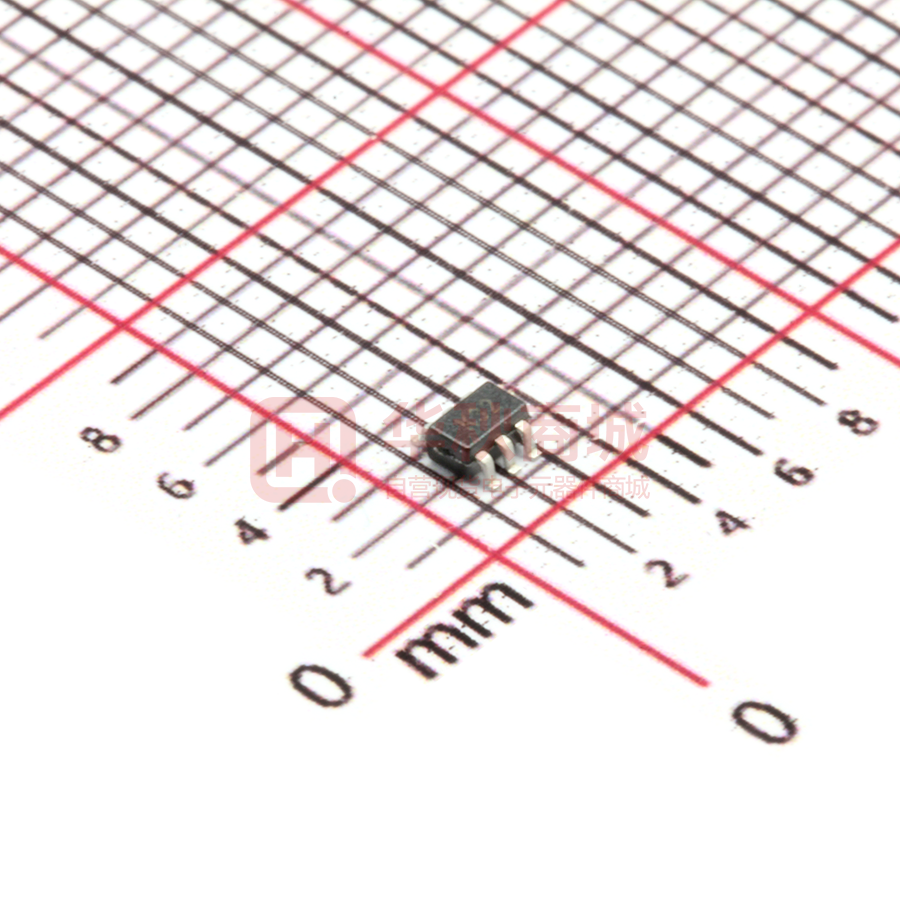

FDG6303N

FDG6303N Dual N-Channel, Digital FET General Description Features 25 V, 0.50 A continuous, 1.5 A peak. RDS(ON) = 0.45 Ω @ VGS= 4.5 V, RDS(ON) =0.60 Ω @ VGS= 2.7 V. These dual N-Channel logic level enhancement mode field effect transistors are produced using ON Semiconductor's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance. This device has been designed especially for low voltage applications as a replacement for bipolar digital transistors and small signal MOSFETs. SC70-6 SuperSOTTM -6 SOT-23 D1 G2 Very low level gate drive requirements allowing direct operation in 3 V circuits (VGS(th) < 1.5 V). Gate-Source Zener for ESD ruggedness (>6kV Human Body Model). Compact industry standard SC70-6 surface mount package. SO-8 SuperSOTTM -8 S2 SOT-223 1 or 4 * 6 or 3 2 or 5 5 or 2 3 or 6 4 or 1 .03 S1 SC70-6 G1 D2 * * The pinouts are symmetrical; pin 1 and 4 are interchangeable. Units inside the carrier can be of either orientation and will not affect the functionality of the device. Absolute Maximum Ratings Symbol Parameter VDSS Drain-Source Voltage TA = 25°C unless otherwise noted VGSS Gate-Source Voltage ID Drain/Output Current PD Maximum Power Dissipation TJ,TSTG Operating and Storage Temperature Range ESD Electrostatic Discharge Rating MIL-STD-883D Human Body Model (100 pF / 1500 Ω) FDG6303N Units 25 V - 0.5 to +8 - Continuous 0.5 - Pulsed V A 1.5 (Note 1) 0.3 W -55 to 150 °C 6.0 kV 415 °C/W THERMAL CHARACTERISTICS RθJA Thermal Resistance, Junction-to-Ambient ©2011 Semiconductor Components Industries, LLC. October-2017, Rev. 6 Publication Order Number: FDG6303N/D Electrical Characteristics (TA = 25 OC unless otherwise noted ) Symbol Parameter Conditions Min 25 Typ Max Units OFF CHARACTERISTICS BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS/∆TJ Breakdown Voltage Temp. Coefficient ID = 250 µA, Referenced to 25oC IDSS Zero Gate Voltage Drain Current VDS = 20 V, VGS = 0 V V TJ = 55°C IGSS Gate - Body Leakage Current mV/oC 26 VGS = 8 V, VDS = 0 V 1 µA 10 µA 100 nA ON CHARACTERISTICS (Note 2) VGS(th) Gate Threshold Voltage VDS = VGS, ID = 250 µA ∆VGS(th)/∆TJ Gate Threshold Voltage Temp.Coefficient ID = 250 µA, Referenced to 25oC 0.65 -2.6 RDS(ON) Static Drain-Source On-Resistance VGS = 4.5 V, ID = 0.5 A 0.34 0.45 0.55 0.77 0.44 0.6 TJ =125°C VGS = 2.7 V, ID = 0.2 A ID(ON) On-State Drain Current VGS = 2.7 V, VDS = 5 V gFS Forward Transconductance VDS = 5 V, ID = 0.5 A 0.8 1.5 V mV/oC 0.5 Ω A 1.45 S DYNAMIC CHARACTERISTICS Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance VDS = 10 V, VGS = 0 V, f = 1.0 MHz 50 pF 28 pF 9 pF SWITCHING CHARACTERISTICS (Note 2) tD(on) Turn - On Delay Time tr Turn - On Rise Time tD(off) Turn - Off Delay Time tf Turn - Off Fall Time Qg Total Gate Charge Qgs Gate-Source Charge Qgd Gate-Drain Charge VDD = 5 V, ID = 0.5 A, VGS = 4.5 V, RGEN = 50 Ω VDS = 5 V, ID = 0.5 A, VGS = 4.5 V 3 6 ns 8.5 18 ns 17 30 ns 13 25 ns 1.64 2.3 nC 0.38 nC 0.45 nC DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS IS Maximum Continuous Source Current VSD Drain-Source Diode Forward Voltage VGS = 0 V, IS = 0.25 A (Note 2) 0.8 0.25 A 1.2 V Notes: 1. RθJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. RθJC is guaranteed by design while RθCA is determined by the user's board design. RθJA = 415OC/W on minimum pad mounting on FR-4 board in still air. 2. Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%. www.onsemi.com 2 Typical Electrical Characteristics VGS = 4.5V 2 2.5V 3.0V 2.7V 2.0V , NORMALIZED 1.2 0.9 0.6 0 0 0.5 1 1.5 R DSO (N) 1.5V 0.3 2 2.5 DRAIN-SOURCE ON-RESISTANCE I D , DRAIN-SOURCE CURRENT (A) 1.5 VGS = 2.0V 1.5 0 0.2 0.4 R DS(on), ON-RESISTANCE (OHM) R DS(ON) , NORMALIZED DRAIN-SOURCE ON-RESISTANCE VGS = 4.5 V 1 0.8 0.6 -50 1 1.2 ID = 0.3A 1.6 1.2 0.4 0 -25 0 25 50 75 100 125 150 TA = 125°C 0.8 TA = 25°C 1 1.5 2 Figure 3. On-Resistance Variation with Temperature. I S , REVERSE DRAIN CURRENT (A) 0.8 25°C 125°C 0.6 0.4 0.2 1 1.5 3.5 4 4.5 5 2 VGS = 0V TJ = 125°C 0.1 25°C -55°C 0.01 0.001 0.0001 0.5 3 Figure 4. On-Resistance Variation with Gate-to-Source Voltage. 1 TJ = -55°C VDS = 5.0V 2.5 V GS , GATE TO SOURCE VOLTAGE (V) TJ , JUNCTION TEMPERATURE (°C) I D, DRAIN CURRENT (A) 0.8 2 I D = 0.5A 1.2 0 0.6 Figure 2. On-Resistance Variation with Drain Current and Gate Voltage. 1.6 0 3.5V ID , DRAIN CURRENT (A) Figure 1. On-Region Characteristics. 1 3.0V 4.5V VDS , DRAIN-SOURCE VOLTAGE (V) 1.4 2.7V 1 0.5 3 2.5V 2.5 0 0.2 0.4 0.6 0.8 1 1.2 V SD , BODY DIODE FORWARD VOLTAGE (V) VGS , GATE TO SOURCE VOLTAGE (V) Figure 5. Transfer Characteristics. Figure 6 . Body Diode Forward Voltage Variation with Source Current and Temperature. www.onsemi.com 3 Typical Electrical Characteristics (continued) 200 I D = 0.5A VDS = 5V 10V 15V 4 CAPACITANCE (pF) V GS , GATE-SOURCE VOLTAGE (V) 5 3 2 70 Ciss 30 Coss 10 0 0 0.4 0.8 1.2 1.6 3 0.1 2 0.3 1 2 5 10 25 V DS , DRAIN TO SOURCE VOLTAGE (V) Q g , GATE CHARGE (nC) Figure 8. Capacitance Characteristics. Figure 7. Gate Charge Characteristics. 3 50 IT IM )L N (O 1m s 10m s S 0.5 RD 1s 0.2 0.1 0.05 0.02 0.01 0.1 DS 30 20 10 1 V 10 0m s 10 s DC VGS = 4.5V SINGLE PULSE RθJA = 415 °C/W TA = 25°C SINGLE PULSE R θJA=415°C/W TA= 25°C 40 POWER (W) 1 2 5 10 25 0 0.0001 40 0.001 0.01 0.1 1 10 200 SINGLE PULSE TIME (SEC) , DRAI N-SOURCE VOLTAGE (V) Figure 10. Single Pulse Maximum Power Dissipation. Figure 9. Maximum Safe Operating Area. TRANSIENT THERMAL RESISTANCE 1 r(t), NORMALIZED EFFECTIVE ID , DRAIN CURRENT (A) Crss f = 1 MHz VGS = 0V 1 0.5 D = 0.5 0.2 0.2 0.1 0.05 0.02 0.01 R θJA (t) = r(t) * R θJA R θJA =415 °C/W 0.1 P(pk) 0.05 t1 0.02 0.01 Duty Cycle, D = t 1/ t 2 0.005 0.002 0.0001 t2 TJ - TA = P * R θJA (t) Single Pulse 0.001 0.01 0.1 1 t 1, TIME (sec) Figure 11. Transient Thermal Response Curve. Thermal characterization performed using the conditions described in note 1. Transient thermal response will change depending on the circuit board design. www.onsemi.com 4 10 100 200 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ❖ © Semiconductor Components Industries, LLC N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative www.onsemi.com
