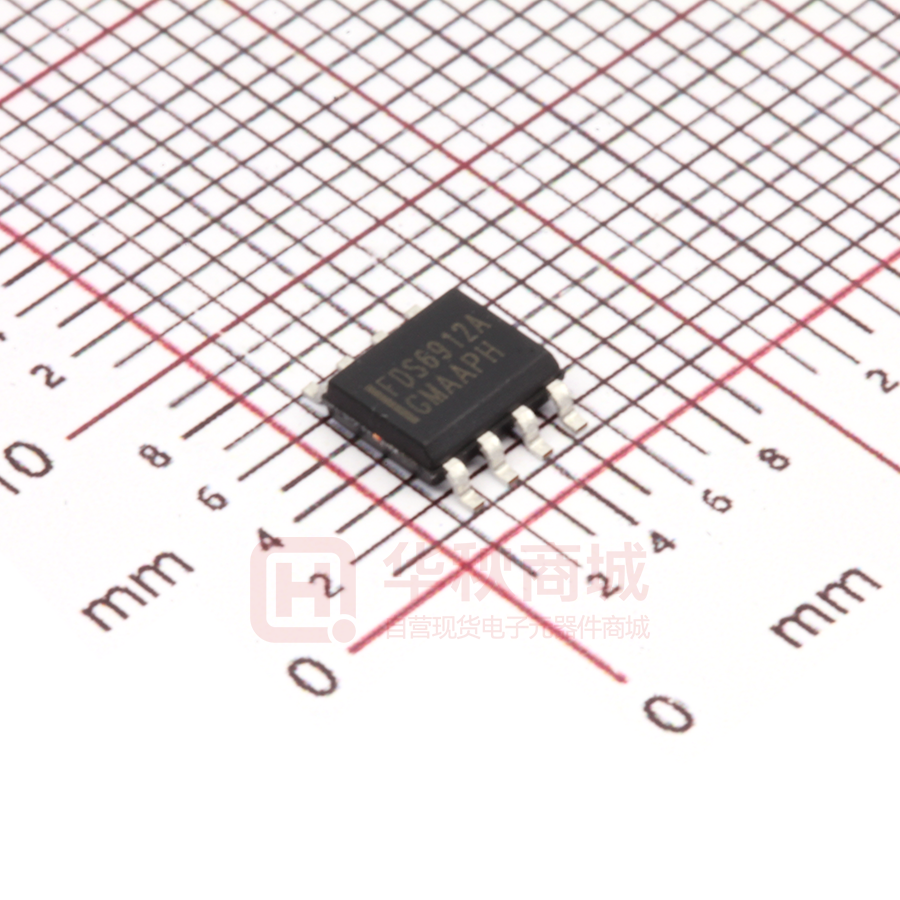

FDS6912A

FDS6912A FDS6912A Dual N-Channel Logic Level PowerTrench MOSFET General Description Features These N-Channel Logic Level MOSFETs are produced using ON Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance. • 6 A, 30 V. RDS(ON) = 28 mΩ @ VGS = 10 V RDS(ON) = 35 mΩ @ VGS = 4.5 V • Fast switching speed • Low gate charge These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required. • High performance trench technology for extremely low RDS(ON) • High power and current handling capability DD1 DD1 D2 D 5 DD2 6 4 3 Q1 7 SO-8 Pin 1 SO-8 G2 S2 S 8 S 2 Q2 1 S Absolute Maximum Ratings Symbol G1 S1 G TA=25oC unless otherwise noted Ratings Units VDSS Drain-Source Voltage Parameter 30 V VGSS Gate-Source Voltage ± 20 V ID Drain Current 6 A – Continuous (Note 1a) – Pulsed PD 20 Power Dissipation for Single Operation (Note 1a) 1.6 (Note 1b) 1.0 (Note 1c) TJ, TSTG W 0.9 –55 to +150 °C (Note 1a) 78 °C/W (Note 1) 40 °C/W Operating and Storage Junction Temperature Range Thermal Characteristics RθJA Thermal Resistance, Junction-to-Ambient RθJC Thermal Resistance, Junction-to-Case Package Marking and Ordering Information Device Marking Device Reel Size Tape width Quantity FDS6912A FDS6912A 13’’ 12mm 2500 units 2003 Semiconductor Components Industries, LLC. October-2017, Rev. 4 Publication Order Number: FDS6912A/D Symbol Parameter TA = 25°C unless otherwise noted Test Conditions Min VGS = 0 V, ID = 250 µA ID = 250 µA, Referenced to 25°C 30 Typ Max Units Off Characteristics BVDSS ∆BVDSS ∆TJ IDSS Drain–Source Breakdown Voltage Breakdown Voltage Temperature Coefficient Zero Gate Voltage Drain Current IGSS Gate–Source Leakage On Characteristics VGS(th) V 25 VDS = 24 V, VGS = 0 V VDS = 24 V, VGS = 0 V, TJ = 55°C VGS = ±20 V, VDS = 0 V mV/°C 1 10 µA ±100 nA (Note 2) VDS = VGS, ID = 250 µA ID = 250 µA, Referenced to 25°C ∆VGS(th) ∆TJ RDS(on) Gate Threshold Voltage Gate Threshold Voltage Temperature Coefficient Static Drain–Source On–Resistance 1 1.9 –4.5 3 19 24 27 28 35 44 V ID(on) On–State Drain Current VGS = 10 V, ID = 6 A VGS = 4.5 V, ID = 5 A VGS = 10 V, ID = 6 A,TJ = 125°C VGS = 10 V, VDS = 5 V gFS Forward Transconductance VDS = 10 V, ID = 6 A 25 S VDS = 15 V, f = 1.0 MHz V GS = 0 V, 575 pF 145 pF 65 pF 2.1 Ω mV/°C 20 mΩ A Dynamic Characteristics Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance RG Gate Resistance Switching Characteristics VGS = 15 mV, f = 1.0 MHz (Note 2) td(on) Turn–On Delay Time tr Turn–On Rise Time td(off) Turn–Off Delay Time tf Turn–Off Fall Time 3 6 ns Qg Total Gate Charge 5.8 8.1 nC Qgs Gate–Source Charge Qgd Gate–Drain Charge VDD = 15 V, VGS = 10 V, VDS = 15 V, VGS = 5 V 8 ID = 1 A, RGEN = 6 Ω ID = 6 A, 16 ns 5 10 ns 23 37 ns 1.7 nC 2.1 nC Drain–Source Diode Characteristics and Maximum Ratings IS Maximum Continuous Drain–Source Diode Forward Current VSD trr Drain–Source Diode Forward Voltage Diode Reverse Recovery Time Qrr Diode Reverse Recovery Charge VGS = 0 V, IS = 1.3 A IF = 6 A, diF/dt = 100 A/µs (Note 2) 0.75 1.3 A 1.2 V 20 nS 10 nC Notes: 1. RθJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. RθJC is guaranteed by design while RθCA is determined by the user's board design. a) 78°C/W when mounted on a 0.5in2 pad of 2 oz copper b) 125°C/W when mounted on a 0.02 in2 pad of 2 oz copper Scale 1 : 1 on letter size paper Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0% www.onsemi.com 2 c) 135°C/W when mounted on a minimum mounting pad. FDS6912A Electrical Characteristics FDS6912A Typical Characteristics 20 2.2 4.0V 3.5V RDS(ON), NORMALIZED DRAIN-SOURCE ON-RESISTANCE VGS = 10.0V ID, DRAIN CURRENT (A) 16 6.0V 4.5V 12 8 3.0V 4 1.8 1.4 0 4.5V 5.0 6.0V 10.0V 1 0.5 1 1.5 VDS, DRAIN-SOURCE VOLTAGE (V) 0 2 Figure 1. On-Region Characteristics. 4 8 12 ID, DRAIN CURRENT (A) 16 20 Figure 2. On-Resistance Variation with Drain Current and Gate Voltage. 1.6 0.08 ID = 3A ID = 6A VGS = 10.0V RDS(ON), ON-RESISTANCE (OHM) RDS(ON), NORMALIZED DRAIN-SOURCE ON-RESISTANCE 4.0 0.6 0 1.4 1.2 1 0.8 0.07 0.06 0.05 TA = 125oC 0.04 0.03 TA = 25oC 0.02 0.01 0.6 -50 -25 0 25 50 75 100 TJ, JUNCTION TEMPERATURE (oC) 125 2 150 Figure 3. On-Resistance Variation with Temperature. 4 6 8 VGS, GATE TO SOURCE VOLTAGE (V) 10 Figure 4. On-Resistance Variation with Gate-to-Source Voltage. 20 100 VGS = 0V IS, REVERSE DRAIN CURRENT (A) VDS = 5V 16 ID, DRAIN CURRENT (A) VGS = 3.5V 12 TA = 125oC -55oC 8 25oC 4 10 TA = 125oC 1 0.1 25oC 0.01 -55oC 0.001 0.0001 0 1.5 2 2.5 3 3.5 VGS, GATE TO SOURCE VOLTAGE (V) Figure 5. Transfer Characteristics. 0 4 0.2 0.4 0.6 0.8 1 VSD, BODY DIODE FORWARD VOLTAGE (V) 1.2 Figure 6. Body Diode Forward Voltage Variation with Source Current and Temperature. www.onsemi.com 3 FDS6912A Typical Characteristics 800 ID = 6A f = 1MHz VGS = 0 V 8 VDS = 10V CAPACITANCE (pF) VGS, GATE-SOURCE VOLTAGE (V) 10 20V 6 15V 4 600 Ciss 400 Coss 200 2 Crss 0 0 0 2 4 6 8 Qg, GATE CHARGE (nC) 10 0 12 Figure 7. Gate Charge Characteristics. P(pk), PEAK TRANSIENT POWER (W) 50 RDS(ON) LIMIT ID, DRAIN CURRENT (A) 20 Figure 8. Capacitance Characteristics. 100 100µs 10 1ms 10ms 100ms 1s 1 10s DC VGS = 10V SINGLE PULSE RθJA = 135oC/W 0.1 o TA = 25 C 0.01 0.1 1 10 VDS, DRAIN-SOURCE VOLTAGE (V) 100 SINGLE PULSE RθJA = 135°C/W TA = 25°C 40 30 20 10 0 0.001 Figure 9. Maximum Safe Operating Area. r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE 5 10 15 VDS, DRAIN TO SOURCE VOLTAGE (V) 0.01 0.1 1 t1, TIME (sec) 10 100 1000 Figure 10. Single Pulse Maximum Power Dissipation. 1 D = 0.5 RθJA(t) = r(t) * R θJA RθJA = 135°C/W 0.2 0.1 0.1 0.05 P(pk) 0.02 t1 0.01 t2 0.01 SINGLE PULSE 0.001 0.0001 0.001 TJ - T A = P * R θJA(t) Duty Cycle, D = t1 / t2 0.01 0.1 1 10 t1, TIME (sec) Figure 11. Transient Thermal Response Curve. Thermal characterization performed using the conditions described in Note 1c. Transient thermal response will change depending on the circuit board design. www.onsemi.com 4 100 1000 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Literature Distribution Center for ON Semiconductor 19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada Email: orderlit@onsemi.com ❖ © Semiconductor Components Industries, LLC N. American Technical Support: 800−282−9855 Toll Free USA/Canada Europe, Middle East and Africa Technical Support: Phone: 421 33 790 2910 Japan Customer Focus Center Phone: 81−3−5817−1050 ON Semiconductor Website: www.onsemi.com Order Literature: http://www.onsemi.com/orderlit For additional information, please contact your local Sales Representative www.onsemi.com
