FDV303N

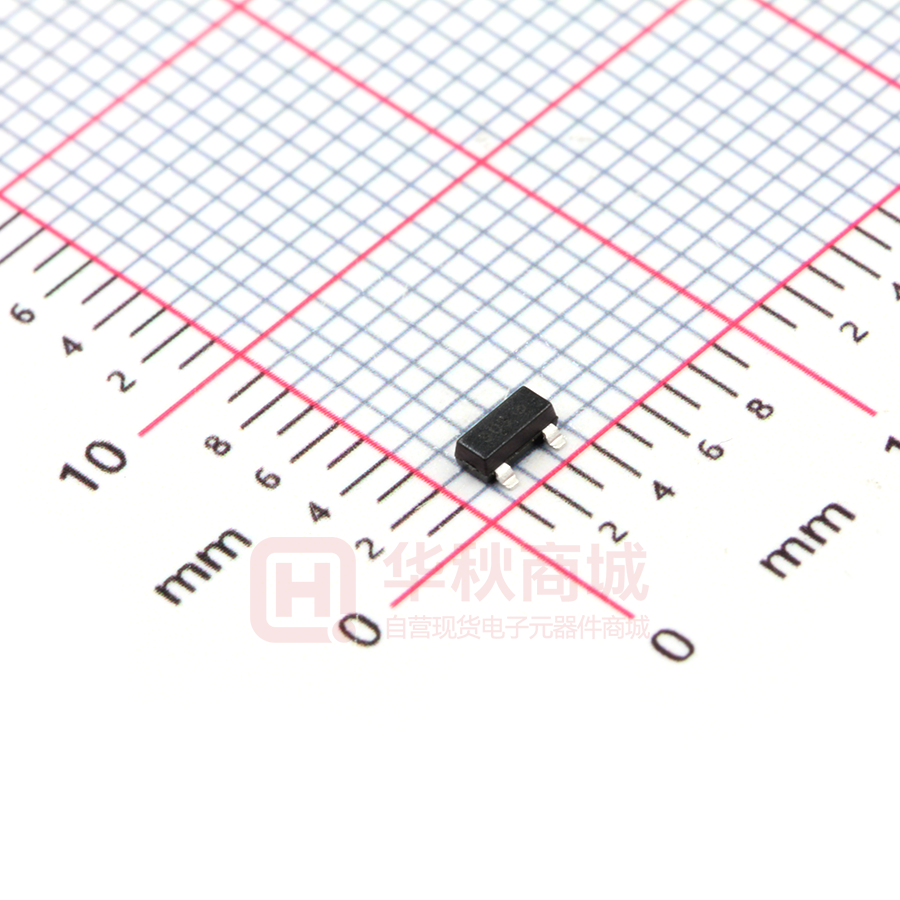

July 2014 FDV303N Digital FET, N-Channel General Description Features These N-Channel enhancement mode field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is tailored to minimize on-state resistance at low gate drive conditions. This device is designed especially for application in battery circuits using either one lithium or three cadmium or NMH cells. It can be used as an inverter or for high-efficiency miniature discrete DC/DC conversion in compact portable electronic devices like cellular phones and pagers. This device has excellent on-state resistance even at gate drive voltages as low as 2.5 volts. 25 V, 0.68 A continuous, 2 A Peak. RDS(ON) = 0.45 Ω @ VGS = 4.5 V RDS(ON) = 0.6 Ω @ VGS= 2.7 V. Very low level gate drive requirements allowing direct operation in 3V circuits. VGS(th) < 1V. Gate-Source Zener for ESD ruggedness.>6kV Human Body Model Compact industry standard SOT-23 surface mount package. Alternative to TN0200T and TN0201T. SOT-23 SuperSOTTM-8 SuperSOTTM-6 SO-8 SOIC-16 SOT-223 Mark:303 D S G Absolute Maximum Ratings Symbol Parameter VDSS VGSS ID Drain/Output Current TA = 25oC unless other wise noted FDV303N Units Drain-Source Voltage, Power Supply Voltage 25 V Gate-Source Voltage, VIN 8 V 0.68 A - Continuous - Pulsed PD Maximum Power Dissipation TJ,TSTG Operating and Storage Temperature Range ESD Electrostatic Discharge Rating MIL-STD-883D Human Body Model (100pf / 1500 Ohm) 2 0.35 W -55 to 150 °C 6.0 kV 357 °C/W THERMAL CHARACTERISTICS RθJA Thermal Resistance, Junction-to-Ambient © 1997 Fairchild Semiconductor Corporation FDV303N Rev.D2 Electrical Characteristics (TA = 25 OC unless otherwise noted ) Symbol Parameter Conditions Min Typ Max Units OFF CHARACTERISTICS BVDSS Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA ∆BVDSS/∆TJ Breakdown Voltage Temp. Coefficient ID = 250 µA, Referenced to 25 o C 25 IDSS Zero Gate Voltage Drain Current VDS = 20 V, VGS = 0 V IGSS Gate - Body Leakage Current VGS = 8 V, VDS= 0 V V TJ = 55°C ON CHARACTERISTICS mV / oC 26 1 µA 10 µA 100 nA (Note) ∆VGS(th)/∆TJ Gate Threshold Voltage Temp. Coefficient ID = 250 µA, Referenced to 25 o C VGS(th) Gate Threshold Voltage VDS = VGS, ID = 250 µA RDS(ON) Static Drain-Source On-Resistance VGS = 4.5 V, ID = 0.5 A 0.65 TJ =125°C VGS = 2.7 V, ID = 0.2 A ID(ON) On-State Drain Current VGS = 2.7 V, VDS = 5 V gFS Forward Transconductance VDS = 5 V, ID= 0.5 A mV / oC -2.6 0.8 1 V 0.33 0.45 Ω 0.52 0.8 0.44 0.6 0.5 A 1.45 S 50 pF 28 pF 9 pF DYNAMIC CHARACTERISTICS Ciss Input Capacitance Coss Output Capacitance Crss Reverse Transfer Capacitance SWITCHING CHARACTERISTICS tD(on) Turn - On Delay Time tr Turn - On Rise Time tD(off) Turn - Off Delay Time tf Turn - Off Fall Time Qg Total Gate Charge Qgs Gate-Source Charge Qgd Gate-Drain Charge VDS = 10 V, VGS = 0 V, f = 1.0 MHz (Note) VDD = 6 V, ID = 0.5 A, VGS = 4.5 V, RGEN = 50 Ω VDS = 5 V, ID = 0.5 A, VGS = 4.5 V 3 6 ns 8.5 18 ns 17 30 ns 13 25 ns 1.64 2.3 nC 0.38 nC 0.45 nC DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS IS Maximum Continuous Drain-Source Diode Forward Current VSD Drain-Source Diode Forward Voltage VGS = 0 V, IS = 0.5 A (Note) 0.83 0.3 A 1.2 V Note: Pulse Test: Pulse Width < 300µs, Duty Cycle < 2.0%. FDV303N Rev.D2 Typical Electrical Characteristics 2 VGS = 4.5V 3.5 3.0 2.7 1.2 2.5 R DS(on) , NORMALIZED DRAIN-SOURCE ON-RESISTANCE I D , DRAIN-SOURCE CURRENT (A) 1.5 2.0 0.9 0.6 1.5 0.3 0 VGS = 2.0V 1.5 2.7 0.5 1 1.5 3.5 4.5 2 0 0.2 0.6 0.8 1 1.2 Figure 2. On-Resistance Variation with Drain Current and Gate Voltage. Figure 1. On-Region Characteristics. 1.6 2 ID= 0.5A I D =0.5 A VGS = 4.5 V 1.4 R DS(on) , ON-RESISTANCE (OHM) R DS(ON), NORMALIZED 0.4 I D , DRAIN CURRENT (A) VDS , DRAIN-SOURCE VOLTAGE (V) DRAIN-SOURCE ON-RESISTANCE 3.0 1 0.5 0 2.5 1.2 1 0.8 0.6 -50 -25 0 25 50 75 100 TJ , JUNCTION TEMPERATURE (°C) 125 150 Figure 3. On-Resistance Variation 1.6 1.2 0.8 125°C 25°C 0.4 0 1 1.5 2 2.5 3 3.5 4 VGS , GATE TO SOURCE VOLTAGE (V) 4.5 5 Figure 4. On Resistance Variation with with Temperature. Gate-To- Source Voltage. 1 T = -55°C J 1 25°C IS , REVERSE DRAIN CURRENT (A) ID , DRAIN CURRENT (A) V DS = 5.0V 0.8 125°C 0.6 0.4 0.2 0 0 0.5 1 1.5 2 VGS , GATE TO SOURCE VOLTAGE (V) Figure 5. Transfer Characteristics. 2.5 V GS = 0V TJ = 125°C 0.1 25°C -55°C 0.01 0.001 0.0001 0 0.2 0.4 0.6 0.8 1 1.2 VSD , BODY DIODE FORWARD VOLTAGE (V) Figure 6. Body Diode Forward Voltage Variation with Source Current and Temperature. FDV303N Rev.D2 Typical Electrical And Thermal Characteristics 5 V GS , GATE-SOURCE VOLTAGE (V) 150 VDS = 5V I D = 0.5A 100 10V 4 CAPACITANCE (pF) 15V 3 2 Ciss 50 Coss 20 10 f = 1 MHz V GS = 0V C rss 1 0 5 0.1 0 0.4 0.8 1.2 1.6 0.5 2 V DS 1 2 5 10 25 , DRAIN TO SOURCE VOLTAGE (V) Q g , GATE CHARGE (nC) Figure 8. Capacitance Characteristics. Figure 7. Gate Charge Characteristics. 5 5 1m s 10m s 10 0.3 0m s 1s 10 0.1 0.01 0.1 0.2 0.5 s 3 2 DC V GS = 4.5V SINGLE PULSE R θJA =357°C/W TA = 25°C 0.03 SINGLE PULSE R θJA =357° C/W T A = 25°C 4 POWER (W) IT LIM N) (O S RD 1 1 1 2 5 10 20 0 0.001 40 0.01 0.1 1 10 100 300 SINGLE PULSE TIME (SEC) VDS , DRAI N-SOURCE VOLTAGE (V) Figure 9. Maximum Safe Operating Area. r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE I D , DRAIN CURRENT (A) 3 Figure 10. Single Pulse Maximum Power Dissipation. 1 0.5 D = 0.5 0.2 0.2 0.1 0.1 0.05 0.05 0.02 0.02 0.01 0.005 R θJA (t) = r(t) * R θJA R θJA = 357 °C/W P(pk) 0.01 t1 Single Pulse 0.002 0.001 0.0001 t2 TJ - TA = P * R θJA(t) Duty Cycle, D = t1 /t2 0.001 0.01 0.1 1 10 100 300 t1 , TIME (sec) Figure 11. Transient Thermal Response Curve. FDV303N Rev.D2 0.95 2.92±0.20 3 1.40 1.30+0.20 -0.15 1 2.20 2 0.60 0.37 (0.29) 0.95 0.20 1.00 A B 1.90 1.90 LAND PATTERN RECOMMENDATION SEE DETAIL A 1.20 MAX 0.10 0.00 (0.93) 0.10 C C 2.40±0.30 NOTES: UNLESS OTHERWISE SPECIFIED GAGE PLANE 0.23 0.08 0.25 0.20 MIN (0.55) SCALE: 2X SEATING PLANE A) REFERENCE JEDEC REGISTRATION TO-236, VARIATION AB, ISSUE H. B) ALL DIMENSIONS ARE IN MILLIMETERS. C) DIMENSIONS ARE INCLUSIVE OF BURRS, MOLD FLASH AND TIE BAR EXTRUSIONS. D) DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994. E) DRAWING FILE NAME: MA03DREV10 TRADEMARKS The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not intended to be an exhaustive list of all such trademarks. F-PFS FRFET® SM Global Power Resource GreenBridge Green FPS Green FPS e-Series Gmax GTO IntelliMAX ISOPLANAR Making Small Speakers Sound Louder and Better™ MegaBuck MICROCOUPLER MicroFET MicroPak MicroPak2 MillerDrive MotionMax MotionGrid® MTi® MTx® MVN® mWSaver® OptoHiT OPTOLOGIC® AccuPower AttitudeEngine™ Awinda® AX-CAP®* BitSiC Build it Now CorePLUS CorePOWER CROSSVOLT CTL Current Transfer Logic DEUXPEED® Dual Cool™ EcoSPARK® EfficientMax ESBC ® ® Fairchild Fairchild Semiconductor® FACT Quiet Series FACT® FAST® FastvCore FETBench FPS OPTOPLANAR® ® Power Supply WebDesigner PowerTrench® PowerXS™ Programmable Active Droop QFET® QS Quiet Series RapidConfigure  Saving our world, 1mW/W/kW at a time™ SignalWise SmartMax SMART START Solutions for Your Success SPM® STEALTH SuperFET® SuperSOT-3 SuperSOT-6 SuperSOT-8 SupreMOS® SyncFET Sync-Lock™ ®* TinyBoost® TinyBuck® TinyCalc TinyLogic® TINYOPTO TinyPower TinyPWM TinyWire TranSiC TriFault Detect TRUECURRENT®* μSerDes UHC® Ultra FRFET UniFET VCX VisualMax VoltagePlus XS™ Xsens™ 仙童™ * Trademarks of System General Corporation, used under license by Fairchild Semiconductor. DISCLAIMER FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION, OR DESIGN. TO OBTAIN THE LATEST, MOST UP-TO-DATE DATASHEET AND PRODUCT INFORMATION, VISIT OUR WEBSITE AT HTTP://WWW.FAIRCHILDSEMI.COM. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS. THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY THEREIN, WHICH COVERS THESE PRODUCTS. AUTHORIZED USE Unless otherwise specified in this data sheet, this product is a standard commercial product and is not intended for use in applications that require extraordinary levels of quality and reliability. This product may not be used in the following applications, unless specifically approved in writing by a Fairchild officer: (1) automotive or other transportation, (2) military/aerospace, (3) any safety critical application – including life critical medical equipment – where the failure of the Fairchild product reasonably would be expected to result in personal injury, death or property damage. Customer’s use of this product is subject to agreement of this Authorized Use policy. In the event of an unauthorized use of Fairchild’s product, Fairchild accepts no liability in the event of product failure. In other respects, this product shall be subject to Fairchild’s Worldwide Terms and Conditions of Sale, unless a separate agreement has been signed by both Parties. ANTI-COUNTERFEITING POLICY Fairchild Semiconductor Corporation's Anti-Counterfeiting Policy. Fairchild's Anti-Counterfeiting Policy is also stated on our external website, www.fairchildsemi.com, under Terms of Use Counterfeiting of semiconductor parts is a growing problem in the industry. All manufacturers of semiconductor products are experiencing counterfeiting of their parts. Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failed applications, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. Fairchild strongly encourages customers to purchase Fairchild parts either directly from Fairchild or from Authorized Fairchild Distributors who are listed by country on our web page cited above. Products customers buy either from Fairchild directly or from Authorized Fairchild Distributors are genuine parts, have full traceability, meet Fairchild's quality standards for handling and storage and provide access to Fairchild's full range of up-to-date technical and product information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address any warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Fairchild is committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors. PRODUCT STATUS DEFINITIONS Definition of Terms Datasheet Identification Product Status Advance Information Formative / In Design Preliminary First Production No Identification Needed Full Production Obsolete Not In Production Definition Datasheet contains the design specifications for product development. Specifications may change in any manner without notice. Datasheet contains preliminary data; supplementary data will be published at a later date. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve design. Datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes at any time without notice to improve the design. Datasheet contains specifications on a product that is discontinued by Fairchild Semiconductor. The datasheet is for reference information only. Rev. I75 © Fairchild Semiconductor Corporation www.fairchildsemi.com
