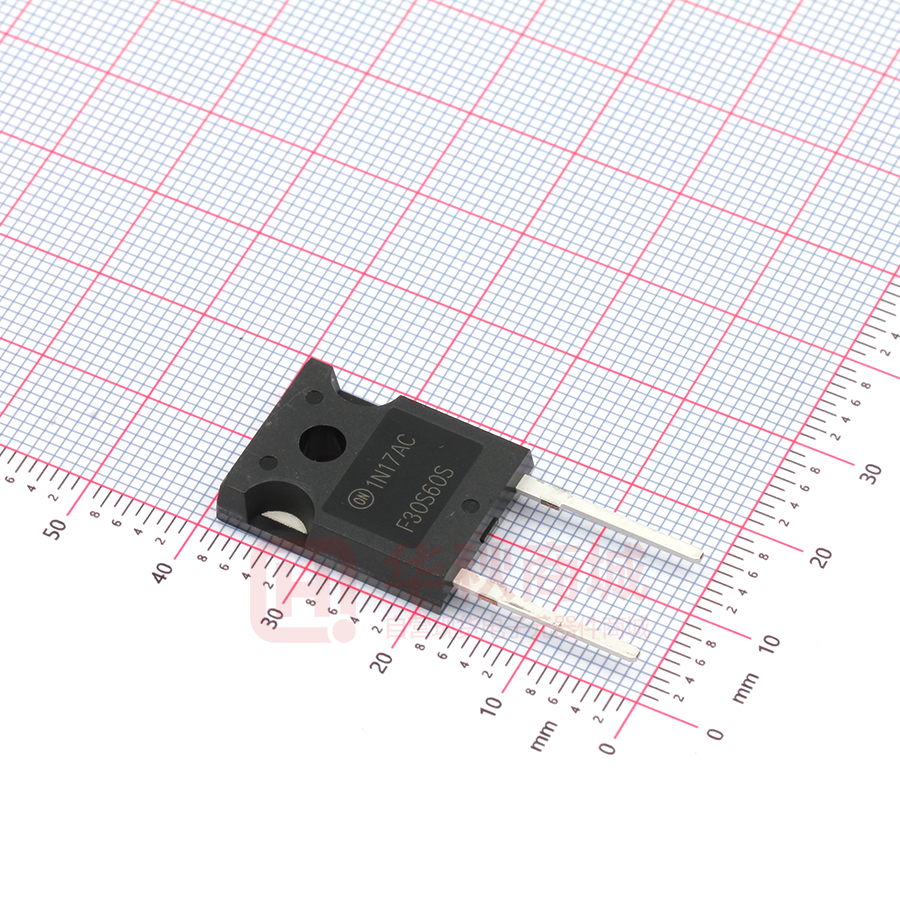

FFH30S60STU

Stealth II Rectifier 30 A, 600 V FFH30S60S Description The FFH30S60S is stealth2 rectifier with soft recovery characteristics. It is silicon nitride passivated ion−implanted epitaxial planar construction. This device is intended for use as freewheeling of boost diode in switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors. www.onsemi.com Features • High Speed Switching, trr < 35 ns @ IF = 30 A • High Reverse Voltage and High Reliability • This Device is Pb−Free and is RoHS Compliant TO−247 2 LEAD CASE 340CL Applications • • • • MARKING DIAGRAM General Purpose Switching Mode Power Supply Boost Diode in Continuous Mode Power Factor Corrections Power Switching Circuits $Y&Z&3&K F30S60S ABSOLUTE MAXIMUM RATINGS (TC = 25°C unless otherwise noted) Rating Symbol Value Unit Peak Repetitive Reverse Voltage VRRM 600 V Working Peak Reverse Voltage VRWM 600 V VR 600 V Average Rectified Forward Current @ TC = 102°C IF(AV) 30 A Non−Repetitive Peak Surge Current 60 Hz Single Half−Sine Wave IFSM 300 A Operating and Storage Temperature Range TJ, TSTG −65 to +175 °C DC Blocking Voltage $Y &Z &3 &K F30S60S = ON Semiconductor Logo = Assembly Plant Code = Numeric Date Code = Lot Code = Specific Device Code Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Cathode THERMAL CHARACTERISTICS Parameter Symbol Value Unit Maximum Thermal Resistance, Junction to Case RqJC 1.1 °C/W © Semiconductor Components Industries, LLC, 2007 February, 2020 − Rev. 5 1 2. Anode ORDERING INFORMATION See detailed ordering and shipping information on page 2 of this data sheet. Publication Order Number: FFH30S60S/D FFH30S60S PACKAGE MARKING AND ORDERING INFORMATION Device Device Marking Package Reel Size Tape Width Quantity FFH30S60STU F30S60S TO−247−2L N/A N/A 50 Units ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted) Parameter Symbol Test Conditions Min Typ Max Unit VFM (Note 1) IF = 30 A IF = 30 A TC = 25°C TC = 125°C − − 2.1 1.6 2.6 − V IRM (Note 1) VR = 600 V VR = 600 V TC = 25°C TC = 125°C − − − − 100 500 mA IF = 1 A, di/dt = 100 A/ms, VR = 30 V TC = 25°C − 25.2 30 ns trr Irr S factor Qrr IF = 30 A, di/dt = 200 A/ms, VR = 390 V TC = 25°C − − − − 26 2.4 0.9 43 − − − − ns A trr Irr S factor Qrr IF = 30 A, di/dt = 200 A/ms, VR = 390 V − − − − 75.1 6.3 0.9 238 − − − − nC 7.2 − − mJ trr WAVL TC = 125°C Avalanche Energy (L = 40 mH) nC ns A Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions. 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle = 2% TEST CIRCUIT AND WAVEFORMS Figure 1. trr Test Circuit Figure 2. trr Waveforms and Definitions Figure 3. Avalanche Energy Test Circuit Figure 4. Avalanche Current and Voltage Definitions www.onsemi.com 2 FFH30S60S TYPICAL PERFORMANCE CHARACTERISTICS 1000 200 o TC = 125 C o o 75 C o 25 C 10 1 0 1 2 3 4 Forward Voltage, VF [V] 1 Reverse Recovery Time, t rr [ns] Capacitances , Cj [pF] 210 140 70 200 300 400 Reverse Voltage, VR [V] 500 600 o TC = 125 C 80 o TC = 75 C 60 o TC = 25 C 40 20 100 Figure 7. Typical Junction Capacitance 100 150 200 di/dt [A/ ms] 250 300 Figure 8. Typical Reverse Recovery Time vs. di/dt 10 50 8 Average Forward Current, I F(AV) [A] Reverse Recovery Current, I rr [A] 100 100 280 o TC = 125 C 6 o TC = 75 C 4 o TC = 25 C 2 0 10 Figure 6. Typical Reverse Current vs. Reverse Voltage Typical Capacitance at 0V = 271 pF 1 10 Reverse Voltage, VR [V] o TC = 25 C 0.1 350 0.1 o TC = 75 C 10 0.01 5 Figure 5. Typical Forward Voltage Drop vs. Forward Current 0 TC = 125 C 100 Reverse Current, I R[m A] Forward Current, I F [A] 100 100 150 200 di/dt [A/ ms] 250 40 30 20 10 0 25 300 Figure 9. Typical Reverse Recovery Current vs. di/dt 50 75 100 125 150 175 o Case temperature, TC [ C] 200 Figure 10. Forward Current Derating Curve www.onsemi.com 3 MECHANICAL CASE OUTLINE PACKAGE DIMENSIONS TO−247−2LD CASE 340CL ISSUE A DATE 03 DEC 2019 GENERIC MARKING DIAGRAM* AYWWZZ XXXXXXX XXXXXXX XXXX A Y WW ZZ = Specific Device Code = Assembly Location = Year = Work Week = Assembly Lot Code *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking. DOCUMENT NUMBER: DESCRIPTION: 98AON13850G TO−247−2LD Electronic versions are uncontrolled except when accessed directly from the Document Repository. Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red. PAGE 1 OF 1 ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others. © Semiconductor Components Industries, LLC, 2018 www.onsemi.com onsemi, , and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as−is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. PUBLICATION ORDERING INFORMATION LITERATURE FULFILLMENT: Email Requests to: orderlit@onsemi.com onsemi Website: www.onsemi.com ◊ TECHNICAL SUPPORT North American Technical Support: Voice Mail: 1 800−282−9855 Toll Free USA/Canada Phone: 011 421 33 790 2910 Europe, Middle East and Africa Technical Support: Phone: 00421 33 790 2910 For additional information, please contact your local Sales Representative
