FIN1002
LVDS 1-Bit, High-Speed Differential Receiver
Features
Description
Greater than 400 Mbs Data Rate
This single receiver is designed for high-speed
interconnects utilizing Low Voltage Differential Signaling
(LVDS) technology. The receiver translates LVDS
levels, with a typical differential input threshold of
100 mV, to LVTTL signal levels. LVDS provides low EMI
at ultra low power dissipation even at high frequencies.
This device is ideal for high-speed transfer of clock or
data. The FIN1002 can be paired with its companion
driver, the FIN1001, or with any other LVDS driver.
High-impedance Output at VCC < 1.5 V
3.3 V Power Supply Operation
0.4 ns Maximum Pulse Skew
2.5 ns Maximum Propagation Delay
Bus Pin ESD (HBM) Protection Exceeds 10 kV
Power-Off, Over-voltage tolerant Input and Output
Fail-safe Protection for open-circuit and non-driven,
shorted, or terminated Conditions
Meets or exceeds TIA/EIA-644 LVDS Standard

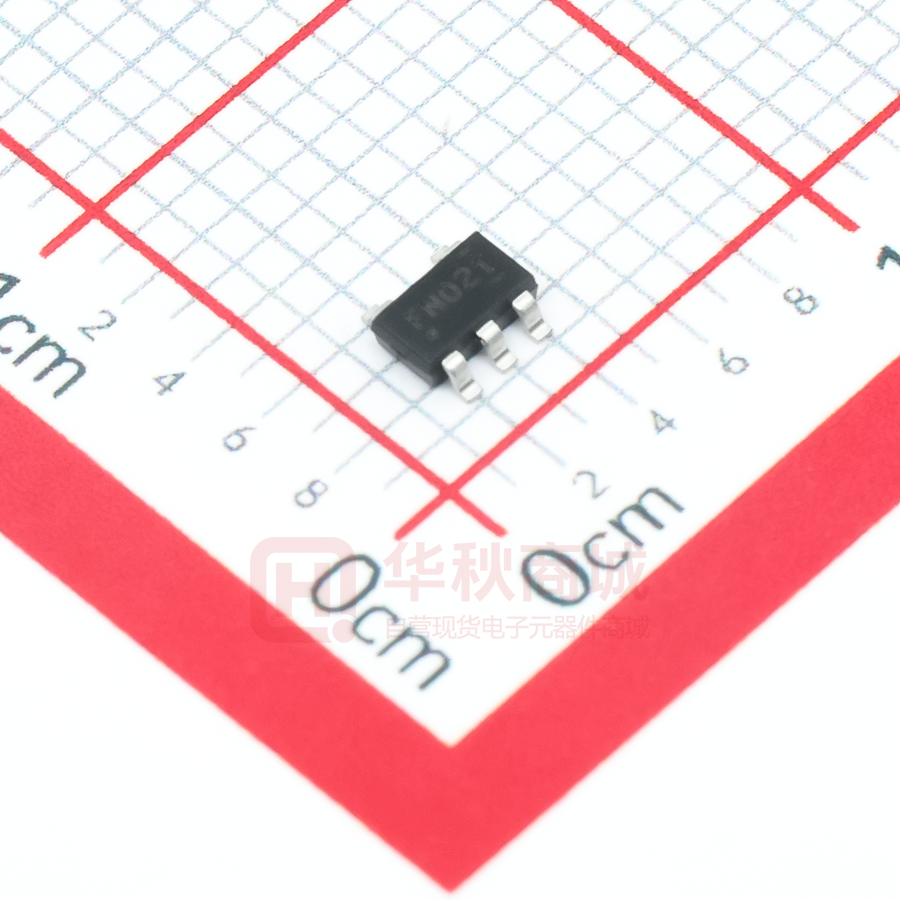

5-Lead SOT23 Package saves Space
Ordering Information
Part Number
Operating
Temperature
Range
Package
Packing Method
Packing
Quantity
FIN1002M5
-40 to +125°C
5-Lead SOT23, JEDEC MO-178, 1.6 mm
Tube
250
FIN1002M5X
-40 to +125°C
5-Lead SOT23, JEDEC MO-178, 1.6 mm
Tape & Reel
3000
Connection Diagram
Figure 1. Top View
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
www.fairchildsemi.com
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
July 2016
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
Pin Configuration
Figure 2. Pin Configuration
Pin Definitions
Pin #
Name
Description
1
VCC
Power Supply
2
GND
Ground for the IC
3
RIN+
Non-inverting Driver Input
4
RIN−
Inverting Driver Input
5
ROUT
LVTTL Data Output
Function Table
Inputs
Outputs
RIN+
RIN-
ROUT
LOW
HIGH
LOW
HIGH
LOW
HIGH
Fail-Safe Condition (Open, Shorted, Terminated)
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
HIGH
www.fairchildsemi.com
2
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device
reliability. The absolute maximum ratings are stress ratings only.
Symbol
VCC
RIN+ / RINDOUT
IO
TSTG
Parameter
Min.
Max.
Unit
Supply Voltage
-0.5
4.6
V
Input Voltage
-0.5
4.6
V
DC Output Voltage
-0.5
6.0
V
16
mA
Output Current
+150
°C
TJ
Maximum Junction Temperature
+150
°C
TL
Lead Temperature, Soldering, 10 Seconds
+260
°C
ESD
Storage Temperature Range
Electrostatic Discharge
-65
Human Body Model
All Pins
8
LVDS Pins to GND
10
Machine Model
kV
400
V
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
Absolute Maximum Ratings
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not
recommend exceeding them or designing to Absolute Maximum Ratings.
Symbol
Parameter
VCC
Supply Voltage
VIN
Input Voltage
VID
Magnitude of Differential Voltage
VIC
Common-mode Input Voltage
TA
Operating Temperature
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
Min.
Max.
Unit
3.0
3.6
V
0
VCC
V
100
VCC
mV
0 + |VID| /2
2.4 − |VID|/2
V
-40
+125
°C
www.fairchildsemi.com
3
All min. and max. values are guaranteed at TA = -40 to +125°C. All typical values are at TA = 25°C and with VCC =
3.3 V, unless otherwise specified.
Symbol
Parameter
VTH
Differential Input Threshold HIGH
VTL
Differential Input Threshold LOW
IIN
Input Current
VIN = 0 V or VCC
±20
µA
Power-OFF Input Current
VCC = 0 V, VIN = 0 V or 3.6 V
±20
µA
II(OFF)
Conditions
Min.
Typ.
VIC = +0.05 V, 1.2 V, or 2.35 V
Figure 3
VIC = +0.05 V, 1.2 V, or 2.35 V
Figure 3
IOH = −100 µA
Max.
Units
100
mV
−100
mV
VCC − 0.2
3.3
2.4
3.1
V
VOH
Output HIGH Voltage
VOL
Output LOW Voltage
VIK
Input Clamp Voltage
IIK = −18 mA
ICC
Power Supply Current
(RIN+ = 1 V and RIN−= 1.4 V) or
(RIN+ = 1.4 V and RIN−= 1 V)
CIN
Input Capacitance
VCC = 3.3 V
2.3
pF
Output Capacitance
VCC = 0 V
2.8
pF
COUT
IOH = −8 mA
IOH = 100 µA
IOL = 8 mA
−1.5
0
0.2
0.16
0.50
V
0.8
4
V
7
mA
Note:
1. Not production tested across the full temperature range.
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
DC Electrical Characteristics(1)
AC Electrical Characteristics
All min. and max. values are guaranteed at TA = -40 to +85°C. All typical values are at TA = 25°C and with VCC =
3.3 V, unless otherwise specified.
|VID| = 400 mV, CL = 10 pF. See Figure 3 and Figure 4.
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Units
tPLH
Propagation Delay
LOW to HIGH
0.9
1.5
2.5
ns
tPHL
Propagation Delay
HIGH to LOW
0.9
1.5
2.5
ns
tTLH
Output Rise Time
20% to 80%
0.6
ns
tTHL
Output Fall Time
80% to 20%
0.5
ns
tSK(p)
Pulse Skew
|tPLH - tPHL|
0.02
tSK(PP)
(2)
Part-to-Part Skew
0.4
ns
1.0
ns
Note:
2. tSK(PP) is the magnitude of the difference in propagation delay times between any specified terminals of two
devices switching in the same direction (either LOW-to-HIGH or HIGH-to-LOW) when both devices operate with
the same supply voltage, same temperature, and have identical test circuits.
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
www.fairchildsemi.com
4
Figure 3. Differential Receiver Voltage Definitions and Propagation Delay and Transition Time Test Circuit
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
Test Diagrams
Figure 4. LVDS Input to LVTTL Output AC Waveforms
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
www.fairchildsemi.com
5
Figure 5. Output High Voltage vs. Power Supply
Voltage
Figure 6. Output Low Voltage vs. Power Supply
Voltage
Figure 7. Output Short Circuit Current vs. Power
Supply Voltage
Figure 8. Power Supply Current vs. Frequency
Figure 9. Power Supply Current vs. Ambient
Temperature
Figure 10. Differential Propagation Delay Power
Supply Voltage
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
Typical Performance Characteristics
www.fairchildsemi.com
6
(Continued)
Figure 11. Differential Propagation Delay vs. Ambient
Temperature
Figure 12. Differential Skew vs. Power Supply
Voltage
Figure 13. Differential Skew vs. Ambient Temperature
Figure 14. Differential Propagation Delay vs.
Differential Input Voltage
Figure 15. Differential Propagation Delay vs.
Common-Mode Voltage
Figure 16. Transition Time vs. Power
Supply Voltage
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
Typical Performance Characteristics
www.fairchildsemi.com
7
(Continued)
Figure 17. Transition Time vs. Ambient Temperature
Figure 18. Differential Propagation Delay vs. Load
Figure 19. Differential Propagation Delay vs. Load
Figure 20. Transition Time vs. Load
Figure 21. Transition Time vs. Load
Figure 22. Power Supply Current vs. Power Supply
Voltage
© 2002 Fairchild Semiconductor Corporation
FIN1002 • Rev. 1.2
FIN1002 — LVDS 1-Bit, High-Speed Differential Receiver
Typical Performance Characteristics
www.fairchildsemi.com
8
