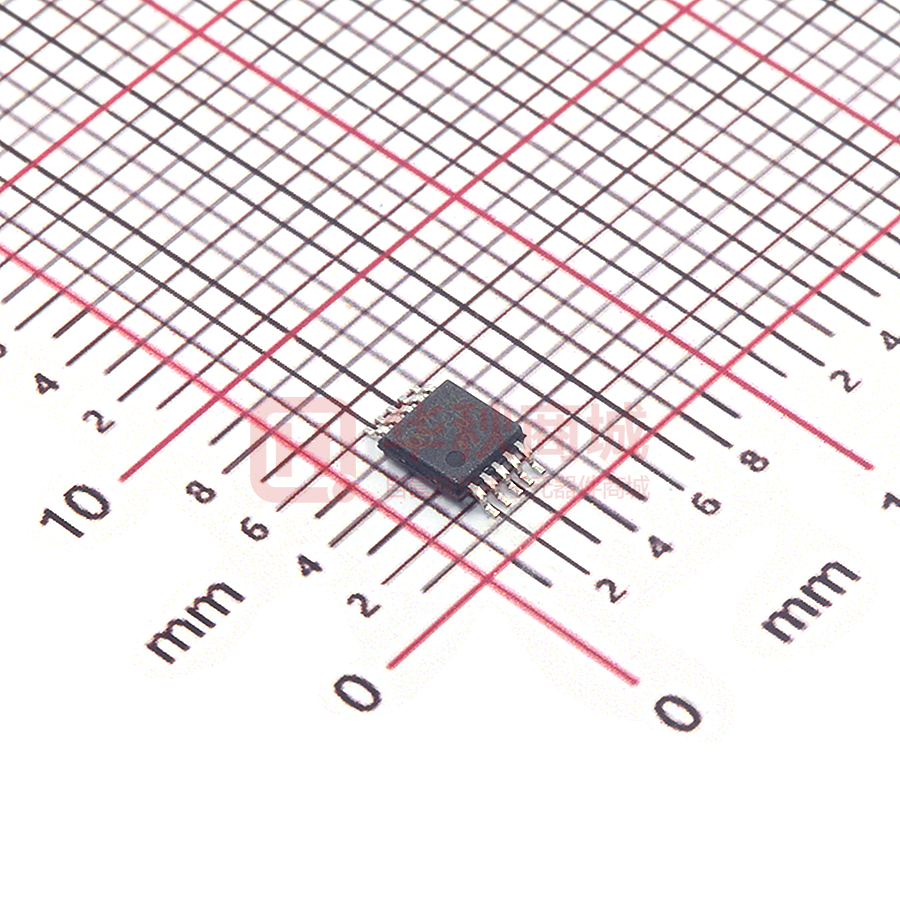

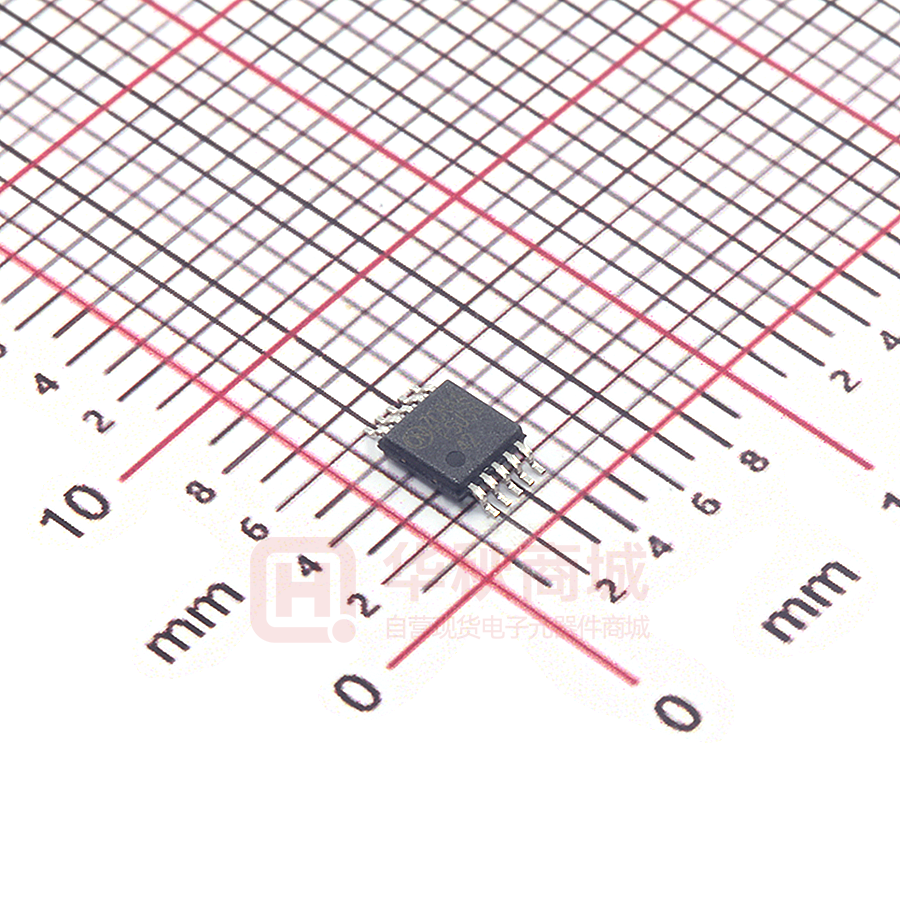

FSUSB42MUX

Click here for this datasheet translated into Chinese! FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Description Features        The FSUSB42 is a bi-directional, low-power, two-port, Hi-Speed, USB2.0 switch. Configured as a double-pole, double-throw switch (DPDT) switch, it is optimized for switching between two Hi-Speed (480Mbps) sources or a Hi-Speed and Full-Speed (12Mbps) source. Low On Capacitance: 3.7pF Typical Low On Resistance: 3.9Ω Typical Low Power Consumption: 1μA Maximum - 15μA Maximum ICCT over an Expanded Voltage Range (VIN=1.8V, VCC=4.4V) Wide -3db Bandwidth: > 720MHz Packaged in: - 10-Lead UMLP (1.4 x 1.8mm) - 10-Lead MSOP 8kV ESD Rating, >16kV Power/GND ESD Rating Over-Voltage Tolerance (OVT) on all USB Ports Up to 5.25V without External Components The FSUSB42 is compatible with the requirements of USB2.0 and features an extremely low on capacitance (CON) of 3.7pF. The wide bandwidth of this device (720MHz) exceeds the bandwidth needed to pass the third harmonic, resulting in signals with minimum edge and phase distortion. Superior channel-to-channel crosstalk also minimizes interference. Applications  Cell phone, PDA, Digital Camera, and Notebook  LCD Monitor, TV, and Set-Top Box IMPORTANT NOTE: For additional performance information, please contact analogswitch@fairchildsemi.com. The FSUSB42 contains special circuitry on the switch I/O pins for applications where the VCC supply is powered-off (VCC=0), which allows the device to withstand an over-voltage condition. This device is designed to minimize current consumption even when the control voltage applied to the SEL pin is lower than the supply voltage (VCC). This feature is especially valuable to ultra-portable applications, such as cell phones, allowing for direct interface with the generalpurpose I/Os of the baseband processor. Other applications include switching and connector sharing in portable cell phones, PDAs, digital cameras, printers, and notebook computers. Ordering Information Part Number Top Mark Operating Temperature Range FSUSB42UMX HE -40 to +85°C 10-Lead, Quad, Ultrathin Molded Leadless Package (UMLP), 1.4 x 1.8mm FSUSB42MUX FSUSB42 -40 to +85°C 10-Lead, Molded Small Outline Package (MSOP) JEDEC MO-187, 3.0mm Wide Package MicroPak™ is a trademark of Fairchild Semiconductor Corporation. HSD1+ D+ HSD2+ HSD1- D- HSD2Sel Control /OE Figure 1. Analog Symbol © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 www.fairchildsemi.com FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch February 2012 GND 3 HSD1- 4 HSD1+ 5 D- D+ 2 1 VCC 1 10 Sel 2 9 HSD2+ D+ 3 8 HSD2- D- 4 7 HSD1+ GND 5 6 HSD1- /OE 10 Sel 9 Vcc 8 /OE 6 7 HSD2- HSD2+ Figure 2. Pin Assignment 10L UMLP (Top Through View) Figure 3. Pin Assignment 10L MSOP (Top Through View) Pin Definitions UMLP Pin# MSOP Pin# Name Description 1 3 D+ USB Data Bus 2 4 D- USB Data Bus 3 5 GND 4 6 HSD1- Multiplexed Source Inputs (UART / USB) 5 7 HSD1+ Multiplexed Source Inputs (UART / USB) 6 8 HSD2- Multiplexed Source Inputs (USB Only) 7 9 HSD2+ 8 10 /OE Switch Enable 9 1 VCC Supply Voltage 10 2 Sel Switch Select Ground Multiplexed Source Inputs (USB Only) FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Pin Assignments Truth Table Sel /OE Function X HIGH Disconnect LOW LOW D+, D-=HSD1+, HSD1- HIGH LOW D+, D-=HSD2+, HSD2- © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 www.fairchildsemi.com 2 Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Symbol VCC Parameter Supply Voltage VCNTRL (1) DC Input Voltage (S, /OE) (1) Min. Max. Unit -0.5 5.6 V -0.5 VCC V 5.25 V VSW DC Switch I/O Voltage -0.50 IIK DC Input Diode Current -50 IOUT DC Output Current TSTG Storage Temperature MSL Moisture Sensitivity Level (JEDEC J-STD-020A) -65 Human Body Model, JEDEC: JESD22-A114 ESD IEC 61000-4-2 System on USB Connector Pins D+ & D- All Pins 7 I/O to GND 8 Power to GND 16 D+/D- 9 Air Discharge 15 Contact 8 Charged Device Model, JEDEC: JESD22-C101 mA 100 mA +150 °C 1 Level kV 2 Note: 1. The input and output negative ratings may be exceeded if the input and output diode current ratings are observed. Recommended Operating Conditions The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended operating conditions are specified to ensure optimal performance to the datasheet specifications. Fairchild does not recommend exceeding them or designing to Absolute Maximum Ratings. Symbol VCC VCNTRL VSW TA Parameter Min. Max. Unit 3.0 4.4 V 0 VCC V Switch I/O Voltage -0.5 4.5 V Operating Temperature -40 +85 °C Supply Voltage (2) Control Input Voltage (S, /OE) FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Absolute Maximum Ratings Note: 2. The control input must be held HIGH or LOW and it must not float. © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 www.fairchildsemi.com 3 All typical value are at TA=25°C unless otherwise specified. Symbol Parameter Condition VIK Clamp Diode Voltage IIN=-18mA VIH Input Voltage High VIL Input Voltage Low IIN Control Input Leakage VSW=0 to VCC IOZ Off State Leakage IOFF RON VCC (V) TA=- 40°C to +85°C Min. Typ. 3.0 Max. -1.2 Unit V 3.0 to 3.6 1.3 V 4.3 1.7 V 3.0 to 3.6 0.5 V 4.3 0.7 V 0 to 4.3 -1 1 µA 0 Dn, HSD1n, HSD2n 3.6V 4.3 -2 2 µA Power-Off Leakage Current (All I/O Ports) VSW=0V to 4.3V, VCC=0V Figure 5 0 -2 2 µA HS Switch On Resistance(3) VSW=0.4V, ION=-8mA Figure 4, 3.0 3.9 6.5  HS Delta RON(4) VSW=0.4V, ION=-8mA 3.0 0.65 ICC Quiescent Supply Current VCNTRL=0 or VCC, IOUT=0 4.3 1 µA ICCT Increase in ICC Current per Control Voltage and VCC VCNTRL=2.6V, VCC=4.3V 4.3 10 µA VCNTRL=1.8V, VCC=4.3V 4.3 15 µA ∆RON  Notes: 3. Measured by the voltage drop between HSDn and Dn pins at the indicated current through the switch. On resistance is determined by the lower of the voltage on the two (HSDn or Dn ports). 4. Guaranteed by characterization. © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch DC Electrical Characteristics www.fairchildsemi.com 4 All typical value are for VCC=3.3V at TA=25°C unless otherwise specified. Symbol Parameter Condition VCC (V) TA=- 40°C to +85°C Min. Typ. Max. Unit tON Turn-On Time S, /OE to Output RL=50Ω, CL=5pF VSW=0.8V Figure 6, Figure 7 3.0 to 3.6 13 30 ns tOFF Turn-Off Time S, /OE to Output RL=50Ω, CL=5pF VSW=0.8V Figure 6, Figure 7 3.0 to 3.6 12 25 ns tPD Propagation Delay(5) CL=5 pF, RL=50Ω Figure 6, Figure 8 3.3 0.25 tBBM Break-Before-Make RL=50Ω, CL=5pF VSW1=VSW2=0.8V Figure 10 3.0 to 3.6 OIRR Off Isolation RL=50Ω, f=240MHz Figure 12 3.0 to 3.6 -30 dB Xtalk Non-Adjacent Channel Crosstalk RL=50Ω, f=240MHz Figure 13 3.0 to 3.6 -45 dB 720 MHz 550 MHz BW -3db Bandwidth RL=50Ω, CL=0pF Figure 11 2.0 ns 6.5 ns 3.0 to 3.6 RL=50Ω, CL=5pF Figure 11 Note: 5. Guaranteed by characterization. USB Hi-Speed-Related AC Electrical Characteristics Symbol tSK(P) tJ Parameter Skew of Opposite Transitions of the Same Output(6) Total Jitter (6) Condition VCC (V) TA=- 40ºC to +85ºC Min. Typ. Max. Unit CL=5pF, RL=50Ω Figure 9 3.0 to 3.6 20 ps RL=50Ω, CL=5pf, tR=tF=500ps (10-90%) at 480Mbps (PRBS=215 – 1) 3.0 to 3.6 200 ps FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch AC Electrical Characteristics Note: 6. Guaranteed by characterization. Capacitance Symbol Parameter Condition TA=- 40°C to +85°C Min. Typ. CIN Control Pin Input Capacitance VCC=0V 1.5 CON D+/D- On Capacitance VCC=3.3V, /OE=0V, f=240MHz Figure 15 3.7 COFF D1n, D2n Off Capacitance VCC and /OE=3.3V Figure 14 2.0 © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 Max. Unit pF www.fairchildsemi.com 5 VON I Dn(OFF) NC HSDn A VSW Dn VSW Select GND I ON Select R ON = VON / ION V Sel = GND Figure 5. Off Leakage tRISE = 2.5ns Dn VSW CL GND RS 0 orV V cc **Each switch port is tested separately 0 orV cc Figure 4. On Resistance HSDn GND V Sel = RL tFALL = 2.5ns VCC V OUT Input – V/OE , VSel GND 10% GND V Sel VOH GND Output- VOUT RL , RS , and C L are functions of the application environment (see AC Tables for specific values) CL includes test fixture and stray capacitance. VOL Figure 6. AC Test Circuit Load 90% 90% VCC /2 VCC /2 90% tON 90% tOFF Figure 7. Turn-On / Turn-Off Waveforms tRISE = 500ps 50% Input 0V 400mV +400mV tPHL - 400mV 90% 0V 50% tPLH 10% 10% tFALL = 500ps FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Test Diagrams 90% 10% VOH Output 50% 50% Output VOL t PHL Figure 8. Propagation Delay (tRtF – 500ps) © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 t PLH Figure 9. Intra-Pair Skew Test tSK(P) www.fairchildsemi.com 6 tRISE = 2.5ns Vcc HSDn Dn VSW1 GND CL VSW2 RL 10% 0V VOUT VOUT GND GND 90% Vcc/2 Input - VSel 0.9*Vout 0.9*Vout RS tBBM V Sel RL , RS , and C L are functions of the application environment (see AC Tables for specific values) CL includes test fixture and stray capacitance. GND Figure 10. Break-Before-Make Interval Timing Network Analyzer Network Analyzer RS GND RS V IN VS GND VSel GND VSel VOUT GND VS GND V OUT GND RS and RT are functions of the application environment (see AC Tables for specific values). GND V IN GND GND RT RS and RT are functions of the application environment (see AC Tables for specific values). GND RT RT GND Off isolation = 20 Log (V OUT / VIN) Figure 11. Bandwidth Figure 12. Channel Off Isolation Network Analyzer NC RS V IN GND VS VSel GND GND RT FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Test Diagrams (Continued) GND GND RS and RT are functions of the application environment (see AC Tables for specific values). RT V OUT GND Crosstalk = 20 Log (VOUT / VIN) Figure 13. Non-Adjacent Channel-to-Channel Crosstalk HSDn Capacitance Meter S Capacitance Meter S VSel = 0 or Vcc V Sel = 0 or Vcc HSDn HSDn Figure 14. Channel Off Capacitance © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 HSDn Figure 15. Channel On Capacitance www.fairchildsemi.com 7 FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Physical Dimensions 1.40 0.15 C A 1.70 B 2X (9X) 0.563 0.663 1 2.10 1.80 PIN#1 IDENT 0.40 0.15 C TOP VIEW 0.55 MAX. 0.10 C (10X) 0.225 2X RECOMMENDED LAND PATTERN 0.152 1.45 0.08 C 0.55 SEATING C PLANE 0.05 SIDE VIEW 9X 0.45 0.40 1.85 0.35 (9X) 0.45 3 (10X) 0.225 6 DETAIL A OPTIONAL MINIMIAL TOE LAND PATTERN 0.40 1 NOTES: PIN#1 IDENT A. PACKAGE DOES NOT FULLY CONFORM TO JEDEC STANDARD. B. DIMENSIONS ARE IN MILLIMETERS. C. DIMENSIONS AND TOLERANCES PER ASME Y14.5M, 1994. D. LAND PATTERN RECOMMENDATION IS BASED ON FSC DESIGN ONLY. E. DRAWING FILENAME: MKT-UMLP10Arev3. 0.15 (10X) 0.25 10 BOTTOM VIEW 0.55 0.45 0.10 C A B 0.05 C 0.10 0.10 0.10 DETAIL A SCALE : 2X PACKAGE EDGE LEAD OPTION 1 SCALE : 2X LEAD OPTION 2 SCALE : 2X Figure 16. 10-Lead, Ultrathin Molded Leadless Package (UMLP) Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products. Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings: http://www.fairchildsemi.com/packaging/. © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 www.fairchildsemi.com 8 FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch Physical Dimensions (Continued) Figure 17. 10-Lead, Molded Small Outline Package (MSOP) Package drawings are provided as a service to customers considering Fairchild components. Drawings may change in any manner without notice. Please note the revision and/or date on the drawing and contact a Fairchild Semiconductor representative to verify or obtain the most recent revision. Package specifications do not expand the terms of Fairchild’s worldwide terms and conditions, specifically the warranty therein, which covers Fairchild products. Always visit Fairchild Semiconductor’s online packaging area for the most recent package drawings: http://www.fairchildsemi.com/packaging/. © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 www.fairchildsemi.com 9 FSUSB42 — Low-Power, Two-Port, Hi-Speed, USB2.0 (480Mbps) UART Switch © 2007 Fairchild Semiconductor Corporation FSUSB42 • Rev. 1.1.5 www.fairchildsemi.com 10
