FUSB302B
Programmable USB Type-C Controller w/PD
Features
Dual-Role Functionality with Autonomous DRP
Toggle
Ability to connect as either a host or a device based
on what has been attached.
Software configurable either as a dedicated host,
dedicated device, or dual role.
- Dedicated devices can operate both on a Type-C
receptacle or a Type-C plug with a fixed CC and
VCONN channel.
Full Type-C 1.2 Support. Integrates the following
functionality of the CC pin
- Attach/Detach Detection as Host
- Current Capability Indication as Host
- Current Capability Detection as Device
- Audio Adapter Accessory Mode
- Debug Accessory Mode
- Active Cable Detection
Integrates CCx to VCONN switch with over-current
limiting for powering USB3.1 Full Featured cables.
USB Power Delivery (PD) 2.0, Version 1.2 Support
Description
The FUSB302B targets system designers looking to
implement a DRP/SRC/SNK USB Type-C connector
with low amount of programmability.
The FUSB302B enables the USB Type-C detection
including attach, and orientation. The FUSB302B
integrates the physical layer of the USB BMC power
delivery protocol to allow up to 100 W of power and role
swap. The BMC PD block enables full support for
alternative interfaces of the Type-C specification.
Applications
Smartphones
Tablets
Laptops
Notebooks
Power Adapters
Cameras
Dongles
- Automatic GoodCRC Packet Response
- Automatic retries of sending a packet if a
FUSB302B
GoodCRC is not received
- Automatic soft reset packet sent with retries if
needed
- Automatic Hard Reset Ordered Set Sent
Dead Battery Support (SNK Mode Support when
No Power Applied)
Low Power Operation: ICC = 25 μA (Typical)
Packaged in :
-
Figure 1.
Block Diagram
9-Ball WLCSP (1.215 mm x 1.260 mm)
14-lead MLP (2.5 mm x 2.5 mm, 0.5 mm Pitch)
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev. 1.4
www.fairchildsemi.com
FUSB302B — Programmable USB Type-C Controller w/PD
August 2016
Top
Mark
Part Number
Operating
Temperature
Range
H4

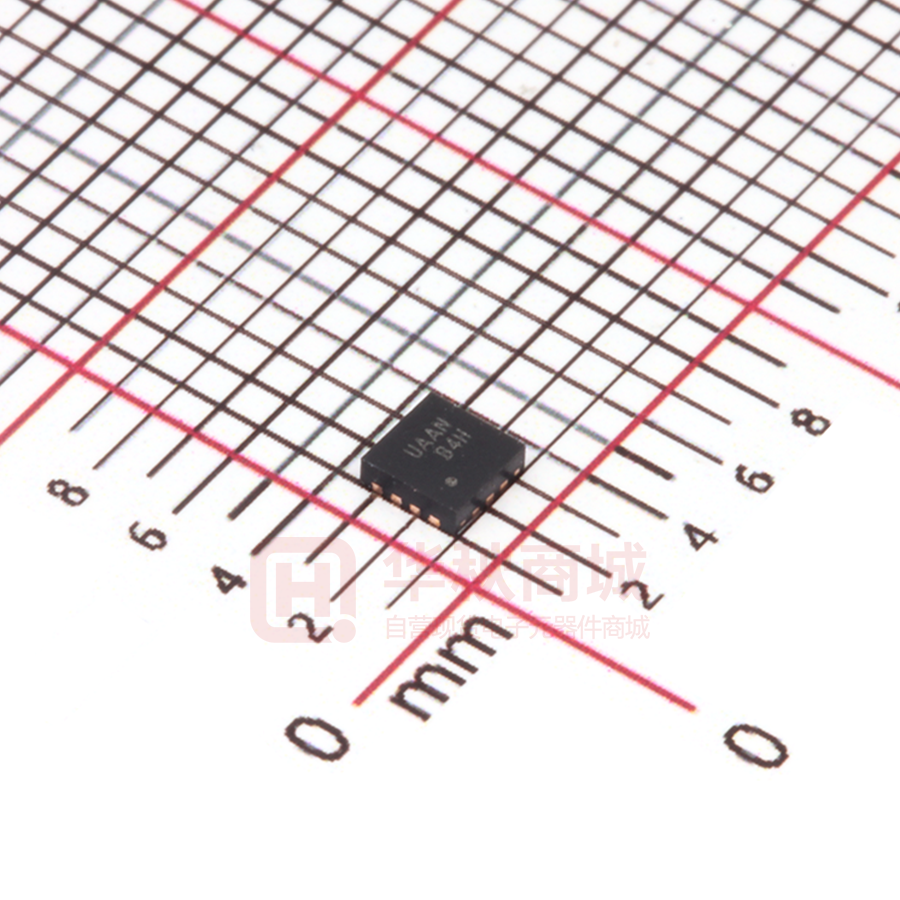

FUSB302BUCX
FUSB302BMPX
UA
FUSB302B01MPX
UP
FUSB302B10MPX
US
FUSB302B11MPX
UT
Packing
Method
Package
9-Ball Wafer-Level Chip Scale Package
(WLCSP), 0.4 mm Pitch
-40 to 85°C
-40 to 125°C
14-lead MLP 2.5 mm x 2.5 mm, 0.5 mm Pitch
Tape and
Reel
Typical Application
BAT
CHARGER
OVP
3.0V
VBUS
REG
1.71V to VDD
VCONN
VDD
FUSB302B
TYPE-C
I2C/
Registers
VBUS
GND
RX2+ TX2+
RX2- TX2VBUS
SBU1 CC2
DD+
D+
DCC1 SBU2
VBUS
TX1- RX1TX1+ RX1+
GND
INT_N
I2C_SDA
I2C_SCL
Dual-Role Detection
Auto Toggle
CC2
Switch Matrix
CC Detection / Control
Powered Cable
Audio Adapter / Debug Acc
BMC I/O
DAC Comparator
CC1
Logic &
Control
Processor
GND
GND
USB_3.11
FUSB340
USB 3.1
2:1 Switch
USB_3.12
Figure 2.
Typical Application
Block Diagram
VCONN
VBUS
CC1
FUSB302B
Processor (Software)
Type-C Connection States :
- SOURCE
- SINK
- SINK with Accessory
Support
- Dual-Role Port
- Dual-Role Port with
Accessory Support
Control
Settings
Comp.
Status
RD
CC2
Type-C
Switch
Settings
DAC
INT_N
SDA
SCL
PD (Provider/Consumer)
Device Policy Manager
PD/
VDM
I2C Reg
PD
Configuration
PD Status
RD
Code/
Control
Logic
Protocol
Figure 3.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
FIFO
CRC32
Tx
FIFO
CRC32
Rx
FIFO
Access
4B5B
BMC
DRIVER
Policy Engine
BMC
BMC Physical Layer
4B5B
BMC
CDR
Functional Block Diagram
www.fairchildsemi.com
2
FUSB302B — Programmable USB Type-C Controller w/PD
Ordering Information
FUSB302B — Programmable USB Type-C Controller w/PD
Pin Configuration
A
B
C
1 2 3
3 2 1
CC2
VBUS
VDD
VDD
VBUS
CC2
VCONN
INT_N
SCL
SCL
INT_N
VCONN
CC1
GND
SDA
SDA
GND
CC1
TOP Through View
Figure 4.
A
B
C
Bottom view
FUSB302BUCX Pin Assignment
Pin Map
Column 1
Column 2
Column 3
Row A
CC2
VBUS
VDD
Row B
VCONN
INT_N
SCL
Row C
CC1
GND
SDA
14
CC2
13
VCONN
12
VCONN
11
CC1
1
CC2
TOP
THROUGH
VIEW
2
VBUS
Connect to GND for
Thermal
3
VDD
4
VDD
5
INT_N
6
SCL
Figure 5.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
11
CC1
10
CC1
10
CC1
9
GND
9
GND
8
GND
8
GND
7
SDA
12
VCONN
13
VCONN
14
CC2
1
CC2
BOTTOM
VIEW
2
VBUS
Connect to GND for
Thermal
7
SDA
6
SCL
5
INT_N
3
VDD
4
VDD
FUSB302BMPX Pin Assignment (N/C = No Connect)
www.fairchildsemi.com
3
Name
Type
Description
USB Type-C Connector Interface
CC1/CC2
I/O
GND
Ground
VBUS
Input
Type-C connector Configuration Channel (CC) pins. Initially used to determine
when an attach has occurred and what the orientation of the insertion is.
Functionality after attach depends on mode of operation detected.
Operating as a host:
1. Sets the allowable charging current for VBUS to be sensed by the attached
device
2. Used to communicate with devices using USB BMC Power Delivery
3. Used to detect when a detach has occurred
Operating as a device:
1. Indicates what the allowable sink current is from the attached host. -Used to
communicate with devices using USB BMC Power Delivery
Ground
VBUS input pin for attach and detach detection when operating as an upstream
facing port (Device). Expected to be an OVP protected input.
Power Interface
VDD
Power
VCONN
Power Switch
Input supply voltage.
Regulated input to be switched to correct CC pin as VCONN to power USB3.1 fullfeatured cables and other accessories
Signal Interface
2
2
SCL
Input
SDA
Open-Drain
I/O
I C serial data signal to be connected to the phone-based I C master
INT_N
Open-Drain
Output
Active LOW open drain interrupt output used to prompt the processor to read the
2
I C register bits
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
I C serial clock signal to be connected to the phone-based I C master.
2
2
www.fairchildsemi.com
4
FUSB302B — Programmable USB Type-C Controller w/PD
Pin Descriptions
The FUSB302B integrates the control and detection
functionality required to implement a USB Type-C host,
device or dual-role port including:
VCONN Power Switch with OCP for Full-Featured
USB3.1 Cables
USB BMC Power Delivery Physical Layer
Configuration Channel (CC) Threshold
Comparators.
Each CC pin contains a flexible switch matrix that allows
the host software to control what type of Type-C port is
implemented. The switches are shown in Figure 6.
Device Port Pull-Down(RD)
Host Port Pull-Up (IP)
CCX
VCONN
VCONN_CCx
Reg
VCONN_SWITCH
MEAS_CCx
Reg
DAC/
Comparator
MEAS_CC_SWITCH
TXCCx
Reg
BMC
I/O
TX_BMC_SWITCH
PU_ENx
Reg
Current
Source
Pull-ups
PWDNx
Reg
Figure 6.
PULLUP_SWITCH
PULLDOWN_SWITCH
5.1K
Configuration Channel Switch Functionality
Type-C Detection
The FUSB302B implements multiple comparators and a
programmable DAC that can be used by software to
determine the state of the CC and VBUS pins. This status
information provides the processor all of the information
required to determine attach, detach and charging current
configuration of the Type-C port connection.
Detection through Autonomous Device Toggle
The FUSB302B has the capability to do autonomous
DRP toggle. In autonomous toggle the FUSB302B
internally controls the PDWN1, PDWN2, PU_EN1 and
PU_EN2, MEAS_CC1 and MEAS_CC2 and implements
a fixed DRP toggle between presenting as a SRC and
presenting as a SNK. Alternately, it can present as a
SRC or SNK only and poll CC1 and CC2 continuously.
The FUSB302B has three fixed threshold comparators
that match the USB Type-C specification for the three
charging current levels that can be detected by a TypeC device. These comparators automatically cause
BC_LVL and COMP interrupts to occur when there is a
change of state. In addition to the fixed threshold
comparators, the host software can use the 6-bit DAC to
determine the state of the CC lines more accurately.
The FUSB302B also has a fixed comparator that
monitors if VBUS has reached a valid threshold or not.
The DAC can be used to measure VBUS up to 20 V
which allows the software to confirm that changes to the
VBUS line have occurred as expected based on PD or
other communication methods to change the charging
level.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
5
FUSB302B — Programmable USB Type-C Controller w/PD
Configuration Channel Switch
2
I C Registers / Bits
Manual Device Toggle
The FUSB302B has the capability to do manual DRP
toggle. In manual toggle the FUSB302B is configurable
by the processor software by I2C and setting TOGGLE
= 0.
Value
TOGGLE
1
PWR
07H
HOST_CUR0
1
HOST_CUR1
0
MEAS_VBUS
0
VCONN_CC1
0
VCONN_CC2
0
Mask Register
0xFE
Maska Register
0xBF
Maskb Register
0x01
(Except I_TOGDONE and I_BC_LVL Interrupt)
Manual Device Detection and Configuration
A Type-C device must monitor VBUS to determine if it is
attached or detached. The FUSB302B provides this
information through the VBUSOK interrupt. After the
Type-C device knows that a Type-C host has been
attached, it needs to determine what type of termination
is applied to each CC pin. The software determines if an
Ra or Rd termination is present based on the BC_LVL
and COMP interrupt and status bits.
Additionally, for Rd terminations, the software can
further determine what charging current is allowed by
the Type-C host by reading the BC_LVL status bits. This
is summarized in Table 2.
0x07
PWR[3:0]
Toggle Functionality
Notes:
1. Once it has been determined what the role is of the
FUSB302B, it returns I_TOGDONE and
TOGSS1/2.
2. Processor then can perform a final manual check
through I2C.
Table 2.
When TOGGLE bit (Control2 register) is set the
FUSB302B implements a fixed DRP toggle between
presenting as a SRC and as a SNK. It can also be
configured to present as a SRC only or SNK only and
poll CC1 and CC2 continuously. This operation is turned
on with TOGGLE=1 and the processor should initially
write HOST_CUR1=0, HOST_CUR0=1 (for default
current),
VCONN_CC1=VCONN_CC2=0,
Mask
Register=0xFE, Maska register=0xBF, and Maskb
register=0x01, and PWR=0x01. The processor should
also read the interrupt register to clear them prior to
setting the TOGGLE bit.
Device Interrupt Summary
Status Type
Interrupt Status
Meaning
BC_LVL[1:0]
COMP
COMP Setting
VBUSOK
2'b00
NA
NA
1
vRA
2'b01
NA
NA
1
vRd-Connect and vRd-USB
2'b10
NA
NA
1
vRd-Connect and vRd-1.5
2'b11
0
6'b11_0100
(2.05 V)
1
vRd-Connect and vRd-3.0
Attach
NA
NA
NA
1
Host Attached, VBUS Valid
Detach
NA
NA
NA
0
Host Detached, VBUS Invalid
CC Detection
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
6
FUSB302B — Programmable USB Type-C Controller w/PD
Table 1. Processor Configures the FUSB302B
2
through I C:
attached or detached and what termination type has
been attached to each CC pin.
The FUSB302B allows the host software to change the
charging current capabilities of the port through the
HOST_CUR control bits. If the HOST_CUR bits are
changed prior to attach, the FUSB302B automatically
indicates the programmed current capability when a
device is attached. If the current capabilities are changed
after a device is attached, the FUSB302B immediately
changes the CC line to the programmed capability.
Disabled:
FUSB302B in low power
mode looking for an attach
FUSB302B I_TOGDONE
interrupt alerts host
software that something
has attached.
Unattached.SNK:
Host software enables
FUSB302B pull-downs
and measure block to
detect attach
ATTACH
CC
0V
FUSB302B I_VBUSOK interrupt
alerts host software that an attach
has occurred
FUSB302B I_VBUSOK interrupt
alerts host software that a detach has
occurred
HOST_CUR[1:0] = DEFAULT
Figure 8.
Attached.SNK
Host software uses FUSB302B
comparators and DAC to determine
attach orientation and port type
MED CURRENT SETTING
HIGH CURRENT SETTING
HOST_CUR Changed After Attach
ATTACH
CC
0V
MED CURRENT SETTING
HIGH CURRENT SETTING
DEFAULT CURRENT
Host software determines that an
accessory has been attached
Figure 9.
DebugAccessory
The Type-C specification outlines different attach and
detach thresholds for a Type-C host that are based on
how much current is supplied to each CC pin. Based on
the programmed HOST_CUR setting, the software
adjusts the DAC comparator threshold to match the
Type-C specification requirements. The BC_LVL
comparators can also be used as part of the Ra
detection flow. This is summarized in Table 3.
FUSB302B I_COMP and I_VBUSOK
interrupts alert host software that a
accessory detach has occurred
Figure 7.
SNK Software Flow
Manual Host Detection and Configuration
When the FUSB302B is configured as a Type-C host,
the software can use the status of the comparators and
DAC to determine when a Type-C device has been
Table 3.
Host Interrupt Summary
Termination
Ra
HOST_CUR Changed Prior To Attach
AudioAccessory
HOST_CUR[1:0]
Interrupt Status
Attach/Detach
BC_LVL[1:0]
COMP
COMP Setting
2'b01
2'b00
NA
NA
2'b10
2'b01
0
6'b00_1010 (0.42 V)
2'b11
2'b10
0
6'b01_0011 (0.8 V)
NA
0
6'b10_0110 (1.6 V)
Attach
NA
1
6'b10_0110 (1.6 V)
Detach
NA
0
6'b11_1110 (2.6 V)
Attach
NA
1
6'b11_1110 (2.6 V)
Detach
2'b01, 2'b10
Rd
2'b11
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
NA
www.fairchildsemi.com
7
FUSB302B — Programmable USB Type-C Controller w/PD
The high level software flow diagram for a Type-C
device (SNK) is shown in Figure 7.
Disabled:
FUSB302B in low power
mode looking for an attach
FUSB302B I_TOGDONE
interrupt alerts host
software that something
has attached.
Unattached.SRC:
Host software enables
FUSB302B pull-ups and
measure block to detect
attach
Host software utilizes I_COMP and
I_BC_LVL interrupts to determine an
attach and what type of port is attached.
FUSB302B I_COMP interrupt alerts
host software that a detach has
occurred
Attached.SRC
Host software configures
FUSB302B based on insertion
orientation and enables VBUS
and VCONN
AudioAccessory
DebugAccessory
FUSB302B I_COMP and I_VBUSOK
interrupts alert host software that a
accessory detach has occurred
Figure 10.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
SRC Software Flow
www.fairchildsemi.com
8
FUSB302B — Programmable USB Type-C Controller w/PD
The high level software flow diagram for a Type-C Host (SRC) is shown below in Figure 10.
The Type-C specification allows ports to be both a
device and a host depending on what type of port has
attached. This functionality is similar to USB OTG ports
with the current USB connectors and is called a dual-
Disabled:
FUSB302B in low power
mode looking for an attach
FUSB302B I_TOGONE
interrupt alerts host
software that something
has attached.
Host software enables
FUSB302B low power
Disabled state
Unattached.SNK:
Host software enables
FUSB302B pull-downs
and measure block to
detect attach
Host software toggle
expires
FUSB302B I_VBUSOK interrupt
alerts host software that an attach
has occurred
FUSB302B I_VBUSOK interrupt
alerts host software that a detach has
occurred
Host software utilizes I_COMP and
I_BC_LVL interrupts to determine an
attach
DRP Software Flow
The FUSB302B uses tokens to control the transmission
of BMC PD packets. These tokens are written to the
transmit FIFO and control how the packet is transmitted
on the CC pin. The tokens are designed to be flexible
and support all aspects of the USB PD specification.
The FUSB302B additionally enables control of the BMC
transmitter through tokens. The transmitter can be
enabled or disabled by specific token writes which allow
faster packet processing by burst writing the FIFO with
all the information required to transmit a packet.
BMC Power Delivery
The Type-C connector allows USB Power Delivery (PD)
to be communicated over the connected CC pin
between two ports. The communication method is the
BMC Power Delivery protocol and is used for many
different reasons with the Type-C connector. Possible
uses are outlined below.
Negotiating and controlling charging power levels
Role swap for dual-role ports that want to switch
who is the host or device
Alternative Interfaces such as MHL, Display Port
The FUSB302B receiver stores the received data and
the received CRC in the receive FIFO when a valid
packet is received on the CC pin. The BMC receiver
automatically enables the internal oscillator when an
Activity is sensed on the CC pin and load to the FIFO
when a packet is received. The I_ACTIVITY and
I_CRC_CHK interrupts alert the host software that a
valid packet was received.
Vendor specific interfaces for use with custom
docks or accessories
Communication with USB3.1 full featured cables
The FUSB302B integrates a thin BMC PD client which
includes the BMC physical layer and packet FIFOs (48
bytes for transmit and 80 bytes for receive) which allows
packets to be sent and received by the host software
through I2C accesses. The FUSB302B allows host
software to implement all features of USB BMC PD
through writes and reads of the FIFO and control of the
FUSB302B physical interface.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
FUSB302B I_COMP interrupt alerts
host software that a detach has
occurred
Attached.SRC
Host software configures
FUSB302B based on insertion
orientation and enables VBUS
and VCONN
Attached.SNK
Host software uses FUSB302B
comparators and DAC to
determine attach orientation and
port type
Figure 11.
Unattached.SRC:
Host software enables
FUSB302B pull-ups and
measure block to detect
attach
www.fairchildsemi.com
9
FUSB302B — Programmable USB Type-C Controller w/PD
role port. The FUSB302B can be used to implement a
dual-role port. A Type-C dual role port toggles between
presenting as a Type-C device and a Type-C host. The
host software controls the toggle time and configuration
of the FUSB302B in each state as shown in Figure 11.
Manual Dual-Role Detection and Configuration
CC1
CRC32
Tx
4B5B
BMC
BMC
DRIVER
FIFO
CC2
FIFO
CRC32
Rx
4B5B
Figure 12.
BMC
USB BMC Power Delivery Blocks
If no power applied to VDD then the SRC can recognize
the FUSB302B as a SNK.
Power Level Determination
The Type-C specification outlines the order of
precedence for power level determination which covers
power levels from basic USB2.0 levels to the highest
levels of USB PD. The host software is expected to
follow the USB Type-C specification for charging current
priority based on feedback from the FUSB302B
detection, external BC1.2 detection and any USB Power
Delivery communication.
PD Automatic Receive GoodCRC
The power delivery packets require a GoodCRC
acknowledge packet to be sent for each received packet
where the calculated CRC is the correct value. This
calculation is done by the FUSB302B and triggers the
I_CRC_CHK interrupt if the CRC is good. If the
AUTO_CRC (Switches1 register bit) is set and
AUTO_PRE=0, then the FUSB302B will automatically
send the GoodCRC control packet in response to
alleviate the local processor from responding quickly to
the received packet. If GoodCRC is required for
anything beyond SOP, then enable SOP*.
The FUSB302B does not integrate BC1.2 charger
detection which is assumed available in the USB
transceiver or USB charger in the system.
Power Up, Initialization and Reset
When power is first applied through VDD, the
FUSB302B is reset and registers are initialized to the
default values shown in the register map.
PD Send
The FUSB302B implements part of the PD protocol
layer for sending packets in an autonomous fashion.
The FUSB302B can be reset through software by
programming the SW_RES bit in the RESET register.
PD Packet
Sent
CDR
Automatic
Sending Retries
Soft Reset
Hard
Reset
If not, this Soft Reset packet is retried NRETRIES times
(MessageID is always 0 for all retries) if a GoodCRC
acknowledge
packet
is
not
received
with
CRCReceiveTimer expiring (tReceive of 1.1 ms max). If
all retries fail, then I_SOFTFAIL interrupt is triggered.
PD Automatic Sending Retries
If GoodCRC packet is not received and AUTO_RETRY
is set, then a retry of the same message that was in the
TxFIFO written by the processor is executed within
tRetry and that is repeated for NRETRY times.
PD Send Soft Reset
PD Send Hard Reset
If the correct GoodCRC packet is still not received for all
retries then I_RETRYFAIL interrupt is triggered and if
AUTO_SOFT_RESET is set, then a Soft Reset packet
is created (MessageID is set to 0 and the processor
upon servicing I_RETRYFAIL would set the true
MessageIDCounter to 0.
If all retries of the soft reset packet fail and if
AUTO_HARD_RESET is set, then a hard reset ordered
set is sent by loading up the TxFIFO with RESET1,
RESET1, RESET1, RESET2 and sending a hard reset.
Note only one hard reset is sent since the typical retry
mechanism doesn‟t apply. The processor‟s policy
engine firmware is responsible for retrying the hard
reset if it doesn‟t receive the required response.
If this Soft Reset is sent successfully where a GoodCRC
control packet is received with a MessageID=0 then
I_TXSENT interrupt occurs.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
10
FUSB302B — Programmable USB Type-C Controller w/PD
Code/
Control
Logic
During PD compliance testing, BIST test packets are
used to test physical layer of the PD interface such as,
frequency derivation, Amplitude measure and etc. The
one BIST test data packet has 7 data objects (28byte
data), header and CRC, but the message ID doesn‟t
change, the packet should be ignored and not acted on
by the PD policy engine. The PD protocol layer does
need to send a GoodCRC message back after every
packet. The BIST data can arrive continuously from a
tester, which could cause the FUSB302B Rx FIFO to
overflow and the PD protocol layer to stop sending
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
11
FUSB302B — Programmable USB Type-C Controller w/PD
GoodCRC messages unless the FIFO is read or cleared
quickly. The FUSB302B has a special register bit in the
I2C registers, bit[5] of address 0x09, that when the bit is
set, all the data received next will be flushed from the
RxFIFO automatically and the PD protocol layer will
keep sending GoodCRC messages back. Once BIST
test is done, tester sends HardReset, so with the
HardReset, processor has to write the bit back to
disable. Also, if the bit can be de-selected anytime, then
the coming packet has to be managed by protocol layer
and policy engine.
Flush Rx-FIFO with BIST (Built-In Self
Test) Test Data.
2
The FUSB302B includes a full I C slave controller. The
2
2
I C slave fully complies with the I C specification version
6 requirements. This block is designed for Fast Mode
Plus traffic up to 1 MHz SCL operation.
8bits
8bits
The TOGGLE features allow for very low power operation
with slow clocking thus may not be fully compliant to the
2
1 MHz operation. Examples of an I C write and read
sequence are shown in Figure 13 and Figure 14
respectively.
8bits
S Slave Address WR A Register Address K A Write Data A Write Data K+1 A Write Data K+2 A
Note:
A P
Single Byte read is initiated by Master with P immediately
following first data byte
2
Figure 13. I C Write Example
8bits
8bits
8bits
8bits
S Slave Address WR A Register Address K A S Slave Address RD A
Register address to Read specified
Note:
Write Data K+N-1
Read Data K
A Read Data K+1 A Read Data K+N-1 NA P
Single or multi byte read executed from current register location (Single Byte read is
initiated by Master with NA immediately following first data byte)
If Register is not specified Master will begin read from current register. In this case only sequence showing in Red
bracket is needed
From Master to Slave
From Slave to Master
S
A
Start Condition
Acknowledge (SDA Low)
Figure 14.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
NA NOT Acknowledge (SDA High)
WR Write=0
RD
P
Read =1
Stop Condition
2
I C Read Example
www.fairchildsemi.com
12
FUSB302B — Programmable USB Type-C Controller w/PD
I2C Interface
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be
operable above the recommended operating conditions and stressing the parts to these levels is not recommended.
In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability.
The absolute maximum ratings are stress ratings only.
Symbol
VvDD
VCC_HDDRP
VVBUS
TSTORAGE
Parameter
Min.
Max.
Unit
Supply Voltage from VDD
-0.5
6.0
V
CC pins when configured as Host, Device or Dual Role Port
-0.5
6.0
V
VBUS Supply Voltage
-0.5
28.0
V
Storage Temperature Range
-65
+150
C
TJ
Maximum Junction Temperature
+150
C
TL
Lead Temperature (Soldering, 10 Seconds)
+260
C
ESD
Human Body Model,
ANSI/ESDA/JEDEC JS-001-2012
All Pins
4
Charged Device Model, JEDEC
JESD22-C101
All Pins
1
kV
Recommended Operating Conditions
The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended
operating conditions are specified to ensure optimal performance. Fairchild does not recommend exceeding them or
designing to Absolute Maximum Ratings.
Symbol
Parameter
VVBUS
VBUS Supply Voltage
VVDD
VDD Supply Voltage
VVCONN
VCONN Supply Voltage
IVCONN
VCONN Supply Current
TA
Operating Temperature
Min.
Typ.
Max.
Unit
4.0
5.0
21.0
V
3.3
5.5
V
5.5
V
560
mA
+85
C
2.7
(3)
2.7
-40
Note:
3. This is for functional operation only and not the lowest limit for all subsequent electrical specifications below. All
electrical parameters have a minimum of 3.0 V operation.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
13
FUSB302B — Programmable USB Type-C Controller w/PD
Absolute Maximum Ratings
All typical values are at TA=25°C unless otherwise specified.
Baseband PD
Symbol
UI
TA=-40 to +85°C
TJ=-40 to +125°C
Parameter
Unit Interval
Unit
Min.
Typ. Max.
3.03
3.70
µs
33
75
Ω
23
µs
Transmitter
zDriver
Transmitter Output Impedance
tEndDriveBMC
Time to Cease Driving the Line after the end of the last bit of the
Frame
tHoldLowBMC
Time to Cease Driving the Line after the final High-to-Low
Transition
1
µs
VOH
Logic High Voltage
1.05
1.20
V
VOL
Logic Low Voltage
0
75
mV
tStartDrive
Time before the start of the first bit of the preamble when the
transmitter shall start driving the line
-1
1
µs
tRISE_TX
Rise Time
300
ns
tFALL_TX
Fall Time
300
ns
Receiver
cReceiver
zBmcRx
tRxFilter
Receiver Capacitance when Driver isn‟t Turned On
Receiver Input Impedance
(4)
Rx Bandwidth Limiting Filter
50
pF
1
MΩ
100
ns
Note:
4. Guaranteed by Characterization and/or Design. Not production tested.
Figure 15.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Transmitter Test Load
www.fairchildsemi.com
14
FUSB302B — Programmable USB Type-C Controller w/PD
DC and Transient Characteristics
Symbol
TA=-40 to +85°C
TJ=-40 to +125°C
Parameter
Min.
RSW_CCx
RDSON for SW1_CC1 and SW1_CC2
ISW_CCX
Over-Current Protection (OCP) limit at which VCONN switch shuts
off over the entire VCONN voltage range( OCPreg=0Fh)
tSoftStart
VCONN to CC1 & CC2
600
Time taken for the VCONN switch to turn on during which OverCurrent Protection is disabled
Unit
Typ.
Max.
0.4
1.2
Ω
800
1000
mA
1.5
ms
I80_CCX
SRC 80 µA CC current (Default) HOST_CUR1=0,
HOST_CUR0=1
64
80
96
µA
I180_CCX
SRC 180 µA CC Current (1.5 A) HOST_CUR1=1,
HOST_CUR0=0
166
180
194
µA
I330_CCX
SRC 330 µA CC Current (3 A) HOST_CUR1=1, HOST_CUR0=1
304
330
356
µA
VUFPDB
SNK Pull-down Voltage in Dead Battery under all Pull-up SRC
Loads
2.18
V
RDEVICE
Device Pull-down Resistance
5.6
kΩ
zOPEN
CC Resistance for Disabled State
(5)
4.6
5.1
kΩ
126
WAKElow
Wake threshold for CC pin SRC or SNK LOW value. Assumes
bandgap and wake circuit turned on ie PWR[0]=1
0.25
V
WAKEhigh
Wake threshold for CC pin SRC or SNK HIGH value. Assumes
bandgap and wake circuit turned on ie PWR[0]=1
1.45
V
20
mV
vBC_LVLhys
vBC_LVL
Hysteresis on the Ra and Rd Comparators
CC Pin Thresholds, Assumes PWR=4‟h7
BC=2‟b00
0.15
0.20
0.25
V
BC=2‟b01
0.61
0.66
0.70
V
BC=2‟b10
1.16
1.23
1.31
V
vMDACstepCC
Measure block MDAC step size for each code in MDAC[5:0]
register
42
mV
vMDACstepVBUS
Measure block MDAC step size for each code in MDAC[5:0]
register for VBUS measurement
420
mV
vVBUSthr
VBUS threshold at which I_VBUSOK interrupt is triggered.
Assumes measure block on ie PWR[2]=1.
tTOG1
When TOGGLE=1, time at which internal versions of
PU_EN1=PU_EN2=0 and PWDN1=PDWN2=1 selected to
present externally as a SNK in the DRP toggle
30
tTOG2
When TOGGLE=1, time at which internal versions of PU_EN1=1
or PU_EN2=1 and PWDN1=PDWN2=0 selected to present
externally as a SRC in the DRP toggle
20
tDIS
Disable time after a full toggle
(tTOG1+tTOG2) cycle so as to
save power
Tshut
Temp. for Vconn Switch Off
Thys
4.0
V
45
60
ms
30
40
ms
TOG_SAVE_PWR2:1=00
0
TOG_SAVE_PWR2:1=01
40
TOG_SAVE_PWR2:1=10
80
TOG_SAVE_PWR2:1=11
160
Temp. Hysteresis for Vconn Switch Turn On
ms
145
°
10
°
C
C
Note:
5. RDEVICE minimum and maximum specifications are only guaranteed when power is applied.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
15
FUSB302B — Programmable USB Type-C Controller w/PD
Type-C CC Switches
Symbol
Parameter
VDD (V)
Conditions
TA=-40 to +85°C
TJ=-40 to +125°C
Min.
Unit
Typ.
Max.
0.37
5.00
µA
40
µA
2
Idisable
Itog
Ipd_stby_
meas
Nothing Attached, No I C
Transactions
Disabled Current
3.0 to 5.5
Unattached (standby)
Toggle Current
Nothing attached, TOGGLE=1,
3.0 to 5.5 PWR[3:0]=1h, WAKE_EN=0,
TOG_SAVE_PWR2:1=01
25
BMC PD Standby
Current
Device Attached, BMC PD
Active But Not Sending or
3.0 to 5.5
Receiving Anything,
PWR[3:0]=7h,
40
µA
TA = -40 to +85°C
TJ=-40 to +125°C
Unit
USB PD Specific Parameters
Symbol
Parameter
Min.
tHardReset
If a Soft Reset message fails, a Hard Reset is sent after tHardReset
of CRCReceiveTimer expiring
Typ.
Max.
5
ms
5
ms
1.1
ms
Once the CRCReceiveTimer expires, a retry packet has to be sent
out within tRetry time. This time is hard to separate externally from
tReceive since they both happen sequentially with no visible
difference in the CC output
75
µs
tSoftReset
If a GoodCRC packet is not received within tReceive for NRETRIES
then a Soft Reset packet is sent within tSoftReset time.
5
ms
tTransmit
From receiving a packet, we have to send a GoodCRC in response
within tTransmit time. It is measured from the last bit of the EOP of
the received packet to the first bit sent of the preamble of the
GoodCRC packet
195
µs
If the FUSB302B cannot send a Hard Reset within
tHardReset
tHardResetComplete time because of a busy line, then a
Complete
I_HARDFAIL interrupt is triggered
tReceive
tRetry
This is the value for which the CRCReceiveTimer expires. The
CRCReceiveTimer is started upon the last bit of the EOP of the
transmitted packet
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
0.9
www.fairchildsemi.com
16
FUSB302B — Programmable USB Type-C Controller w/PD
Current Consumption
Symbol
Parameter
VDD (V)
TA=-40 to +85°C
TJ=-40 to +125°C
Conditions
Min.
Typ.
Unit
Max.
Host Interface Pins(INT_N)
VOLINTN
Output Low Voltage
3.0 to 5.5 IOL=4 mA
TINT_Mask
Time from global interrupt
mask bit cleared to when
INT_N goes LOW
3.0 to 5.5
0.4
50
2
I C Interface Pins – Standard, Fast, or Fast Mode Plus Speed Mode (SDA, SCL)
V
µs
(6)
VILI2C
Low-Level Input Voltage
3.0 to 5.5
VIHI2C
High-Level Input Voltage
3.0 to 5.5
1.32
V
VHYS
Hysteresis of Schmitt Trigger
Inputs
3.0 to 5.5
94
mV
Input Current of SDA and
SCL Pins
3.0 to 5.5
ICCTI2C
VDD Current when SDA or
SCL is HIGH
3.0 to 5.5 Input Voltage 1.8 V
VOLSDA
Low-Level Output Voltage
(Open-Drain)
IOLSDA
II2C
CI
0.51
Input Voltage 0.26 V
to 2.0 V
V
-10
10
µA
-10
10
µA
3.0 to 5.5 IOL=2 mA
0
0.35
V
Low-Level Output Current
(Open-Drain)
3.0 to 5.5 VOLSDA=0.4 V
20
Capacitance for Each I/O Pin
3.0 to 5.5
mA
5
pF
Note:
2
6. I C pull up voltage is required to be between 1.71 V and VDD.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
17
FUSB302B — Programmable USB Type-C Controller w/PD
IO Specifications
Symbol
fSCL
tHD;STA
Fast Mode Plus
Parameter
I2C_SCL Clock Frequency
Min.
Max.
Unit
0
1000
kHz
Hold Time (Repeated) START Condition
0.26
µs
tLOW
Low Period of I2C_SCL Clock
0.5
µs
tHIGH
High Period of I2C_SCL Clock
0.26
µs
tSU;STA
Set-up Time for Repeated START Condition
0.26
µs
tHD;DAT
Data Hold Time
0
µs
tSU;DAT
Data Set-up Time
tr
tf
tSU;STO
50
Rise Time of I2C_SDA and I2C_SCL Signals
Fall Time of I2C_SDA and I2C_SCL Signals
(7)
(7)
6
Set-up Time for STOP Condition
ns
120
ns
0.26
(7)
tBUF
Bus-Free Time between STOP and START Conditions
tSP
Pulse Width of Spikes that Must Be Suppressed by the Input Filter
Cb
ns
120
µs
0.5
0
(7)
Capacitive Load for each Bus Line
µs
50
ns
550
pF
tVD-DAT
Data Valid Time for Data from SCL LOW to SDA HIGH or LOW
(7)
Output
0
0.45
µs
tVD-ACK
Data Valid Time for acknowledge from SCL LOW to SDA HIGH or
(7)
LOW Output
0
0.45
µs
VnL
VnH
Noise Margin at the LOW Level
(7)
Noise Margin at the HIGH Level
(7)
0.2
V
0.4
V
Note:
7. Guaranteed by Characterization and/or Design. Not production tested.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
18
FUSB302B — Programmable USB Type-C Controller w/PD
I2C Specifications Fast Mode Plus I2C Specification
Table 4.
2
IC
TM
Definition of Timing for Full-Speed Mode Devices on the I C Bus
Slave Address
Name
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
FUSB302BUCX
FUSB302BMPX
0
1
0
0
0
1
0
R/W
FUSB302B01MPX
0
1
0
0
0
1
1
R/W
FUSB302B10MPX
0
1
0
0
1
0
0
R/W
FUSB302B11MPX
0
1
0
0
1
0
1
R/W
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
19
FUSB302B — Programmable USB Type-C Controller w/PD
2
Figure 16.
Register Definitions(8)(9)
Address
Register Name
Type
Rst Val
Bit7
Bit6
Bit5
Bit4
Bit3
MEAS_CC2
Bit2
Bit1
Bit0
MEAS_CC1
PDWN2
PDWN1
AUTO_CRC
TXCC2
TXCC1
MDAC0
0x01
Device ID
R
9X
0x02
Switches0
R/W
03
PU_EN2
PU_EN1
VCONN _CC2
VCONN _CC1
0x03
Switches1
R/W
20
POWERROLE
SPECREV1
SPECREV0
DATAROLE
0x04
Measure
R/W
31
MEAS_VBUS
MDAC5
MDAC4
MDAC3
MDAC2
MDAC1
0x05
Slice
R/W
60
SDAC_HYS2
SDAC5
SDAC4
SDAC3
SDAC2
SDAC1
SDAC0
0x06
Control0
R/W/C
24
TX_FLUSH
INT_MASK
HOST_CUR1
HOST_CUR0
AUTO_PRE
TX_START
0x07
Control1
R/W/C
00
ENSOP2DB
ENSOP1DB
RX_FLUSH
ENSOP2
ENSOP1
TOG_SAVE_P
WR1
TOG_RD_ONLY
0x08
Control2
R/W
02
0x09
Control3
R/W
06
0x0A
Mask1
R/W
00
0x0B
Power
R/W
01
0x0C
Reset
W/C
00
0x0D
OCPreg
R/W
0F
0x0E
Maska
R/W
00
0x0F
Maskb
R/W
00
Version ID[3:0]
SDAC_HYS1
TOG_SAVE_PW
R2
M_VBUSOK
M_OCP_TEMP
Product ID[1:0]
BIST_MODE2
Revision ID[1:0]
WAKE_EN
MODE[1:0]
TOGGLE
N_RETRIES[1:0]
AUTO_RETRY
SEND_HARD_
RESET
BIST_TMODE
AUTO_HARDR
ESET
AUTO_
SOFTRESET
M_ACTIVITY
M_COMP_CHNG
M_CRC_CHK
M_ALERT
M_WAKE
M_COLLISION
PWR3
PWR2
PWR1
PWR0
PD_RESET
SW_RES
M_TOGDONE
M_SOFTFAIL
M_RETRYFAIL
M_BC_LVL
OCP_RANGE
OCP_CUR2
OCP_CUR1
OCP_CUR0
M_HARDSENT
M_TXSENT
M_SOFTRST
M_HARDRST
M_GCRCSENT
0x10
Control4
R/W
00
0x3C
Status0a
R
00
SOFTFAIL
RETRYFAIL
POWER3
POWER2
SOFTRST
HARDRST
0x3D
Status1a
R
00
TOGSS3
TOGSS2
TOGSS1
RXSOP2DB
RXSOP1DB
RXSOP
0x3E
Interrupta
R/C
00
I_SOFTFAIL
I_RETRYFAIL
I_HARDSENT
I_TXSENT
I_SOFTRST
0x3F
Interruptb
R/C
00
0x40
Status0
R
00
VBUSOK
ACTIVITY
COMP
CRC_CHK
ALERT
WAKE
BC_LVL1
0x41
Status1
R
28
RXSOP2
RXSOP1
RX_EMPTY
RX_FULL
TX_EMPTY
TX_FULL
OVRTEMP
OCP
0x42
Interrupt
R/C
00
I_VBUSOK
I_ACTIVITY
I_COMP_CHNG
I_CRC_CHK
I_ALERT
I_WAKE
I_COLLISION
I_BC_LVL
0x43
FIFOs
R/W (10)
Type C Bits
USB PD Bits
TOG_EXIT_AUD
I_OCP_TEMP
I_TOGDONE
I_HARDRST
I_GCRCSENT
00
BC_LVL0
Write to TX FIFO or read from RX FIFO repeatedly without address auto increment
General Bits
Notes:
8. Do not use registers that are blank.
9. Values read from undefined register bits are not defined and invalid. Do not write to undefined registers.
10. FIFO register is serially read/written without auto address increment.
© 2015 Fairchild Semiconductor Corporation - FUSB302B • Rev. 1.4
20
www.fairchildsemi.com
-
FUSB302B — Programmable USB Type-C Controller w/PD
Table 5.
Device ID
Address: 01h
Reset Value: 0x1001_XXXX
Type: Read
Bit #
Name
7:4
Version ID
3:2
Product ID
1:0
Revision ID
Table 6.
-
R/W/C
R
R
R
Size (Bits)
Description
4
Device version ID by Trim or etc.
A_[Revision ID]: 1000 (e.g. A_revA)
B_[Revision ID]: 1001
C_[Revision ID]: 1010 etc
2
“01”, “10” and “11” applies to MLP only.
00: FUSB302BMPX(Default) & FUSB302BUCX
01: FUSB302B01MPX
10: FUSB302B10MPX
11: FUSB302B11MPX
2
Revision History of each version
[Version ID]_revA: 00(e.g. revA)
[Version ID]_revB: 01 (e.g. revB)
[Version ID]_revC: 10 (e.g. revC)
[Version ID]_revC: 11 (e.g. revD)
Switches0
Address: 02h
Reset Value: 0x0000_0011
Type: Read/Write
Bit #
Name
R/W/C
Size (Bits)
7
PU_EN2
R/W
1
1: Apply host pull up current to CC2 pin.
6
PU_EN1
R/W
1
1: Apply host pull up current to CC1 pin.
5
VCONN_CC2
R/W
1
1: Turn on the VCONN current to CC2 pin.
4
VCONN_CC1
R/W
1
1: Turn on the VCONN current to CC1 pin.
3
MEAS_CC2
R/W
1
1: Use the measure block to monitor or measure the voltage on
CC2.
2
MEAS_CC1
R/W
1
1: Use the measure block to monitor or measure the voltage on
CC1.
1
PDWN2
R/W
1
1: Device pull down on CC2. 0: no pull down.
0
PDWN1
R/W
1
1: Device pull down on CC1. 0: no pull down.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Description
www.fairchildsemi.com
21
-
Switches1
Address: 03h
Reset Value: 0x0010_0000
Type: Read/Write
Bit #
7
Name
POWERROLE
SPECREV1:
SPECREV0
6:5
R/W/C
Size (Bits)
R/W
R/W
Description
1
Bit used for constructing the GoodCRC acknowledge packet.
This bit corresponds to the Port Power Role bit in the message
header if an SOP packet is received
1: Source if SOP
0: Sink if SOP
2
Bit used for constructing the GoodCRC acknowledge packet.
These bits correspond to the Specification Revision bits in the
message header
00: Revision 1.0
01: Revision 2.0
10, 11: Do Not Use
4
DATAROLE
R/W
1
Bit used for constructing the GoodCRC acknowledge packet.
This bit corresponds to the Port Data Role bit in the message
header.
For SOP:
1: SRC
0: SNK
3
Reserved
N/A
1
Do Not Use
2
AUTO_CRC
R/W
1
1: Starts the transmitter automatically when a message with a
good CRC is received and automatically sends a GoodCRC
acknowledge packet back to the relevant SOP*
0: Feature disabled.
1
TXCC2
R/W
1
1: Enable BMC transmit driver on CC2 pin.
0
TXCC1
R/W
1
1: Enable BMC transmit driver on CC1 pin.
Table 8.
-
Measure
Address: 04h
Reset Value: 0x0011_0001
Type: Read/Write
Bit #
Name
7
Reserved
6
MEAS_VBUS
R/W/C Size (Bits)
N/A
R/W
Description
1
Do Not Use
1
0: MDAC/comparator measurement is controlled by
MEAS_CC* bits.
1: Measure VBUS with the MDAC/comparator. This requires
MEAS_CC* bits to be 0.
Measure Block DAC data input. LSB is equivalent to 42 mV of
voltage which is compared to the measured CC voltage. The
measured CC is selected by MEAS_CC2, or MEAS_CC1 bits.
5:0
MDAC[5:0]
R/W
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
6
MDAC[5:0]
MEAS_VBUS=0
MEAS_VBUS=1
Unit
00_0000
0.042
0.420
V
00_0001
0.084
0.840
V
11_0000
2.058
20.58
V
11_0011
2.184
21.84
V
11_1110
2.646
26.46
V
11_1111
>2.688
26.88
V
www.fairchildsemi.com
22
FUSB302B — Programmable USB Type-C Controller w/PD
Table 7.
-
Slice
Address: 05h
Reset Value: 0x0110_0000
Type: Read/Write
Bit #
Name
R/W/C Size (Bits)
Description
7:6
SDAC_HYS[1:0]
R/W
2
Adds hysteresis where there are now two thresholds, the lower
threshold which is always the value programmed by
SDAC[5:0] and the higher threshold that is:
11: 255 mV hysteresis: higher threshold = (SDAC value + 20hex)
10 = 170 mV hysteresis: higher threshold = (SDAC value + Ahex)
01 = 85 mV hysteresis: higher threshold = (SDAC value + 5)
00 = No hysteresis: higher threshold = SDAC value
5:0
SDAC[5:0]
R/W
6
BMC Slicer DAC data input. Allows for a programmable threshold
so as to meet the BMC receive mask under all noise conditions.
Table 10. Control0
-
Address: 06h
Reset Value: 0x0010_0100
Type: (see column below)
Bit #
Name
R/W/C Size (Bits)
Description
7
Reserved
N/A
1
Do Not Use
6
TX_FLUSH
W/C
1
1: Self clearing bit to flush the content of the transmit FIFO.
5
INT_MASK
R/W
1
1: Mask all interrupts.
0: Interrupts to host are enabled.
4
Reserved
N/A
1
Do Not Use
2
1: Controls the host pull up current enabled by PU_EN[2:1]:
00: No current
01: 80 µA – Default USB power.
10: 180 µA – Medium Current Mode: 1.5 A
11: 330 µA – High Current Mode: 3 A
3:2
HOST_CUR[1:0]
R/W
1
AUTO_PRE
R/W
1
1: Starts the transmitter automatically when a message with a good
CRC is received. This allows the software to take as much as
300 µS to respond after the I_CRC_CHK interrupt is received.
Before starting the transmitter, an internal timer waits for
approximately 170 µS before executing the transmit start and
preamble.
0: Feature disabled.
0
TX_START
W/C
1
1: Start transmitter using the data in the transmit FIFO. Preamble is
started first. During the preamble period the transmit data can start
to be written to the transmit FIFO. Self clearing.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
23
FUSB302B — Programmable USB Type-C Controller w/PD
Table 9.
-
Address: 07h
Reset Value: 0x0000_0000
Type: (see column below)
Bit #
Name
R/W/C Size (Bits)
Description
7
Reserved
N/A
1
Do Not Use
6
ENSOP2DB
R/W
1
1: Enable SOP”_DEBUG (SOP double prime debug) packets
0: Ignore SOP”_DEBUG (SOP double prime debug) packets
5
ENSOP1DB
R/W
1
1: Enable SOP„_DEBUG (SOP prime debug) packets
0: Ignore SOP‘_DEBUG (SOP prime debug) packets
4
BIST_MODE2
R/W
1
1: Sent BIST Mode 01s pattern for testing
3
Reserved
N/A
1
Do Not Use
2
RX_FLUSH
W/C
1
1: Self clearing bit to flush the content of the receive FIFO.
1
ENSOP2
R/W
1
1: Enable SOP”(SOP double prime) packets
0: Ignore SOP”(SOP double prime) packets
0
ENSOP1
R/W
1
1: Enable SOP„(SOP prime) packets
0: Ignore SOP‘(SOP prime) packets
Table 12. Control2
-
Address: 08h
Reset Value: 0x0000_0010
Type: (see column below)
Bit #
7:6
Name
TOG_SAVE_PWR2:
TOG_SAVE_PWR1
R/W/C Size (Bits)
N/A
Description
2
00: Don’t go into the DISABLE state after one cycle of
toggle
01: Wait between toggle cycles for tDIS time of 40 ms
10: Wait between toggle cycles for tDIS time of 80 ms
11: Wait between toggle cycles for tDIS time of 160 ms
5
TOG_RD_ONLY
R/W
1
1: When TOGGLE=1 only Rd values will cause the TOGGLE
state machine to stop toggling and trigger the I_TOGGLE
interrupt.
0: When TOGGLE=1, Rd and Ra values will cause the
TOGGLE state machine to stop toggling.
4
Reserved
N/A
1
Do Not Use
3
WAKE_EN
R/W
1
1: Enable Wake Detection functionality if the power state is
correct
0: Disable Wake Detection functionality
2:1
MODE
R/W
2
11: Enable SRC polling functionality if TOGGLE=1
10: Enable SNK polling functionality if TOGGLE=1
01: Enable DRP polling functionality if TOGGLE=1
00: Do Not Use
0
TOGGLE
R/W
1
1: Enable DRP, SNK or SRC Toggle autonomous functionality
0: Disable DRP, SNK and SRC Toggle functionality
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
24
FUSB302B — Programmable USB Type-C Controller w/PD
Table 11. Control1
-
Address: 09h
Reset Value: 0x0000_0110
Type: (see column below)
Bit #
Name
R/W/C
Size (Bits)
7
Reserved
N/A
1
Do Not Use
6
SEND_HARD_RESET
W/C
1
1: Send a hard reset packet (highest priority)
0: Don’t send a soft reset packet
5
BIST_TMODE
R/W
1
1: BIST mode. Receive FIFO is cleared immediately after
sending GoodCRC response.
0: Normal operation, All packets are treated as usual.
4
AUTO_HARDRESET
R/W
1
1: Enable automatic hard reset packet if soft reset fail
0: Disable automatic hard reset packet if soft reset fail
3
AUTO_SOFTRESET
R/W
1
1: Enable automatic soft reset packet if retries fail
0: Disable automatic soft reset packet if retries fail
2
11: Three retries of packet (four total packets sent)
10: Two retries of packet (three total packets sent)
01: One retry of packet (two total packets sent)
00: No retries (similar to disabling auto retry)
1
1: Enable automatic packet retries if GoodCRC is not
received
0: Disable automatic packet retries if GoodCRC not
received
2:1
N_RETRIES[1:0]
0
R/W
AUTO_RETRY
R/W
Description
Table 14. Mask
-
Address: 0Ah
Reset Value: 0x0000_0000
Type: Read/Write
Bit #
Name
R/W/C Size (Bits)
7
M_VBUSOK
R/W
1
1: Mask I_VBUSOK interrupt bit.
0: Do not mask.
6
M_ACTIVITY
R/W
1
1: Mask interrupt for a transition in CC bus activity.
0: Do not mask.
5
M_COMP_CHNG
R/W
1
1: Mask I_COMP_CHNG interrupt for change is the value of
COMP, the measure comparator.
0: Do not mask.
4
M_CRC_CHK
R/W
1
1: Mask interrupt from CRC_CHK bit.
0: Do not mask.
3
M_ALERT
R/W
1
1: Mask the I_ALERT interrupt bit.
0: Do not mask.
2
M_WAKE
R/W
1
1: Mask the I_WAKE interrupt bit.
0: Do not mask.
1
M_COLLISION
R/W
1
1: Mask the I_COLLISION interrupt bit.
0: Do not mask.
0
M_BC_LVL
R/W
1
1: Mask a change in host requested current level.
0: Do not mask.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Description
www.fairchildsemi.com
25
FUSB302B — Programmable USB Type-C Controller w/PD
Table 13. Control3
-
Address: 0Bh
Reset Value: 0x0000_0001
Type: Read/Write
Bit #
Name
7:4
Reserved
3:0
R/W/C Size (Bits)
N/A
PWR[3:0]
R/W
Description
4
Do Not Use
4
Power enables:
PWR[0]: Bandgap and wake circuit.
PWR[1]: Receiver powered and current references for Measure
block
PWR[2]: Measure block powered.
PWR[3]: Enable internal oscillator.
Table 16. Reset
-
Address: 0Ch
Reset Value: 0x0000_0000
Type: Write/Clear
Bit #
Name
R/W/C Size (Bits)
Description
7:2
Reserved
N/A
6
Do Not Use
1
PD_RESET
W/C
1
1: Reset just the PD logic for both the PD transmitter and
receiver.
0
SW_RES
W/C
1
1: Reset the FUSB302B including the I2C registers to their
default values.
Table 17. OCPreg
-
Address: 0Dh
Reset Value: 0x0000_1111
Type: Read/Write
Bit #
Name
7:4
Reserved
N/A
4
Do Not Use
3
OCP_RANGE
R/W
1
1: OCP range between 100 mA-800 mA (max_range=800 mA)
0: OCP range between 10 mA-80 mA (max_range=80 mA)
3
111: max_range (see bit definition above for OCP_RANGE)
110: 7*max_range/8
101: 6*max_range/8
100: 5*max_range/8
011: 4*max_range/8
010: 3*max_range/8
001: 2*max_range/8
000: max_range/8
2:0
R/W/C Size (Bits)
OCP_CUR2,
OCP_CUR1,
OCP_CUR0
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
R/W
Description
www.fairchildsemi.com
26
FUSB302B — Programmable USB Type-C Controller w/PD
Table 15. Power
FUSB302B — Programmable USB Type-C Controller w/PD
Table 18. Maska
-
Address: 0Eh
Reset Value: 0x0000_0000
Type: Read/Write
Bit #
Name
R/W/C Size (Bits)
Description
7
M_OCP_TEMP
R/W
1
1: Mask the I_OCP_TEMP interrupt
6
M_TOGDONE
R/W
1
1: Mask the I_TOGDONE interrupt
5
M_SOFTFAIL
R/W
1
1: Mask the I_SOFTFAIL interrupt
4
M_RETRYFAIL
R/W
1
1: Mask the I_RETRYFAIL interrupt
3
M_HARDSENT
R/W
1
1: Mask the I_HARDSENT interrupt
2
M_TXSENT
R/W
1
1: Mask the I_TXSENT interrupt
1
M_SOFTRST
R/W
1
1: Mask the I_SOFTRST interrupt
0
M_HARDRST
R/W
1
1: Mask the I_HARDRST interrupt
Table 19. Maskb
-
Address: 0Fh
Reset Value: 0x0000_0000
Type: Read/Write
Bit #
Name
7:1
Reserved
R/W/C Size (Bits)
N/A
6
Do Not Use
Description
0
M_GCRCSENT
R/W
1
1: Mask the I_GCRCSENT interrupt
Table 20. Control4
-
Address: 00h
Reset Value: 0x0000_0000
Type: Read/Write
Bit #
Name
R/W/C Size (Bits)
7:1
Reserved
N/A
6
Do Not Use
0
TOG_EXIT_AUD
R/W
1
1: In auto Rd only Toggle mode, stop Toggle at Audio
accessory (Ra on both CC)
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Description
www.fairchildsemi.com
27
-
Address: 3Ch
Reset Value: 0x0000_0000
Type: Read
Bit #
Name
R/W/C
Size (Bits)
Description
7:6
Reserved
N/A
2
Do Not Use
5
SOFTFAIL
R
1
1: All soft reset packets with retries have failed to get a
GoodCRC acknowledge. This status is cleared when a
START_TX, TXON or SEND_HARD_RESET is executed.
4
RETRYFAIL
R
1
1: All packet retries have failed to get a GoodCRC
acknowledge. This status is cleared when a START_TX,
TXON or SEND_HARD_RESET is executed.
3:2
POWER3:POWER2
R
2
Internal power state when logic internals needs to control the
power state. POWER3 corresponds to PWR3 bit and
POWER2 corresponds to PWR2 bit. The power state is the
higher of both PWR[3:0] and {POWER3, POWER2, PWR[1:0]}
so that if one is 03 and the other is F then the internal power
state is F.
1
SOFTRST
R
1
1: One of the packets received was a soft reset packet
0
HARDRST
R
1
1: Hard Reset PD ordered set has been received
Table 22. Status1a
-
Address: 3Dh
Reset Value: 0x0000_0000
Type: Read
Bit #
Name
R/W/C
Size (Bits)
Description
7:6
Reserved
N/A
2
Do Not Use
5:3
TOGSS3: TOGSS2:
TOGSS1
R
3
000: Toggle logic running (processor has previously written
TOGGLE=1)
001: Toggle functionality has settled to SRCon CC1
(STOP_SRC1 state)
010: Toggle functionality has settled to SRCon CC2
(STOP_SRC2 state)
101: Toggle functionality has settled to SNKon CC1
(STOP_SNK1 state)
110: Toggle functionality has settled to SNKon CC2
(STOP_SNK2 state)
111: Toggle functionality has detected AudioAccessory with
vRa on both CC1 and CC2 (settles to STOP_SRC1 state)
Otherwise: Not defined (do not interpret)
2
RXSOP2DB
R
1
1: Indicates the last packet placed in the RxFIFO is type
SOP”_DEBUG (SOP double prime debug).
1
RXSOP1DB
R
1
1: Indicates the last packet placed in the RxFIFO is type
SOP‟_DEBUG (SOP prime debug).
0
RXSOP
R
1
1: Indicates the last packet placed in the RxFIFO is type SOP.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
28
FUSB302B — Programmable USB Type-C Controller w/PD
Table 21. Status0a
-
Address: 3Eh
Reset Value: 0x0000_0000
Type: Read/Clear
Bit #
Name
R/W/C
Size (Bits)
7
I_OCP_TEMP
R/C
1
6
I_TOGDONE
R/C
1
5
I_SOFTFAIL
R/C
1
4
I_RETRYFAIL
R/C
1
3
I_HARDSENT
R/C
1
2
I_TXSENT
R/C
1
1
0
I_SOFTRST
I_HARDRST
R/C
R/C
1
1
Description
1: Interrupt from either a OCP event on one of the VCONN
switches or an over-temperature event
1: Interrupt indicating the TOGGLE functionality was
terminated because a device was detected.
1: Interrupt from automatic soft reset packets with retries
have failed
1: Interrupt from automatic packet retries have failed
1: Interrupt from successfully sending a hard reset ordered
set
1: Interrupt to alert that we sent a packet that was
acknowledged with a GoodCRC response packet
1: Received a soft reset packet
1: Received a hard reset ordered set
Table 24. Interruptb
-
Address: 3Fh
Reset Value: 0x0000_0000
Type: Read/Clear
Bit #
Name
R/W/C
Size (Bits)
7
Reserved
N/A
6
0
I_GCRCSENT
R/C
1
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Description
Do Not Use
1: Sent a GoodCRC acknowledge packet in response to an
incoming packet that has the correct CRC value.
www.fairchildsemi.com
29
FUSB302B — Programmable USB Type-C Controller w/PD
Table 23. Interrupta
-
Address: 40h
Reset Value: 0x0000_0000
Type: Read
Bit #
Name
R/W/C Size (Bits)
7
VBUSOK
R
1
6
ACTIVITY
R
1
5
COMP
R
1
4
CRC_CHK
R
1
3
ALERT
R
1
2
WAKE
R
1
1:0
BC_LVL[1:0]
R
2
Description
1: Interrupt occurs when VBUS transitions through vVBUSthr.
This bit typically is used to recognize port partner during
startup.
1: Transitions are detected on the active CC* line. This bit goes
high after a minimum of 3 CC transitions, and goes low with no
Transitions.
0: inactive.
1: Measured CC* input is higher than reference level driven
from the MDAC.
0: Measured CC* input is lower than reference level driven
from the MDAC.
1: Indicates the last received packet had the correct CRC. This
bit remains set until the SOP of the next packet.
0: Packet received for an enabled SOP* and CRC for the
enabled packet received was incorrect
1: Alert software an error condition has occurred. An alert is
caused by:
TX_FULL: the transmit FIFO is full.
RX_FULL: the receive FIFO is full.
See Status1 bits
1: Voltage on CC indicated a device attempting to attach.
0: WAKE either not enabled (WAKE_EN=0) or no device
attached.
Current voltage status of the measured CC pin interpreted as
host current levels as follows:
00: < 200 mV
01: >200 mV, 660 mV, 1.23 V
Note the software must measure these at an appropriate time,
while there is no signaling activity on the selected CC line.
BC_LVL is only defined when Measure block is on which is
when register bits PWR[2]=1 and either MEAS_CC1=1 or
MEAS_CC2=1
Table 26. Status1
-
Address: 41h
Reset Value: 0x0010_1000
Type: Read
Bit #
Name
R/W/C Size (Bits)
7
RXSOP2
R
1
1: Indicates the last packet placed in the RxFIFO is type SOP‟‟
(SOP double prime).
6
RXSOP1
R
1
1: Indicates the last packet placed in the RxFIFO is type SOP‟
(SOP prime).
5
RX_EMPTY
R
1
1: The receive FIFO is empty.
4
RX_FULL
R
1
1: The receive FIFO is full.
3
TX_EMPTY
R
1
1: The transmit FIFO is empty.
2
TX_FULL
R
1
1: The transmit FIFO is full.
1
OVRTEMP
R
1
1: Temperature of the device is too high.
0
OCP
R
1
1: Indicates an over-current or short condition has occurred on
the VCONN switch.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Description
www.fairchildsemi.com
30
FUSB302B — Programmable USB Type-C Controller w/PD
Table 25. Status0
-
Address: 42h
Reset Value: 0x0000_0000
Type: Read/Clear
Bit #
Name
R/W/C
Size (Bits)
Description
7
I_VBUSOK
R/C
1
1: Interrupt occurs when VBUS transitions through 4.5 V. This
bit typically is used to recognize port partner during startup.
6
I_ACTIVITY
R/C
1
1: A change in the value of ACTIVITY of the CC bus has
occurred.
5
I_COMP_CHNG
R/C
1
1: A change in the value of COMP has occurred. Indicates
selected CC line has tripped a threshold programmed into the
MDAC.
4
I_CRC_CHK
R/C
1
1: The value of CRC_CHK newly valid. I.e. The validity of the
incoming packet has been checked.
3
I_ALERT
R/C
1
1: Alert software an error condition has occurred. An alert is
caused by:
TX_FULL: the transmit FIFO is full.
RX_FULL: the receive FIFO is full.
See Status1 bits.
2
I_WAKE
R/C
1
1: Voltage on CC indicated a device attempting to attach.
Software must then power up the clock and receiver blocks.
1
I_COLLISION
R/C
1
1: When a transmit was attempted, activity was detected on the
active CC line. Transmit is not done. The packet is received
normally.
0
I_BC_LVL
R/C
1
1: A change in host requested current level has occurred.
Table 28. FIFOs
-
Address: 43h
Reset Value: 0x0000_0000
Type: (see column below)
Bit #
7:0
Name
R/W/C
TX/RX Token
Read or
Write
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
Size (Bits)
8
Description
Writing to this register writes a byte into the transmit FIFO.
Reading from this register reads from the receive FIFO.
Each byte is a coded token. Or a token followed by a fixed
number of packed data byte (see token coding in Table 29).
www.fairchildsemi.com
31
FUSB302B — Programmable USB Type-C Controller w/PD
Table 27. Interrupt
Transmit Data Tokens
Port software interacts with the port chip in two primary
ways:
Transmit data tokens provide in-sequence transmit
control and data for the transmit logic. Note that the
token codes, and their equivalent USB PD K-Code are
not the same. Tokens are read one at a time when they
reach the end of the TX FIFO. I.e., the specified token
action is performed before the next token is read from
the TX FIFO.
I C Registers
All reserved bits written in the TxFIFO should be 0
and all reserved bit read from the RxFIFO should
be ignored.
2
8 bit data tokens sent to or received from the FIFO
register.
The tokens are defined as follows:
Table 29. Tokens Used in FIFO
Code
Name
Size (Bytes)
Description
101x-xxx1
(0xA1)
TXON
1
Alternative method for starting the transmitter with the TX-START bit.
This is not a token written to the TxFIFO but a command much like
TX_START but it is more convenient to write it while writing to the
TxFIFO in one contiguous write operation. It is preferred that the
TxFIFO is first written with data and then TXON or TX_START is
executed. It is expected that A1h will be written for TXON not any
other bits where x is non-zero such as B1h, BFh, etc
0x12
SOP1
1
When reaching the end of the FIFO causes a Sync-1 symbol to be
transmitted.
0x13
SOP2
1
When reaching the end of the FIFO causes a Sync-2 symbol to be
transmitted.
0x1B
SOP3
1
When reaching the end of the FIFO causes a Sync-3 symbol to be
transmitted.
0x15
RESET1
1
When reaching the end of the FIFO causes a RST-1 symbol to be
transmitted.
0x16
RESET2
1
When reaching the end of the FIFO causes a RST-2 symbol to be
transmitted.
This data token must be immediately followed by a sequence of N
packed data bytes. This token is defined by the 3 MSB‟s being set to
3‟b100. The 5 LSB‟s are the number of packed bytes being sent.
Note: N cannot be less than 2 since the minimum control packet has a
header that is 2 bytes and N cannot be greater than 30 since the
maximum data packet has 30 bytes (2 byte header + 7 data objects
each having 4 bytes)
Packed data bytes have two 4 bit data fields. The 4 LSB‟s are sent
first, after 4b5b conversion etc in the chip.
0x80
PACKSYM
1+N
0xFF
JAM_CRC
1
Causes the CRC, calculated by the hardware, to be inserted into the
transmit stream when this token reaches the end of the TX FIFO.
0x14
EOP
1
Causes an EOP symbol to be sent when this token reaches the end
of the TX FIFO.
0xFE
TXOFF
1
Turn off the transmit driver. Typically the next symbol after EOP.
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
32
FUSB302B — Programmable USB Type-C Controller w/PD
Software Model
Receive data tokens provide in-sequence receive control and data for the receive logic. The RxFIFO can absorb as
many packets as the number of bytes in the RxFIFO (80 bytes). The tokens are defined as follows:
Table 30. Tokens Used in RxFIFO
Code
(in binary)
Name
Size (Bytes)
Description
111b_bbbb
SOP
1
First byte of a received packet to indicate that the packet is an SOP
packet (“b” is undefined and can be any bit)
110b_bbbb
SOP1
1
First byte of a received packet to indicate that the packet is an
SOP‟ packet and occurs only if ENSOP1=1 (“b” is undefined and
can be any bit)
101b_bbbb
SOP2
1
First byte of a received packet to indicate that the packet is an
SOP‟‟ packet and occurs only if ENSOP2=1 (“b” is undefined and
can be any bit)
100b_bbbb
SOP1DB
1
First byte of a received packet to indicate that the packet is an
SOP‟_DEBUG packet and occurs only if ENSOP1DB=1 (“b” is
undefined and can be any bit)
011b_bbbb
SOP2DB
1
First byte of a received packet to indicate that the packet is an
SOP‟‟_DEBUG packet and occurs only if ENSOP2DB=1 (“b” is
undefined and can be any bit)
010b_bbbb /
001b_bbbb /
000b_bbbb
Do Not Use
1
These can be used in future versions of this device and should not
be relied on to be any special value. (“b” is undefined and can be
any bit)
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
33
FUSB302B — Programmable USB Type-C Controller w/PD
Receive Data Tokens
FUSB302B
Figure 17.
FUSB302/FUSB302B Reference Schematic Diagram
Table 31. Recommended Component Values for Reference Schematic
Recommended Value
Symbol
Parameter
Unit
Min.
Typ.
Max.
CRECV
CCX Receiver Capacitance
200
600
pF
CBULK
VCONN Source Bulk Capacitance
10
220
µF
CVCONN
VCONN Decoupling Capacitance
0.1
µF
CVDD1
VDD Decoupling Capacitance
0.1
µF
CVDD2
VDD Decoupling Capacitance
1.0
µF
I2C Pull-up Resistors
4.7
kΩ
kΩ
RPU
RPU_INT
VPU
INT_N Pull-up Resistor
1.0
4.7
I2C Pull-up Voltage
1.62
1.80
1.98
V
The table below is in reference to the WLCSP package drawing on the following page.
Product-Specific Dimensions
Product
D
E
X
Y
FUSB302BUCX
1.260 mm
1.215 mm
0.2075 mm
0.230 mm
© 2015 Fairchild Semiconductor Corporation
FUSB302B • Rev.1.4
www.fairchildsemi.com
34
FUSB302B — Programmable USB Type-C Controller w/PD
Reference Schematic
F
0.03 C
A
E
2X
0.40
B
A1
PIN A1
INDEX AREA
CU PAD (BOTTOM)
0.40
D
0.03 C
Solder Mask
2X
LAND PATTERN RECOMMENDATION
(NSMD PAD TYPE)
TOP VIEW
0.06 C
0.05 C
C
E
SEATING PLANE
D
SIDE VIEWS
NOTES:
A. NO JEDEC REGISTRATION APPLIES.
B. DIMENSIONS ARE IN MILLIMETERS.
9X
0.40
C. DIMENSIONS AND TOLERANCE
PER ASME Y14.5M, 2009.
C
B
A
0.40
1 2 3
D. DATUM C IS DEFINED BY THE SPHERICAL
CROWNS OF THE BALLS.
F
E. PACKAGE NOMINAL HEIGHT IS 488 MICRONS
F. FOR DIMENSIONS D, E, X, AND Y SEE
PRODUCT DATASHEET.
BOTTOM VIEW
G. DRAWING FILNAME: MKT-UC009ALrev1
A
2.50
0.05 C
2X
0.50
TYP
B
0.30 TYP
0.58
PIN #1
IDENT
2.50
1.45
2.43
0.05 C
0.10 C
0.08 C
2X
TOP VIEW
0.80
0.70
0.20
0.10
SEATING PLANE
0.05
0.00
C
FRONT VIEW
0.30
14X
4
2.50±0.05
1.50
1.25
7
3
8
1.50
1.25
10
0.50
1
PIN #1
IDENT
14
11
0.50
BOTTOM VIEW
1.45
2.43
LAND PATTERN RECOMMENDATION
NOTES:
A. NO INDUSTRY STANDARD APPLIES TO
THIS PACKAGE
B. ALL DIMENSIONS ARE IN MILLIMETERS
C. DIMENSIONS AND TOLERANCES PER
ASME Y14.5M, 2009
D. LAND PATTERN RECOMMENDATION
IS AN EXISTING INDUSTRY LAND
PATTERN
E. DRAWING FILENAME: MKT-MLP14Drev4
0.30
0.18 14X
0.10 M C A B
0.05 M C
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
© Semiconductor Components Industries, LLC
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
www.onsemi.com
1
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
www.onsemi.com
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
ON Semiconductor:
FUSB302BUCX FUSB302BMPX FUSB302B01MPX FUSB302B10MPX FUSB302B11MPX
工商网监
湘ICP备2023018690号
